Hewlett Packard Enterprise ProLiant DL385 Gen10 SPECpower_ssj2008 = 18,294 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 15, 2019
Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 11,092,443 423 26,252
90% 90.0% 10,024,607 401 25,022
80% 80.0% 8,908,851 378 23,570
70% 70.0% 7,795,877 355 21,958
60% 60.0% 6,684,706 333 20,082
50% 50.0% 5,573,930 314 17,774
40% 40.0% 4,453,376 292 15,242
30% 30.0% 3,338,519 261 12,788
20% 20.0% 2,228,220 228 9,784
10% 10.0% 1,111,955 199 5,585
Active Idle 0 163 0
∑ssj_ops / ∑power = 18,294
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL385 Gen10
Form Factor: 2U
CPU Name: AMD EPYC 7702 2.0 GHz
CPU Characteristics: 64-Core, 2.0GHz 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per core
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2933Y-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G Mixed Use M.2 2280 SSD (875488-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 1 x HPE High Performance Fan Kit (867810-B21), 1 x HPE High Performance Heatsink Kit (882098-B21)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx7680m -Xms7680m -Xmn6000m -XX:SurvivorRatio=15 -XX:InlineSmallCode=9000 -XX:FreqInlineSize=5000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=8 -XX:+UseParallelOldGC -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=80 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity: numactl --cpunodebind=[0-31] --localalloc
JVM Instances: 32
JVM Initial Heap (MB): 7680
JVM Maximum Heap (MB): 7680
JVM Address Bits: 64
Boot Firmware Version: A40 v2.00 (07/15/2019)
Management Firmware Version: 1.43 May 23 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 256
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_181-b13 (build 25.181-b13, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E62NT-80-1
Date of Calibration: 11-Jun-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 423 22.4
90% 401 22.4
80% 378 22.4
70% 355 22.5
60% 333 22.5
50% 314 22.6
40% 292 22.6
30% 261 22.5
20% 228 22.5
10% 199 22.6
Active Idle 163 22.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.4 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,140,519
Calibration 2     11,138,165
Calibration 3     11,140,602
ssj_ops@calibrated=11,139,383
100% 99.6% 11,139,383 11,092,443
90% 90.0% 10,025,445 10,024,607
80% 80.0% 8,911,507 8,908,851
70% 70.0% 7,797,568 7,795,877
60% 60.0% 6,683,630 6,684,706
50% 50.0% 5,569,692 5,573,930
40% 40.0% 4,455,753 4,453,376
30% 30.0% 3,341,815 3,338,519
20% 20.0% 2,227,877 2,228,220
10% 10.0% 1,113,938 1,111,955
Active Idle   0 0

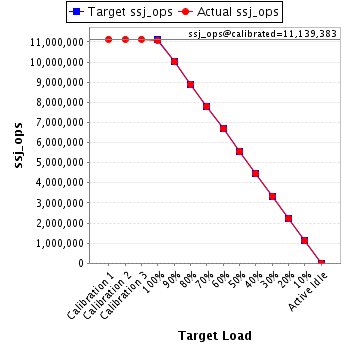

Graph of results
See the Host Performance Report for additional details.
