Dell Inc. PowerEdge R6525 (AMD EPYC 7702, 2.00 GHz) SPECpower_ssj2008 = 20,184 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 9, 2020
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Mar 25, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 402 20.7
Calibration 2 405 20.7
Calibration 3 405 20.8
100% 404 20.9
90% 382 20.9
80% 358 20.9
70% 331 20.9
60% 305 20.9
50% 280 20.9
40% 258 20.9
30% 236 20.9
20% 214 20.8
10% 188 20.8
Active Idle 81.6 20.8

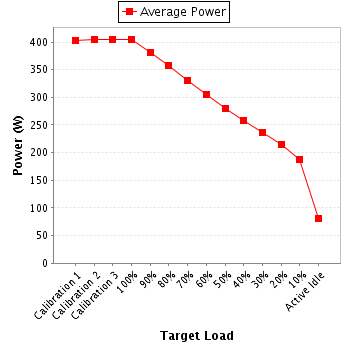

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91N819622
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: 98378
Date of Calibration: 21-Mar-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.94 2.0 0.996 402 0.3%
Calibration 2 208 300.0 1.95 2.0 0.996 405 0.3%
Calibration 3 208 300.0 1.95 2.0 0.996 405 0.3%
100% 208 300.0 1.95 2.0 0.996 404 0.3%
90% 208 300.0 1.84 2.0 0.996 382 0.3%
80% 208 300.0 1.73 2.0 0.996 358 0.3%
70% 208 300.0 1.60 2.0 0.995 331 0.4%
60% 208 300.0 1.47 2.0 0.995 305 0.4%
50% 208 300.0 1.35 2.0 0.994 280 0.4%
40% 208 300.0 1.25 2.0 0.993 258 0.4%
30% 208 300.0 1.14 2.0 0.991 236 0.4%
20% 208 300.0 1.04 2.0 0.990 214 0.5%
10% 208 300.0 0.915 2.0 0.987 188 0.5%
Active Idle 208 300.0 0.419 0.5 0.935 81.6 0.4%
Power details for pwr1
