Lenovo Global Technology Think System SR665 ssj_ops@100% = 184,380
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 29, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,630
Calibration 2     184,235
Calibration 3     184,241
ssj_ops@calibrated=184,238
100% 100.1% 184,238 184,380
90% 89.9% 165,814 165,641
80% 80.4% 147,390 148,109
70% 70.1% 128,967 129,139
60% 60.1% 110,543 110,653
50% 50.1% 92,119 92,370
40% 40.0% 73,695 73,782
30% 30.3% 55,271 55,793
20% 19.9% 36,848 36,690
10% 9.9% 18,424 18,308
Active Idle   0 0

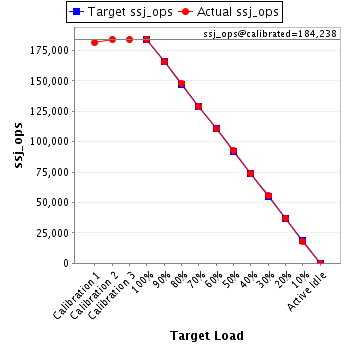

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,210,006 1,690
Payment 13,210,008
Order Status 1,321,001
Delivery 1,321,000
Stock Level 1,321,000
Customer Report 13,210,001
Calibration 2 New Order 13,399,056 1,690
Payment 13,399,058
Order Status 1,339,905
Delivery 1,339,905
Stock Level 1,339,904
Customer Report 13,399,058
Calibration 3 New Order 13,399,363 1,690
Payment 13,399,359
Order Status 1,339,935
Delivery 1,339,936
Stock Level 1,339,938
Customer Report 13,399,360
100% 100.1% New Order 13,409,463 1,690
Payment 13,409,462
Order Status 1,340,945
Delivery 1,340,946
Stock Level 1,340,944
Customer Report 13,409,454
90% 89.9% New Order 12,046,631 1,690
Payment 12,046,633
Order Status 1,204,661
Delivery 1,204,665
Stock Level 1,204,662
Customer Report 12,046,642
80% 80.4% New Order 10,771,583 1,690
Payment 10,771,583
Order Status 1,077,160
Delivery 1,077,158
Stock Level 1,077,159
Customer Report 10,771,582
70% 70.1% New Order 9,391,922 1,690
Payment 9,391,921
Order Status 939,193
Delivery 939,192
Stock Level 939,194
Customer Report 9,391,925
60% 60.1% New Order 8,047,496 1,690
Payment 8,047,498
Order Status 804,751
Delivery 804,750
Stock Level 804,751
Customer Report 8,047,492
50% 50.1% New Order 6,717,816 1,690
Payment 6,717,823
Order Status 671,783
Delivery 671,781
Stock Level 671,782
Customer Report 6,717,821
40% 40.0% New Order 5,365,954 1,690
Payment 5,365,955
Order Status 536,597
Delivery 536,598
Stock Level 536,597
Customer Report 5,365,960
30% 30.3% New Order 4,057,698 1,690
Payment 4,057,705
Order Status 405,771
Delivery 405,770
Stock Level 405,769
Customer Report 4,057,691
20% 19.9% New Order 2,668,389 1,690
Payment 2,668,393
Order Status 266,840
Delivery 266,842
Stock Level 266,839
Customer Report 2,668,398
10% 9.9% New Order 1,331,517 1,690
Payment 1,331,516
Order Status 133,148
Delivery 133,151
Stock Level 133,152
Customer Report 1,331,516
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
