Lenovo Global Technology Think System SR665 ssj_ops@100% = 189,058
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 29, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,678
Calibration 2     190,228
Calibration 3     190,276
ssj_ops@calibrated=190,252
100% 99.4% 190,252 189,058
90% 90.7% 171,227 172,539
80% 80.0% 152,202 152,111
70% 69.8% 133,176 132,719
60% 60.4% 114,151 114,980
50% 49.9% 95,126 94,949
40% 40.1% 76,101 76,197
30% 30.2% 57,076 57,404
20% 20.2% 38,050 38,496
10% 9.9% 19,025 18,871
Active Idle   0 0

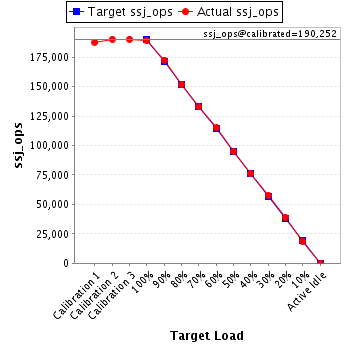

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,652,363 1,690
Payment 13,652,363
Order Status 1,365,238
Delivery 1,365,235
Stock Level 1,365,237
Customer Report 13,652,369
Calibration 2 New Order 13,834,769 1,690
Payment 13,834,772
Order Status 1,383,478
Delivery 1,383,478
Stock Level 1,383,476
Customer Report 13,834,770
Calibration 3 New Order 13,838,285 1,690
Payment 13,838,280
Order Status 1,383,829
Delivery 1,383,829
Stock Level 1,383,828
Customer Report 13,838,283
100% 99.4% New Order 13,749,679 1,690
Payment 13,749,671
Order Status 1,374,966
Delivery 1,374,967
Stock Level 1,374,967
Customer Report 13,749,693
90% 90.7% New Order 12,548,467 1,690
Payment 12,548,467
Order Status 1,254,847
Delivery 1,254,847
Stock Level 1,254,847
Customer Report 12,548,470
80% 80.0% New Order 11,062,617 1,690
Payment 11,062,624
Order Status 1,106,262
Delivery 1,106,261
Stock Level 1,106,261
Customer Report 11,062,614
70% 69.8% New Order 9,652,278 1,690
Payment 9,652,274
Order Status 965,227
Delivery 965,227
Stock Level 965,228
Customer Report 9,652,277
60% 60.4% New Order 8,362,606 1,690
Payment 8,362,600
Order Status 836,262
Delivery 836,260
Stock Level 836,262
Customer Report 8,362,609
50% 49.9% New Order 6,905,370 1,690
Payment 6,905,367
Order Status 690,537
Delivery 690,535
Stock Level 690,538
Customer Report 6,905,371
40% 40.1% New Order 5,541,622 1,690
Payment 5,541,627
Order Status 554,165
Delivery 554,162
Stock Level 554,162
Customer Report 5,541,624
30% 30.2% New Order 4,174,822 1,690
Payment 4,174,819
Order Status 417,482
Delivery 417,481
Stock Level 417,481
Customer Report 4,174,822
20% 20.2% New Order 2,799,691 1,690
Payment 2,799,702
Order Status 279,968
Delivery 279,970
Stock Level 279,970
Customer Report 2,799,695
10% 9.9% New Order 1,372,425 1,690
Payment 1,372,420
Order Status 137,244
Delivery 137,241
Stock Level 137,243
Customer Report 1,372,427
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
