SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Apollo XL225n Gen10 Plus			ssj_ops@100% = 43,715,840 ssj_ops@100% per Host = 10,928,960 ssj_ops@100% per JVM = 170,765
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Apr 6, 2020
Hardware Availability:	Jun-2020	Software Availability:	Mar-2020	Publication:	Apr 22, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			43,966,784
Calibration 2			43,905,588
Calibration 3			43,920,196
ssj_ops@calibrated=43,912,892
100%	99.6%	43,912,892	43,715,840
90%	90.0%	39,521,603	39,534,482
80%	80.0%	35,130,313	35,136,760
70%	70.0%	30,739,024	30,732,141
60%	60.0%	26,347,735	26,338,863
50%	50.0%	21,956,446	21,962,974
40%	40.0%	17,565,157	17,559,777
30%	30.0%	13,173,868	13,177,128
20%	20.0%	8,782,578	8,783,683
10%	10.0%	4,391,289	4,389,799
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	8	512	1,024	1,024	4	256

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Apollo 2000 Gen10 Plus
Form Factor:	2U
Power Supply Quantity and Rating (W):	2 x 3000
Power Supply Details:	HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP ProCurve 2910al Series Switch J9147A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Apollo XL225n Gen10 Plus
Form Factor:	Blade
CPU Name:	AMD EPYC 7742 2.25 GHz
CPU Characteristics:	64-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1132)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing); version 13.0.2
JVM Command-line Options:	-server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity:	start /NODE [0-31] /AFFINITY [0xF, 0xF0]
JVM Instances:	64
JVM Initial Heap (MB):	1400
JVM Maximum Heap (MB):	1400
JVM Address Bits:	64
Boot Firmware Version:	A46 v1.20 (02/28/2020)
Management Firmware Version:	2.14 Feb 11 2020
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	1.KB4539571, 2.KB4554354 (patched: 24. March, 2020)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled
USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Determinism Control: Manual
Performance Determinism: Power Deterministic
Memory Interleaving Mode: Disabled
Maximum Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled
DRAM Controller Power Down: Enabled
NUMA memory domains per socket: Four memory domains per socket
Last-Level Cache (LLC) As NUMA Node: Enabled
Access Control Service: Disabled
SR-IOV: Disabled (default: Disabled)
Power Regulator: OS Control Mode
Minimum Processor Idle Power Core C-State: C6 State
Data Fabric C-State Enable: Force Enabled
C-State Efficiency Mode: Enabled
AMD Fmax Boost Limit Control: Manual
AMD Fmax Boost Limit: 2250
XGMI Force Link Width: x2
Infinity Fabric Performance State: P2
L1 Stream HW Prefetcher: Disabled
L2 Stream HW Prefetcher: Disabled
Maximum PCI Express Speed: PCIe Generation 1.0
Package Power Limit Control Mode: Manual -> Package Power Limit Value: 240
Processor Monitor/Mwait Support: Disabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version
Run initiated via Windows Remote Desktop Connection
OS tunes:

Windows Power Options = Balanced
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Active
PCI Express Power Management = Maximum Power Savings
Processor power management = Minimum Processor State = 0%

Applied protection against speculative execution

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

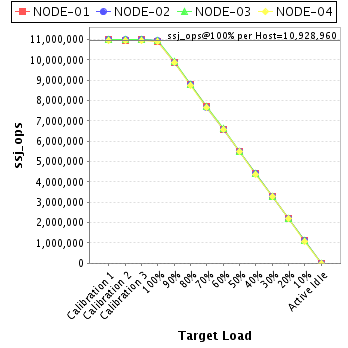

Host Instance Summary

Host	ssj_ops@100%
NODE-01	10,924,860
NODE-02	10,929,289
NODE-03	10,954,379
NODE-04	10,907,311
ssj_ops@100%	43,715,840
ssj_ops@100% per Host	10,928,960
ssj_ops@100% per JVM	170,765

Host 'NODE-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,984,711
Calibration 2			10,970,815
Calibration 3			10,977,817
ssj_ops@calibrated=10,974,316
100%	99.5%	10,974,316	10,924,860
90%	90.0%	9,876,884	9,881,074
80%	80.0%	8,779,453	8,781,857
70%	70.1%	7,682,021	7,688,846
60%	59.9%	6,584,590	6,578,753
50%	50.0%	5,487,158	5,486,679
40%	40.0%	4,389,726	4,391,387
30%	30.0%	3,292,295	3,290,431
20%	20.1%	2,194,863	2,200,641
10%	10.0%	1,097,432	1,098,454
Active Idle		0	0

See the Host Performance Report for additional details.

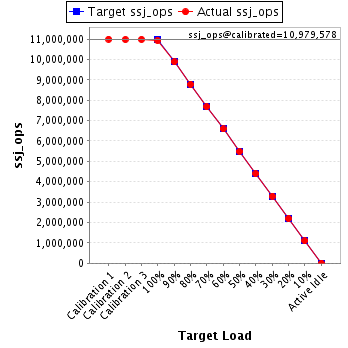

Host 'NODE-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,994,655
Calibration 2			10,977,280
Calibration 3			10,981,877
ssj_ops@calibrated=10,979,578
100%	99.5%	10,979,578	10,929,289
90%	90.0%	9,881,621	9,880,315
80%	80.0%	8,783,663	8,784,110
70%	69.9%	7,685,705	7,679,814
60%	60.0%	6,587,747	6,587,689
50%	50.0%	5,489,789	5,489,954
40%	40.0%	4,391,831	4,392,305
30%	30.0%	3,293,874	3,296,380
20%	20.0%	2,195,916	2,195,878
10%	10.0%	1,097,958	1,097,652
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,016,975
Calibration 2			11,003,444
Calibration 3			11,007,156
ssj_ops@calibrated=11,005,300
100%	99.5%	11,005,300	10,954,379
90%	90.0%	9,904,770	9,909,854
80%	80.0%	8,804,240	8,807,674
70%	69.9%	7,703,710	7,697,168
60%	60.0%	6,603,180	6,603,229
50%	50.1%	5,502,650	5,509,866
40%	40.0%	4,402,120	4,399,578
30%	30.0%	3,301,590	3,303,778
20%	20.0%	2,201,060	2,198,722
10%	10.0%	1,100,530	1,101,418
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,970,444
Calibration 2			10,954,049
Calibration 3			10,953,345
ssj_ops@calibrated=10,953,697
100%	99.6%	10,953,697	10,907,311
90%	90.0%	9,858,328	9,863,238
80%	80.0%	8,762,958	8,763,119
70%	70.0%	7,667,588	7,666,312
60%	60.0%	6,572,218	6,569,192
50%	50.0%	5,476,849	5,476,475
40%	40.0%	4,381,479	4,376,507
30%	30.0%	3,286,109	3,286,539
20%	20.0%	2,190,739	2,188,441
10%	10.0%	1,095,370	1,092,275
Active Idle		0	0

See the Host Performance Report for additional details.
