Lenovo Global Technology Think System SR645 ssj_ops@100% = 11,962,483
ssj_ops@100% per JVM = 186,914
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 12, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: Jun 10, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,939,159
Calibration 2     12,009,867
Calibration 3     12,026,977
ssj_ops@calibrated=12,018,422
100% 99.5% 12,018,422 11,962,483
90% 90.0% 10,816,580 10,813,037
80% 79.9% 9,614,737 9,602,666
70% 70.0% 8,412,895 8,408,351
60% 60.1% 7,211,053 7,219,043
50% 50.0% 6,009,211 6,013,093
40% 40.0% 4,807,369 4,801,921
30% 29.9% 3,605,527 3,597,943
20% 20.0% 2,403,684 2,401,594
10% 10.0% 1,201,842 1,204,724
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:4P57A26293
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105o-1.00
Management Firmware Version: d8bt07d-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 185,177
localhost.002 183,013
localhost.003 185,438
localhost.004 189,529
localhost.005 184,272
localhost.006 185,179
localhost.007 181,962
localhost.008 184,862
localhost.009 185,478
localhost.010 187,094
localhost.011 184,864
localhost.012 180,927
localhost.013 184,716
localhost.014 184,002
localhost.015 184,607
localhost.016 186,722
localhost.017 188,283
localhost.018 185,898
localhost.019 185,727
localhost.020 183,648
localhost.021 186,723
localhost.022 188,130
localhost.023 185,046
localhost.024 187,165
localhost.025 189,985
localhost.026 186,379
localhost.027 183,996
localhost.028 186,110
localhost.029 186,197
localhost.030 188,625
localhost.031 188,431
localhost.032 186,517
localhost.033 189,444
localhost.034 193,685
localhost.035 191,872
localhost.036 189,340
localhost.037 186,272
localhost.038 182,507
localhost.039 185,495
localhost.040 185,471
localhost.041 187,574
localhost.042 186,730
localhost.043 187,028
localhost.044 189,554
localhost.045 188,238
localhost.046 188,071
localhost.047 188,071
localhost.048 184,685
localhost.049 188,752
localhost.050 186,682
localhost.051 185,620
localhost.052 184,982
localhost.053 185,848
localhost.054 187,196
localhost.055 181,824
localhost.056 189,439
localhost.057 191,330
localhost.058 189,237
localhost.059 192,829
localhost.060 190,104
localhost.061 193,149
localhost.062 188,306
localhost.063 190,200
localhost.064 188,245
ssj_ops@100% 11,962,483
ssj_ops@100% per JVM 186,914

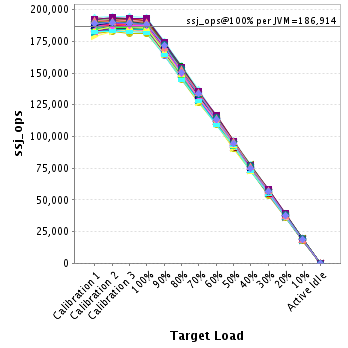

Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,039
Calibration 2     186,140
Calibration 3     186,786
ssj_ops@calibrated=186,463
100% 99.3% 186,463 185,177
90% 90.6% 167,816 168,892
80% 80.2% 149,170 149,624
70% 70.4% 130,524 131,210
60% 61.4% 111,878 114,398
50% 50.7% 93,231 94,622
40% 39.8% 74,585 74,245
30% 30.0% 55,939 56,031
20% 20.0% 37,293 37,268
10% 9.7% 18,646 18,145
Active Idle   0 0
Graph of results
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,409
Calibration 2     183,935
Calibration 3     184,416
ssj_ops@calibrated=184,176
100% 99.4% 184,176 183,013
90% 89.1% 165,758 164,130
80% 79.3% 147,340 146,128
70% 70.4% 128,923 129,748
60% 60.0% 110,505 110,483
50% 50.0% 92,088 92,023
40% 40.1% 73,670 73,821
30% 29.8% 55,253 54,940
20% 20.2% 36,835 37,244
10% 10.1% 18,418 18,675
Active Idle   0 0
Graph of results
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,257
Calibration 2     185,777
Calibration 3     185,904
ssj_ops@calibrated=185,841
100% 99.8% 185,841 185,438
90% 89.2% 167,257 165,744
80% 80.1% 148,673 148,771
70% 69.7% 130,089 129,472
60% 60.1% 111,505 111,654
50% 50.3% 92,920 93,400
40% 39.7% 74,336 73,837
30% 29.8% 55,752 55,325
20% 19.9% 37,168 36,979
10% 10.0% 18,584 18,525
Active Idle   0 0
Graph of results
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,470
Calibration 2     189,555
Calibration 3     190,335
ssj_ops@calibrated=189,945
100% 99.8% 189,945 189,529
90% 89.5% 170,950 169,931
80% 79.6% 151,956 151,178
70% 69.7% 132,961 132,460
60% 59.9% 113,967 113,770
50% 50.1% 94,972 95,089
40% 39.9% 75,978 75,862
30% 29.7% 56,983 56,372
20% 19.7% 37,989 37,364
10% 10.1% 18,994 19,230
Active Idle   0 0
Graph of results
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,220
Calibration 2     184,671
Calibration 3     185,442
ssj_ops@calibrated=185,056
100% 99.6% 185,056 184,272
90% 90.0% 166,551 166,569
80% 79.6% 148,045 147,377
70% 70.0% 129,539 129,571
60% 60.1% 111,034 111,162
50% 50.4% 92,528 93,242
40% 39.7% 74,022 73,492
30% 29.5% 55,517 54,625
20% 19.5% 37,011 36,136
10% 10.1% 18,506 18,692
Active Idle   0 0
Graph of results
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,510
Calibration 2     185,504
Calibration 3     186,340
ssj_ops@calibrated=185,922
100% 99.6% 185,922 185,179
90% 89.7% 167,330 166,772
80% 79.9% 148,738 148,506
70% 69.6% 130,145 129,394
60% 59.9% 111,553 111,448
50% 50.3% 92,961 93,475
40% 40.0% 74,369 74,402
30% 30.4% 55,777 56,537
20% 19.8% 37,184 36,881
10% 9.9% 18,592 18,367
Active Idle   0 0
Graph of results
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,971
Calibration 2     182,577
Calibration 3     183,171
ssj_ops@calibrated=182,874
100% 99.5% 182,874 181,962
90% 89.5% 164,587 163,708
80% 79.4% 146,299 145,180
70% 70.4% 128,012 128,682
60% 60.2% 109,725 110,141
50% 50.6% 91,437 92,606
40% 40.1% 73,150 73,406
30% 30.2% 54,862 55,275
20% 19.9% 36,575 36,313
10% 10.1% 18,287 18,408
Active Idle   0 0
Graph of results

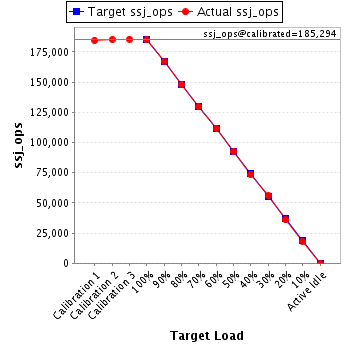

JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,526
Calibration 2     185,089
Calibration 3     185,500
ssj_ops@calibrated=185,294
100% 99.8% 185,294 184,862
90% 90.0% 166,765 166,853
80% 79.8% 148,235 147,872
70% 70.0% 129,706 129,637
60% 60.4% 111,177 111,951
50% 49.8% 92,647 92,340
40% 39.7% 74,118 73,573
30% 30.2% 55,588 55,882
20% 19.4% 37,059 35,939
10% 9.9% 18,529 18,301
Active Idle   0 0
Graph of results
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,998
Calibration 2     184,710
Calibration 3     185,985
ssj_ops@calibrated=185,347
100% 100.1% 185,347 185,478
90% 89.8% 166,813 166,352
80% 79.9% 148,278 148,137
70% 70.0% 129,743 129,818
60% 59.9% 111,208 111,056
50% 49.8% 92,674 92,229
40% 39.9% 74,139 73,899
30% 29.7% 55,604 55,122
20% 19.9% 37,069 36,958
10% 10.1% 18,535 18,769
Active Idle   0 0
Graph of results
JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,817
Calibration 2     186,723
Calibration 3     187,358
ssj_ops@calibrated=187,040
100% 100.0% 187,040 187,094
90% 89.7% 168,336 167,757
80% 79.7% 149,632 149,078
70% 69.9% 130,928 130,687
60% 59.7% 112,224 111,598
50% 49.6% 93,520 92,721
40% 39.7% 74,816 74,166
30% 30.3% 56,112 56,586
20% 19.9% 37,408 37,308
10% 9.9% 18,704 18,511
Active Idle   0 0
Graph of results
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,954
Calibration 2     186,418
Calibration 3     186,930
ssj_ops@calibrated=186,674
100% 99.0% 186,674 184,864
90% 89.9% 168,006 167,733
80% 79.7% 149,339 148,763
70% 69.5% 130,672 129,747
60% 59.9% 112,004 111,772
50% 49.9% 93,337 93,081
40% 39.4% 74,669 73,567
30% 30.3% 56,002 56,631
20% 19.9% 37,335 37,080
10% 10.0% 18,667 18,578
Active Idle   0 0
Graph of results
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,286
Calibration 2     182,735
Calibration 3     181,602
ssj_ops@calibrated=182,169
100% 99.3% 182,169 180,927
90% 90.4% 163,952 164,763
80% 79.8% 145,735 145,310
70% 69.6% 127,518 126,765
60% 60.2% 109,301 109,684
50% 49.6% 91,084 90,279
40% 40.1% 72,867 73,060
30% 29.5% 54,651 53,817
20% 20.0% 36,434 36,456
10% 9.9% 18,217 18,123
Active Idle   0 0
Graph of results
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,049
Calibration 2     185,459
Calibration 3     185,908
ssj_ops@calibrated=185,684
100% 99.5% 185,684 184,716
90% 90.6% 167,115 168,257
80% 80.3% 148,547 149,153
70% 69.4% 129,979 128,876
60% 60.1% 111,410 111,667
50% 50.3% 92,842 93,400
40% 40.0% 74,273 74,224
30% 30.6% 55,705 56,792
20% 19.9% 37,137 36,988
10% 10.3% 18,568 19,079
Active Idle   0 0
Graph of results
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,659
Calibration 2     185,116
Calibration 3     185,073
ssj_ops@calibrated=185,094
100% 99.4% 185,094 184,002
90% 90.6% 166,585 167,768
80% 80.0% 148,076 148,154
70% 70.2% 129,566 129,857
60% 60.1% 111,057 111,176
50% 50.1% 92,547 92,686
40% 40.1% 74,038 74,246
30% 29.9% 55,528 55,418
20% 20.2% 37,019 37,470
10% 10.0% 18,509 18,425
Active Idle   0 0
Graph of results
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,159
Calibration 2     184,813
Calibration 3     185,013
ssj_ops@calibrated=184,913
100% 99.8% 184,913 184,607
90% 90.7% 166,422 167,759
80% 80.1% 147,930 148,178
70% 70.4% 129,439 130,136
60% 60.1% 110,948 111,045
50% 49.9% 92,457 92,192
40% 39.8% 73,965 73,511
30% 29.4% 55,474 54,442
20% 19.9% 36,983 36,722
10% 9.8% 18,491 18,183
Active Idle   0 0
Graph of results
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,892
Calibration 2     186,719
Calibration 3     187,973
ssj_ops@calibrated=187,346
100% 99.7% 187,346 186,722
90% 89.8% 168,611 168,239
80% 79.5% 149,877 149,028
70% 69.5% 131,142 130,169
60% 60.2% 112,408 112,848
50% 50.2% 93,673 94,052
40% 39.7% 74,938 74,297
30% 30.0% 56,204 56,255
20% 20.0% 37,469 37,545
10% 10.2% 18,735 19,112
Active Idle   0 0
Graph of results
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,497
Calibration 2     189,442
Calibration 3     189,928
ssj_ops@calibrated=189,685
100% 99.3% 189,685 188,283
90% 89.6% 170,716 169,879
80% 79.3% 151,748 150,501
70% 69.9% 132,779 132,500
60% 59.6% 113,811 112,997
50% 50.0% 94,842 94,784
40% 39.8% 75,874 75,424
30% 29.9% 56,905 56,632
20% 20.0% 37,937 38,013
10% 9.9% 18,968 18,708
Active Idle   0 0
Graph of results
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,738
Calibration 2     186,352
Calibration 3     187,075
ssj_ops@calibrated=186,714
100% 99.6% 186,714 185,898
90% 90.0% 168,042 168,090
80% 79.6% 149,371 148,703
70% 69.6% 130,700 129,910
60% 59.7% 112,028 111,439
50% 49.5% 93,357 92,334
40% 39.8% 74,685 74,284
30% 29.8% 56,014 55,704
20% 19.9% 37,343 37,204
10% 10.1% 18,671 18,800
Active Idle   0 0
Graph of results
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,017
Calibration 2     187,013
Calibration 3     186,536
ssj_ops@calibrated=186,775
100% 99.4% 186,775 185,727
90% 90.6% 168,097 169,202
80% 79.5% 149,420 148,497
70% 69.9% 130,742 130,513
60% 60.2% 112,065 112,474
50% 49.9% 93,387 93,145
40% 39.9% 74,710 74,561
30% 29.7% 56,032 55,551
20% 19.9% 37,355 37,208
10% 10.1% 18,677 18,787
Active Idle   0 0
Graph of results
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,800
Calibration 2     184,102
Calibration 3     184,751
ssj_ops@calibrated=184,426
100% 99.6% 184,426 183,648
90% 89.3% 165,983 164,765
80% 80.0% 147,541 147,581
70% 70.2% 129,098 129,468
60% 59.8% 110,656 110,296
50% 50.0% 92,213 92,130
40% 40.3% 73,770 74,360
30% 29.6% 55,328 54,628
20% 20.0% 36,885 36,917
10% 10.2% 18,443 18,879
Active Idle   0 0
Graph of results
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,047
Calibration 2     187,160
Calibration 3     187,825
ssj_ops@calibrated=187,493
100% 99.6% 187,493 186,723
90% 89.6% 168,743 167,904
80% 79.5% 149,994 149,112
70% 70.4% 131,245 132,017
60% 60.1% 112,496 112,604
50% 50.6% 93,746 94,785
40% 39.7% 74,997 74,378
30% 29.6% 56,248 55,572
20% 19.8% 37,499 37,202
10% 9.9% 18,749 18,537
Active Idle   0 0
Graph of results
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,035
Calibration 2     189,801
Calibration 3     189,357
ssj_ops@calibrated=189,579
100% 99.2% 189,579 188,130
90% 89.5% 170,621 169,590
80% 79.7% 151,663 151,158
70% 70.0% 132,705 132,673
60% 59.9% 113,747 113,478
50% 50.0% 94,789 94,865
40% 40.2% 75,832 76,139
30% 30.0% 56,874 56,829
20% 20.5% 37,916 38,854
10% 9.9% 18,958 18,758
Active Idle   0 0
Graph of results
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,880
Calibration 2     186,010
Calibration 3     185,651
ssj_ops@calibrated=185,831
100% 99.6% 185,831 185,046
90% 89.5% 167,247 166,253
80% 80.1% 148,664 148,784
70% 69.5% 130,081 129,224
60% 60.3% 111,498 112,028
50% 49.0% 92,915 91,043
40% 39.7% 74,332 73,806
30% 29.9% 55,749 55,518
20% 19.8% 37,166 36,875
10% 10.1% 18,583 18,796
Active Idle   0 0
Graph of results
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,227
Calibration 2     188,509
Calibration 3     189,226
ssj_ops@calibrated=188,868
100% 99.1% 188,868 187,165
90% 89.7% 169,981 169,327
80% 80.3% 151,094 151,731
70% 69.9% 132,207 131,932
60% 60.3% 113,321 113,874
50% 50.3% 94,434 95,072
40% 40.4% 75,547 76,370
30% 30.3% 56,660 57,148
20% 19.8% 37,774 37,387
10% 10.0% 18,887 18,961
Active Idle   0 0
Graph of results
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,345
Calibration 2     190,726
Calibration 3     190,757
ssj_ops@calibrated=190,742
100% 99.6% 190,742 189,985
90% 89.0% 171,668 169,823
80% 79.4% 152,594 151,538
70% 70.0% 133,519 133,583
60% 60.2% 114,445 114,777
50% 49.7% 95,371 94,852
40% 39.9% 76,297 76,165
30% 30.1% 57,223 57,472
20% 20.0% 38,148 38,184
10% 10.3% 19,074 19,675
Active Idle   0 0
Graph of results
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,220
Calibration 2     187,063
Calibration 3     187,702
ssj_ops@calibrated=187,382
100% 99.5% 187,382 186,379
90% 90.0% 168,644 168,577
80% 80.0% 149,906 149,906
70% 69.7% 131,168 130,513
60% 60.0% 112,429 112,365
50% 49.8% 93,691 93,397
40% 40.5% 74,953 75,822
30% 29.8% 56,215 55,800
20% 19.9% 37,476 37,220
10% 10.1% 18,738 18,847
Active Idle   0 0
Graph of results
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,445
Calibration 2     184,680
Calibration 3     184,256
ssj_ops@calibrated=184,468
100% 99.7% 184,468 183,996
90% 89.9% 166,021 165,767
80% 80.0% 147,574 147,534
70% 69.5% 129,128 128,194
60% 60.1% 110,681 110,786
50% 50.7% 92,234 93,483
40% 40.5% 73,787 74,797
30% 29.8% 55,340 54,977
20% 19.9% 36,894 36,638
10% 10.3% 18,447 19,083
Active Idle   0 0
Graph of results
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,103
Calibration 2     188,429
Calibration 3     186,971
ssj_ops@calibrated=187,700
100% 99.2% 187,700 186,110
90% 90.8% 168,930 170,462
80% 79.2% 150,160 148,685
70% 70.0% 131,390 131,349
60% 60.3% 112,620 113,160
50% 49.9% 93,850 93,639
40% 39.8% 75,080 74,792
30% 30.2% 56,310 56,711
20% 20.1% 37,540 37,754
10% 10.0% 18,770 18,792
Active Idle   0 0
Graph of results
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,836
Calibration 2     187,462
Calibration 3     187,255
ssj_ops@calibrated=187,358
100% 99.4% 187,358 186,197
90% 90.0% 168,623 168,709
80% 80.2% 149,887 150,264
70% 70.2% 131,151 131,462
60% 60.0% 112,415 112,375
50% 49.9% 93,679 93,488
40% 40.0% 74,943 74,915
30% 29.9% 56,208 55,975
20% 19.8% 37,472 37,188
10% 10.2% 18,736 19,142
Active Idle   0 0
Graph of results
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,412
Calibration 2     189,929
Calibration 3     189,627
ssj_ops@calibrated=189,778
100% 99.4% 189,778 188,625
90% 90.8% 170,800 172,275
80% 79.6% 151,822 151,019
70% 69.4% 132,844 131,662
60% 60.1% 113,867 114,146
50% 50.4% 94,889 95,658
40% 40.0% 75,911 75,894
30% 30.2% 56,933 57,312
20% 19.9% 37,956 37,742
10% 9.9% 18,978 18,808
Active Idle   0 0
Graph of results
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,427
Calibration 2     188,333
Calibration 3     189,198
ssj_ops@calibrated=188,765
100% 99.8% 188,765 188,431
90% 89.3% 169,889 168,500
80% 80.1% 151,012 151,241
70% 69.6% 132,136 131,461
60% 60.7% 113,259 114,532
50% 50.2% 94,383 94,814
40% 40.1% 75,506 75,665
30% 30.0% 56,630 56,658
20% 19.9% 37,753 37,613
10% 9.8% 18,877 18,458
Active Idle   0 0
Graph of results
JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,076
Calibration 2     187,471
Calibration 3     188,083
ssj_ops@calibrated=187,777
100% 99.3% 187,777 186,517
90% 89.2% 168,999 167,533
80% 79.4% 150,221 149,158
70% 70.1% 131,444 131,642
60% 60.2% 112,666 113,009
50% 50.1% 93,888 94,157
40% 39.8% 75,111 74,827
30% 29.6% 56,333 55,538
20% 19.8% 37,555 37,116
10% 9.9% 18,778 18,562
Active Idle   0 0
Graph of results
JVM 'localhost.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,243
Calibration 2     190,302
Calibration 3     190,636
ssj_ops@calibrated=190,469
100% 99.5% 190,469 189,444
90% 89.2% 171,422 169,830
80% 80.2% 152,375 152,704
70% 70.7% 133,328 134,632
60% 60.2% 114,281 114,676
50% 49.5% 95,234 94,296
40% 40.1% 76,187 76,398
30% 30.2% 57,141 57,609
20% 20.1% 38,094 38,206
10% 10.1% 19,047 19,153
Active Idle   0 0
Graph of results
JVM 'localhost.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,887
Calibration 2     194,454
Calibration 3     194,760
ssj_ops@calibrated=194,607
100% 99.5% 194,607 193,685
90% 90.1% 175,146 175,293
80% 80.0% 155,685 155,652
70% 70.3% 136,225 136,716
60% 59.6% 116,764 116,081
50% 49.9% 97,303 97,041
40% 40.1% 77,843 78,056
30% 30.0% 58,382 58,347
20% 20.0% 38,921 38,958
10% 10.1% 19,461 19,579
Active Idle   0 0
Graph of results
JVM 'localhost.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,783
Calibration 2     192,587
Calibration 3     193,019
ssj_ops@calibrated=192,803
100% 99.5% 192,803 191,872
90% 89.8% 173,523 173,182
80% 80.6% 154,242 155,423
70% 70.2% 134,962 135,260
60% 59.7% 115,682 115,012
50% 50.1% 96,402 96,686
40% 40.2% 77,121 77,455
30% 30.1% 57,841 58,033
20% 20.2% 38,561 38,929
10% 10.2% 19,280 19,650
Active Idle   0 0
Graph of results
JVM 'localhost.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,687
Calibration 2     189,539
Calibration 3     189,892
ssj_ops@calibrated=189,715
100% 99.8% 189,715 189,340
90% 89.6% 170,744 170,072
80% 80.1% 151,772 152,030
70% 69.7% 132,801 132,197
60% 59.4% 113,829 112,699
50% 50.1% 94,858 94,988
40% 39.9% 75,886 75,667
30% 29.6% 56,915 56,172
20% 19.9% 37,943 37,774
10% 10.1% 18,972 19,173
Active Idle   0 0
Graph of results
JVM 'localhost.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,434
Calibration 2     187,263
Calibration 3     187,491
ssj_ops@calibrated=187,377
100% 99.4% 187,377 186,272
90% 89.9% 168,639 168,404
80% 80.1% 149,901 150,123
70% 69.3% 131,164 129,839
60% 60.7% 112,426 113,798
50% 49.5% 93,688 92,750
40% 39.8% 74,951 74,615
30% 30.1% 56,213 56,439
20% 20.0% 37,475 37,546
10% 9.8% 18,738 18,423
Active Idle   0 0
Graph of results
JVM 'localhost.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,153
Calibration 2     182,480
Calibration 3     183,948
ssj_ops@calibrated=183,214
100% 99.6% 183,214 182,507
90% 90.1% 164,893 164,985
80% 80.4% 146,571 147,385
70% 69.4% 128,250 127,142
60% 60.0% 109,929 109,934
50% 49.6% 91,607 90,832
40% 40.0% 73,286 73,263
30% 30.2% 54,964 55,282
20% 20.4% 36,643 37,330
10% 10.0% 18,321 18,242
Active Idle   0 0
Graph of results

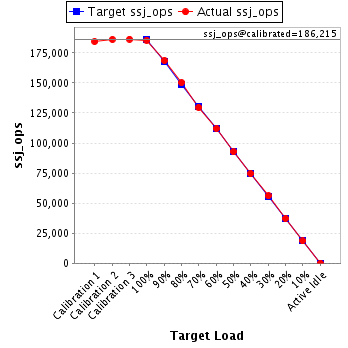

JVM 'localhost.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,370
Calibration 2     186,075
Calibration 3     186,356
ssj_ops@calibrated=186,215
100% 99.6% 186,215 185,495
90% 90.5% 167,594 168,474
80% 80.6% 148,972 150,090
70% 69.5% 130,351 129,488
60% 60.2% 111,729 112,031
50% 49.8% 93,108 92,675
40% 40.0% 74,486 74,559
30% 30.1% 55,865 55,980
20% 20.0% 37,243 37,263
10% 10.0% 18,622 18,550
Active Idle   0 0
Graph of results
JVM 'localhost.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,140
Calibration 2     186,133
Calibration 3     186,547
ssj_ops@calibrated=186,340
100% 99.5% 186,340 185,471
90% 89.8% 167,706 167,420
80% 79.7% 149,072 148,583
70% 70.0% 130,438 130,352
60% 60.2% 111,804 112,140
50% 49.4% 93,170 92,076
40% 40.6% 74,536 75,585
30% 29.8% 55,902 55,518
20% 20.0% 37,268 37,247
10% 10.1% 18,634 18,821
Active Idle   0 0
Graph of results
JVM 'localhost.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,365
Calibration 2     189,675
Calibration 3     189,069
ssj_ops@calibrated=189,372
100% 99.1% 189,372 187,574
90% 90.4% 170,434 171,228
80% 80.1% 151,497 151,711
70% 70.2% 132,560 132,956
60% 60.0% 113,623 113,563
50% 50.4% 94,686 95,505
40% 40.6% 75,749 76,862
30% 30.1% 56,811 56,929
20% 19.6% 37,874 37,208
10% 10.1% 18,937 19,096
Active Idle   0 0
Graph of results
JVM 'localhost.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,275
Calibration 2     188,390
Calibration 3     188,063
ssj_ops@calibrated=188,227
100% 99.2% 188,227 186,730
90% 90.2% 169,404 169,760
80% 80.2% 150,581 151,006
70% 70.0% 131,759 131,723
60% 60.4% 112,936 113,706
50% 49.4% 94,113 92,954
40% 40.1% 75,291 75,558
30% 30.0% 56,468 56,417
20% 20.3% 37,645 38,146
10% 10.1% 18,823 19,054
Active Idle   0 0
Graph of results
JVM 'localhost.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,605
Calibration 2     187,677
Calibration 3     187,688
ssj_ops@calibrated=187,683
100% 99.7% 187,683 187,028
90% 89.5% 168,914 167,913
80% 79.9% 150,146 150,019
70% 70.4% 131,378 132,162
60% 59.6% 112,610 111,944
50% 50.0% 93,841 93,882
40% 39.6% 75,073 74,340
30% 29.4% 56,305 55,222
20% 20.0% 37,537 37,446
10% 10.1% 18,768 18,996
Active Idle   0 0
Graph of results
JVM 'localhost.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,827
Calibration 2     190,452
Calibration 3     190,780
ssj_ops@calibrated=190,616
100% 99.4% 190,616 189,554
90% 90.2% 171,554 171,949
80% 79.8% 152,493 152,189
70% 70.3% 133,431 134,034
60% 59.5% 114,370 113,499
50% 50.4% 95,308 95,976
40% 40.0% 76,246 76,214
30% 29.9% 57,185 57,036
20% 19.9% 38,123 37,908
10% 10.1% 19,062 19,217
Active Idle   0 0
Graph of results
JVM 'localhost.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,010
Calibration 2     190,606
Calibration 3     190,328
ssj_ops@calibrated=190,467
100% 98.8% 190,467 188,238
90% 90.5% 171,420 172,384
80% 79.7% 152,373 151,822
70% 69.9% 133,327 133,105
60% 59.9% 114,280 114,174
50% 50.2% 95,233 95,638
40% 39.6% 76,187 75,425
30% 29.8% 57,140 56,731
20% 19.9% 38,093 37,926
10% 9.9% 19,047 18,911
Active Idle   0 0
Graph of results
JVM 'localhost.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,423
Calibration 2     189,230
Calibration 3     188,557
ssj_ops@calibrated=188,893
100% 99.6% 188,893 188,071
90% 89.7% 170,004 169,483
80% 79.5% 151,115 150,137
70% 70.3% 132,225 132,780
60% 60.1% 113,336 113,547
50% 49.7% 94,447 93,869
40% 39.7% 75,557 75,021
30% 29.4% 56,668 55,569
20% 20.4% 37,779 38,598
10% 10.2% 18,889 19,279
Active Idle   0 0
Graph of results
JVM 'localhost.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,775
Calibration 2     188,830
Calibration 3     188,968
ssj_ops@calibrated=188,899
100% 99.6% 188,899 188,071
90% 89.9% 170,009 169,831
80% 79.8% 151,119 150,820
70% 70.3% 132,230 132,733
60% 59.9% 113,340 113,108
50% 49.6% 94,450 93,654
40% 40.0% 75,560 75,498
30% 29.7% 56,670 56,192
20% 20.0% 37,780 37,842
10% 10.0% 18,890 18,920
Active Idle   0 0
Graph of results
JVM 'localhost.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,783
Calibration 2     184,109
Calibration 3     184,535
ssj_ops@calibrated=184,322
100% 100.2% 184,322 184,685
90% 91.1% 165,890 167,985
80% 80.0% 147,458 147,502
70% 69.7% 129,025 128,409
60% 60.0% 110,593 110,534
50% 50.3% 92,161 92,743
40% 39.7% 73,729 73,170
30% 29.7% 55,297 54,816
20% 20.0% 36,864 36,854
10% 9.9% 18,432 18,237
Active Idle   0 0
Graph of results
JVM 'localhost.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,791
Calibration 2     189,577
Calibration 3     189,765
ssj_ops@calibrated=189,671
100% 99.5% 189,671 188,752
90% 89.8% 170,704 170,353
80% 80.0% 151,737 151,820
70% 70.9% 132,770 134,460
60% 60.2% 113,803 114,163
50% 49.8% 94,836 94,509
40% 39.8% 75,868 75,405
30% 30.1% 56,901 57,058
20% 19.9% 37,934 37,812
10% 9.9% 18,967 18,859
Active Idle   0 0
Graph of results
JVM 'localhost.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,952
Calibration 2     187,981
Calibration 3     187,940
ssj_ops@calibrated=187,961
100% 99.3% 187,961 186,682
90% 90.3% 169,165 169,662
80% 80.2% 150,369 150,743
70% 70.0% 131,572 131,664
60% 59.7% 112,776 112,198
50% 49.8% 93,980 93,556
40% 40.6% 75,184 76,264
30% 29.5% 56,388 55,510
20% 20.0% 37,592 37,508
10% 10.0% 18,796 18,821
Active Idle   0 0
Graph of results
JVM 'localhost.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,852
Calibration 2     186,054
Calibration 3     186,389
ssj_ops@calibrated=186,222
100% 99.7% 186,222 185,620
90% 90.1% 167,599 167,735
80% 80.5% 148,977 149,832
70% 70.0% 130,355 130,302
60% 59.8% 111,733 111,290
50% 50.2% 93,111 93,570
40% 40.1% 74,489 74,586
30% 30.1% 55,866 55,977
20% 20.1% 37,244 37,339
10% 10.1% 18,622 18,798
Active Idle   0 0
Graph of results
JVM 'localhost.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,090
Calibration 2     186,023
Calibration 3     186,168
ssj_ops@calibrated=186,096
100% 99.4% 186,096 184,982
90% 90.5% 167,486 168,483
80% 79.5% 148,876 147,953
70% 70.4% 130,267 130,949
60% 60.4% 111,657 112,331
50% 49.9% 93,048 92,903
40% 39.9% 74,438 74,229
30% 30.2% 55,829 56,213
20% 20.1% 37,219 37,318
10% 9.9% 18,610 18,453
Active Idle   0 0
Graph of results
JVM 'localhost.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,477
Calibration 2     186,401
Calibration 3     186,792
ssj_ops@calibrated=186,596
100% 99.6% 186,596 185,848
90% 89.5% 167,937 167,069
80% 80.1% 149,277 149,450
70% 70.0% 130,618 130,684
60% 60.1% 111,958 112,102
50% 50.3% 93,298 93,821
40% 39.3% 74,639 73,282
30% 29.9% 55,979 55,781
20% 20.2% 37,319 37,621
10% 10.0% 18,660 18,751
Active Idle   0 0
Graph of results
JVM 'localhost.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,481
Calibration 2     186,667
Calibration 3     187,462
ssj_ops@calibrated=187,064
100% 100.1% 187,064 187,196
90% 90.6% 168,358 169,513
80% 80.2% 149,652 150,047
70% 69.6% 130,945 130,208
60% 60.1% 112,239 112,394
50% 50.7% 93,532 94,822
40% 40.2% 74,826 75,173
30% 29.8% 56,119 55,836
20% 20.1% 37,413 37,533
10% 9.9% 18,706 18,470
Active Idle   0 0
Graph of results
JVM 'localhost.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,455
Calibration 2     182,837
Calibration 3     182,432
ssj_ops@calibrated=182,634
100% 99.6% 182,634 181,824
90% 89.8% 164,371 163,954
80% 79.3% 146,107 144,883
70% 70.1% 127,844 128,030
60% 59.7% 109,581 108,978
50% 51.0% 91,317 93,220
40% 39.8% 73,054 72,660
30% 30.1% 54,790 55,012
20% 19.9% 36,527 36,380
10% 10.1% 18,263 18,363
Active Idle   0 0
Graph of results
JVM 'localhost.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,082
Calibration 2     189,664
Calibration 3     190,273
ssj_ops@calibrated=189,969
100% 99.7% 189,969 189,439
90% 89.9% 170,972 170,860
80% 80.0% 151,975 152,009
70% 70.0% 132,978 132,915
60% 60.1% 113,981 114,128
50% 50.6% 94,984 96,212
40% 39.8% 75,988 75,614
30% 30.0% 56,991 57,040
20% 19.7% 37,994 37,504
10% 10.1% 18,997 19,200
Active Idle   0 0
Graph of results
JVM 'localhost.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,476
Calibration 2     191,546
Calibration 3     192,311
ssj_ops@calibrated=191,928
100% 99.7% 191,928 191,330
90% 90.6% 172,736 173,957
80% 79.7% 153,543 152,973
70% 69.8% 134,350 133,983
60% 60.7% 115,157 116,595
50% 50.5% 95,964 96,917
40% 39.4% 76,771 75,572
30% 29.7% 57,579 57,028
20% 20.2% 38,386 38,735
10% 10.2% 19,193 19,512
Active Idle   0 0
Graph of results

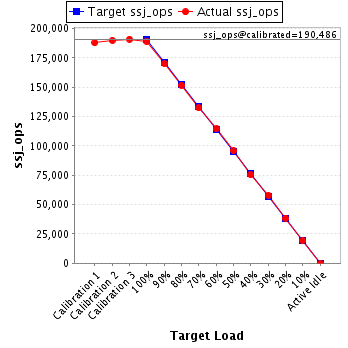

JVM 'localhost.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,912
Calibration 2     189,949
Calibration 3     191,023
ssj_ops@calibrated=190,486
100% 99.3% 190,486 189,237
90% 89.4% 171,437 170,260
80% 79.7% 152,389 151,871
70% 69.6% 133,340 132,670
60% 60.1% 114,291 114,480
50% 50.3% 95,243 95,846
40% 39.6% 76,194 75,454
30% 30.3% 57,146 57,798
20% 20.2% 38,097 38,525
10% 10.1% 19,049 19,177
Active Idle   0 0
Graph of results
JVM 'localhost.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,265
Calibration 2     192,696
Calibration 3     192,911
ssj_ops@calibrated=192,803
100% 100.0% 192,803 192,829
90% 89.8% 173,523 173,103
80% 80.4% 154,243 154,982
70% 70.2% 134,962 135,286
60% 59.3% 115,682 114,287
50% 50.0% 96,402 96,306
40% 40.1% 77,121 77,319
30% 30.3% 57,841 58,358
20% 20.0% 38,561 38,653
10% 9.8% 19,280 18,985
Active Idle   0 0
Graph of results
JVM 'localhost.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,818
Calibration 2     190,448
Calibration 3     191,013
ssj_ops@calibrated=190,730
100% 99.7% 190,730 190,104
90% 91.0% 171,657 173,518
80% 79.9% 152,584 152,311
70% 69.8% 133,511 133,116
60% 60.9% 114,438 116,164
50% 50.0% 95,365 95,376
40% 40.7% 76,292 77,651
30% 30.0% 57,219 57,217
20% 20.3% 38,146 38,808
10% 10.0% 19,073 19,150
Active Idle   0 0
Graph of results
JVM 'localhost.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,554
Calibration 2     193,827
Calibration 3     193,208
ssj_ops@calibrated=193,518
100% 99.8% 193,518 193,149
90% 90.0% 174,166 174,084
80% 79.7% 154,814 154,270
70% 70.0% 135,462 135,483
60% 60.2% 116,111 116,582
50% 49.8% 96,759 96,416
40% 40.0% 77,407 77,341
30% 30.0% 58,055 58,062
20% 20.2% 38,704 39,041
10% 9.9% 19,352 19,112
Active Idle   0 0
Graph of results
JVM 'localhost.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,577
Calibration 2     189,732
Calibration 3     190,045
ssj_ops@calibrated=189,888
100% 99.2% 189,888 188,306
90% 90.7% 170,900 172,248
80% 80.8% 151,911 153,408
70% 70.0% 132,922 132,829
60% 60.6% 113,933 115,042
50% 50.0% 94,944 95,003
40% 40.4% 75,955 76,724
30% 29.9% 56,967 56,813
20% 20.1% 37,978 38,194
10% 10.1% 18,989 19,150
Active Idle   0 0
Graph of results
JVM 'localhost.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,136
Calibration 2     190,690
Calibration 3     191,235
ssj_ops@calibrated=190,962
100% 99.6% 190,962 190,200
90% 89.2% 171,866 170,352
80% 80.0% 152,770 152,732
70% 70.3% 133,674 134,325
60% 59.7% 114,577 113,998
50% 50.2% 95,481 95,845
40% 40.0% 76,385 76,406
30% 29.9% 57,289 57,162
20% 19.8% 38,192 37,884
10% 9.9% 19,096 18,922
Active Idle   0 0
Graph of results
JVM 'localhost.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,161
Calibration 2     189,554
Calibration 3     189,439
ssj_ops@calibrated=189,497
100% 99.3% 189,497 188,245
90% 90.7% 170,547 171,815
80% 79.3% 151,598 150,333
70% 70.5% 132,648 133,589
60% 60.0% 113,698 113,673
50% 49.7% 94,748 94,127
40% 39.4% 75,799 74,746
30% 29.9% 56,849 56,711
20% 19.9% 37,899 37,789
10% 10.0% 18,950 18,983
Active Idle   0 0

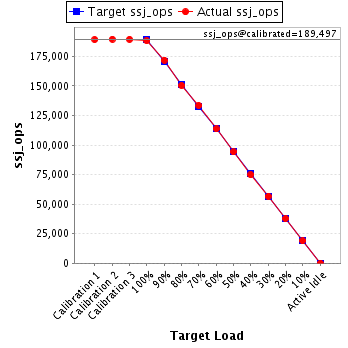

Graph of results
