Dell Inc. PowerEdge R6515 (AMD EPYC 7702P, 2.00 GHz) ssj_ops@100% = 6,124,305
ssj_ops@100% per JVM = 191,385
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 22, 2020
Hardware Availability: Jul-2020 Software Availability: Feb-2020 Publication: Aug 12, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,118,464
Calibration 2     6,139,273
Calibration 3     6,137,368
ssj_ops@calibrated=6,138,321
100% 99.8% 6,138,321 6,124,305
90% 90.0% 5,524,488 5,527,289
80% 79.9% 4,910,656 4,907,530
70% 69.9% 4,296,824 4,289,422
60% 60.0% 3,682,992 3,681,028
50% 49.8% 3,069,160 3,056,053
40% 40.1% 2,455,328 2,459,905
30% 30.0% 1,841,496 1,840,829
20% 19.9% 1,227,664 1,224,553
10% 10.0% 613,832 613,770
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R6515
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R6515 (AMD EPYC 7702P, 2.00 GHz)
Form Factor: 1U
CPU Name: AMD EPYC 7702P 2.00 GHz
CPU Characteristics: 64 core, 2.00 GHz, 256 MB L3 Cache, MaxBoost clock up to 3.35 GHz
CPU Frequency (MHz): 2000
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 1Rx8 PC4-3200AA-R running at 2666. Slots A1-8 populated. (DPN 6VDNY)
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: 550W Platinum Efficiency (DPN 6V43G)
Disk Drive: 1 x 240 GB M.2 SATA SSD
Disk Controller: PCIe attached Boot Optimized Storage (BOSS) card (DPN 5T20H)
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: High Performance power plan in OS (see SUT notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: 10.0.17763 Build 17763
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing), version 13.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity: start /NODE[0-15] /AFFINITY [0xF, 0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 1.4.8
Management Firmware Version: 4.10.10.10 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4532691
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-FQHDMH530RO.001 192,650
WIN-FQHDMH530RO.002 184,780
WIN-FQHDMH530RO.003 195,615
WIN-FQHDMH530RO.004 191,122
WIN-FQHDMH530RO.005 185,127
WIN-FQHDMH530RO.006 186,917
WIN-FQHDMH530RO.007 185,102
WIN-FQHDMH530RO.008 184,176
WIN-FQHDMH530RO.009 193,326
WIN-FQHDMH530RO.010 195,116
WIN-FQHDMH530RO.011 194,865
WIN-FQHDMH530RO.012 194,438
WIN-FQHDMH530RO.013 195,402
WIN-FQHDMH530RO.014 190,149
WIN-FQHDMH530RO.015 192,189
WIN-FQHDMH530RO.016 193,462
WIN-FQHDMH530RO.017 194,670
WIN-FQHDMH530RO.018 196,702
WIN-FQHDMH530RO.019 197,429
WIN-FQHDMH530RO.020 195,961
WIN-FQHDMH530RO.021 194,166
WIN-FQHDMH530RO.022 190,649
WIN-FQHDMH530RO.023 192,079
WIN-FQHDMH530RO.024 191,690
WIN-FQHDMH530RO.025 192,157
WIN-FQHDMH530RO.026 188,671
WIN-FQHDMH530RO.027 189,031
WIN-FQHDMH530RO.028 188,299
WIN-FQHDMH530RO.029 188,614
WIN-FQHDMH530RO.030 189,350
WIN-FQHDMH530RO.031 189,839
WIN-FQHDMH530RO.032 190,563
ssj_ops@100% 6,124,305
ssj_ops@100% per JVM 191,385
Graph of per-instance results
JVM 'WIN-FQHDMH530RO.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,201
Calibration 2     193,814
Calibration 3     192,589
ssj_ops@calibrated=193,201
100% 99.7% 193,201 192,650
90% 89.8% 173,881 173,493
80% 80.1% 154,561 154,659
70% 70.1% 135,241 135,340
60% 60.0% 115,921 115,825
50% 50.2% 96,601 96,947
40% 40.4% 77,281 77,990
30% 29.5% 57,960 56,945
20% 20.1% 38,640 38,823
10% 9.9% 19,320 19,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,820
Calibration 2     184,522
Calibration 3     184,729
ssj_ops@calibrated=184,625
100% 100.1% 184,625 184,780
90% 89.7% 166,163 165,628
80% 80.2% 147,700 148,038
70% 69.5% 129,238 128,287
60% 60.3% 110,775 111,253
50% 49.8% 92,313 91,917
40% 39.9% 73,850 73,591
30% 30.1% 55,388 55,621
20% 20.0% 36,925 36,898
10% 10.1% 18,463 18,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,115
Calibration 2     194,588
Calibration 3     194,991
ssj_ops@calibrated=194,790
100% 100.4% 194,790 195,615
90% 89.6% 175,311 174,441
80% 79.5% 155,832 154,802
70% 69.0% 136,353 134,373
60% 60.1% 116,874 117,102
50% 49.4% 97,395 96,214
40% 40.2% 77,916 78,316
30% 30.1% 58,437 58,548
20% 19.9% 38,958 38,756
10% 10.0% 19,479 19,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,508
Calibration 2     191,056
Calibration 3     191,585
ssj_ops@calibrated=191,321
100% 99.9% 191,321 191,122
90% 89.9% 172,188 171,919
80% 79.8% 153,056 152,599
70% 69.5% 133,924 133,000
60% 60.2% 114,792 115,264
50% 49.9% 95,660 95,477
40% 39.6% 76,528 75,687
30% 30.0% 57,396 57,439
20% 19.5% 38,264 37,330
10% 9.9% 19,132 19,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,957
Calibration 2     185,181
Calibration 3     184,644
ssj_ops@calibrated=184,913
100% 100.1% 184,913 185,127
90% 89.9% 166,421 166,203
80% 79.8% 147,930 147,562
70% 69.8% 129,439 129,113
60% 59.6% 110,948 110,300
50% 50.2% 92,456 92,914
40% 40.2% 73,965 74,420
30% 30.4% 55,474 56,221
20% 19.7% 36,983 36,370
10% 10.0% 18,491 18,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,763
Calibration 2     187,212
Calibration 3     188,002
ssj_ops@calibrated=187,607
100% 99.6% 187,607 186,917
90% 89.9% 168,847 168,644
80% 80.3% 150,086 150,731
70% 69.6% 131,325 130,544
60% 60.0% 112,564 112,645
50% 49.8% 93,804 93,436
40% 40.6% 75,043 76,228
30% 30.2% 56,282 56,656
20% 19.9% 37,521 37,401
10% 9.9% 18,761 18,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,173
Calibration 2     185,700
Calibration 3     184,976
ssj_ops@calibrated=185,338
100% 99.9% 185,338 185,102
90% 90.2% 166,804 167,172
80% 80.2% 148,270 148,731
70% 69.7% 129,737 129,215
60% 60.2% 111,203 111,521
50% 49.4% 92,669 91,611
40% 40.4% 74,135 74,950
30% 29.9% 55,601 55,452
20% 19.7% 37,068 36,435
10% 9.9% 18,534 18,265
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,602
Calibration 2     185,195
Calibration 3     185,491
ssj_ops@calibrated=185,343
100% 99.4% 185,343 184,176
90% 90.2% 166,809 167,177
80% 79.9% 148,275 148,176
70% 70.3% 129,740 130,309
60% 59.5% 111,206 110,228
50% 49.8% 92,672 92,297
40% 40.1% 74,137 74,375
30% 30.0% 55,603 55,575
20% 20.0% 37,069 37,077
10% 10.2% 18,534 18,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,148
Calibration 2     195,268
Calibration 3     194,643
ssj_ops@calibrated=194,955
100% 99.2% 194,955 193,326
90% 89.7% 175,460 174,861
80% 80.7% 155,964 157,321
70% 69.9% 136,469 136,199
60% 60.3% 116,973 117,638
50% 49.8% 97,478 97,046
40% 39.9% 77,982 77,844
30% 30.1% 58,487 58,667
20% 20.3% 38,991 39,498
10% 10.1% 19,496 19,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,442
Calibration 2     195,780
Calibration 3     195,606
ssj_ops@calibrated=195,693
100% 99.7% 195,693 195,116
90% 89.4% 176,124 175,026
80% 80.4% 156,554 157,269
70% 69.9% 136,985 136,728
60% 59.3% 117,416 116,072
50% 49.5% 97,846 96,773
40% 39.7% 78,277 77,750
30% 30.0% 58,708 58,710
20% 20.1% 39,139 39,246
10% 10.1% 19,569 19,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,322
Calibration 2     195,195
Calibration 3     194,820
ssj_ops@calibrated=195,008
100% 99.9% 195,008 194,865
90% 90.4% 175,507 176,268
80% 79.4% 156,006 154,932
70% 70.1% 136,505 136,729
60% 60.3% 117,005 117,526
50% 50.1% 97,504 97,630
40% 39.5% 78,003 76,941
30% 29.9% 58,502 58,275
20% 20.3% 39,002 39,490
10% 10.0% 19,501 19,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,672
Calibration 2     193,926
Calibration 3     194,790
ssj_ops@calibrated=194,358
100% 100.0% 194,358 194,438
90% 90.2% 174,922 175,226
80% 80.1% 155,486 155,622
70% 70.0% 136,051 136,143
60% 60.4% 116,615 117,428
50% 49.9% 97,179 97,039
40% 40.4% 77,743 78,498
30% 30.3% 58,307 58,959
20% 19.7% 38,872 38,289
10% 10.2% 19,436 19,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,054
Calibration 2     194,998
Calibration 3     194,762
ssj_ops@calibrated=194,880
100% 100.3% 194,880 195,402
90% 90.0% 175,392 175,449
80% 79.7% 155,904 155,337
70% 70.1% 136,416 136,664
60% 59.9% 116,928 116,776
50% 49.4% 97,440 96,258
40% 40.3% 77,952 78,496
30% 30.1% 58,464 58,600
20% 19.7% 38,976 38,433
10% 10.1% 19,488 19,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,984
Calibration 2     189,945
Calibration 3     189,753
ssj_ops@calibrated=189,849
100% 100.2% 189,849 190,149
90% 89.2% 170,864 169,326
80% 79.5% 151,879 150,944
70% 70.4% 132,894 133,697
60% 59.7% 113,909 113,386
50% 49.7% 94,924 94,337
40% 39.6% 75,940 75,163
30% 29.9% 56,955 56,685
20% 19.9% 37,970 37,726
10% 10.2% 18,985 19,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,124
Calibration 2     191,841
Calibration 3     192,104
ssj_ops@calibrated=191,972
100% 100.1% 191,972 192,189
90% 89.2% 172,775 171,144
80% 79.5% 153,578 152,695
70% 70.7% 134,381 135,698
60% 60.0% 115,183 115,201
50% 49.6% 95,986 95,272
40% 40.7% 76,789 78,106
30% 29.7% 57,592 57,042
20% 19.7% 38,394 37,844
10% 9.8% 19,197 18,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,802
Calibration 2     194,242
Calibration 3     194,084
ssj_ops@calibrated=194,163
100% 99.6% 194,163 193,462
90% 90.0% 174,747 174,827
80% 79.7% 155,330 154,773
70% 70.0% 135,914 135,877
60% 60.5% 116,498 117,403
50% 50.4% 97,081 97,762
40% 40.0% 77,665 77,602
30% 30.2% 58,249 58,653
20% 19.9% 38,833 38,580
10% 9.8% 19,416 19,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,099
Calibration 2     194,282
Calibration 3     194,011
ssj_ops@calibrated=194,146
100% 100.3% 194,146 194,670
90% 90.0% 174,732 174,640
80% 79.7% 155,317 154,784
70% 70.1% 135,903 136,084
60% 59.5% 116,488 115,447
50% 50.0% 97,073 97,103
40% 39.7% 77,659 77,103
30% 30.0% 58,244 58,205
20% 20.1% 38,829 39,094
10% 9.9% 19,415 19,151
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,138
Calibration 2     197,483
Calibration 3     197,608
ssj_ops@calibrated=197,545
100% 99.6% 197,545 196,702
90% 90.5% 177,791 178,785
80% 80.0% 158,036 157,951
70% 69.9% 138,282 138,152
60% 59.8% 118,527 118,186
50% 50.1% 98,773 99,053
40% 40.6% 79,018 80,164
30% 30.0% 59,264 59,168
20% 20.0% 39,509 39,578
10% 10.0% 19,755 19,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,996
Calibration 2     196,580
Calibration 3     196,921
ssj_ops@calibrated=196,750
100% 100.3% 196,750 197,429
90% 90.3% 177,075 177,641
80% 80.5% 157,400 158,361
70% 69.2% 137,725 136,081
60% 60.0% 118,050 118,024
50% 50.1% 98,375 98,573
40% 40.2% 78,700 79,014
30% 30.0% 59,025 58,947
20% 20.2% 39,350 39,687
10% 10.4% 19,675 20,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,871
Calibration 2     197,242
Calibration 3     197,373
ssj_ops@calibrated=197,308
100% 99.3% 197,308 195,961
90% 90.3% 177,577 178,122
80% 80.8% 157,846 159,452
70% 70.0% 138,115 138,157
60% 59.9% 118,385 118,151
50% 49.4% 98,654 97,535
40% 39.9% 78,923 78,735
30% 29.8% 59,192 58,754
20% 19.8% 39,462 39,050
10% 9.6% 19,731 18,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,572
Calibration 2     194,846
Calibration 3     194,713
ssj_ops@calibrated=194,780
100% 99.7% 194,780 194,166
90% 90.5% 175,302 176,234
80% 80.2% 155,824 156,272
70% 69.6% 136,346 135,532
60% 60.0% 116,868 116,944
50% 49.4% 97,390 96,218
40% 40.2% 77,912 78,347
30% 30.1% 58,434 58,578
20% 19.7% 38,956 38,314
10% 9.9% 19,478 19,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,533
Calibration 2     192,320
Calibration 3     191,719
ssj_ops@calibrated=192,020
100% 99.3% 192,020 190,649
90% 90.7% 172,818 174,106
80% 80.1% 153,616 153,790
70% 70.0% 134,414 134,462
60% 59.7% 115,212 114,700
50% 49.6% 96,010 95,269
40% 40.0% 76,808 76,721
30% 29.7% 57,606 57,022
20% 20.2% 38,404 38,826
10% 10.0% 19,202 19,269
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,015
Calibration 2     193,073
Calibration 3     193,259
ssj_ops@calibrated=193,166
100% 99.4% 193,166 192,079
90% 89.8% 173,850 173,465
80% 79.7% 154,533 153,878
70% 69.6% 135,216 134,501
60% 60.0% 115,900 115,869
50% 49.9% 96,583 96,360
40% 40.1% 77,266 77,542
30% 29.8% 57,950 57,492
20% 19.6% 38,633 37,913
10% 9.9% 19,317 19,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

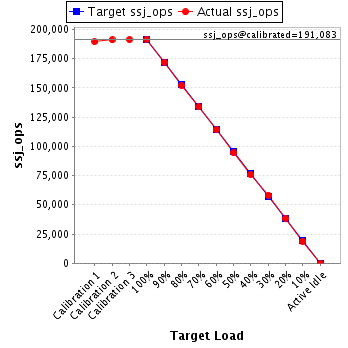

JVM 'WIN-FQHDMH530RO.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,473
Calibration 2     190,997
Calibration 3     191,168
ssj_ops@calibrated=191,083
100% 100.3% 191,083 191,690
90% 90.0% 171,974 172,033
80% 79.5% 152,866 151,997
70% 70.0% 133,758 133,691
60% 59.8% 114,650 114,300
50% 49.4% 95,541 94,448
40% 39.7% 76,433 75,913
30% 30.4% 57,325 58,072
20% 20.1% 38,217 38,444
10% 9.9% 19,108 18,936
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,501
Calibration 2     193,916
Calibration 3     193,247
ssj_ops@calibrated=193,582
100% 99.3% 193,582 192,157
90% 90.6% 174,223 175,391
80% 79.9% 154,865 154,733
70% 70.3% 135,507 136,073
60% 59.9% 116,149 115,988
50% 49.6% 96,791 95,979
40% 40.2% 77,433 77,752
30% 29.8% 58,074 57,663
20% 19.9% 38,716 38,555
10% 9.9% 19,358 19,113
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,459
Calibration 2     190,027
Calibration 3     189,248
ssj_ops@calibrated=189,637
100% 99.5% 189,637 188,671
90% 90.6% 170,674 171,780
80% 79.9% 151,710 151,605
70% 70.4% 132,746 133,495
60% 60.3% 113,782 114,338
50% 49.8% 94,819 94,392
40% 40.2% 75,855 76,255
30% 30.2% 56,891 57,180
20% 20.0% 37,927 37,931
10% 10.0% 18,964 18,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,529
Calibration 2     190,228
Calibration 3     190,483
ssj_ops@calibrated=190,356
100% 99.3% 190,356 189,031
90% 90.1% 171,320 171,491
80% 79.6% 152,285 151,588
70% 70.2% 133,249 133,700
60% 60.1% 114,213 114,355
50% 49.8% 95,178 94,765
40% 40.2% 76,142 76,432
30% 30.0% 57,107 57,084
20% 20.2% 38,071 38,506
10% 10.0% 19,036 19,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,483
Calibration 2     188,698
Calibration 3     188,696
ssj_ops@calibrated=188,697
100% 99.8% 188,697 188,299
90% 89.5% 169,827 168,881
80% 79.6% 150,957 150,194
70% 70.0% 132,088 132,103
60% 59.6% 113,218 112,392
50% 50.2% 94,348 94,654
40% 39.9% 75,479 75,365
30% 29.9% 56,609 56,392
20% 19.7% 37,739 37,160
10% 10.3% 18,870 19,486
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,973
Calibration 2     189,073
Calibration 3     188,766
ssj_ops@calibrated=188,920
100% 99.8% 188,920 188,614
90% 90.8% 170,028 171,505
80% 80.6% 151,136 152,224
70% 69.1% 132,244 130,457
60% 59.7% 113,352 112,786
50% 49.9% 94,460 94,333
40% 39.7% 75,568 74,928
30% 29.6% 56,676 55,858
20% 20.0% 37,784 37,860
10% 9.9% 18,892 18,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

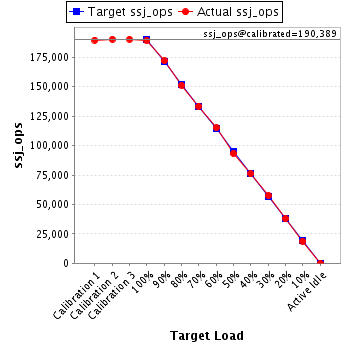

JVM 'WIN-FQHDMH530RO.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,673
Calibration 2     190,349
Calibration 3     190,428
ssj_ops@calibrated=190,389
100% 99.5% 190,389 189,350
90% 90.3% 171,350 171,998
80% 79.4% 152,311 151,234
70% 70.1% 133,272 133,468
60% 60.5% 114,233 115,112
50% 48.9% 95,194 93,143
40% 40.0% 76,155 76,072
30% 30.2% 57,117 57,480
20% 19.9% 38,078 37,961
10% 9.9% 19,039 18,831
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,461
Calibration 2     189,377
Calibration 3     190,183
ssj_ops@calibrated=189,780
100% 100.0% 189,780 189,839
90% 90.5% 170,802 171,794
80% 79.8% 151,824 151,363
70% 69.7% 132,846 132,207
60% 60.5% 113,868 114,729
50% 49.9% 94,890 94,776
40% 40.4% 75,912 76,617
30% 30.0% 56,934 56,959
20% 20.4% 37,956 38,709
10% 10.1% 18,978 19,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FQHDMH530RO.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,003
Calibration 2     192,321
Calibration 3     191,973
ssj_ops@calibrated=192,147
100% 99.2% 192,147 190,563
90% 89.8% 172,932 172,618
80% 80.1% 153,717 153,913
70% 69.4% 134,503 133,344
60% 59.4% 115,288 114,142
50% 50.2% 96,073 96,523
40% 40.1% 76,859 76,989
30% 30.1% 57,644 57,929
20% 20.2% 38,429 38,768
10% 10.1% 19,215 19,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
