SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

ASUSTeK Computer Inc. RS620SA-E10-RS12			ssj_ops@100% = 36,876,127 ssj_ops@100% per Host = 6,146,021 ssj_ops@100% per JVM = 192,063
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Multi Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	Sep 15, 2020
Hardware Availability:	Sep-2020	Software Availability:	Aug-2020	Publication:	Oct 7, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			36,933,146
Calibration 2			36,963,737
Calibration 3			36,987,078
ssj_ops@calibrated=36,975,407
100%	99.7%	36,975,407	36,876,127
90%	90.0%	33,277,867	33,262,445
80%	80.0%	29,580,326	29,578,242
70%	70.0%	25,882,785	25,871,573
60%	60.0%	22,185,244	22,181,770
50%	50.0%	18,487,704	18,498,873
40%	40.0%	14,790,163	14,777,371
30%	30.0%	11,092,622	11,107,687
20%	20.0%	7,395,081	7,392,750
10%	10.0%	3,697,541	3,699,927
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
6	6	384	768	768	6	192

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	RS620SA-E10
Form Factor:	2U
Power Supply Quantity and Rating (W):	1 x 3000
Power Supply Details:	GOSPOWER G1236-3000WNA Rev:0.1 P/N: 0A100-00440000
Network Switch:	ASUSTek GigaX1116
Network Switch Details:	16-Port Giga LAN
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	16 Port Gigabit Ethernet Switch

Set: 'RS620SA-E10-RS12'

Set Identifier:	RS620SA-E10-RS12
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	'SUT'

Hardware per Node
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS620SA-E10-RS12
Form Factor:	1U
CPU Name:	AMD EPYC 7742 2.25Ghz
CPU Characteristics:	64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16 GB
Memory Details:	8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller:	Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled(See SUT Notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1397)
Filesystem:	NTFS
JVM Vendor:	Oracle
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options:	-server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances:	32
JVM Initial Heap (MB):	1400
JVM Maximum Heap (MB):	1400
JVM Address Bits:	64
Boot Firmware Version:	0305
Management Firmware Version:	2.1.09
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	MS-KB4565349

Boot Firmware Settings

SVM Mode = Disabled
SMEE = Disabled
SR-IOV Support = Disabled
Core Performance Boost = Disabled
L1 Stream HW Prefetcher = Disable
L2 Stream HW Prefetcher = Disable
CSM = disabled
DRAM scrub time = Disabled
NUMA nodes per socket = NPS4
DRAM Power Down Enable = Enabled
APBDIS = 1
Fixed SOC Pstate = P3
Memory clock speed = 1333 MHz
IOMMU = Disabled
EfficiencyModeEn = Enabled
ACPI SRAT L3 Cache As NUMA Domain = Enabled
SATA Enable = Disabled
XHCI Controller1 enable = Disabled
PCIE Link Speed = Gen 1

Management Firmware Settings

None

System Under Test Notes

Using the Local Security Settings Console.
Lock pages in Memory was Enabled for the User Running the Benchmark.
Balanced mode.
Benchmark was started via Windows Remote Desktop Connection.
Hard Disk set to Turn Off After 1 Minute.
Display Set to Turn Off After 1 Minute.
PCIE Power Management: Maximum Power Savings.
Using Windows PowerShell, set the following powercfg properties:

Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMIN 0
Powercfg /setacvalueindex scheme_current sub_processor PROCTHROTTLEMAX 100
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 0
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Dec 20, 2019).
NA:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

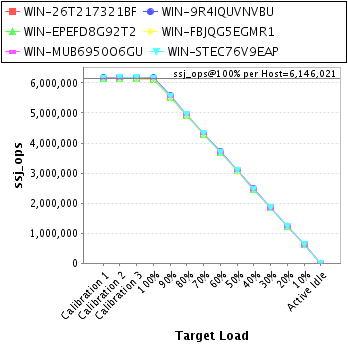

Host Instance Summary

Host	ssj_ops@100%
WIN-26T217321BF	6,127,784
WIN-9R4IQUVNVBU	6,171,445
WIN-EPEFD8G92T2	6,129,300
WIN-FBJQG5EGMR1	6,125,441
WIN-MUB6950O6GU	6,164,499
WIN-STEC76V9EAP	6,157,657
ssj_ops@100%	36,876,127
ssj_ops@100% per Host	6,146,021
ssj_ops@100% per JVM	192,063

Host 'WIN-26T217321BF' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,139,406
Calibration 2			6,143,659
Calibration 3			6,145,427
ssj_ops@calibrated=6,144,543
100%	99.7%	6,144,543	6,127,784
90%	89.9%	5,530,089	5,525,770
80%	80.0%	4,915,635	4,913,475
70%	70.0%	4,301,180	4,301,673
60%	60.1%	3,686,726	3,689,842
50%	50.0%	3,072,272	3,072,404
40%	39.9%	2,457,817	2,453,081
30%	30.1%	1,843,363	1,849,784
20%	20.0%	1,228,909	1,227,928
10%	10.0%	614,454	615,589
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-9R4IQUVNVBU' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,185,367
Calibration 2			6,188,660
Calibration 3			6,191,071
ssj_ops@calibrated=6,189,865
100%	99.7%	6,189,865	6,171,445
90%	89.9%	5,570,879	5,565,328
80%	80.0%	4,951,892	4,949,412
70%	69.9%	4,332,906	4,327,007
60%	60.0%	3,713,919	3,713,174
50%	50.1%	3,094,933	3,102,868
40%	40.0%	2,475,946	2,475,732
30%	30.1%	1,856,960	1,861,436
20%	20.0%	1,237,973	1,236,559
10%	10.0%	618,987	621,469
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-EPEFD8G92T2' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,145,185
Calibration 2			6,143,975
Calibration 3			6,147,973
ssj_ops@calibrated=6,145,974
100%	99.7%	6,145,974	6,129,300
90%	89.9%	5,531,377	5,528,042
80%	80.0%	4,916,779	4,918,408
70%	69.9%	4,302,182	4,294,722
60%	59.9%	3,687,584	3,682,138
50%	50.1%	3,072,987	3,076,218
40%	39.9%	2,458,390	2,454,794
30%	30.1%	1,843,792	1,846,960
20%	20.0%	1,229,195	1,229,439
10%	10.0%	614,597	613,755
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-FBJQG5EGMR1' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,135,454
Calibration 2			6,136,297
Calibration 3			6,142,146
ssj_ops@calibrated=6,139,222
100%	99.8%	6,139,222	6,125,441
90%	89.9%	5,525,299	5,521,921
80%	80.0%	4,911,377	4,909,160
70%	70.0%	4,297,455	4,300,284
60%	60.0%	3,683,533	3,686,382
50%	50.0%	3,069,611	3,068,624
40%	40.0%	2,455,689	2,455,451
30%	30.1%	1,841,766	1,846,066
20%	20.0%	1,227,844	1,227,946
10%	10.0%	613,922	611,474
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-MUB6950O6GU' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,175,131
Calibration 2			6,179,969
Calibration 3			6,184,230
ssj_ops@calibrated=6,182,100
100%	99.7%	6,182,100	6,164,499
90%	89.9%	5,563,890	5,559,834
80%	80.1%	4,945,680	4,951,927
70%	70.0%	4,327,470	4,328,432
60%	60.0%	3,709,260	3,708,524
50%	50.0%	3,091,050	3,091,943
40%	40.0%	2,472,840	2,472,721
30%	30.0%	1,854,630	1,851,968
20%	20.0%	1,236,420	1,235,971
10%	10.0%	618,210	619,741
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-STEC76V9EAP' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,152,601
Calibration 2			6,171,176
Calibration 3			6,176,231
ssj_ops@calibrated=6,173,703
100%	99.7%	6,173,703	6,157,657
90%	90.1%	5,556,333	5,561,549
80%	79.9%	4,938,963	4,935,860
70%	70.0%	4,321,592	4,319,456
60%	60.0%	3,704,222	3,701,709
50%	50.0%	3,086,852	3,086,816
40%	39.9%	2,469,481	2,465,591
30%	30.0%	1,852,111	1,851,472
20%	20.0%	1,234,741	1,234,908
10%	10.0%	617,370	617,900
Active Idle		0	0

See the Host Performance Report for additional details.
