SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2020 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS620SA-E10-RS12 | SPECpower_ssj2008 = 24,507 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Multi Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Sep 18, 2020 |
| Hardware Availability: | Sep-2020 | Software Availability: | Jul-2020 | Publication: | Oct 7, 2020 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

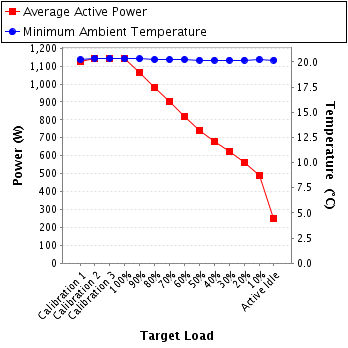

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,128 | 20.2 |
| Calibration 2 | 1,144 | 20.4 |
| Calibration 3 | 1,144 | 20.4 |
| 100% | 1,141 | 20.3 |
| 90% | 1,062 | 20.3 |
| 80% | 981 | 20.2 |
| 70% | 903 | 20.2 |
| 60% | 816 | 20.2 |
| 50% | 739 | 20.2 |
| 40% | 680 | 20.2 |
| 30% | 622 | 20.2 |
| 20% | 560 | 20.2 |
| 10% | 492 | 20.2 |
| Active Idle | 250 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
| Calibration Label: | A2007141001 |
| Date of Calibration: | 17-Jul-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 5.20 | 10.0 | 0.982 | 1,128 | 0.5% |
| Calibration 2 | 221 | 300.0 | 5.26 | 10.0 | 0.982 | 1,144 | 0.5% |
| Calibration 3 | 221 | 300.0 | 5.26 | 10.0 | 0.982 | 1,144 | 0.5% |
| 100% | 221 | 300.0 | 5.25 | 10.0 | 0.982 | 1,141 | 0.5% |
| 90% | 222 | 300.0 | 4.90 | 10.0 | 0.979 | 1,062 | 0.5% |
| 80% | 222 | 300.0 | 4.53 | 10.0 | 0.975 | 981 | 0.5% |
| 70% | 222 | 300.0 | 4.18 | 10.0 | 0.971 | 903 | 0.5% |
| 60% | 222 | 300.0 | 3.80 | 5.0 | 0.966 | 816 | 0.4% |
| 50% | 222 | 300.0 | 3.45 | 5.0 | 0.964 | 739 | 0.4% |
| 40% | 223 | 300.0 | 3.16 | 5.0 | 0.966 | 680 | 0.4% |
| 30% | 223 | 300.0 | 2.88 | 5.0 | 0.968 | 622 | 0.4% |
| 20% | 222 | 300.0 | 2.61 | 5.0 | 0.967 | 560 | 0.5% |
| 10% | 222 | 300.0 | 2.31 | 5.0 | 0.962 | 492 | 0.5% |
| Active Idle | 222 | 300.0 | 1.23 | 2.0 | 0.913 | 250 | 0.5% |
