Inspur Corporation Inspur Yingxin NF8480M5 ssj_ops@100% = 11,896,061
ssj_ops@100% per JVM = 106,215
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Sep 18, 2020
Hardware Availability: Aug-2020 Software Availability: Dec-2019 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,082,067
Calibration 2     11,979,050
Calibration 3     11,936,465
ssj_ops@calibrated=11,957,757
100% 99.5% 11,957,757 11,896,061
90% 90.0% 10,761,982 10,761,026
80% 80.0% 9,566,206 9,563,301
70% 69.9% 8,370,430 8,359,584
60% 60.0% 7,174,654 7,171,039
50% 50.0% 5,978,879 5,977,922
40% 39.9% 4,783,103 4,776,571
30% 30.0% 3,587,327 3,586,715
20% 20.0% 2,391,551 2,393,054
10% 10.0% 1,195,776 1,191,602
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur Yingxin NF8480M5
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16 GB 2Rx8 2933ER;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: DELTA DPS-800AB-47A PN:ZMPS1000150
Disk Drive: Intel_SSDSCKKB240G_240G_M.2 PN:ZMHD1000582
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Microsoft Windows Servers 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=14 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 112
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 4.1.14
Management Firmware Version: 1.19.29
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4056898
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-357TU7BO4LS.001 107,434
WIN-357TU7BO4LS.002 111,542
WIN-357TU7BO4LS.003 105,906
WIN-357TU7BO4LS.004 93,858
WIN-357TU7BO4LS.005 110,079
WIN-357TU7BO4LS.006 106,795
WIN-357TU7BO4LS.007 105,191
WIN-357TU7BO4LS.008 106,479
WIN-357TU7BO4LS.009 108,093
WIN-357TU7BO4LS.010 105,058
WIN-357TU7BO4LS.011 93,172
WIN-357TU7BO4LS.012 106,384
WIN-357TU7BO4LS.013 109,173
WIN-357TU7BO4LS.014 111,265
WIN-357TU7BO4LS.015 106,025
WIN-357TU7BO4LS.016 109,756
WIN-357TU7BO4LS.017 105,995
WIN-357TU7BO4LS.018 95,388
WIN-357TU7BO4LS.019 107,255
WIN-357TU7BO4LS.020 106,714
WIN-357TU7BO4LS.021 106,550
WIN-357TU7BO4LS.022 105,085
WIN-357TU7BO4LS.023 109,602
WIN-357TU7BO4LS.024 107,061
WIN-357TU7BO4LS.025 95,293
WIN-357TU7BO4LS.026 108,142
WIN-357TU7BO4LS.027 104,213
WIN-357TU7BO4LS.028 107,128
WIN-357TU7BO4LS.029 108,896
WIN-357TU7BO4LS.030 107,875
WIN-357TU7BO4LS.031 109,250
WIN-357TU7BO4LS.032 94,064
WIN-357TU7BO4LS.033 108,226
WIN-357TU7BO4LS.034 107,814
WIN-357TU7BO4LS.035 110,241
WIN-357TU7BO4LS.036 106,633
WIN-357TU7BO4LS.037 108,015
WIN-357TU7BO4LS.038 107,665
WIN-357TU7BO4LS.039 96,080
WIN-357TU7BO4LS.040 110,433
WIN-357TU7BO4LS.041 107,545
WIN-357TU7BO4LS.042 107,819
WIN-357TU7BO4LS.043 108,278
WIN-357TU7BO4LS.044 109,073
WIN-357TU7BO4LS.045 107,902
WIN-357TU7BO4LS.046 95,540
WIN-357TU7BO4LS.047 108,562
WIN-357TU7BO4LS.048 106,325
WIN-357TU7BO4LS.049 111,336
WIN-357TU7BO4LS.050 106,903
WIN-357TU7BO4LS.051 110,148
WIN-357TU7BO4LS.052 108,805
WIN-357TU7BO4LS.053 93,248
WIN-357TU7BO4LS.054 110,570
WIN-357TU7BO4LS.055 108,988
WIN-357TU7BO4LS.056 106,242
WIN-357TU7BO4LS.057 109,891
WIN-357TU7BO4LS.058 108,549
WIN-357TU7BO4LS.059 104,221
WIN-357TU7BO4LS.060 95,006
WIN-357TU7BO4LS.061 107,635
WIN-357TU7BO4LS.062 109,289
WIN-357TU7BO4LS.063 106,669
WIN-357TU7BO4LS.064 107,941
WIN-357TU7BO4LS.065 109,548
WIN-357TU7BO4LS.066 107,109
WIN-357TU7BO4LS.067 95,259
WIN-357TU7BO4LS.068 109,577
WIN-357TU7BO4LS.069 107,567
WIN-357TU7BO4LS.070 108,633
WIN-357TU7BO4LS.071 108,628
WIN-357TU7BO4LS.072 107,935
WIN-357TU7BO4LS.073 107,400
WIN-357TU7BO4LS.074 93,399
WIN-357TU7BO4LS.075 105,059
WIN-357TU7BO4LS.076 105,537
WIN-357TU7BO4LS.077 110,837
WIN-357TU7BO4LS.078 106,613
WIN-357TU7BO4LS.079 111,894
WIN-357TU7BO4LS.080 108,288
WIN-357TU7BO4LS.081 94,386
WIN-357TU7BO4LS.082 109,025
WIN-357TU7BO4LS.083 106,668
WIN-357TU7BO4LS.084 107,102
WIN-357TU7BO4LS.085 108,644
WIN-357TU7BO4LS.086 110,119
WIN-357TU7BO4LS.087 108,016
WIN-357TU7BO4LS.088 93,945
WIN-357TU7BO4LS.089 109,769
WIN-357TU7BO4LS.090 108,202
WIN-357TU7BO4LS.091 109,286
WIN-357TU7BO4LS.092 106,617
WIN-357TU7BO4LS.093 110,752
WIN-357TU7BO4LS.094 107,083
WIN-357TU7BO4LS.095 93,735
WIN-357TU7BO4LS.096 105,645
WIN-357TU7BO4LS.097 109,374
WIN-357TU7BO4LS.098 112,570
WIN-357TU7BO4LS.099 107,593
WIN-357TU7BO4LS.100 108,593
WIN-357TU7BO4LS.101 110,701
WIN-357TU7BO4LS.102 92,553
WIN-357TU7BO4LS.103 108,426
WIN-357TU7BO4LS.104 108,714
WIN-357TU7BO4LS.105 109,194
WIN-357TU7BO4LS.106 108,942
WIN-357TU7BO4LS.107 111,028
WIN-357TU7BO4LS.108 106,859
WIN-357TU7BO4LS.109 90,107
WIN-357TU7BO4LS.110 110,913
WIN-357TU7BO4LS.111 110,987
WIN-357TU7BO4LS.112 110,913
ssj_ops@100% 11,896,061
ssj_ops@100% per JVM 106,215
Graph of per-instance results
JVM 'WIN-357TU7BO4LS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,908
Calibration 2     109,177
Calibration 3     108,560
ssj_ops@calibrated=108,868
100% 98.7% 108,868 107,434
90% 90.2% 97,982 98,226
80% 79.6% 87,095 86,680
70% 70.4% 76,208 76,656
60% 60.4% 65,321 65,724
50% 50.1% 54,434 54,595
40% 39.9% 43,547 43,480
30% 29.7% 32,661 32,365
20% 19.8% 21,774 21,577
10% 9.6% 10,887 10,499
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,073
Calibration 2     112,221
Calibration 3     111,898
ssj_ops@calibrated=112,060
100% 99.5% 112,060 111,542
90% 91.0% 100,854 101,934
80% 79.6% 89,648 89,168
70% 69.1% 78,442 77,392
60% 60.9% 67,236 68,266
50% 50.3% 56,030 56,400
40% 39.6% 44,824 44,366
30% 30.5% 33,618 34,158
20% 20.2% 22,412 22,679
10% 9.9% 11,206 11,144
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,217
Calibration 2     105,010
Calibration 3     106,910
ssj_ops@calibrated=105,960
100% 99.9% 105,960 105,906
90% 89.7% 95,364 95,021
80% 80.0% 84,768 84,808
70% 70.8% 74,172 75,011
60% 60.5% 63,576 64,071
50% 50.8% 52,980 53,852
40% 40.7% 42,384 43,117
30% 29.8% 31,788 31,590
20% 19.6% 21,192 20,795
10% 9.4% 10,596 9,958
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,551
Calibration 2     92,742
Calibration 3     94,881
ssj_ops@calibrated=93,812
100% 100.0% 93,812 93,858
90% 89.1% 84,430 83,589
80% 80.3% 75,049 75,313
70% 70.9% 65,668 66,475
60% 60.2% 56,287 56,442
50% 50.4% 46,906 47,256
40% 40.2% 37,525 37,674
30% 30.0% 28,143 28,109
20% 20.3% 18,762 19,030
10% 10.1% 9,381 9,491
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,982
Calibration 2     112,080
Calibration 3     109,253
ssj_ops@calibrated=110,667
100% 99.5% 110,667 110,079
90% 89.5% 99,600 99,022
80% 80.4% 88,533 88,948
70% 70.4% 77,467 77,896
60% 59.4% 66,400 65,682
50% 49.6% 55,333 54,935
40% 39.6% 44,267 43,801
30% 29.9% 33,200 33,137
20% 19.9% 22,133 22,067
10% 9.9% 11,067 10,968
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,235
Calibration 2     109,455
Calibration 3     106,171
ssj_ops@calibrated=107,813
100% 99.1% 107,813 106,795
90% 90.2% 97,032 97,210
80% 80.1% 86,250 86,385
70% 70.2% 75,469 75,637
60% 60.3% 64,688 64,994
50% 49.0% 53,906 52,812
40% 39.8% 43,125 42,861
30% 29.5% 32,344 31,830
20% 19.7% 21,563 21,196
10% 9.9% 10,781 10,720
Active Idle   0 0
Graph of results

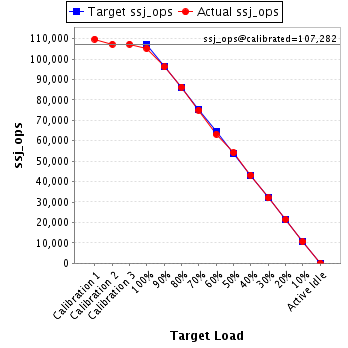

JVM 'WIN-357TU7BO4LS.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,738
Calibration 2     107,226
Calibration 3     107,339
ssj_ops@calibrated=107,282
100% 98.1% 107,282 105,191
90% 89.6% 96,554 96,169
80% 80.4% 85,826 86,308
70% 69.9% 75,098 75,009
60% 59.0% 64,369 63,245
50% 50.4% 53,641 54,105
40% 40.2% 42,913 43,098
30% 29.8% 32,185 31,965
20% 20.0% 21,456 21,430
10% 9.9% 10,728 10,595
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,705
Calibration 2     109,091
Calibration 3     108,687
ssj_ops@calibrated=108,889
100% 97.8% 108,889 106,479
90% 89.8% 98,000 97,822
80% 79.2% 87,111 86,239
70% 69.6% 76,222 75,771
60% 59.0% 65,334 64,273
50% 49.5% 54,445 53,869
40% 40.0% 43,556 43,519
30% 30.8% 32,667 33,487
20% 20.3% 21,778 22,142
10% 10.1% 10,889 10,981
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,920
Calibration 2     108,962
Calibration 3     108,127
ssj_ops@calibrated=108,545
100% 99.6% 108,545 108,093
90% 88.9% 97,690 96,467
80% 79.9% 86,836 86,770
70% 68.8% 75,981 74,650
60% 60.2% 65,127 65,302
50% 49.5% 54,272 53,740
40% 40.0% 43,418 43,466
30% 30.2% 32,563 32,819
20% 20.3% 21,709 22,073
10% 10.2% 10,854 11,068
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,224
Calibration 2     104,397
Calibration 3     107,515
ssj_ops@calibrated=105,956
100% 99.2% 105,956 105,058
90% 90.5% 95,360 95,931
80% 80.4% 84,765 85,155
70% 69.4% 74,169 73,527
60% 59.9% 63,574 63,502
50% 49.9% 52,978 52,924
40% 39.8% 42,382 42,180
30% 29.8% 31,787 31,613
20% 20.2% 21,191 21,368
10% 10.0% 10,596 10,559
Active Idle   0 0
Graph of results

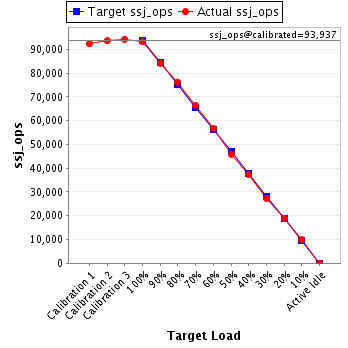

JVM 'WIN-357TU7BO4LS.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,308
Calibration 2     93,553
Calibration 3     94,320
ssj_ops@calibrated=93,937
100% 99.2% 93,937 93,172
90% 89.7% 84,543 84,287
80% 81.2% 75,149 76,290
70% 70.7% 65,756 66,388
60% 60.4% 56,362 56,703
50% 48.9% 46,968 45,966
40% 39.8% 37,575 37,423
30% 29.1% 28,181 27,379
20% 20.3% 18,787 19,045
10% 10.5% 9,394 9,822
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,959
Calibration 2     107,026
Calibration 3     103,893
ssj_ops@calibrated=105,460
100% 100.9% 105,460 106,384
90% 90.3% 94,914 95,217
80% 80.0% 84,368 84,372
70% 69.6% 73,822 73,444
60% 59.0% 63,276 62,211
50% 50.2% 52,730 52,905
40% 39.7% 42,184 41,862
30% 30.7% 31,638 32,336
20% 20.1% 21,092 21,195
10% 9.7% 10,546 10,220
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,394
Calibration 2     111,835
Calibration 3     107,579
ssj_ops@calibrated=109,707
100% 99.5% 109,707 109,173
90% 90.4% 98,736 99,176
80% 79.5% 87,766 87,265
70% 69.7% 76,795 76,435
60% 59.5% 65,824 65,248
50% 50.4% 54,853 55,302
40% 39.9% 43,883 43,775
30% 30.0% 32,912 32,895
20% 20.0% 21,941 21,967
10% 10.1% 10,971 11,100
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,573
Calibration 2     112,373
Calibration 3     112,240
ssj_ops@calibrated=112,306
100% 99.1% 112,306 111,265
90% 90.6% 101,076 101,732
80% 79.1% 89,845 88,844
70% 69.5% 78,614 78,108
60% 60.4% 67,384 67,819
50% 50.7% 56,153 56,983
40% 39.6% 44,922 44,461
30% 30.1% 33,692 33,785
20% 20.2% 22,461 22,632
10% 9.9% 11,231 11,174
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,402
Calibration 2     107,081
Calibration 3     107,569
ssj_ops@calibrated=107,325
100% 98.8% 107,325 106,025
90% 89.7% 96,592 96,286
80% 79.1% 85,860 84,896
70% 69.1% 75,127 74,139
60% 60.2% 64,395 64,655
50% 50.0% 53,662 53,692
40% 40.5% 42,930 43,505
30% 30.3% 32,197 32,484
20% 19.7% 21,465 21,092
10% 9.7% 10,732 10,418
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,067
Calibration 2     110,658
Calibration 3     110,042
ssj_ops@calibrated=110,350
100% 99.5% 110,350 109,756
90% 88.9% 99,315 98,153
80% 80.2% 88,280 88,486
70% 69.6% 77,245 76,796
60% 59.3% 66,210 65,446
50% 49.6% 55,175 54,772
40% 40.4% 44,140 44,528
30% 30.8% 33,105 33,943
20% 19.9% 22,070 22,007
10% 9.7% 11,035 10,747
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,889
Calibration 2     103,128
Calibration 3     107,810
ssj_ops@calibrated=105,469
100% 100.5% 105,469 105,995
90% 90.8% 94,922 95,725
80% 80.4% 84,375 84,751
70% 70.1% 73,829 73,976
60% 60.1% 63,282 63,395
50% 49.1% 52,735 51,760
40% 39.8% 42,188 41,952
30% 29.7% 31,641 31,294
20% 20.0% 21,094 21,061
10% 9.8% 10,547 10,320
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,631
Calibration 2     94,459
Calibration 3     95,756
ssj_ops@calibrated=95,108
100% 100.3% 95,108 95,388
90% 89.2% 85,597 84,829
80% 79.6% 76,086 75,719
70% 69.1% 66,575 65,743
60% 59.4% 57,065 56,502
50% 50.2% 47,554 47,744
40% 40.5% 38,043 38,527
30% 29.9% 28,532 28,474
20% 19.9% 19,022 18,931
10% 9.8% 9,511 9,273
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,776
Calibration 2     108,619
Calibration 3     105,947
ssj_ops@calibrated=107,283
100% 100.0% 107,283 107,255
90% 90.9% 96,555 97,511
80% 79.6% 85,826 85,425
70% 69.7% 75,098 74,769
60% 59.7% 64,370 64,073
50% 49.8% 53,642 53,425
40% 40.5% 42,913 43,471
30% 30.2% 32,185 32,365
20% 20.0% 21,457 21,482
10% 10.2% 10,728 10,954
Active Idle   0 0
Graph of results

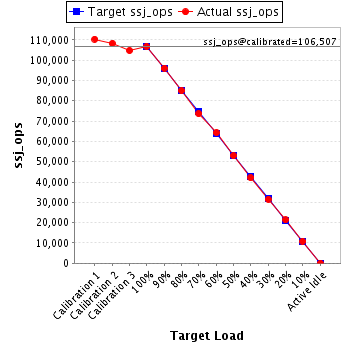

JVM 'WIN-357TU7BO4LS.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,351
Calibration 2     108,274
Calibration 3     104,740
ssj_ops@calibrated=106,507
100% 100.2% 106,507 106,714
90% 90.2% 95,857 96,099
80% 79.7% 85,206 84,928
70% 69.2% 74,555 73,652
60% 60.3% 63,904 64,238
50% 49.7% 53,254 52,931
40% 39.5% 42,603 42,103
30% 29.6% 31,952 31,493
20% 20.0% 21,301 21,329
10% 10.2% 10,651 10,870
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,866
Calibration 2     108,528
Calibration 3     107,485
ssj_ops@calibrated=108,006
100% 98.7% 108,006 106,550
90% 90.7% 97,206 97,936
80% 79.1% 86,405 85,474
70% 70.3% 75,604 75,962
60% 60.0% 64,804 64,774
50% 50.1% 54,003 54,082
40% 40.2% 43,203 43,463
30% 30.4% 32,402 32,831
20% 19.9% 21,601 21,496
10% 9.5% 10,801 10,291
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,011
Calibration 2     108,630
Calibration 3     107,809
ssj_ops@calibrated=108,219
100% 97.1% 108,219 105,085
90% 89.4% 97,397 96,762
80% 80.3% 86,575 86,874
70% 69.9% 75,753 75,645
60% 60.6% 64,931 65,618
50% 49.5% 54,110 53,622
40% 39.7% 43,288 42,992
30% 29.9% 32,466 32,382
20% 19.6% 21,644 21,158
10% 9.8% 10,822 10,634
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,963
Calibration 2     110,546
Calibration 3     110,660
ssj_ops@calibrated=110,603
100% 99.1% 110,603 109,602
90% 89.5% 99,543 99,018
80% 79.8% 88,483 88,296
70% 69.9% 77,422 77,270
60% 60.2% 66,362 66,602
50% 49.6% 55,302 54,823
40% 39.6% 44,241 43,837
30% 29.6% 33,181 32,761
20% 19.9% 22,121 21,968
10% 10.2% 11,060 11,241
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,648
Calibration 2     105,296
Calibration 3     109,784
ssj_ops@calibrated=107,540
100% 99.6% 107,540 107,061
90% 90.0% 96,786 96,784
80% 80.4% 86,032 86,513
70% 69.9% 75,278 75,175
60% 61.4% 64,524 66,070
50% 50.4% 53,770 54,207
40% 39.8% 43,016 42,813
30% 30.3% 32,262 32,535
20% 20.1% 21,508 21,597
10% 10.4% 10,754 11,187
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,701
Calibration 2     94,174
Calibration 3     94,529
ssj_ops@calibrated=94,351
100% 101.0% 94,351 95,293
90% 90.8% 84,916 85,642
80% 80.2% 75,481 75,666
70% 71.1% 66,046 67,050
60% 59.4% 56,611 56,035
50% 50.1% 47,176 47,306
40% 40.2% 37,741 37,903
30% 30.5% 28,305 28,812
20% 20.1% 18,870 18,981
10% 9.7% 9,435 9,179
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,893
Calibration 2     109,801
Calibration 3     107,834
ssj_ops@calibrated=108,818
100% 99.4% 108,818 108,142
90% 90.1% 97,936 98,048
80% 79.9% 87,054 86,934
70% 68.4% 76,172 74,384
60% 60.1% 65,291 65,386
50% 50.0% 54,409 54,446
40% 40.1% 43,527 43,642
30% 30.6% 32,645 33,269
20% 20.0% 21,764 21,807
10% 9.9% 10,882 10,807
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,766
Calibration 2     107,863
Calibration 3     104,282
ssj_ops@calibrated=106,072
100% 98.2% 106,072 104,213
90% 89.9% 95,465 95,362
80% 78.5% 84,858 83,300
70% 70.0% 74,251 74,278
60% 59.4% 63,643 63,016
50% 50.5% 53,036 53,592
40% 40.0% 42,429 42,401
30% 29.9% 31,822 31,677
20% 19.8% 21,214 21,039
10% 9.9% 10,607 10,454
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,700
Calibration 2     108,632
Calibration 3     108,437
ssj_ops@calibrated=108,535
100% 98.7% 108,535 107,128
90% 90.7% 97,681 98,437
80% 80.0% 86,828 86,793
70% 70.1% 75,974 76,100
60% 60.0% 65,121 65,093
50% 50.5% 54,267 54,771
40% 39.7% 43,414 43,122
30% 29.9% 32,560 32,505
20% 19.7% 21,707 21,432
10% 10.0% 10,853 10,904
Active Idle   0 0
Graph of results

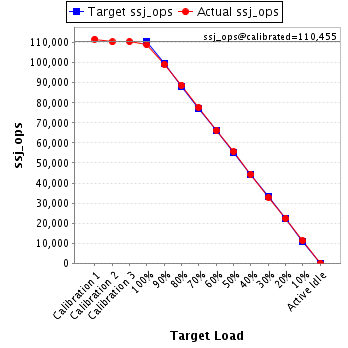

JVM 'WIN-357TU7BO4LS.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,743
Calibration 2     110,375
Calibration 3     110,534
ssj_ops@calibrated=110,455
100% 98.6% 110,455 108,896
90% 89.8% 99,409 99,164
80% 80.4% 88,364 88,781
70% 70.3% 77,318 77,644
60% 59.9% 66,273 66,197
50% 50.4% 55,227 55,626
40% 40.1% 44,182 44,249
30% 29.8% 33,136 32,868
20% 20.3% 22,091 22,416
10% 10.2% 11,045 11,232
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,763
Calibration 2     109,142
Calibration 3     107,687
ssj_ops@calibrated=108,415
100% 99.5% 108,415 107,875
90% 89.6% 97,573 97,146
80% 80.9% 86,732 87,754
70% 70.5% 75,890 76,459
60% 59.5% 65,049 64,488
50% 49.1% 54,207 53,186
40% 39.7% 43,366 43,055
30% 30.0% 32,524 32,475
20% 19.8% 21,683 21,449
10% 10.2% 10,841 11,087
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,590
Calibration 2     107,286
Calibration 3     110,425
ssj_ops@calibrated=108,856
100% 100.4% 108,856 109,250
90% 89.8% 97,970 97,742
80% 80.8% 87,085 88,007
70% 70.2% 76,199 76,400
60% 59.8% 65,313 65,063
50% 49.8% 54,428 54,242
40% 39.4% 43,542 42,868
30% 30.0% 32,657 32,614
20% 19.8% 21,771 21,582
10% 9.8% 10,886 10,700
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,712
Calibration 2     92,051
Calibration 3     95,054
ssj_ops@calibrated=93,552
100% 100.5% 93,552 94,064
90% 89.1% 84,197 83,326
80% 79.7% 74,842 74,551
70% 69.6% 65,487 65,119
60% 59.3% 56,131 55,471
50% 49.5% 46,776 46,298
40% 40.0% 37,421 37,428
30% 30.5% 28,066 28,492
20% 19.9% 18,710 18,581
10% 9.5% 9,355 8,929
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,297
Calibration 2     109,956
Calibration 3     107,110
ssj_ops@calibrated=108,533
100% 99.7% 108,533 108,226
90% 89.9% 97,680 97,571
80% 79.3% 86,827 86,024
70% 69.5% 75,973 75,463
60% 60.8% 65,120 65,996
50% 50.3% 54,267 54,599
40% 40.1% 43,413 43,562
30% 29.8% 32,560 32,305
20% 20.4% 21,707 22,118
10% 10.1% 10,853 10,978
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,106
Calibration 2     110,104
Calibration 3     104,825
ssj_ops@calibrated=107,465
100% 100.3% 107,465 107,814
90% 90.6% 96,718 97,358
80% 79.2% 85,972 85,156
70% 70.5% 75,225 75,750
60% 60.1% 64,479 64,635
50% 50.2% 53,732 53,951
40% 40.5% 42,986 43,571
30% 30.2% 32,239 32,425
20% 19.2% 21,493 20,637
10% 9.9% 10,746 10,670
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,387
Calibration 2     112,658
Calibration 3     111,858
ssj_ops@calibrated=112,258
100% 98.2% 112,258 110,241
90% 90.2% 101,032 101,262
80% 80.8% 89,806 90,738
70% 70.4% 78,581 79,043
60% 59.7% 67,355 66,999
50% 49.9% 56,129 56,054
40% 39.9% 44,903 44,837
30% 30.4% 33,677 34,119
20% 20.2% 22,452 22,686
10% 10.3% 11,226 11,558
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,679
Calibration 2     109,646
Calibration 3     108,596
ssj_ops@calibrated=109,121
100% 97.7% 109,121 106,633
90% 89.6% 98,209 97,774
80% 79.9% 87,297 87,194
70% 69.6% 76,385 75,907
60% 59.5% 65,473 64,978
50% 50.0% 54,560 54,524
40% 40.3% 43,648 43,935
30% 30.2% 32,736 32,980
20% 20.1% 21,824 21,960
10% 10.3% 10,912 11,241
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,989
Calibration 2     108,618
Calibration 3     107,511
ssj_ops@calibrated=108,065
100% 100.0% 108,065 108,015
90% 90.2% 97,258 97,443
80% 80.4% 86,452 86,843
70% 70.1% 75,645 75,726
60% 59.4% 64,839 64,156
50% 50.3% 54,032 54,349
40% 39.7% 43,226 42,891
30% 30.4% 32,419 32,852
20% 20.3% 21,613 21,930
10% 9.9% 10,806 10,676
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,982
Calibration 2     106,171
Calibration 3     108,818
ssj_ops@calibrated=107,494
100% 100.2% 107,494 107,665
90% 89.3% 96,745 95,955
80% 79.1% 85,995 85,044
70% 70.3% 75,246 75,597
60% 60.2% 64,496 64,765
50% 50.6% 53,747 54,375
40% 39.6% 42,998 42,555
30% 29.6% 32,248 31,853
20% 20.3% 21,499 21,829
10% 10.0% 10,749 10,713
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,239
Calibration 2     92,920
Calibration 3     96,116
ssj_ops@calibrated=94,518
100% 101.7% 94,518 96,080
90% 90.1% 85,066 85,169
80% 78.8% 75,615 74,464
70% 70.1% 66,163 66,272
60% 60.2% 56,711 56,940
50% 50.1% 47,259 47,339
40% 40.8% 37,807 38,592
30% 30.2% 28,355 28,505
20% 19.9% 18,904 18,765
10% 9.9% 9,452 9,345
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,255
Calibration 2     111,271
Calibration 3     108,951
ssj_ops@calibrated=110,111
100% 100.3% 110,111 110,433
90% 89.9% 99,100 98,951
80% 80.4% 88,089 88,556
70% 69.2% 77,078 76,184
60% 60.1% 66,067 66,224
50% 50.0% 55,056 55,067
40% 40.0% 44,045 44,011
30% 29.8% 33,033 32,830
20% 19.4% 22,022 21,346
10% 10.1% 11,011 11,116
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,523
Calibration 2     109,026
Calibration 3     105,624
ssj_ops@calibrated=107,325
100% 100.2% 107,325 107,545
90% 90.2% 96,593 96,840
80% 80.1% 85,860 85,960
70% 69.5% 75,128 74,544
60% 60.3% 64,395 64,693
50% 51.1% 53,663 54,825
40% 39.8% 42,930 42,710
30% 29.9% 32,198 32,092
20% 20.3% 21,465 21,823
10% 9.6% 10,733 10,325
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,692
Calibration 2     110,077
Calibration 3     109,073
ssj_ops@calibrated=109,575
100% 98.4% 109,575 107,819
90% 89.4% 98,617 97,958
80% 79.7% 87,660 87,327
70% 70.1% 76,702 76,843
60% 60.1% 65,745 65,846
50% 50.2% 54,787 55,023
40% 39.9% 43,830 43,762
30% 30.0% 32,872 32,844
20% 20.2% 21,915 22,183
10% 10.0% 10,957 10,947
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,798
Calibration 2     110,703
Calibration 3     110,062
ssj_ops@calibrated=110,382
100% 98.1% 110,382 108,278
90% 89.8% 99,344 99,138
80% 80.1% 88,306 88,375
70% 69.7% 77,268 76,969
60% 59.3% 66,229 65,488
50% 50.0% 55,191 55,240
40% 40.1% 44,153 44,219
30% 29.6% 33,115 32,678
20% 19.8% 22,076 21,895
10% 9.9% 11,038 10,971
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,022
Calibration 2     109,885
Calibration 3     109,504
ssj_ops@calibrated=109,695
100% 99.4% 109,695 109,073
90% 89.6% 98,725 98,299
80% 80.3% 87,756 88,041
70% 70.1% 76,786 76,880
60% 59.1% 65,817 64,821
50% 50.4% 54,847 55,292
40% 40.6% 43,878 44,527
30% 29.5% 32,908 32,404
20% 19.6% 21,939 21,487
10% 10.0% 10,969 10,979
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,095
Calibration 2     105,563
Calibration 3     108,975
ssj_ops@calibrated=107,269
100% 100.6% 107,269 107,902
90% 89.3% 96,542 95,741
80% 79.8% 85,815 85,598
70% 69.6% 75,088 74,696
60% 59.4% 64,361 63,709
50% 50.6% 53,635 54,303
40% 39.9% 42,908 42,805
30% 30.1% 32,181 32,326
20% 19.7% 21,454 21,169
10% 9.9% 10,727 10,629
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,044
Calibration 2     94,900
Calibration 3     96,367
ssj_ops@calibrated=95,633
100% 99.9% 95,633 95,540
90% 90.0% 86,070 86,047
80% 80.0% 76,507 76,550
70% 70.8% 66,943 67,663
60% 60.5% 57,380 57,831
50% 50.2% 47,817 47,977
40% 39.9% 38,253 38,163
30% 29.7% 28,690 28,412
20% 19.9% 19,127 19,070
10% 10.2% 9,563 9,729
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,126
Calibration 2     108,874
Calibration 3     105,945
ssj_ops@calibrated=107,409
100% 101.1% 107,409 108,562
90% 91.4% 96,668 98,162
80% 79.8% 85,928 85,694
70% 69.1% 75,187 74,239
60% 60.4% 64,446 64,825
50% 50.4% 53,705 54,104
40% 40.2% 42,964 43,202
30% 30.1% 32,223 32,342
20% 19.8% 21,482 21,279
10% 10.4% 10,741 11,156
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,235
Calibration 2     108,293
Calibration 3     103,277
ssj_ops@calibrated=105,785
100% 100.5% 105,785 106,325
90% 89.0% 95,207 94,120
80% 78.9% 84,628 83,477
70% 70.4% 74,050 74,498
60% 59.6% 63,471 62,999
50% 49.9% 52,893 52,813
40% 40.1% 42,314 42,457
30% 29.8% 31,736 31,485
20% 20.3% 21,157 21,470
10% 10.0% 10,579 10,629
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,638
Calibration 2     112,637
Calibration 3     112,524
ssj_ops@calibrated=112,580
100% 98.9% 112,580 111,336
90% 90.7% 101,322 102,094
80% 79.6% 90,064 89,616
70% 69.3% 78,806 78,046
60% 60.4% 67,548 68,042
50% 49.3% 56,290 55,486
40% 40.4% 45,032 45,460
30% 30.0% 33,774 33,735
20% 20.2% 22,516 22,714
10% 10.0% 11,258 11,291
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,466
Calibration 2     108,979
Calibration 3     108,564
ssj_ops@calibrated=108,771
100% 98.3% 108,771 106,903
90% 89.4% 97,894 97,292
80% 80.4% 87,017 87,401
70% 69.7% 76,140 75,808
60% 60.2% 65,263 65,488
50% 49.5% 54,386 53,886
40% 39.8% 43,508 43,267
30% 29.7% 32,631 32,310
20% 20.6% 21,754 22,408
10% 9.8% 10,877 10,677
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,851
Calibration 2     111,051
Calibration 3     110,648
ssj_ops@calibrated=110,850
100% 99.4% 110,850 110,148
90% 90.1% 99,765 99,852
80% 80.0% 88,680 88,648
70% 69.6% 77,595 77,185
60% 59.6% 66,510 66,119
50% 49.5% 55,425 54,900
40% 39.1% 44,340 43,364
30% 30.7% 33,255 33,986
20% 19.7% 22,170 21,812
10% 9.9% 11,085 10,958
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,342
Calibration 2     106,242
Calibration 3     111,208
ssj_ops@calibrated=108,725
100% 100.1% 108,725 108,805
90% 89.4% 97,852 97,217
80% 79.9% 86,980 86,889
70% 70.1% 76,107 76,209
60% 59.8% 65,235 65,001
50% 49.9% 54,362 54,250
40% 40.1% 43,490 43,617
30% 30.3% 32,617 32,899
20% 20.4% 21,745 22,195
10% 10.2% 10,872 11,141
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,086
Calibration 2     92,968
Calibration 3     93,848
ssj_ops@calibrated=93,408
100% 99.8% 93,408 93,248
90% 90.3% 84,067 84,322
80% 80.2% 74,726 74,960
70% 69.3% 65,386 64,718
60% 60.7% 56,045 56,658
50% 49.5% 46,704 46,201
40% 40.3% 37,363 37,631
30% 29.6% 28,022 27,613
20% 19.9% 18,682 18,603
10% 9.9% 9,341 9,233
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,359
Calibration 2     112,314
Calibration 3     109,083
ssj_ops@calibrated=110,699
100% 99.9% 110,699 110,570
90% 89.5% 99,629 99,092
80% 79.0% 88,559 87,417
70% 71.3% 77,489 78,941
60% 60.9% 66,419 67,401
50% 49.7% 55,349 55,052
40% 40.0% 44,279 44,284
30% 29.6% 33,210 32,758
20% 19.9% 22,140 22,003
10% 10.2% 11,070 11,258
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,417
Calibration 2     110,320
Calibration 3     106,422
ssj_ops@calibrated=108,371
100% 100.6% 108,371 108,988
90% 90.6% 97,534 98,197
80% 80.9% 86,697 87,630
70% 70.4% 75,860 76,263
60% 59.0% 65,022 63,951
50% 49.7% 54,185 53,811
40% 40.3% 43,348 43,657
30% 30.1% 32,511 32,616
20% 20.1% 21,674 21,815
10% 9.8% 10,837 10,623
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,430
Calibration 2     107,391
Calibration 3     107,159
ssj_ops@calibrated=107,275
100% 99.0% 107,275 106,242
90% 90.1% 96,547 96,704
80% 80.6% 85,820 86,466
70% 70.2% 75,092 75,304
60% 60.6% 64,365 64,989
50% 50.6% 53,637 54,305
40% 39.8% 42,910 42,644
30% 29.4% 32,182 31,495
20% 20.3% 21,455 21,765
10% 10.0% 10,727 10,739
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,500
Calibration 2     112,325
Calibration 3     111,554
ssj_ops@calibrated=111,939
100% 98.2% 111,939 109,891
90% 90.1% 100,746 100,837
80% 80.9% 89,552 90,604
70% 70.0% 78,358 78,402
60% 59.6% 67,164 66,747
50% 49.9% 55,970 55,860
40% 39.9% 44,776 44,610
30% 30.0% 33,582 33,574
20% 20.3% 22,388 22,762
10% 9.8% 11,194 10,966
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,972
Calibration 2     108,489
Calibration 3     108,597
ssj_ops@calibrated=108,543
100% 100.0% 108,543 108,549
90% 89.9% 97,688 97,609
80% 80.9% 86,834 87,801
70% 70.5% 75,980 76,503
60% 60.5% 65,126 65,640
50% 50.0% 54,271 54,264
40% 39.8% 43,417 43,189
30% 29.3% 32,563 31,798
20% 20.2% 21,709 21,921
10% 9.8% 10,854 10,648
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,525
Calibration 2     102,716
Calibration 3     106,557
ssj_ops@calibrated=104,637
100% 99.6% 104,637 104,221
90% 89.4% 94,173 93,506
80% 81.0% 83,709 84,788
70% 70.1% 73,246 73,350
60% 59.6% 62,782 62,325
50% 50.2% 52,318 52,509
40% 40.0% 41,855 41,836
30% 29.7% 31,391 31,124
20% 20.4% 20,927 21,303
10% 10.1% 10,464 10,517
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,388
Calibration 2     95,085
Calibration 3     95,888
ssj_ops@calibrated=95,486
100% 99.5% 95,486 95,006
90% 89.5% 85,938 85,487
80% 78.7% 76,389 75,186
70% 69.5% 66,840 66,398
60% 60.1% 57,292 57,370
50% 50.1% 47,743 47,834
40% 39.4% 38,195 37,610
30% 30.1% 28,646 28,782
20% 19.7% 19,097 18,791
10% 9.6% 9,549 9,183
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,452
Calibration 2     109,593
Calibration 3     106,278
ssj_ops@calibrated=107,936
100% 99.7% 107,936 107,635
90% 89.0% 97,142 96,084
80% 80.4% 86,348 86,804
70% 69.4% 75,555 74,891
60% 60.4% 64,761 65,239
50% 50.2% 53,968 54,224
40% 39.6% 43,174 42,782
30% 30.2% 32,381 32,552
20% 20.1% 21,587 21,716
10% 10.1% 10,794 10,919
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,254
Calibration 2     110,740
Calibration 3     107,386
ssj_ops@calibrated=109,063
100% 100.2% 109,063 109,289
90% 89.8% 98,157 97,955
80% 79.4% 87,250 86,624
70% 69.4% 76,344 75,643
60% 59.9% 65,438 65,353
50% 49.2% 54,531 53,701
40% 39.5% 43,625 43,106
30% 29.9% 32,719 32,583
20% 20.1% 21,813 21,907
10% 10.3% 10,906 11,236
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,172
Calibration 2     109,111
Calibration 3     108,957
ssj_ops@calibrated=109,034
100% 97.8% 109,034 106,669
90% 89.3% 98,131 97,420
80% 79.8% 87,227 86,993
70% 69.1% 76,324 75,371
60% 59.3% 65,420 64,711
50% 50.3% 54,517 54,887
40% 39.6% 43,614 43,189
30% 30.2% 32,710 32,953
20% 19.8% 21,807 21,620
10% 9.8% 10,903 10,717
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,155
Calibration 2     110,073
Calibration 3     109,594
ssj_ops@calibrated=109,833
100% 98.3% 109,833 107,941
90% 89.6% 98,850 98,435
80% 79.5% 87,867 87,301
70% 70.3% 76,883 77,233
60% 60.3% 65,900 66,240
50% 49.5% 54,917 54,384
40% 40.6% 43,933 44,553
30% 29.8% 32,950 32,730
20% 20.3% 21,967 22,308
10% 10.0% 10,983 10,941
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,642
Calibration 2     110,151
Calibration 3     109,803
ssj_ops@calibrated=109,977
100% 99.6% 109,977 109,548
90% 90.3% 98,979 99,318
80% 79.8% 87,982 87,708
70% 69.8% 76,984 76,746
60% 60.3% 65,986 66,262
50% 49.5% 54,989 54,460
40% 39.7% 43,991 43,686
30% 29.8% 32,993 32,730
20% 20.5% 21,995 22,565
10% 9.8% 10,998 10,725
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,113
Calibration 2     104,570
Calibration 3     107,926
ssj_ops@calibrated=106,248
100% 100.8% 106,248 107,109
90% 90.8% 95,623 96,463
80% 80.0% 84,999 85,019
70% 69.0% 74,374 73,337
60% 59.4% 63,749 63,160
50% 50.6% 53,124 53,754
40% 39.9% 42,499 42,420
30% 30.3% 31,874 32,163
20% 20.1% 21,250 21,319
10% 10.2% 10,625 10,837
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,775
Calibration 2     94,098
Calibration 3     95,473
ssj_ops@calibrated=94,785
100% 100.5% 94,785 95,259
90% 90.4% 85,307 85,645
80% 79.7% 75,828 75,501
70% 69.8% 66,350 66,176
60% 60.2% 56,871 57,073
50% 49.9% 47,393 47,302
40% 40.0% 37,914 37,928
30% 29.7% 28,436 28,111
20% 20.4% 18,957 19,314
10% 9.4% 9,479 8,899
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,387
Calibration 2     111,130
Calibration 3     107,520
ssj_ops@calibrated=109,325
100% 100.2% 109,325 109,577
90% 91.3% 98,393 99,816
80% 79.6% 87,460 87,023
70% 69.3% 76,528 75,756
60% 60.1% 65,595 65,653
50% 50.5% 54,663 55,158
40% 39.8% 43,730 43,465
30% 29.9% 32,798 32,671
20% 19.9% 21,865 21,773
10% 10.1% 10,933 11,036
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,846
Calibration 2     109,294
Calibration 3     106,268
ssj_ops@calibrated=107,781
100% 99.8% 107,781 107,567
90% 90.9% 97,003 97,984
80% 79.8% 86,225 86,061
70% 70.6% 75,447 76,138
60% 60.0% 64,668 64,657
50% 49.9% 53,890 53,788
40% 40.3% 43,112 43,454
30% 30.3% 32,334 32,706
20% 19.4% 21,556 20,904
10% 10.0% 10,778 10,771
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,690
Calibration 2     110,524
Calibration 3     110,036
ssj_ops@calibrated=110,280
100% 98.5% 110,280 108,633
90% 90.1% 99,252 99,324
80% 79.4% 88,224 87,529
70% 70.1% 77,196 77,358
60% 60.6% 66,168 66,818
50% 50.0% 55,140 55,183
40% 39.9% 44,112 43,947
30% 30.1% 33,084 33,216
20% 20.3% 22,056 22,350
10% 9.7% 11,028 10,727
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,866
Calibration 2     110,425
Calibration 3     110,105
ssj_ops@calibrated=110,265
100% 98.5% 110,265 108,628
90% 90.3% 99,238 99,607
80% 80.8% 88,212 89,097
70% 69.6% 77,185 76,770
60% 60.3% 66,159 66,456
50% 51.0% 55,132 56,190
40% 39.5% 44,106 43,609
30% 30.0% 33,079 33,075
20% 19.9% 22,053 21,949
10% 9.8% 11,026 10,808
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,754
Calibration 2     108,723
Calibration 3     108,298
ssj_ops@calibrated=108,511
100% 99.5% 108,511 107,935
90% 90.6% 97,659 98,274
80% 79.4% 86,808 86,149
70% 70.1% 75,957 76,066
60% 60.7% 65,106 65,837
50% 50.1% 54,255 54,366
40% 40.9% 43,404 44,379
30% 29.8% 32,553 32,382
20% 20.4% 21,702 22,141
10% 9.8% 10,851 10,614
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,382
Calibration 2     104,646
Calibration 3     108,034
ssj_ops@calibrated=106,340
100% 101.0% 106,340 107,400
90% 90.6% 95,706 96,341
80% 79.6% 85,072 84,627
70% 70.6% 74,438 75,058
60% 60.2% 63,804 64,013
50% 49.8% 53,170 52,965
40% 40.2% 42,536 42,792
30% 30.0% 31,902 31,892
20% 20.3% 21,268 21,616
10% 10.4% 10,634 11,016
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,502
Calibration 2     94,538
Calibration 3     93,797
ssj_ops@calibrated=94,168
100% 99.2% 94,168 93,399
90% 90.5% 84,751 85,233
80% 80.8% 75,334 76,085
70% 69.4% 65,918 65,367
60% 59.2% 56,501 55,722
50% 50.5% 47,084 47,572
40% 40.4% 37,667 38,018
30% 30.3% 28,250 28,537
20% 20.2% 18,834 19,008
10% 9.8% 9,417 9,225
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,438
Calibration 2     106,252
Calibration 3     103,513
ssj_ops@calibrated=104,882
100% 100.2% 104,882 105,059
90% 89.8% 94,394 94,180
80% 79.6% 83,906 83,510
70% 70.8% 73,418 74,287
60% 60.5% 62,929 63,488
50% 49.4% 52,441 51,777
40% 39.6% 41,953 41,575
30% 30.2% 31,465 31,660
20% 20.3% 20,976 21,283
10% 10.2% 10,488 10,733
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,129
Calibration 2     107,669
Calibration 3     104,600
ssj_ops@calibrated=106,135
100% 99.4% 106,135 105,537
90% 90.1% 95,521 95,677
80% 80.5% 84,908 85,450
70% 69.8% 74,294 74,036
60% 59.8% 63,681 63,476
50% 50.2% 53,067 53,326
40% 39.9% 42,454 42,378
30% 30.3% 31,840 32,181
20% 19.8% 21,227 21,044
10% 9.9% 10,613 10,529
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,842
Calibration 2     112,446
Calibration 3     112,563
ssj_ops@calibrated=112,504
100% 98.5% 112,504 110,837
90% 90.2% 101,254 101,457
80% 80.2% 90,003 90,224
70% 70.1% 78,753 78,918
60% 59.9% 67,503 67,413
50% 49.4% 56,252 55,570
40% 40.1% 45,002 45,165
30% 30.6% 33,751 34,406
20% 20.0% 22,501 22,461
10% 10.2% 11,250 11,453
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,777
Calibration 2     109,231
Calibration 3     108,921
ssj_ops@calibrated=109,076
100% 97.7% 109,076 106,613
90% 90.0% 98,169 98,182
80% 80.1% 87,261 87,374
70% 68.8% 76,353 75,042
60% 59.7% 65,446 65,079
50% 49.7% 54,538 54,244
40% 39.8% 43,631 43,369
30% 30.1% 32,723 32,869
20% 19.8% 21,815 21,623
10% 9.9% 10,908 10,829
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,515
Calibration 2     111,878
Calibration 3     111,502
ssj_ops@calibrated=111,690
100% 100.2% 111,690 111,894
90% 90.7% 100,521 101,252
80% 79.9% 89,352 89,270
70% 69.5% 78,183 77,610
60% 59.5% 67,014 66,479
50% 50.2% 55,845 56,046
40% 40.3% 44,676 44,965
30% 30.9% 33,507 34,509
20% 20.2% 22,338 22,517
10% 10.0% 11,169 11,121
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,582
Calibration 2     107,329
Calibration 3     110,534
ssj_ops@calibrated=108,931
100% 99.4% 108,931 108,288
90% 90.0% 98,038 97,994
80% 79.8% 87,145 86,930
70% 68.8% 76,252 74,961
60% 59.9% 65,359 65,226
50% 50.1% 54,466 54,542
40% 39.7% 43,573 43,202
30% 29.7% 32,679 32,312
20% 19.9% 21,786 21,665
10% 10.3% 10,893 11,186
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,706
Calibration 2     94,519
Calibration 3     95,864
ssj_ops@calibrated=95,191
100% 99.2% 95,191 94,386
90% 90.3% 85,672 85,978
80% 79.6% 76,153 75,818
70% 70.4% 66,634 66,996
60% 59.8% 57,115 56,877
50% 49.8% 47,596 47,392
40% 40.1% 38,077 38,193
30% 29.9% 28,557 28,444
20% 20.0% 19,038 19,039
10% 9.8% 9,519 9,282
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,230
Calibration 2     110,514
Calibration 3     107,557
ssj_ops@calibrated=109,035
100% 100.0% 109,035 109,025
90% 89.3% 98,132 97,407
80% 80.1% 87,228 87,318
70% 69.7% 76,325 76,024
60% 60.3% 65,421 65,729
50% 50.3% 54,518 54,798
40% 39.8% 43,614 43,422
30% 30.2% 32,711 32,963
20% 20.2% 21,807 22,054
10% 10.0% 10,904 10,850
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,366
Calibration 2     107,401
Calibration 3     104,621
ssj_ops@calibrated=106,011
100% 100.6% 106,011 106,668
90% 89.7% 95,410 95,113
80% 79.3% 84,809 84,040
70% 69.4% 74,208 73,544
60% 59.7% 63,607 63,301
50% 50.4% 53,005 53,406
40% 39.7% 42,404 42,130
30% 29.4% 31,803 31,192
20% 19.7% 21,202 20,877
10% 9.9% 10,601 10,492
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,548
Calibration 2     109,027
Calibration 3     108,789
ssj_ops@calibrated=108,908
100% 98.3% 108,908 107,102
90% 89.7% 98,017 97,672
80% 80.9% 87,126 88,142
70% 70.3% 76,236 76,600
60% 60.3% 65,345 65,701
50% 49.8% 54,454 54,266
40% 39.5% 43,563 43,064
30% 29.9% 32,672 32,509
20% 20.5% 21,782 22,292
10% 10.1% 10,891 10,954
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,633
Calibration 2     110,153
Calibration 3     109,425
ssj_ops@calibrated=109,789
100% 99.0% 109,789 108,644
90% 90.6% 98,810 99,482
80% 80.2% 87,831 88,105
70% 70.0% 76,852 76,892
60% 60.6% 65,873 66,502
50% 50.5% 54,894 55,403
40% 40.4% 43,916 44,326
30% 30.0% 32,937 32,924
20% 19.6% 21,958 21,526
10% 9.9% 10,979 10,879
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,694
Calibration 2     109,834
Calibration 3     109,428
ssj_ops@calibrated=109,631
100% 100.4% 109,631 110,119
90% 89.9% 98,668 98,519
80% 79.4% 87,705 87,070
70% 70.0% 76,742 76,759
60% 59.2% 65,779 64,904
50% 49.7% 54,815 54,444
40% 38.8% 43,852 42,568
30% 30.1% 32,889 33,022
20% 20.1% 21,926 22,064
10% 9.7% 10,963 10,625
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,047
Calibration 2     107,060
Calibration 3     111,431
ssj_ops@calibrated=109,246
100% 98.9% 109,246 108,016
90% 90.5% 98,321 98,832
80% 80.7% 87,397 88,198
70% 70.7% 76,472 77,276
60% 60.6% 65,547 66,168
50% 49.6% 54,623 54,143
40% 39.8% 43,698 43,476
30% 29.4% 32,774 32,128
20% 20.2% 21,849 22,014
10% 9.8% 10,925 10,741
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,228
Calibration 2     92,904
Calibration 3     95,113
ssj_ops@calibrated=94,008
100% 99.9% 94,008 93,945
90% 89.9% 84,608 84,543
80% 79.3% 75,207 74,511
70% 70.3% 65,806 66,056
60% 58.4% 56,405 54,857
50% 49.4% 47,004 46,485
40% 40.0% 37,603 37,640
30% 30.8% 28,203 28,962
20% 20.0% 18,802 18,808
10% 10.3% 9,401 9,641
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,537
Calibration 2     111,176
Calibration 3     108,634
ssj_ops@calibrated=109,905
100% 99.9% 109,905 109,769
90% 88.8% 98,914 97,644
80% 79.2% 87,924 87,056
70% 70.8% 76,933 77,765
60% 59.4% 65,943 65,296
50% 49.8% 54,952 54,724
40% 39.0% 43,962 42,910
30% 29.9% 32,971 32,846
20% 20.1% 21,981 22,103
10% 9.6% 10,990 10,591
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,200
Calibration 2     110,726
Calibration 3     106,101
ssj_ops@calibrated=108,414
100% 99.8% 108,414 108,202
90% 89.8% 97,572 97,328
80% 79.2% 86,731 85,895
70% 69.5% 75,890 75,352
60% 61.0% 65,048 66,186
50% 50.1% 54,207 54,367
40% 40.0% 43,365 43,404
30% 30.0% 32,524 32,545
20% 20.1% 21,683 21,740
10% 10.1% 10,841 10,959
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,980
Calibration 2     110,833
Calibration 3     110,550
ssj_ops@calibrated=110,692
100% 98.7% 110,692 109,286
90% 89.5% 99,622 99,123
80% 79.8% 88,553 88,282
70% 69.9% 77,484 77,426
60% 59.2% 66,415 65,546
50% 50.2% 55,346 55,542
40% 40.3% 44,277 44,614
30% 30.1% 33,207 33,327
20% 20.1% 22,138 22,238
10% 9.9% 11,069 10,909
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,049
Calibration 2     108,710
Calibration 3     108,650
ssj_ops@calibrated=108,680
100% 98.1% 108,680 106,617
90% 89.6% 97,812 97,396
80% 80.3% 86,944 87,255
70% 70.5% 76,076 76,573
60% 60.1% 65,208 65,278
50% 49.8% 54,340 54,150
40% 40.0% 43,472 43,490
30% 29.9% 32,604 32,514
20% 19.5% 21,736 21,145
10% 10.0% 10,868 10,846
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,700
Calibration 2     112,078
Calibration 3     111,384
ssj_ops@calibrated=111,731
100% 99.1% 111,731 110,752
90% 89.8% 100,558 100,340
80% 80.8% 89,385 90,320
70% 69.7% 78,212 77,859
60% 59.4% 67,039 66,325
50% 49.3% 55,865 55,138
40% 39.6% 44,692 44,190
30% 30.2% 33,519 33,751
20% 19.6% 22,346 21,891
10% 9.9% 11,173 11,016
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,461
Calibration 2     104,102
Calibration 3     108,947
ssj_ops@calibrated=106,525
100% 100.5% 106,525 107,083
90% 90.2% 95,872 96,117
80% 79.6% 85,220 84,789
70% 70.1% 74,567 74,622
60% 60.1% 63,915 64,037
50% 50.3% 53,262 53,605
40% 41.0% 42,610 43,658
30% 30.4% 31,957 32,375
20% 20.1% 21,305 21,377
10% 10.2% 10,652 10,842
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,582
Calibration 2     93,070
Calibration 3     96,363
ssj_ops@calibrated=94,717
100% 99.0% 94,717 93,735
90% 90.4% 85,245 85,592
80% 79.6% 75,773 75,427
70% 70.7% 66,302 66,963
60% 59.5% 56,830 56,325
50% 49.8% 47,358 47,182
40% 41.1% 37,887 38,922
30% 30.0% 28,415 28,397
20% 19.8% 18,943 18,711
10% 9.9% 9,472 9,351
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,687
Calibration 2     107,996
Calibration 3     104,650
ssj_ops@calibrated=106,323
100% 99.4% 106,323 105,645
90% 90.1% 95,691 95,817
80% 80.0% 85,058 85,014
70% 69.9% 74,426 74,323
60% 59.9% 63,794 63,714
50% 49.9% 53,162 53,107
40% 40.4% 42,529 42,924
30% 30.2% 31,897 32,106
20% 19.6% 21,265 20,791
10% 10.1% 10,632 10,758
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,033
Calibration 2     110,269
Calibration 3     106,862
ssj_ops@calibrated=108,565
100% 100.7% 108,565 109,374
90% 90.7% 97,709 98,487
80% 79.7% 86,852 86,523
70% 70.3% 75,996 76,321
60% 60.5% 65,139 65,724
50% 49.9% 54,283 54,123
40% 40.1% 43,426 43,481
30% 30.2% 32,570 32,798
20% 20.4% 21,713 22,160
10% 9.9% 10,857 10,796
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,834
Calibration 2     113,615
Calibration 3     113,547
ssj_ops@calibrated=113,581
100% 99.1% 113,581 112,570
90% 90.0% 102,223 102,198
80% 79.9% 90,865 90,768
70% 69.8% 79,507 79,236
60% 59.9% 68,149 67,990
50% 50.3% 56,791 57,179
40% 39.5% 45,432 44,900
30% 29.2% 34,074 33,145
20% 20.1% 22,716 22,873
10% 9.6% 11,358 10,904
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,298
Calibration 2     109,935
Calibration 3     109,087
ssj_ops@calibrated=109,511
100% 98.2% 109,511 107,593
90% 89.9% 98,560 98,441
80% 79.7% 87,609 87,238
70% 70.0% 76,658 76,612
60% 59.9% 65,707 65,545
50% 50.1% 54,756 54,873
40% 40.2% 43,804 44,040
30% 29.9% 32,853 32,698
20% 20.0% 21,902 21,849
10% 10.1% 10,951 11,074
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,773
Calibration 2     108,843
Calibration 3     109,524
ssj_ops@calibrated=109,183
100% 99.5% 109,183 108,593
90% 90.1% 98,265 98,345
80% 79.7% 87,347 87,037
70% 70.1% 76,428 76,591
60% 59.6% 65,510 65,083
50% 49.7% 54,592 54,225
40% 40.2% 43,673 43,915
30% 29.7% 32,755 32,423
20% 20.0% 21,837 21,852
10% 10.1% 10,918 11,024
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,162
Calibration 2     106,758
Calibration 3     110,821
ssj_ops@calibrated=108,790
100% 101.8% 108,790 110,701
90% 89.3% 97,911 97,130
80% 80.4% 87,032 87,483
70% 70.1% 76,153 76,297
60% 59.3% 65,274 64,511
50% 50.0% 54,395 54,345
40% 39.9% 43,516 43,357
30% 29.9% 32,637 32,535
20% 19.9% 21,758 21,637
10% 10.2% 10,879 11,119
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,535
Calibration 2     92,855
Calibration 3     92,474
ssj_ops@calibrated=92,664
100% 99.9% 92,664 92,553
90% 90.7% 83,398 84,001
80% 80.5% 74,131 74,572
70% 69.6% 64,865 64,479
60% 60.2% 55,599 55,798
50% 50.6% 46,332 46,844
40% 40.2% 37,066 37,273
30% 29.6% 27,799 27,429
20% 20.3% 18,533 18,781
10% 9.9% 9,266 9,205
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,016
Calibration 2     109,832
Calibration 3     107,256
ssj_ops@calibrated=108,544
100% 99.9% 108,544 108,426
90% 90.1% 97,689 97,798
80% 80.6% 86,835 87,501
70% 69.6% 75,981 75,511
60% 60.1% 65,126 65,280
50% 50.3% 54,272 54,554
40% 39.8% 43,418 43,177
30% 29.8% 32,563 32,319
20% 20.0% 21,709 21,681
10% 9.7% 10,854 10,478
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,313
Calibration 2     109,549
Calibration 3     106,247
ssj_ops@calibrated=107,898
100% 100.8% 107,898 108,714
90% 89.2% 97,108 96,232
80% 80.4% 86,318 86,768
70% 69.1% 75,529 74,575
60% 60.3% 64,739 65,043
50% 49.4% 53,949 53,254
40% 39.6% 43,159 42,774
30% 29.8% 32,369 32,196
20% 20.0% 21,580 21,585
10% 10.0% 10,790 10,825
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,076
Calibration 2     110,742
Calibration 3     110,963
ssj_ops@calibrated=110,853
100% 98.5% 110,853 109,194
90% 90.0% 99,767 99,742
80% 80.3% 88,682 88,998
70% 70.1% 77,597 77,749
60% 60.3% 66,512 66,810
50% 49.6% 55,426 54,934
40% 38.9% 44,341 43,114
30% 29.8% 33,256 33,024
20% 19.8% 22,171 21,991
10% 9.9% 11,085 10,950
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,732
Calibration 2     111,290
Calibration 3     111,006
ssj_ops@calibrated=111,148
100% 98.0% 111,148 108,942
90% 90.0% 100,033 100,026
80% 80.5% 88,919 89,450
70% 70.1% 77,804 77,903
60% 60.0% 66,689 66,653
50% 50.3% 55,574 55,878
40% 39.6% 44,459 44,012
30% 30.0% 33,344 33,324
20% 19.7% 22,230 21,921
10% 9.8% 11,115 10,882
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,719
Calibration 2     111,779
Calibration 3     110,809
ssj_ops@calibrated=111,294
100% 99.8% 111,294 111,028
90% 90.0% 100,165 100,195
80% 79.7% 89,035 88,676
70% 69.7% 77,906 77,549
60% 60.0% 66,776 66,732
50% 50.4% 55,647 56,076
40% 39.8% 44,518 44,240
30% 30.5% 33,388 33,987
20% 20.3% 22,259 22,557
10% 10.4% 11,129 11,537
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,119
Calibration 2     105,182
Calibration 3     108,850
ssj_ops@calibrated=107,016
100% 99.9% 107,016 106,859
90% 90.0% 96,315 96,314
80% 80.7% 85,613 86,341
70% 70.4% 74,911 75,358
60% 59.9% 64,210 64,056
50% 49.8% 53,508 53,265
40% 39.1% 42,806 41,808
30% 30.2% 32,105 32,371
20% 19.9% 21,403 21,304
10% 9.8% 10,702 10,454
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,711
Calibration 2     90,361
Calibration 3     91,582
ssj_ops@calibrated=90,972
100% 99.0% 90,972 90,107
90% 89.7% 81,875 81,632
80% 80.4% 72,777 73,150
70% 70.2% 63,680 63,871
60% 60.0% 54,583 54,612
50% 50.5% 45,486 45,930
40% 39.9% 36,389 36,319
30% 29.7% 27,292 27,025
20% 19.9% 18,194 18,133
10% 10.1% 9,097 9,204
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,692
Calibration 2     112,880
Calibration 3     109,716
ssj_ops@calibrated=111,298
100% 99.7% 111,298 110,913
90% 90.6% 100,168 100,787
80% 81.0% 89,039 90,168
70% 69.7% 77,909 77,534
60% 60.1% 66,779 66,928
50% 49.4% 55,649 54,956
40% 40.0% 44,519 44,466
30% 29.9% 33,389 33,262
20% 20.4% 22,260 22,704
10% 10.0% 11,130 11,127
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,702
Calibration 2     113,093
Calibration 3     109,382
ssj_ops@calibrated=111,237
100% 99.8% 111,237 110,987
90% 90.4% 100,114 100,591
80% 80.1% 88,990 89,143
70% 70.1% 77,866 77,953
60% 61.3% 66,742 68,159
50% 50.3% 55,619 55,963
40% 40.4% 44,495 44,897
30% 29.7% 33,371 33,019
20% 19.8% 22,247 21,991
10% 10.3% 11,124 11,441
Active Idle   0 0
Graph of results
JVM 'WIN-357TU7BO4LS.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,730
Calibration 2     110,670
Calibration 3     111,300
ssj_ops@calibrated=110,985
100% 99.9% 110,985 110,913
90% 89.9% 99,887 99,788
80% 80.0% 88,788 88,828
70% 70.2% 77,690 77,887
60% 60.2% 66,591 66,775
50% 50.1% 55,493 55,570
40% 39.6% 44,394 43,972
30% 29.8% 33,296 33,032
20% 19.8% 22,197 21,942
10% 10.0% 11,099 11,104
Active Idle   0 0
Graph of results
