Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket SPECpower_ssj2008 = 7,628 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 16, 2020
Hardware Availability: Dec-2020 Software Availability: Feb-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,124 22.1
Calibration 2 2,151 22.1
Calibration 3 2,155 22.1
100% 2,148 22.1
90% 1,955 22.1
80% 1,748 21.9
70% 1,553 21.9
60% 1,402 22.1
50% 1,276 22.1
40% 1,163 22.1
30% 1,054 22.1
20% 945 22.1
10% 831 22.1
Active Idle 500 22.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-60-1
Date of Calibration: 12-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 1, 2, and 3
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-40-1
Date of Calibration: 16-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supplies 4, 5, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 4.99 10.0 0.991 1,060 0.5%
Calibration 2 214 300.0 5.00 10.0 0.991 1,061 0.5%
Calibration 3 214 300.0 5.01 10.0 0.991 1,062 0.5%
100% 214 300.0 4.99 10.0 0.991 1,058 0.5%
90% 214 300.0 4.62 5.0 0.990 979 0.3%
80% 214 300.0 4.16 5.0 0.990 882 0.3%
70% 214 300.0 3.70 5.0 0.988 784 0.4%
60% 215 300.0 3.35 5.0 0.986 710 0.4%
50% 215 300.0 3.07 5.0 0.982 647 0.4%
40% 215 300.0 2.81 5.0 0.978 590 0.4%
30% 215 300.0 2.56 5.0 0.975 536 0.5%
20% 215 300.0 2.30 5.0 0.970 481 0.5%
10% 215 300.0 2.04 2.0 0.965 424 0.3%
Active Idle 216 300.0 1.30 2.0 0.924 259 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 5.07 10.0 0.989 1,064 0.3%
Calibration 2 212 300.0 5.19 10.0 0.990 1,090 0.3%
Calibration 3 212 300.0 5.21 10.0 0.990 1,092 0.3%
100% 212 300.0 5.19 10.0 0.990 1,089 0.3%
90% 212 300.0 4.65 5.0 0.989 976 0.2%
80% 212 300.0 4.13 5.0 0.987 866 0.2%
70% 212 300.0 3.67 5.0 0.985 769 0.2%
60% 213 300.0 3.32 5.0 0.982 692 0.3%
50% 213 300.0 3.02 5.0 0.977 629 0.3%
40% 213 300.0 2.76 5.0 0.972 572 0.3%
30% 213 300.0 2.52 5.0 0.967 518 0.3%
20% 213 300.0 2.26 5.0 0.961 463 0.3%
10% 213 300.0 2.00 2.0 0.953 407 0.2%
Active Idle 214 300.0 1.27 2.0 0.892 241 0.3%

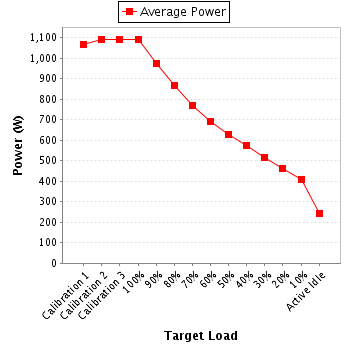

Power details for pwr2
