SPECpower_ssj2008 Host 'WIN-RDFFDVP8I41' Performance Report

SPECpower_ssj2008

Host 'WIN-RDFFDVP8I41' Performance Report

New H3C Technologies Co., Ltd. H3C UniServer R6900 G5			ssj_ops@100% = 10,793,473 ssj_ops@100% per JVM = 1,349,184
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	Nov 3, 2020
Hardware Availability:	Aug-2020	Software Availability:	Sep-2020	Publication:	Dec 2, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,848,470
Calibration 2			10,831,025
Calibration 3			10,831,699
ssj_ops@calibrated=10,831,362
100%	99.7%	10,831,362	10,793,473
90%	90.7%	9,748,226	9,829,074
80%	80.0%	8,665,090	8,661,026
70%	70.0%	7,581,953	7,586,971
60%	60.0%	6,498,817	6,494,429
50%	50.0%	5,415,681	5,415,001
40%	40.0%	4,332,545	4,337,529
30%	30.1%	3,249,409	3,256,404
20%	20.0%	2,166,272	2,167,324
10%	10.0%	1,083,136	1,085,551
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R6900 G5
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8380HL 2.9GHz
CPU Characteristics:	2.9 GHz, 28 core, 38.5MB L3 cache
CPU Frequency (MHz):	2900
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D off chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16 GB 2Rx8 SAMSUNG registered ECC 3200MHz; slots 1, 3, 5, 8, 10, 12 populated in each Socket
Power Supply Quantity and Rating (W):	2 x 850
Power Supply Details:	DELTA PSR850-12A
Disk Drive:	Intel SSD S4510 480GB SATA 6Gb/s
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809(OS Build 17763.1)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-bit Server VM 18.9(build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options:	set JAVAOPTIONS_SSJ=-server -Xmn23000m -Xms25000m -Xmx25000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-TheadLocalHandshakes
JVM Affinity:	start /node [0,1,2,3,4,5,6,7] /affinity [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	25000
JVM Maximum Heap (MB):	25000
JVM Address Bits:	64
Boot Firmware Version:	5.05.00
Management Firmware Version:	2.08.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4072698

Boot Firmware Settings

ConsoleRedirection: Disabled
SRIOVSupport: Disabled
LegacyUSBSupport: Disabled
XhciHandOff: Disabled
USBMassStorageDriverSupport: Disabled
PCIeNicPXE: Disabled
IsocMode: Disabled
DegradePrecedence: Feature Precedence
UPILinkFrequencySelect: 9.6GB/s
LinkL0pEnable: Enabled
LinkL1Enable: Enabled
StaleAtoS: Enabled
PatrolScrub: Disabled
HardwarePrefetcher: Disabled
AdjacentCachePrefetch: Disabled
DCUStreamerPrefetcher: Disabled
LLCPrefetch: Enabled
HardwarePStates: Disabled
EPPprofile: Power
EISTPSDFunction: SW_ALL
TurboMode: Disabled
CPUC6Report: Enabled
PackageCState: No Limit
PkgCLatNeg: Enabled
SoftwareControlledTStates: Enabled
PowerPerformanceTuning: BIOS Controls EPB
AltEngPerfBIAS: Power
SataP1~7En: Disabled
sSATAController: Disabled

Management Firmware Settings

none

System Under Test Notes

Each JVM instance was bound to 28 logical processors
Using the local security settings console, "lock pages in memory " was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Balanced Plan Minimum processor state set to 0%
Maximum processor state set to 100%
SPECpower_ssj.props input.load_level.number_warehouses set to 224
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-RDFFDVP8I41.001	1,365,321
WIN-RDFFDVP8I41.002	1,359,263
WIN-RDFFDVP8I41.003	1,358,360
WIN-RDFFDVP8I41.004	1,355,300
WIN-RDFFDVP8I41.005	1,355,620
WIN-RDFFDVP8I41.006	1,299,382
WIN-RDFFDVP8I41.007	1,334,196
WIN-RDFFDVP8I41.008	1,366,030
ssj_ops@100%	10,793,473
ssj_ops@100% per JVM	1,349,184

JVM 'WIN-RDFFDVP8I41.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,366,614
Calibration 2			1,365,836
Calibration 3			1,365,557
ssj_ops@calibrated=1,365,697
100%	100.0%	1,365,697	1,365,321
90%	90.8%	1,229,127	1,240,002
80%	80.2%	1,092,557	1,094,640
70%	69.8%	955,988	953,414
60%	59.9%	819,418	817,890
50%	50.1%	682,848	684,092
40%	40.0%	546,279	546,609
30%	29.9%	409,709	408,930
20%	19.9%	273,139	271,355
10%	10.1%	136,570	137,910
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,362,749
Calibration 2			1,359,856
Calibration 3			1,360,458
ssj_ops@calibrated=1,360,157
100%	99.9%	1,360,157	1,359,263
90%	90.7%	1,224,142	1,233,935
80%	80.0%	1,088,126	1,087,518
70%	69.7%	952,110	948,581
60%	60.1%	816,094	817,342
50%	49.9%	680,079	679,294
40%	40.1%	544,063	545,333
30%	30.0%	408,047	407,666
20%	20.0%	272,031	271,815
10%	10.1%	136,016	137,754
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,360,019
Calibration 2			1,358,615
Calibration 3			1,355,473
ssj_ops@calibrated=1,357,044
100%	100.1%	1,357,044	1,358,360
90%	91.3%	1,221,339	1,239,164
80%	80.0%	1,085,635	1,085,218
70%	70.3%	949,931	953,864
60%	59.7%	814,226	810,721
50%	49.9%	678,522	677,784
40%	40.0%	542,817	542,966
30%	30.2%	407,113	409,690
20%	19.9%	271,409	270,657
10%	9.9%	135,704	134,969
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,357,313
Calibration 2			1,356,191
Calibration 3			1,356,528
ssj_ops@calibrated=1,356,360
100%	99.9%	1,356,360	1,355,300
90%	90.7%	1,220,724	1,230,307
80%	80.0%	1,085,088	1,085,495
70%	70.2%	949,452	952,710
60%	60.1%	813,816	814,525
50%	50.0%	678,180	678,347
40%	40.1%	542,544	544,538
30%	30.1%	406,908	407,941
20%	20.1%	271,272	273,289
10%	10.0%	135,636	135,887
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,356,341
Calibration 2			1,355,886
Calibration 3			1,356,717
ssj_ops@calibrated=1,356,302
100%	99.9%	1,356,302	1,355,620
90%	90.4%	1,220,672	1,225,683
80%	80.0%	1,085,041	1,085,661
70%	70.3%	949,411	953,169
60%	60.2%	813,781	816,939
50%	50.0%	678,151	678,540
40%	40.0%	542,521	542,952
30%	30.0%	406,891	406,532
20%	20.0%	271,260	271,367
10%	10.0%	135,630	135,639
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,303,314
Calibration 2			1,299,342
Calibration 3			1,301,090
ssj_ops@calibrated=1,300,216
100%	99.9%	1,300,216	1,299,382
90%	90.7%	1,170,194	1,179,621
80%	80.1%	1,040,173	1,041,187
70%	70.0%	910,151	910,265
60%	59.9%	780,130	779,433
50%	49.9%	650,108	649,340
40%	40.0%	520,086	520,255
30%	30.2%	390,065	392,042
20%	20.0%	260,043	259,887
10%	10.1%	130,022	130,784
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

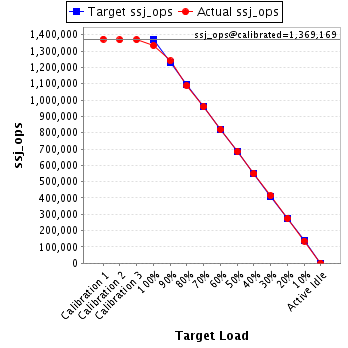

JVM 'WIN-RDFFDVP8I41.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,373,098
Calibration 2			1,368,645
Calibration 3			1,369,693
ssj_ops@calibrated=1,369,169
100%	97.4%	1,369,169	1,334,196
90%	90.6%	1,232,252	1,239,834
80%	79.5%	1,095,335	1,088,696
70%	70.0%	958,418	958,783
60%	59.9%	821,501	820,342
50%	50.0%	684,585	684,266
40%	40.1%	547,668	548,566
30%	30.2%	410,751	413,957
20%	20.1%	273,834	274,894
10%	10.0%	136,917	136,333
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-RDFFDVP8I41.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,369,021
Calibration 2			1,366,652
Calibration 3			1,366,184
ssj_ops@calibrated=1,366,418
100%	100.0%	1,366,418	1,366,030
90%	90.8%	1,229,776	1,240,528
80%	80.0%	1,093,135	1,092,609
70%	70.0%	956,493	956,184
60%	59.8%	819,851	817,236
50%	50.0%	683,209	683,337
40%	40.0%	546,567	546,309
30%	30.0%	409,925	409,645
20%	20.1%	273,284	274,060
10%	10.0%	136,642	136,275
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
