Hewlett Packard Enterprise ProLiant DL345 Gen10 Plus SPECpower_ssj2008 = 18,260 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 18, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 269 23.6
Calibration 2 272 23.6
Calibration 3 273 23.6
100% 272 23.6
90% 255 23.6
80% 236 23.7
70% 217 23.7
60% 197 23.6
50% 169 23.6
40% 150 23.6
30% 134 23.7
20% 120 23.7
10% 104 23.7
Active Idle 58.0 23.6

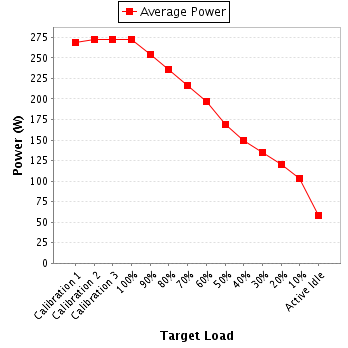

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FU771-20-1
Date of Calibration: 21-Aug-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.29 2.0 0.989 269 0.4%
Calibration 2 211 300.0 1.30 2.0 0.989 272 0.4%
Calibration 3 211 300.0 1.30 2.0 0.989 273 0.4%
100% 212 300.0 1.30 2.0 0.989 272 0.4%
90% 212 300.0 1.22 2.0 0.988 255 0.4%
80% 212 300.0 1.13 2.0 0.989 236 0.4%
70% 212 300.0 1.04 2.0 0.988 217 0.5%
60% 212 300.0 0.944 2.0 0.987 197 0.5%
50% 212 300.0 0.811 2.0 0.984 169 0.5%
40% 212 300.0 0.720 2.0 0.982 150 0.6%
30% 212 300.0 0.649 2.0 0.978 134 0.6%
20% 212 300.0 0.580 2.0 0.975 120 0.7%
10% 212 300.0 0.504 1.0 0.969 104 0.5%
Active Idle 212 300.0 0.297 1.0 0.926 58.0 0.8%
Power details for pwr1
