Fujitsu PRIMERGY RX2530 M6 | SPECpower_ssj2008 = 12,066 overall ssj_ops/watt | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 3, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Oct-2020 | Publication: | Apr 28, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

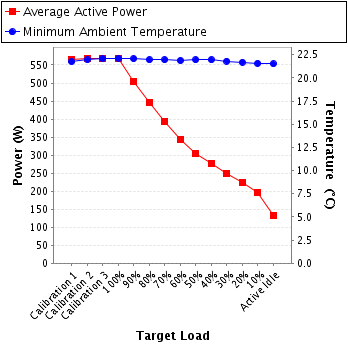

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 566 | 21.8 |
Calibration 2 | 569 | 21.9 |
Calibration 3 | 569 | 22.1 |
100% | 568 | 22.1 |
90% | 505 | 22.1 |
80% | 447 | 21.9 |
70% | 392 | 21.9 |
60% | 344 | 21.9 |
50% | 306 | 21.9 |
40% | 276 | 21.9 |
30% | 249 | 21.8 |
20% | 223 | 21.7 |
10% | 195 | 21.6 |
Active Idle | 132 | 21.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Hioki |
Model: | Hioki3336 |
Serial Number: | 170213562 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
Accredited by: | HIOKI E.E. CORPORATION |
Calibration Label: | H06400088-2002 |
Date of Calibration: | 25-Jun-2020 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main air intake |

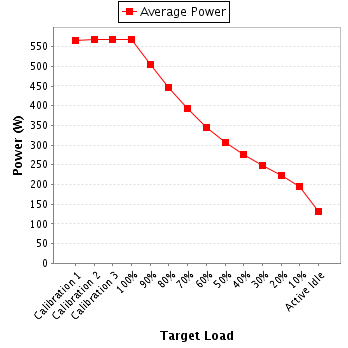

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 200 | 300.0 | 2.89 | 5.0 | 0.980 | 566 | 0.3% |
Calibration 2 | 200 | 300.0 | 2.90 | 5.0 | 0.980 | 569 | 0.3% |
Calibration 3 | 200 | 300.0 | 2.90 | 5.0 | 0.980 | 569 | 0.3% |
100% | 200 | 300.0 | 2.90 | 5.0 | 0.980 | 568 | 0.3% |
90% | 200 | 300.0 | 2.59 | 5.0 | 0.976 | 505 | 0.3% |
80% | 200 | 300.0 | 2.31 | 5.0 | 0.969 | 447 | 0.3% |
70% | 200 | 300.0 | 2.04 | 2.0 | 0.961 | 392 | 0.2% |
60% | 200 | 300.0 | 1.80 | 2.0 | 0.953 | 344 | 0.2% |
50% | 200 | 300.0 | 1.62 | 2.0 | 0.943 | 306 | 0.2% |
40% | 200 | 300.0 | 1.48 | 2.0 | 0.933 | 276 | 0.2% |
30% | 200 | 300.0 | 1.35 | 2.0 | 0.923 | 249 | 0.3% |
20% | 200 | 300.0 | 1.22 | 2.0 | 0.912 | 223 | 0.3% |
10% | 200 | 300.0 | 1.09 | 2.0 | 0.899 | 195 | 0.3% |
Active Idle | 200 | 300.0 | 0.765 | 2.0 | 0.863 | 132 | 0.4% |
