Lenovo Global Technology ThinkSystem SR665 ssj_ops@100% = 12,301,551
ssj_ops@100% per JVM = 192,212
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 6, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: May 6, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,363,770
Calibration 2     12,346,592
Calibration 3     12,372,861
ssj_ops@calibrated=12,359,727
100% 99.5% 12,359,727 12,301,551
90% 89.6% 11,123,754 11,076,180
80% 79.6% 9,887,781 9,842,956
70% 69.9% 8,651,809 8,638,910
60% 60.1% 7,415,836 7,426,511
50% 49.7% 6,179,863 6,146,978
40% 40.0% 4,943,891 4,939,117
30% 30.0% 3,707,918 3,709,750
20% 20.0% 2,471,945 2,470,019
10% 10.0% 1,235,973 1,237,787
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR665
Form Factor: 2U
CPU Name: AMD EPYC 7763 2.45GHz
CPU Characteristics: 64-Core, 2.45GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A26292
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE 2-Port Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: D8E115D(2.00)
Management Firmware Version: D8BT15J(3.01)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 194,053
localhost.002 194,493
localhost.003 184,291
localhost.004 194,134
localhost.005 188,313
localhost.006 192,687
localhost.007 191,896
localhost.008 193,787
localhost.009 197,023
localhost.010 190,445
localhost.011 190,051
localhost.012 190,714
localhost.013 187,523
localhost.014 191,895
localhost.015 195,348
localhost.016 193,395
localhost.017 194,766
localhost.018 188,262
localhost.019 197,194
localhost.020 187,931
localhost.021 193,903
localhost.022 188,443
localhost.023 192,774
localhost.024 195,532
localhost.025 196,639
localhost.026 191,189
localhost.027 193,238
localhost.028 196,544
localhost.029 195,903
localhost.030 187,198
localhost.031 189,175
localhost.032 192,287
localhost.033 192,246
localhost.034 198,429
localhost.035 196,133
localhost.036 190,506
localhost.037 195,944
localhost.038 191,728
localhost.039 189,974
localhost.040 196,913
localhost.041 196,169
localhost.042 194,065
localhost.043 179,643
localhost.044 192,502
localhost.045 197,758
localhost.046 195,489
localhost.047 190,952
localhost.048 188,890
localhost.049 192,879
localhost.050 193,373
localhost.051 192,410
localhost.052 189,149
localhost.053 189,947
localhost.054 189,335
localhost.055 195,322
localhost.056 199,645
localhost.057 192,285
localhost.058 190,951
localhost.059 192,633
localhost.060 196,911
localhost.061 184,603
localhost.062 189,625
localhost.063 182,869
localhost.064 191,249
ssj_ops@100% 12,301,551
ssj_ops@100% per JVM 192,212
Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,253
Calibration 2     194,544
Calibration 3     195,565
ssj_ops@calibrated=195,055
100% 99.5% 195,055 194,053
90% 89.0% 175,549 173,560
80% 79.2% 156,044 154,481
70% 70.3% 136,538 137,032
60% 59.3% 117,033 115,691
50% 49.5% 97,527 96,542
40% 39.4% 78,022 76,876
30% 29.9% 58,516 58,332
20% 19.9% 39,011 38,769
10% 10.2% 19,505 19,966
Active Idle   0 0
Graph of results
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,192
Calibration 2     193,910
Calibration 3     194,120
ssj_ops@calibrated=194,015
100% 100.2% 194,015 194,493
90% 89.6% 174,614 173,831
80% 79.6% 155,212 154,393
70% 70.7% 135,811 137,129
60% 60.2% 116,409 116,814
50% 49.8% 97,008 96,665
40% 40.0% 77,606 77,624
30% 29.8% 58,205 57,721
20% 20.1% 38,803 39,053
10% 10.0% 19,402 19,393
Active Idle   0 0
Graph of results
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,695
Calibration 2     185,346
Calibration 3     185,619
ssj_ops@calibrated=185,483
100% 99.4% 185,483 184,291
90% 88.8% 166,934 164,795
80% 79.1% 148,386 146,787
70% 69.6% 129,838 129,181
60% 60.1% 111,290 111,455
50% 49.5% 92,741 91,842
40% 40.0% 74,193 74,245
30% 29.8% 55,645 55,189
20% 20.2% 37,097 37,422
10% 10.1% 18,548 18,670
Active Idle   0 0
Graph of results

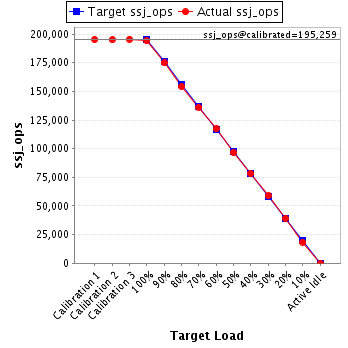

JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,233
Calibration 2     194,966
Calibration 3     195,553
ssj_ops@calibrated=195,259
100% 99.4% 195,259 194,134
90% 89.5% 175,733 174,808
80% 78.9% 156,207 154,154
70% 69.7% 136,681 136,132
60% 60.1% 117,156 117,321
50% 49.4% 97,630 96,521
40% 40.0% 78,104 78,184
30% 30.1% 58,578 58,759
20% 20.0% 39,052 39,031
10% 9.5% 19,526 18,492
Active Idle   0 0
Graph of results
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,801
Calibration 2     189,966
Calibration 3     190,312
ssj_ops@calibrated=190,139
100% 99.0% 190,139 188,313
90% 90.0% 171,125 171,060
80% 79.7% 152,111 151,494
70% 69.2% 133,097 131,575
60% 60.2% 114,083 114,495
50% 49.9% 95,070 94,884
40% 40.3% 76,056 76,669
30% 30.2% 57,042 57,389
20% 19.8% 38,028 37,574
10% 10.1% 19,014 19,263
Active Idle   0 0
Graph of results

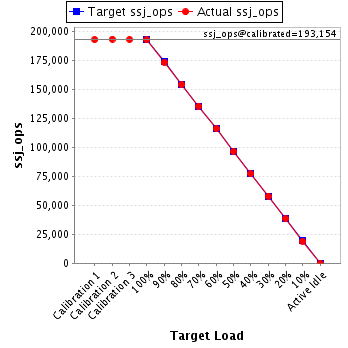

JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,865
Calibration 2     193,278
Calibration 3     193,030
ssj_ops@calibrated=193,154
100% 99.8% 193,154 192,687
90% 89.7% 173,839 173,245
80% 79.8% 154,523 154,108
70% 70.2% 135,208 135,553
60% 60.1% 115,892 116,152
50% 49.8% 96,577 96,153
40% 39.9% 77,262 77,092
30% 30.0% 57,946 57,936
20% 19.8% 38,631 38,305
10% 9.9% 19,315 19,090
Active Idle   0 0
Graph of results
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,437
Calibration 2     192,964
Calibration 3     192,902
ssj_ops@calibrated=192,933
100% 99.5% 192,933 191,896
90% 89.5% 173,640 172,612
80% 79.3% 154,347 153,089
70% 70.0% 135,053 135,106
60% 59.9% 115,760 115,560
50% 49.5% 96,467 95,575
40% 40.5% 77,173 78,187
30% 29.7% 57,880 57,313
20% 19.9% 38,587 38,315
10% 10.0% 19,293 19,220
Active Idle   0 0
Graph of results
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,281
Calibration 2     194,373
Calibration 3     194,774
ssj_ops@calibrated=194,574
100% 99.6% 194,574 193,787
90% 89.6% 175,116 174,300
80% 79.5% 155,659 154,734
70% 69.6% 136,202 135,405
60% 60.1% 116,744 116,936
50% 49.5% 97,287 96,385
40% 40.3% 77,829 78,354
30% 30.4% 58,372 59,093
20% 19.7% 38,915 38,424
10% 10.1% 19,457 19,567
Active Idle   0 0
Graph of results
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,729
Calibration 2     197,678
Calibration 3     198,827
ssj_ops@calibrated=198,252
100% 99.4% 198,252 197,023
90% 89.4% 178,427 177,163
80% 78.9% 158,602 156,515
70% 69.9% 138,777 138,531
60% 60.6% 118,951 120,086
50% 49.7% 99,126 98,617
40% 39.8% 79,301 78,996
30% 30.3% 59,476 60,114
20% 20.1% 39,650 39,885
10% 10.0% 19,825 19,899
Active Idle   0 0
Graph of results
JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,180
Calibration 2     192,860
Calibration 3     191,383
ssj_ops@calibrated=192,121
100% 99.1% 192,121 190,445
90% 89.6% 172,909 172,160
80% 79.6% 153,697 152,902
70% 70.2% 134,485 134,882
60% 60.2% 115,273 115,629
50% 49.8% 96,061 95,680
40% 39.8% 76,849 76,460
30% 30.1% 57,636 57,770
20% 19.7% 38,424 37,918
10% 9.9% 19,212 18,929
Active Idle   0 0
Graph of results
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,727
Calibration 2     191,574
Calibration 3     191,196
ssj_ops@calibrated=191,385
100% 99.3% 191,385 190,051
90% 89.3% 172,247 170,951
80% 79.6% 153,108 152,328
70% 69.9% 133,970 133,714
60% 60.0% 114,831 114,893
50% 49.8% 95,693 95,309
40% 39.8% 76,554 76,213
30% 30.4% 57,416 58,144
20% 19.9% 38,277 38,001
10% 10.0% 19,139 19,150
Active Idle   0 0
Graph of results
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,156
Calibration 2     189,935
Calibration 3     192,446
ssj_ops@calibrated=191,190
100% 99.8% 191,190 190,714
90% 90.0% 172,071 172,079
80% 79.7% 152,952 152,460
70% 70.2% 133,833 134,141
60% 59.6% 114,714 114,044
50% 49.7% 95,595 94,982
40% 39.7% 76,476 75,844
30% 29.8% 57,357 57,008
20% 20.2% 38,238 38,664
10% 10.1% 19,119 19,367
Active Idle   0 0
Graph of results
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,991
Calibration 2     191,036
Calibration 3     190,442
ssj_ops@calibrated=190,739
100% 98.3% 190,739 187,523
90% 89.5% 171,665 170,683
80% 79.5% 152,591 151,553
70% 69.3% 133,517 132,212
60% 59.7% 114,443 113,927
50% 49.9% 95,369 95,164
40% 40.0% 76,296 76,307
30% 30.0% 57,222 57,250
20% 19.9% 38,148 37,921
10% 10.2% 19,074 19,428
Active Idle   0 0
Graph of results
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,273
Calibration 2     191,953
Calibration 3     192,928
ssj_ops@calibrated=192,441
100% 99.7% 192,441 191,895
90% 90.0% 173,197 173,117
80% 79.8% 153,953 153,478
70% 70.0% 134,709 134,697
60% 59.0% 115,464 113,528
50% 49.9% 96,220 96,106
40% 40.0% 76,976 76,988
30% 30.0% 57,732 57,815
20% 19.9% 38,488 38,328
10% 9.8% 19,244 18,820
Active Idle   0 0
Graph of results
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,802
Calibration 2     196,031
Calibration 3     194,986
ssj_ops@calibrated=195,508
100% 99.9% 195,508 195,348
90% 89.7% 175,958 175,339
80% 79.4% 156,407 155,185
70% 70.8% 136,856 138,374
60% 60.1% 117,305 117,430
50% 49.5% 97,754 96,778
40% 39.6% 78,203 77,495
30% 30.2% 58,653 59,141
20% 20.2% 39,102 39,469
10% 9.9% 19,551 19,369
Active Idle   0 0
Graph of results
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,775
Calibration 2     194,180
Calibration 3     195,124
ssj_ops@calibrated=194,652
100% 99.4% 194,652 193,395
90% 89.1% 175,187 173,357
80% 79.2% 155,722 154,222
70% 69.9% 136,256 136,100
60% 60.8% 116,791 118,329
50% 49.4% 97,326 96,172
40% 39.8% 77,861 77,493
30% 29.6% 58,396 57,591
20% 20.1% 38,930 39,191
10% 10.4% 19,465 20,217
Active Idle   0 0
Graph of results
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,525
Calibration 2     194,892
Calibration 3     196,912
ssj_ops@calibrated=195,902
100% 99.4% 195,902 194,766
90% 88.8% 176,312 173,887
80% 78.6% 156,721 154,062
70% 70.0% 137,131 137,189
60% 59.9% 117,541 117,271
50% 49.4% 97,951 96,709
40% 40.1% 78,361 78,484
30% 30.1% 58,771 58,890
20% 20.2% 39,180 39,667
10% 10.0% 19,590 19,562
Active Idle   0 0
Graph of results
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,201
Calibration 2     187,977
Calibration 3     188,374
ssj_ops@calibrated=188,175
100% 100.0% 188,175 188,262
90% 89.0% 169,358 167,520
80% 79.4% 150,540 149,378
70% 70.3% 131,723 132,245
60% 60.0% 112,905 112,931
50% 49.7% 94,088 93,492
40% 39.6% 75,270 74,574
30% 30.0% 56,453 56,403
20% 20.2% 37,635 37,924
10% 10.2% 18,818 19,111
Active Idle   0 0
Graph of results
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,770
Calibration 2     198,777
Calibration 3     198,911
ssj_ops@calibrated=198,844
100% 99.2% 198,844 197,194
90% 89.7% 178,960 178,355
80% 79.9% 159,075 158,785
70% 69.3% 139,191 137,780
60% 59.8% 119,306 118,922
50% 49.5% 99,422 98,418
40% 39.9% 79,538 79,423
30% 30.0% 59,653 59,581
20% 20.1% 39,769 39,956
10% 10.0% 19,884 19,968
Active Idle   0 0
Graph of results
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,257
Calibration 2     187,528
Calibration 3     188,675
ssj_ops@calibrated=188,102
100% 99.9% 188,102 187,931
90% 90.1% 169,292 169,402
80% 79.9% 150,481 150,330
70% 70.2% 131,671 132,012
60% 59.7% 112,861 112,331
50% 50.3% 94,051 94,670
40% 39.6% 75,241 74,538
30% 30.4% 56,431 57,229
20% 20.2% 37,620 37,918
10% 10.0% 18,810 18,803
Active Idle   0 0
Graph of results
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,514
Calibration 2     193,366
Calibration 3     194,733
ssj_ops@calibrated=194,049
100% 99.9% 194,049 193,903
90% 89.5% 174,644 173,586
80% 79.0% 155,240 153,254
70% 70.5% 135,835 136,879
60% 59.7% 116,430 115,825
50% 50.2% 97,025 97,330
40% 39.8% 77,620 77,297
30% 29.8% 58,215 57,734
20% 20.1% 38,810 38,942
10% 10.1% 19,405 19,559
Active Idle   0 0
Graph of results
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,398
Calibration 2     190,011
Calibration 3     189,279
ssj_ops@calibrated=189,645
100% 99.4% 189,645 188,443
90% 89.4% 170,681 169,554
80% 79.2% 151,716 150,199
70% 70.0% 132,752 132,764
60% 59.6% 113,787 112,965
50% 50.0% 94,823 94,771
40% 40.4% 75,858 76,683
30% 29.9% 56,894 56,781
20% 19.6% 37,929 37,262
10% 10.1% 18,965 19,117
Active Idle   0 0
Graph of results
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,640
Calibration 2     192,589
Calibration 3     195,556
ssj_ops@calibrated=194,073
100% 99.3% 194,073 192,774
90% 90.0% 174,665 174,581
80% 79.6% 155,258 154,577
70% 70.2% 135,851 136,213
60% 60.4% 116,444 117,287
50% 49.6% 97,036 96,339
40% 40.0% 77,629 77,543
30% 30.3% 58,222 58,782
20% 19.9% 38,815 38,541
10% 10.2% 19,407 19,716
Active Idle   0 0
Graph of results
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,448
Calibration 2     197,231
Calibration 3     195,954
ssj_ops@calibrated=196,592
100% 99.5% 196,592 195,532
90% 89.7% 176,933 176,330
80% 79.7% 157,274 156,681
70% 69.4% 137,615 136,417
60% 59.7% 117,955 117,340
50% 49.8% 98,296 97,871
40% 39.8% 78,637 78,155
30% 30.3% 58,978 59,474
20% 20.0% 39,318 39,362
10% 10.2% 19,659 20,044
Active Idle   0 0
Graph of results
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,914
Calibration 2     194,675
Calibration 3     196,523
ssj_ops@calibrated=195,599
100% 100.5% 195,599 196,639
90% 90.0% 176,039 176,043
80% 79.8% 156,479 156,015
70% 69.7% 136,919 136,297
60% 59.2% 117,360 115,738
50% 50.2% 97,800 98,154
40% 40.2% 78,240 78,592
30% 30.2% 58,680 59,152
20% 19.9% 39,120 38,923
10% 9.9% 19,560 19,436
Active Idle   0 0
Graph of results
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,226
Calibration 2     191,464
Calibration 3     191,710
ssj_ops@calibrated=191,587
100% 99.8% 191,587 191,189
90% 89.5% 172,429 171,474
80% 80.1% 153,270 153,382
70% 69.0% 134,111 132,159
60% 60.0% 114,952 114,995
50% 50.2% 95,794 96,225
40% 39.9% 76,635 76,517
30% 29.5% 57,476 56,612
20% 19.6% 38,317 37,523
10% 10.3% 19,159 19,746
Active Idle   0 0
Graph of results
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,702
Calibration 2     194,764
Calibration 3     194,817
ssj_ops@calibrated=194,791
100% 99.2% 194,791 193,238
90% 89.2% 175,312 173,684
80% 79.5% 155,832 154,771
70% 69.9% 136,353 136,070
60% 60.4% 116,874 117,582
50% 49.7% 97,395 96,750
40% 40.4% 77,916 78,636
30% 30.0% 58,437 58,367
20% 19.9% 38,958 38,760
10% 9.8% 19,479 19,125
Active Idle   0 0
Graph of results
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,769
Calibration 2     197,191
Calibration 3     198,841
ssj_ops@calibrated=198,016
100% 99.3% 198,016 196,544
90% 89.6% 178,214 177,471
80% 78.6% 158,413 155,634
70% 69.8% 138,611 138,211
60% 60.7% 118,810 120,206
50% 49.4% 99,008 97,728
40% 39.7% 79,206 78,666
30% 29.6% 59,405 58,606
20% 19.7% 39,603 39,041
10% 10.3% 19,802 20,393
Active Idle   0 0
Graph of results
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,201
Calibration 2     195,935
Calibration 3     198,993
ssj_ops@calibrated=197,464
100% 99.2% 197,464 195,903
90% 89.6% 177,718 176,834
80% 79.4% 157,971 156,853
70% 69.6% 138,225 137,434
60% 60.0% 118,479 118,400
50% 49.9% 98,732 98,539
40% 40.0% 78,986 79,061
30% 30.1% 59,239 59,534
20% 19.8% 39,493 39,180
10% 10.0% 19,746 19,701
Active Idle   0 0
Graph of results
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,517
Calibration 2     191,214
Calibration 3     189,083
ssj_ops@calibrated=190,149
100% 98.4% 190,149 187,198
90% 89.0% 171,134 169,237
80% 79.0% 152,119 150,246
70% 69.8% 133,104 132,814
60% 60.0% 114,089 114,052
50% 49.8% 95,074 94,634
40% 40.0% 76,059 76,109
30% 30.4% 57,045 57,784
20% 19.9% 38,030 37,888
10% 10.0% 19,015 19,040
Active Idle   0 0
Graph of results
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,314
Calibration 2     190,111
Calibration 3     190,960
ssj_ops@calibrated=190,535
100% 99.3% 190,535 189,175
90% 89.0% 171,482 169,555
80% 79.1% 152,428 150,795
70% 69.3% 133,375 132,033
60% 60.2% 114,321 114,609
50% 49.7% 95,268 94,741
40% 40.5% 76,214 77,124
30% 29.8% 57,161 56,850
20% 19.9% 38,107 37,947
10% 10.2% 19,054 19,390
Active Idle   0 0
Graph of results
JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,755
Calibration 2     193,579
Calibration 3     192,448
ssj_ops@calibrated=193,014
100% 99.6% 193,014 192,287
90% 90.0% 173,712 173,644
80% 79.8% 154,411 153,947
70% 70.2% 135,110 135,428
60% 59.8% 115,808 115,440
50% 49.5% 96,507 95,618
40% 39.5% 77,205 76,332
30% 29.9% 57,904 57,807
20% 20.1% 38,603 38,705
10% 9.9% 19,301 19,154
Active Idle   0 0
Graph of results
JVM 'localhost.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,845
Calibration 2     193,222
Calibration 3     192,546
ssj_ops@calibrated=192,884
100% 99.7% 192,884 192,246
90% 90.0% 173,596 173,598
80% 79.8% 154,307 153,984
70% 69.9% 135,019 134,835
60% 60.5% 115,730 116,699
50% 50.1% 96,442 96,635
40% 40.3% 77,154 77,685
30% 30.3% 57,865 58,406
20% 19.8% 38,577 38,151
10% 10.3% 19,288 19,777
Active Idle   0 0
Graph of results
JVM 'localhost.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,967
Calibration 2     198,385
Calibration 3     198,933
ssj_ops@calibrated=198,659
100% 99.9% 198,659 198,429
90% 89.9% 178,793 178,550
80% 79.6% 158,927 158,221
70% 70.1% 139,062 139,338
60% 60.8% 119,196 120,747
50% 49.9% 99,330 99,150
40% 39.7% 79,464 78,817
30% 30.0% 59,598 59,546
20% 20.2% 39,732 40,166
10% 10.0% 19,866 19,853
Active Idle   0 0
Graph of results
JVM 'localhost.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,275
Calibration 2     196,583
Calibration 3     197,923
ssj_ops@calibrated=197,253
100% 99.4% 197,253 196,133
90% 89.7% 177,527 176,976
80% 79.9% 157,802 157,542
70% 69.8% 138,077 137,590
60% 60.1% 118,352 118,606
50% 49.8% 98,626 98,253
40% 39.8% 78,901 78,601
30% 29.9% 59,176 58,945
20% 20.2% 39,451 39,919
10% 10.0% 19,725 19,698
Active Idle   0 0
Graph of results

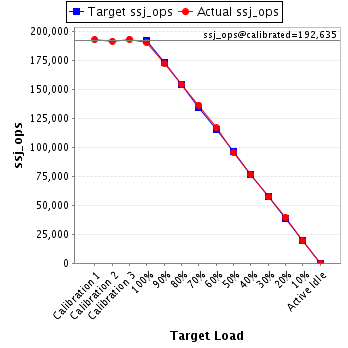

JVM 'localhost.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,071
Calibration 2     191,768
Calibration 3     193,502
ssj_ops@calibrated=192,635
100% 98.9% 192,635 190,506
90% 89.6% 173,371 172,515
80% 80.3% 154,108 154,711
70% 70.9% 134,844 136,621
60% 60.6% 115,581 116,827
50% 49.7% 96,317 95,751
40% 39.8% 77,054 76,731
30% 29.8% 57,790 57,431
20% 20.4% 38,527 39,360
10% 10.2% 19,263 19,575
Active Idle   0 0
Graph of results
JVM 'localhost.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,488
Calibration 2     196,714
Calibration 3     196,470
ssj_ops@calibrated=196,592
100% 99.7% 196,592 195,944
90% 89.4% 176,933 175,846
80% 79.7% 157,274 156,624
70% 69.8% 137,615 137,263
60% 60.3% 117,955 118,567
50% 49.5% 98,296 97,349
40% 39.4% 78,637 77,545
30% 30.0% 58,978 59,023
20% 20.1% 39,318 39,478
10% 10.1% 19,659 19,820
Active Idle   0 0
Graph of results
JVM 'localhost.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,640
Calibration 2     192,359
Calibration 3     192,605
ssj_ops@calibrated=192,482
100% 99.6% 192,482 191,728
90% 89.2% 173,234 171,637
80% 79.9% 153,986 153,786
70% 69.0% 134,738 132,820
60% 59.7% 115,489 114,907
50% 49.7% 96,241 95,585
40% 40.0% 76,993 77,006
30% 30.2% 57,745 58,210
20% 19.9% 38,496 38,314
10% 10.0% 19,248 19,198
Active Idle   0 0
Graph of results
JVM 'localhost.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,110
Calibration 2     190,861
Calibration 3     191,712
ssj_ops@calibrated=191,287
100% 99.3% 191,287 189,974
90% 90.0% 172,158 172,071
80% 80.4% 153,029 153,822
70% 69.9% 133,901 133,791
60% 60.3% 114,772 115,396
50% 50.0% 95,643 95,729
40% 40.0% 76,515 76,587
30% 29.7% 57,386 56,905
20% 19.9% 38,257 38,012
10% 9.8% 19,129 18,749
Active Idle   0 0
Graph of results
JVM 'localhost.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,697
Calibration 2     196,224
Calibration 3     197,982
ssj_ops@calibrated=197,103
100% 99.9% 197,103 196,913
90% 90.0% 177,392 177,413
80% 80.3% 157,682 158,336
70% 69.8% 137,972 137,547
60% 60.4% 118,262 119,137
50% 49.7% 98,551 97,944
40% 40.0% 78,841 78,809
30% 29.7% 59,131 58,636
20% 19.9% 39,421 39,217
10% 9.8% 19,710 19,356
Active Idle   0 0
Graph of results
JVM 'localhost.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,639
Calibration 2     196,179
Calibration 3     196,625
ssj_ops@calibrated=196,402
100% 99.9% 196,402 196,169
90% 89.9% 176,762 176,503
80% 79.6% 157,121 156,241
70% 70.1% 137,481 137,593
60% 60.0% 117,841 117,755
50% 49.5% 98,201 97,130
40% 40.1% 78,561 78,725
30% 29.5% 58,921 57,923
20% 20.1% 39,280 39,475
10% 9.9% 19,640 19,385
Active Idle   0 0
Graph of results
JVM 'localhost.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,713
Calibration 2     194,220
Calibration 3     195,357
ssj_ops@calibrated=194,788
100% 99.6% 194,788 194,065
90% 89.9% 175,310 175,158
80% 80.0% 155,831 155,807
70% 69.4% 136,352 135,120
60% 60.5% 116,873 117,787
50% 50.1% 97,394 97,565
40% 40.2% 77,915 78,346
30% 29.8% 58,437 58,117
20% 20.1% 38,958 39,248
10% 9.9% 19,479 19,328
Active Idle   0 0
Graph of results
JVM 'localhost.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,841
Calibration 2     180,901
Calibration 3     182,224
ssj_ops@calibrated=181,563
100% 98.9% 181,563 179,643
90% 89.7% 163,407 162,889
80% 79.8% 145,250 144,934
70% 70.0% 127,094 127,068
60% 60.4% 108,938 109,721
50% 49.3% 90,781 89,587
40% 40.2% 72,625 73,007
30% 30.3% 54,469 55,025
20% 20.8% 36,313 37,678
10% 10.1% 18,156 18,248
Active Idle   0 0
Graph of results
JVM 'localhost.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,872
Calibration 2     194,222
Calibration 3     193,949
ssj_ops@calibrated=194,085
100% 99.2% 194,085 192,502
90% 89.8% 174,677 174,348
80% 79.6% 155,268 154,509
70% 70.5% 135,860 136,759
60% 60.5% 116,451 117,503
50% 49.8% 97,043 96,631
40% 39.6% 77,634 76,899
30% 30.0% 58,226 58,189
20% 19.8% 38,817 38,463
10% 9.8% 19,409 19,100
Active Idle   0 0
Graph of results
JVM 'localhost.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,465
Calibration 2     198,764
Calibration 3     198,490
ssj_ops@calibrated=198,627
100% 99.6% 198,627 197,758
90% 89.6% 178,765 178,022
80% 79.8% 158,902 158,567
70% 70.2% 139,039 139,372
60% 59.8% 119,176 118,849
50% 49.6% 99,314 98,606
40% 39.3% 79,451 78,069
30% 29.9% 59,588 59,409
20% 20.1% 39,725 39,986
10% 9.9% 19,863 19,725
Active Idle   0 0
Graph of results
JVM 'localhost.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,056
Calibration 2     196,712
Calibration 3     195,114
ssj_ops@calibrated=195,913
100% 99.8% 195,913 195,489
90% 88.9% 176,322 174,177
80% 79.4% 156,731 155,609
70% 70.1% 137,139 137,349
60% 59.6% 117,548 116,854
50% 49.7% 97,957 97,447
40% 40.3% 78,365 78,989
30% 30.0% 58,774 58,772
20% 19.6% 39,183 38,325
10% 10.0% 19,591 19,672
Active Idle   0 0
Graph of results
JVM 'localhost.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,705
Calibration 2     191,212
Calibration 3     192,312
ssj_ops@calibrated=191,762
100% 99.6% 191,762 190,952
90% 90.0% 172,586 172,499
80% 80.4% 153,409 154,232
70% 70.8% 134,233 135,739
60% 60.3% 115,057 115,668
50% 49.7% 95,881 95,392
40% 40.2% 76,705 77,084
30% 29.9% 57,529 57,314
20% 20.0% 38,352 38,355
10% 10.1% 19,176 19,360
Active Idle   0 0
Graph of results
JVM 'localhost.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,974
Calibration 2     188,868
Calibration 3     188,025
ssj_ops@calibrated=188,447
100% 100.2% 188,447 188,890
90% 89.9% 169,602 169,387
80% 79.7% 150,757 150,195
70% 69.6% 131,913 131,087
60% 60.1% 113,068 113,184
50% 49.8% 94,223 93,929
40% 40.2% 75,379 75,671
30% 30.2% 56,534 56,975
20% 19.6% 37,689 36,902
10% 9.8% 18,845 18,523
Active Idle   0 0
Graph of results
JVM 'localhost.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,999
Calibration 2     193,256
Calibration 3     194,825
ssj_ops@calibrated=194,041
100% 99.4% 194,041 192,879
90% 90.0% 174,636 174,575
80% 79.7% 155,232 154,563
70% 70.0% 135,828 135,850
60% 60.3% 116,424 117,006
50% 50.0% 97,020 97,108
40% 39.6% 77,616 76,833
30% 30.3% 58,212 58,818
20% 20.2% 38,808 39,193
10% 9.9% 19,404 19,184
Active Idle   0 0
Graph of results
JVM 'localhost.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,074
Calibration 2     192,654
Calibration 3     193,647
ssj_ops@calibrated=193,150
100% 100.1% 193,150 193,373
90% 89.8% 173,835 173,384
80% 79.8% 154,520 154,062
70% 69.8% 135,205 134,735
60% 60.0% 115,890 115,886
50% 49.8% 96,575 96,205
40% 40.0% 77,260 77,191
30% 30.3% 57,945 58,542
20% 20.3% 38,630 39,219
10% 10.1% 19,315 19,417
Active Idle   0 0
Graph of results
JVM 'localhost.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,157
Calibration 2     191,765
Calibration 3     192,121
ssj_ops@calibrated=191,943
100% 100.2% 191,943 192,410
90% 89.8% 172,749 172,270
80% 79.5% 153,554 152,588
70% 69.6% 134,360 133,671
60% 60.1% 115,166 115,326
50% 49.5% 95,971 94,975
40% 40.0% 76,777 76,825
30% 30.0% 57,583 57,554
20% 20.0% 38,389 38,413
10% 9.9% 19,194 19,011
Active Idle   0 0
Graph of results
JVM 'localhost.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,160
Calibration 2     187,834
Calibration 3     190,327
ssj_ops@calibrated=189,081
100% 100.0% 189,081 189,149
90% 90.2% 170,173 170,569
80% 80.0% 151,264 151,258
70% 69.3% 132,356 130,976
60% 60.3% 113,448 114,013
50% 49.5% 94,540 93,649
40% 39.6% 75,632 74,954
30% 30.2% 56,724 57,196
20% 20.0% 37,816 37,750
10% 9.9% 18,908 18,718
Active Idle   0 0
Graph of results
JVM 'localhost.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,106
Calibration 2     190,669
Calibration 3     191,955
ssj_ops@calibrated=191,312
100% 99.3% 191,312 189,947
90% 90.3% 172,181 172,697
80% 80.5% 153,049 154,000
70% 70.3% 133,918 134,401
60% 60.1% 114,787 114,909
50% 49.5% 95,656 94,710
40% 40.3% 76,525 77,108
30% 30.2% 57,394 57,728
20% 20.2% 38,262 38,591
10% 10.4% 19,131 19,985
Active Idle   0 0
Graph of results
JVM 'localhost.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,657
Calibration 2     189,926
Calibration 3     190,146
ssj_ops@calibrated=190,036
100% 99.6% 190,036 189,335
90% 89.0% 171,032 169,162
80% 79.8% 152,029 151,627
70% 69.9% 133,025 132,782
60% 60.7% 114,022 115,399
50% 50.3% 95,018 95,607
40% 39.6% 76,014 75,325
30% 30.4% 57,011 57,720
20% 19.6% 38,007 37,312
10% 9.8% 19,004 18,558
Active Idle   0 0
Graph of results
JVM 'localhost.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,811
Calibration 2     198,160
Calibration 3     196,620
ssj_ops@calibrated=197,390
100% 99.0% 197,390 195,322
90% 89.3% 177,651 176,210
80% 80.1% 157,912 158,132
70% 69.8% 138,173 137,827
60% 60.2% 118,434 118,849
50% 49.9% 98,695 98,518
40% 40.0% 78,956 78,948
30% 29.5% 59,217 58,297
20% 19.8% 39,478 39,177
10% 10.0% 19,739 19,684
Active Idle   0 0
Graph of results
JVM 'localhost.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,423
Calibration 2     200,316
Calibration 3     198,345
ssj_ops@calibrated=199,331
100% 100.2% 199,331 199,645
90% 89.6% 179,398 178,617
80% 79.8% 159,465 159,030
70% 69.9% 139,532 139,346
60% 60.1% 119,598 119,868
50% 49.6% 99,665 98,917
40% 40.0% 79,732 79,680
30% 30.0% 59,799 59,756
20% 19.9% 39,866 39,742
10% 10.2% 19,933 20,254
Active Idle   0 0
Graph of results
JVM 'localhost.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,264
Calibration 2     193,159
Calibration 3     194,002
ssj_ops@calibrated=193,580
100% 99.3% 193,580 192,285
90% 90.1% 174,222 174,469
80% 79.5% 154,864 153,950
70% 70.5% 135,506 136,466
60% 60.5% 116,148 117,129
50% 49.5% 96,790 95,790
40% 40.2% 77,432 77,890
30% 29.8% 58,074 57,722
20% 20.0% 38,716 38,740
10% 9.8% 19,358 18,966
Active Idle   0 0
Graph of results
JVM 'localhost.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,004
Calibration 2     191,083
Calibration 3     192,194
ssj_ops@calibrated=191,639
100% 99.6% 191,639 190,951
90% 89.8% 172,475 172,176
80% 79.4% 153,311 152,157
70% 70.1% 134,147 134,254
60% 60.1% 114,983 115,236
50% 50.0% 95,819 95,814
40% 40.0% 76,655 76,595
30% 30.1% 57,492 57,672
20% 19.8% 38,328 37,962
10% 10.1% 19,164 19,307
Active Idle   0 0
Graph of results
JVM 'localhost.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,226
Calibration 2     194,451
Calibration 3     194,670
ssj_ops@calibrated=194,561
100% 99.0% 194,561 192,633
90% 89.3% 175,105 173,667
80% 79.7% 155,648 155,002
70% 69.9% 136,192 135,988
60% 59.9% 116,736 116,484
50% 49.5% 97,280 96,378
40% 39.7% 77,824 77,252
30% 29.7% 58,368 57,861
20% 20.3% 38,912 39,568
10% 10.0% 19,456 19,498
Active Idle   0 0
Graph of results
JVM 'localhost.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,742
Calibration 2     197,694
Calibration 3     198,053
ssj_ops@calibrated=197,874
100% 99.5% 197,874 196,911
90% 90.1% 178,087 178,268
80% 79.8% 158,299 157,874
70% 69.9% 138,512 138,248
60% 59.7% 118,724 118,185
50% 49.8% 98,937 98,572
40% 40.7% 79,150 80,440
30% 29.7% 59,362 58,843
20% 19.7% 39,575 38,988
10% 10.1% 19,787 20,036
Active Idle   0 0
Graph of results
JVM 'localhost.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,878
Calibration 2     185,999
Calibration 3     185,828
ssj_ops@calibrated=185,914
100% 99.3% 185,914 184,603
90% 90.0% 167,322 167,361
80% 79.9% 148,731 148,557
70% 70.0% 130,139 130,117
60% 60.6% 111,548 112,698
50% 49.3% 92,957 91,673
40% 39.6% 74,365 73,655
30% 30.0% 55,774 55,857
20% 19.9% 37,183 37,074
10% 9.9% 18,591 18,455
Active Idle   0 0
Graph of results
JVM 'localhost.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,450
Calibration 2     190,831
Calibration 3     191,389
ssj_ops@calibrated=191,110
100% 99.2% 191,110 189,625
90% 89.5% 171,999 171,032
80% 79.5% 152,888 151,859
70% 69.2% 133,777 132,190
60% 60.3% 114,666 115,212
50% 50.0% 95,555 95,600
40% 40.5% 76,444 77,493
30% 30.3% 57,333 58,001
20% 20.0% 38,222 38,285
10% 10.1% 19,111 19,297
Active Idle   0 0
Graph of results
JVM 'localhost.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,208
Calibration 2     182,368
Calibration 3     181,616
ssj_ops@calibrated=181,992
100% 100.5% 181,992 182,869
90% 89.6% 163,792 163,089
80% 80.5% 145,593 146,445
70% 69.5% 127,394 126,520
60% 59.6% 109,195 108,523
50% 49.7% 90,996 90,449
40% 39.8% 72,797 72,501
30% 30.3% 54,597 55,056
20% 20.1% 36,398 36,648
10% 9.8% 18,199 17,819
Active Idle   0 0
Graph of results
JVM 'localhost.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,708
Calibration 2     193,332
Calibration 3     192,375
ssj_ops@calibrated=192,854
100% 99.2% 192,854 191,249
90% 89.6% 173,568 172,828
80% 79.8% 154,283 153,941
70% 69.5% 134,997 133,938
60% 59.8% 115,712 115,396
50% 49.2% 96,427 94,960
40% 40.0% 77,141 77,094
30% 30.2% 57,856 58,153
20% 20.0% 38,571 38,494
10% 10.1% 19,285 19,524
Active Idle   0 0
Graph of results
