SPECpower_ssj2008 JVM Instance 'localhost.002' Performance Report

SPECpower_ssj2008

JVM Instance 'localhost.002' Performance Report

Fujitsu PRIMERGY RX2540 M6			ssj_ops@100% = 946,293
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	May 18, 2021
Hardware Availability:	May-2021	Software Availability:	Dec-2020	Publication:	Jun 9, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

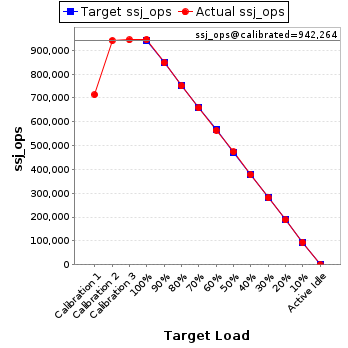

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			713,931
Calibration 2			941,190
Calibration 3			943,337
ssj_ops@calibrated=942,264
100%	100.4%	942,264	946,293
90%	90.0%	848,038	848,090
80%	79.7%	753,811	751,012
70%	69.9%	659,585	658,399
60%	59.9%	565,358	564,304
50%	50.3%	471,132	473,766
40%	40.1%	376,906	377,506
30%	29.8%	282,679	281,126
20%	19.9%	188,453	187,908
10%	10.1%	94,226	94,814
Active Idle		0	0

System Under Test

Set: 'RX2540M6'

Set Identifier:	RX2540M6
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX2540 M6
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8380
CPU Characteristics:	40-Core, 2.30GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W):	1 x 900
Power Supply Details:	S26113-E629-V50-1
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x PLAN CP I350-T4 4X 1000BASE-T OCPv3, PYBLA274U
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-24.43-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn16000m -Xms18000m -Xmx18000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking
JVM Affinity:	chrt -r 1 taskset -c [(0,1,2,3,4,5,6,7,8,9,80,81,82,83,84,85,86,87,88,89),(10,11,12,13,14,15,16,17,18,19,90,91,92,93,94,95,96,97,98),(20,21,22,23,24,25,26,27,28,29,100,101,102,103,104,105,106,107,108,109),(30,31,32,33,34,35,36,37,38,39,110,111,112,113,114,115,116,117,118),(40,41,42,43,44,45,46,47,48,49,120,121,122,123,124,125,126,127,128,129),(50,51,52,53,54,55,56,57,58,59,130,131,132,133,134,135,136,137,138),(60,61,62,63,64,65,66,67,68,69,140,141,142,143,144,145,146,147,148,149),(70,71,72,73,74,75,76,77,78,79,150,151,152,153,154,155,156,157,158)] numactl --membind=[0-3]
JVM Instances:	8
JVM Initial Heap (MB):	18000
JVM Maximum Heap (MB):	18000
JVM Address Bits:	64
Boot Firmware Version:	R1.4.0
Management Firmware Version:	3.22P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "Package C State limit = C6" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Uncore Frequency Scaling = Power Balanced" in BIOS.
Set "DDR Performance = Power balanced" in BIOS.
Set "SNC(Sub NUMA) = Enable SNC2" in BIOS.
Set "ASPM Support = L1 only" in BIOS.
Set "SATA Controller = Disabled" in BIOS.
Set "Serial Port = Disabled" in BIOS.
Set "USB Port Control = Disable all ports" in BIOS.
Set "Network Stack = Disabled" in BIOS.

Management Firmware Settings

None

System Under Test Notes

kernel parameter: pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=passive
Benchmark started via ssh.
modprobe cpufreq_conservative.
cpupower frequency-set -g conservative.
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate.
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold.
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step.
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold.
echo always > /sys/kernel/mm/transparent_hugepage/enabled.
cpupower frequency-set -u 2400MHz
sysctl -w kernel.nmi_watchdog=0
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 160.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	51,942,132	17,950
		Payment	51,942,125
		Order Status	5,194,213
		Delivery	5,194,208
		Stock Level	5,194,218
		Customer Report	51,942,127
Calibration 2		New Order	68,469,320	17,954
		Payment	68,469,316
		Order Status	6,846,929
		Delivery	6,846,931
		Stock Level	6,846,935
		Customer Report	68,469,336
Calibration 3		New Order	68,648,302	17,954
		Payment	68,648,300
		Order Status	6,864,831
		Delivery	6,864,827
		Stock Level	6,864,833
		Customer Report	68,648,302
100%	100.4%	New Order	68,833,560	17,954
		Payment	68,833,591
		Order Status	6,883,359
		Delivery	6,883,358
		Stock Level	6,883,358
		Customer Report	68,833,587
90%	90.0%	New Order	61,680,141	17,954
		Payment	61,680,139
		Order Status	6,168,015
		Delivery	6,168,018
		Stock Level	6,168,015
		Customer Report	61,680,133
80%	79.7%	New Order	54,619,327	17,954
		Payment	54,619,353
		Order Status	5,461,936
		Delivery	5,461,931
		Stock Level	5,461,935
		Customer Report	54,619,342
70%	69.9%	New Order	47,885,490	17,954
		Payment	47,885,493
		Order Status	4,788,549
		Delivery	4,788,548
		Stock Level	4,788,550
		Customer Report	47,885,477
60%	59.9%	New Order	41,047,078	17,954
		Payment	41,047,083
		Order Status	4,104,713
		Delivery	4,104,710
		Stock Level	4,104,710
		Customer Report	41,047,081
50%	50.3%	New Order	34,457,745	17,954
		Payment	34,457,731
		Order Status	3,445,777
		Delivery	3,445,775
		Stock Level	3,445,773
		Customer Report	34,457,748
40%	40.1%	New Order	27,455,183	17,954
		Payment	27,455,174
		Order Status	2,745,523
		Delivery	2,745,512
		Stock Level	2,745,520
		Customer Report	27,455,187
30%	29.8%	New Order	20,445,721	17,954
		Payment	20,445,724
		Order Status	2,044,568
		Delivery	2,044,570
		Stock Level	2,044,572
		Customer Report	20,445,726
20%	19.9%	New Order	13,666,217	17,954
		Payment	13,666,214
		Order Status	1,366,617
		Delivery	1,366,619
		Stock Level	1,366,620
		Customer Report	13,666,209
10%	10.1%	New Order	6,895,594	17,954
		Payment	6,895,568
		Order Status	689,558
		Delivery	689,556
		Stock Level	689,559
		Customer Report	6,895,563
Active Idle		New Order	0	17,954
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
