Hewlett Packard Enterprise ProLiant DL360 Gen10 Plus SPECpower_ssj2008 = 12,170 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 27, 2021
Hardware Availability: May-2021 Software Availability: Apr-2021 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 8,229,748 651 12,641
90% 90.1% 7,430,232 576 12,896
80% 79.9% 6,594,689 450 14,640
70% 70.0% 5,777,813 389 14,849
60% 59.9% 4,944,677 339 14,603
50% 50.0% 4,121,340 301 13,703
40% 40.0% 3,297,087 268 12,292
30% 30.0% 2,471,095 240 10,278
20% 20.0% 1,646,697 211 7,804
10% 10.0% 828,853 181 4,585
Active Idle 0 119 0
∑ssj_ops / ∑power = 12,170
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10 Plus
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380 2.30 GHz
CPU Characteristics: 40 core, 2.30 GHz, 60 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket (P06031-B21)
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W (96%) Flex Slot Titanium Hot Plug Power Supply Kit (865438-B21)
Disk Drive: HPE 480GB SATA 6G SSD (P40502-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Adapter I350T4 OCPv3
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.66-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U46 v1.42 (05/16/2021)
Management Firmware Version: 2.42 Apr 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360p Gen8
CPU Description: Intel Xeon E5-2670
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC23225
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F13XW-20-1
Date of Calibration: 28-Jan-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 651 30.2
90% 576 30.2
80% 450 30.2
70% 389 30.2
60% 339 30.2
50% 301 30.2
40% 268 30.2
30% 240 30.1
20% 211 30.1
10% 181 30.1
Active Idle 119 30.0
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 30.0 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,670,855
Calibration 2     8,248,837
Calibration 3     8,252,279
ssj_ops@calibrated=8,250,558
100% 99.7% 8,250,558 8,229,748
90% 90.1% 7,425,502 7,430,232
80% 79.9% 6,600,446 6,594,689
70% 70.0% 5,775,390 5,777,813
60% 59.9% 4,950,335 4,944,677
50% 50.0% 4,125,279 4,121,340
40% 40.0% 3,300,223 3,297,087
30% 30.0% 2,475,167 2,471,095
20% 20.0% 1,650,112 1,646,697
10% 10.0% 825,056 828,853
Active Idle   0 0

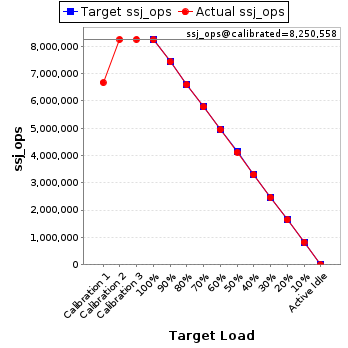

Graph of results
