Lenovo Global Technology ThinkSystem SR655 ssj_ops@100% = 6,176,005
ssj_ops@100% per JVM = 193,000
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 23, 2021
Hardware Availability: Jun-2021 Software Availability: May-2020 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,208,011
Calibration 2     6,200,259
Calibration 3     6,199,364
ssj_ops@calibrated=6,199,811
100% 99.6% 6,199,811 6,176,005
90% 89.9% 5,579,830 5,575,685
80% 79.5% 4,959,849 4,931,067
70% 70.0% 4,339,868 4,337,798
60% 59.8% 3,719,887 3,710,368
50% 50.0% 3,099,906 3,100,820
40% 40.0% 2,479,924 2,478,855
30% 30.0% 1,859,943 1,859,040
20% 19.9% 1,239,962 1,234,877
10% 10.0% 619,981 621,385
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR655
Form Factor: 2U
CPU Name: AMD EPYC 7763 2.45GHz
CPU Characteristics: 64-Core, 2.45GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, and 16 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00883
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE 2-Port Ethernet Adapter P/N:7ZT7A00482
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Test using the performance fan module P/N:4F17A14484
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1217)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0-7] /AFFINITY [0xF,0xF0,0XF00,0XF000]
JVM Instances: 32
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: CFE125S(6.00)
Management Firmware Version: AMBT23l(4.11)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4551853
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RIQQBT4BNOH.001 194,143
WIN-RIQQBT4BNOH.002 195,432
WIN-RIQQBT4BNOH.003 193,993
WIN-RIQQBT4BNOH.004 192,605
WIN-RIQQBT4BNOH.005 197,121
WIN-RIQQBT4BNOH.006 195,272
WIN-RIQQBT4BNOH.007 183,568
WIN-RIQQBT4BNOH.008 195,244
WIN-RIQQBT4BNOH.009 192,527
WIN-RIQQBT4BNOH.010 197,719
WIN-RIQQBT4BNOH.011 190,525
WIN-RIQQBT4BNOH.012 191,113
WIN-RIQQBT4BNOH.013 193,216
WIN-RIQQBT4BNOH.014 195,189
WIN-RIQQBT4BNOH.015 189,176
WIN-RIQQBT4BNOH.016 193,070
WIN-RIQQBT4BNOH.017 198,611
WIN-RIQQBT4BNOH.018 193,149
WIN-RIQQBT4BNOH.019 189,028
WIN-RIQQBT4BNOH.020 185,722
WIN-RIQQBT4BNOH.021 194,158
WIN-RIQQBT4BNOH.022 192,737
WIN-RIQQBT4BNOH.023 190,744
WIN-RIQQBT4BNOH.024 191,812
WIN-RIQQBT4BNOH.025 195,320
WIN-RIQQBT4BNOH.026 197,828
WIN-RIQQBT4BNOH.027 194,040
WIN-RIQQBT4BNOH.028 189,272
WIN-RIQQBT4BNOH.029 193,217
WIN-RIQQBT4BNOH.030 196,000
WIN-RIQQBT4BNOH.031 192,238
WIN-RIQQBT4BNOH.032 192,215
ssj_ops@100% 6,176,005
ssj_ops@100% per JVM 193,000

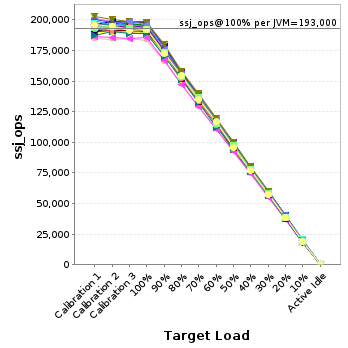

Graph of per-instance results
JVM 'WIN-RIQQBT4BNOH.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,298
Calibration 2     195,686
Calibration 3     196,992
ssj_ops@calibrated=196,339
100% 98.9% 196,339 194,143
90% 90.1% 176,705 176,808
80% 79.5% 157,071 156,022
70% 69.7% 137,437 136,919
60% 60.0% 117,803 117,840
50% 49.9% 98,170 97,979
40% 39.2% 78,536 76,890
30% 30.1% 58,902 59,011
20% 20.1% 39,268 39,427
10% 10.0% 19,634 19,536
Active Idle   0 0
Graph of results

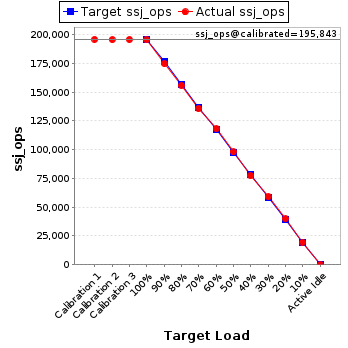

JVM 'WIN-RIQQBT4BNOH.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,032
Calibration 2     195,748
Calibration 3     195,938
ssj_ops@calibrated=195,843
100% 99.8% 195,843 195,432
90% 89.4% 176,259 175,118
80% 79.7% 156,674 155,989
70% 69.5% 137,090 136,166
60% 60.4% 117,506 118,310
50% 50.1% 97,921 98,124
40% 39.6% 78,337 77,480
30% 30.2% 58,753 59,194
20% 20.5% 39,169 40,171
10% 10.0% 19,584 19,682
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,476
Calibration 2     195,361
Calibration 3     192,699
ssj_ops@calibrated=194,030
100% 100.0% 194,030 193,993
90% 89.6% 174,627 173,800
80% 79.7% 155,224 154,559
70% 70.0% 135,821 135,894
60% 59.2% 116,418 114,876
50% 50.5% 97,015 98,013
40% 40.1% 77,612 77,861
30% 30.1% 58,209 58,404
20% 20.0% 38,806 38,765
10% 9.8% 19,403 19,109
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,795
Calibration 2     191,801
Calibration 3     194,752
ssj_ops@calibrated=193,277
100% 99.7% 193,277 192,605
90% 90.4% 173,949 174,674
80% 80.0% 154,621 154,616
70% 69.1% 135,294 133,552
60% 60.2% 115,966 116,356
50% 50.0% 96,638 96,593
40% 40.2% 77,311 77,759
30% 30.0% 57,983 57,928
20% 19.7% 38,655 38,118
10% 9.9% 19,328 19,066
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,890
Calibration 2     198,361
Calibration 3     198,783
ssj_ops@calibrated=198,572
100% 99.3% 198,572 197,121
90% 89.9% 178,715 178,499
80% 79.8% 158,858 158,367
70% 69.6% 139,001 138,255
60% 59.7% 119,143 118,497
50% 50.3% 99,286 99,795
40% 39.8% 79,429 79,083
30% 30.0% 59,572 59,476
20% 19.7% 39,714 39,094
10% 10.0% 19,857 19,836
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,383
Calibration 2     196,339
Calibration 3     194,500
ssj_ops@calibrated=195,419
100% 99.9% 195,419 195,272
90% 89.4% 175,877 174,754
80% 79.0% 156,335 154,447
70% 70.4% 136,794 137,649
60% 59.5% 117,252 116,311
50% 50.0% 97,710 97,635
40% 40.1% 78,168 78,336
30% 29.8% 58,626 58,229
20% 20.0% 39,084 39,008
10% 10.0% 19,542 19,620
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,612
Calibration 2     184,134
Calibration 3     184,772
ssj_ops@calibrated=184,453
100% 99.5% 184,453 183,568
90% 89.9% 166,008 165,810
80% 80.0% 147,563 147,562
70% 70.0% 129,117 129,198
60% 60.0% 110,672 110,678
50% 50.3% 92,227 92,692
40% 40.3% 73,781 74,295
30% 30.1% 55,336 55,581
20% 20.1% 36,891 37,018
10% 10.0% 18,445 18,516
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,257
Calibration 2     194,645
Calibration 3     196,526
ssj_ops@calibrated=195,586
100% 99.8% 195,586 195,244
90% 90.1% 176,027 176,202
80% 79.7% 156,468 155,919
70% 70.9% 136,910 138,639
60% 59.5% 117,351 116,340
50% 50.2% 97,793 98,090
40% 40.1% 78,234 78,347
30% 29.9% 58,676 58,524
20% 19.6% 39,117 38,417
10% 9.8% 19,559 19,182
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,240
Calibration 2     193,630
Calibration 3     192,288
ssj_ops@calibrated=192,959
100% 99.8% 192,959 192,527
90% 89.8% 173,663 173,281
80% 80.0% 154,367 154,355
70% 70.2% 135,071 135,522
60% 60.0% 115,775 115,835
50% 50.0% 96,480 96,499
40% 39.9% 77,184 77,008
30% 29.8% 57,888 57,414
20% 20.2% 38,592 39,035
10% 10.2% 19,296 19,609
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,344
Calibration 2     198,895
Calibration 3     198,279
ssj_ops@calibrated=198,587
100% 99.6% 198,587 197,719
90% 89.7% 178,728 178,136
80% 79.3% 158,870 157,388
70% 69.8% 139,011 138,653
60% 59.4% 119,152 118,031
50% 50.3% 99,294 99,888
40% 40.2% 79,435 79,817
30% 30.1% 59,576 59,684
20% 20.3% 39,717 40,216
10% 10.1% 19,859 20,075
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,766
Calibration 2     191,459
Calibration 3     191,972
ssj_ops@calibrated=191,716
100% 99.4% 191,716 190,525
90% 90.1% 172,544 172,763
80% 80.0% 153,373 153,368
70% 69.6% 134,201 133,458
60% 59.7% 115,029 114,527
50% 50.0% 95,858 95,768
40% 39.9% 76,686 76,468
30% 30.3% 57,515 58,085
20% 19.8% 38,343 37,894
10% 10.2% 19,172 19,589
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,852
Calibration 2     190,904
Calibration 3     190,809
ssj_ops@calibrated=190,857
100% 100.1% 190,857 191,113
90% 90.9% 171,771 173,573
80% 79.5% 152,685 151,819
70% 69.4% 133,600 132,531
60% 60.3% 114,514 115,131
50% 49.3% 95,428 94,177
40% 40.1% 76,343 76,513
30% 29.8% 57,257 56,823
20% 19.8% 38,171 37,726
10% 10.2% 19,086 19,549
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,450
Calibration 2     195,566
Calibration 3     192,315
ssj_ops@calibrated=193,941
100% 99.6% 193,941 193,216
90% 89.4% 174,547 173,396
80% 78.7% 155,152 152,712
70% 69.9% 135,758 135,500
60% 60.1% 116,364 116,627
50% 49.7% 96,970 96,468
40% 39.8% 77,576 77,266
30% 30.7% 58,182 59,444
20% 20.0% 38,788 38,788
10% 10.3% 19,394 19,949
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,212
Calibration 2     195,227
Calibration 3     196,746
ssj_ops@calibrated=195,987
100% 99.6% 195,987 195,189
90% 89.5% 176,388 175,499
80% 79.6% 156,789 156,004
70% 69.7% 137,191 136,530
60% 59.8% 117,592 117,257
50% 50.4% 97,993 98,844
40% 40.3% 78,395 78,899
30% 30.3% 58,796 59,411
20% 19.6% 39,197 38,356
10% 10.0% 19,599 19,688
Active Idle   0 0
Graph of results

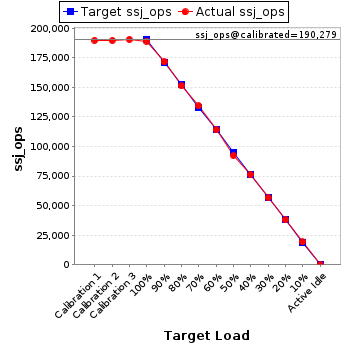

JVM 'WIN-RIQQBT4BNOH.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,904
Calibration 2     189,824
Calibration 3     190,734
ssj_ops@calibrated=190,279
100% 99.4% 190,279 189,176
90% 90.3% 171,251 171,781
80% 79.5% 152,223 151,230
70% 70.6% 133,195 134,384
60% 60.0% 114,167 114,233
50% 48.7% 95,140 92,574
40% 40.1% 76,112 76,369
30% 29.9% 57,084 56,831
20% 19.9% 38,056 37,936
10% 10.1% 19,028 19,180
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,000
Calibration 2     194,274
Calibration 3     193,865
ssj_ops@calibrated=194,069
100% 99.5% 194,069 193,070
90% 90.5% 174,663 175,553
80% 79.8% 155,256 154,913
70% 70.1% 135,849 135,970
60% 59.4% 116,442 115,372
50% 50.1% 97,035 97,288
40% 39.7% 77,628 76,963
30% 29.9% 58,221 58,087
20% 19.8% 38,814 38,482
10% 10.0% 19,407 19,382
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,151
Calibration 2     198,204
Calibration 3     198,810
ssj_ops@calibrated=198,507
100% 100.1% 198,507 198,611
90% 89.6% 178,657 177,826
80% 78.8% 158,806 156,473
70% 69.6% 138,955 138,141
60% 59.5% 119,104 118,076
50% 49.8% 99,254 98,919
40% 39.9% 79,403 79,130
30% 30.0% 59,552 59,460
20% 20.4% 39,701 40,439
10% 10.2% 19,851 20,214
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,238
Calibration 2     193,909
Calibration 3     194,023
ssj_ops@calibrated=193,966
100% 99.6% 193,966 193,149
90% 90.1% 174,570 174,715
80% 79.4% 155,173 154,070
70% 69.7% 135,776 135,125
60% 59.8% 116,380 115,914
50% 49.8% 96,983 96,579
40% 40.2% 77,586 77,885
30% 30.1% 58,190 58,427
20% 20.2% 38,793 39,154
10% 10.0% 19,397 19,379
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,625
Calibration 2     189,756
Calibration 3     190,500
ssj_ops@calibrated=190,128
100% 99.4% 190,128 189,028
90% 90.4% 171,115 171,799
80% 79.7% 152,102 151,579
70% 69.9% 133,089 132,977
60% 60.1% 114,077 114,173
50% 50.2% 95,064 95,494
40% 39.9% 76,051 75,809
30% 29.9% 57,038 56,789
20% 20.0% 38,026 37,979
10% 10.0% 19,013 19,046
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,444
Calibration 2     185,772
Calibration 3     184,583
ssj_ops@calibrated=185,177
100% 100.3% 185,177 185,722
90% 90.2% 166,659 167,010
80% 79.3% 148,142 146,861
70% 69.9% 129,624 129,479
60% 59.8% 111,106 110,720
50% 50.0% 92,589 92,630
40% 40.3% 74,071 74,568
30% 29.7% 55,553 54,937
20% 19.9% 37,035 36,820
10% 9.9% 18,518 18,398
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,776
Calibration 2     194,402
Calibration 3     195,191
ssj_ops@calibrated=194,797
100% 99.7% 194,797 194,158
90% 89.7% 175,317 174,713
80% 79.3% 155,837 154,489
70% 70.3% 136,358 136,886
60% 60.4% 116,878 117,674
50% 50.2% 97,398 97,746
40% 39.5% 77,919 76,920
30% 30.3% 58,439 59,037
20% 19.8% 38,959 38,476
10% 10.4% 19,480 20,188
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,428
Calibration 2     193,873
Calibration 3     193,206
ssj_ops@calibrated=193,539
100% 99.6% 193,539 192,737
90% 90.4% 174,185 174,947
80% 79.7% 154,831 154,275
70% 70.9% 135,477 137,242
60% 59.7% 116,124 115,577
50% 50.5% 96,770 97,751
40% 40.0% 77,416 77,406
30% 30.0% 58,062 58,094
20% 19.4% 38,708 37,620
10% 10.0% 19,354 19,355
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,478
Calibration 2     191,768
Calibration 3     191,349
ssj_ops@calibrated=191,559
100% 99.6% 191,559 190,744
90% 90.5% 172,403 173,320
80% 79.5% 153,247 152,269
70% 69.8% 134,091 133,671
60% 59.7% 114,935 114,359
50% 49.8% 95,779 95,491
40% 40.0% 76,623 76,587
30% 29.8% 57,468 57,122
20% 19.8% 38,312 37,899
10% 10.1% 19,156 19,265
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,961
Calibration 2     193,522
Calibration 3     193,696
ssj_ops@calibrated=193,609
100% 99.1% 193,609 191,812
90% 90.1% 174,248 174,459
80% 79.7% 154,887 154,329
70% 70.3% 135,526 136,162
60% 60.2% 116,166 116,603
50% 49.7% 96,805 96,229
40% 40.0% 77,444 77,478
30% 30.0% 58,083 58,076
20% 19.5% 38,722 37,743
10% 9.6% 19,361 18,516
Active Idle   0 0
Graph of results

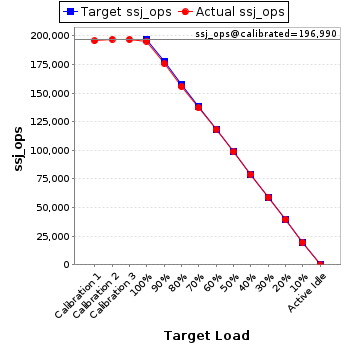

JVM 'WIN-RIQQBT4BNOH.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,729
Calibration 2     197,045
Calibration 3     196,935
ssj_ops@calibrated=196,990
100% 99.2% 196,990 195,320
90% 89.3% 177,291 175,952
80% 79.1% 157,592 155,867
70% 69.7% 137,893 137,310
60% 60.1% 118,194 118,415
50% 50.1% 98,495 98,761
40% 40.1% 78,796 79,018
30% 29.9% 59,097 58,981
20% 20.2% 39,398 39,722
10% 9.9% 19,699 19,496
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,905
Calibration 2     200,373
Calibration 3     198,921
ssj_ops@calibrated=199,647
100% 99.1% 199,647 197,828
90% 90.3% 179,682 180,264
80% 79.0% 159,718 157,698
70% 70.0% 139,753 139,770
60% 59.7% 119,788 119,258
50% 49.9% 99,824 99,596
40% 40.3% 79,859 80,499
30% 29.8% 59,894 59,530
20% 19.9% 39,929 39,661
10% 10.0% 19,965 20,017
Active Idle   0 0
Graph of results

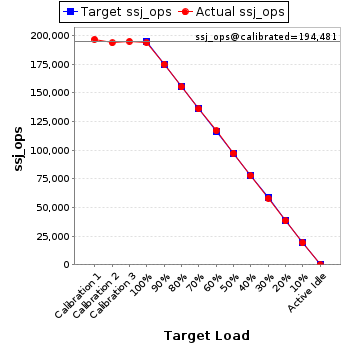

JVM 'WIN-RIQQBT4BNOH.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,889
Calibration 2     193,811
Calibration 3     195,150
ssj_ops@calibrated=194,481
100% 99.8% 194,481 194,040
90% 90.1% 175,033 175,154
80% 79.9% 155,584 155,347
70% 70.0% 136,136 136,114
60% 60.2% 116,688 117,146
50% 50.1% 97,240 97,484
40% 39.9% 77,792 77,662
30% 29.9% 58,344 58,147
20% 19.7% 38,896 38,369
10% 9.9% 19,448 19,233
Active Idle   0 0
Graph of results

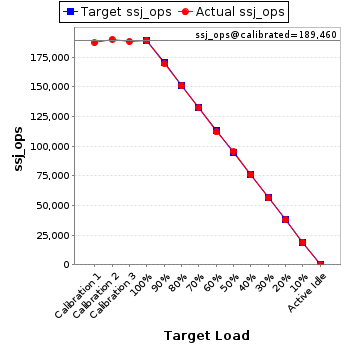

JVM 'WIN-RIQQBT4BNOH.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,491
Calibration 2     190,320
Calibration 3     188,601
ssj_ops@calibrated=189,460
100% 99.9% 189,460 189,272
90% 89.7% 170,514 169,944
80% 79.7% 151,568 150,997
70% 70.0% 132,622 132,653
60% 59.2% 113,676 112,187
50% 50.4% 94,730 95,582
40% 40.0% 75,784 75,818
30% 29.8% 56,838 56,373
20% 20.0% 37,892 37,814
10% 10.1% 18,946 19,059
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,665
Calibration 2     191,121
Calibration 3     193,981
ssj_ops@calibrated=192,551
100% 100.3% 192,551 193,217
90% 90.2% 173,296 173,621
80% 79.7% 154,041 153,383
70% 69.8% 134,786 134,453
60% 59.6% 115,531 114,743
50% 50.1% 96,276 96,414
40% 40.3% 77,020 77,588
30% 29.9% 57,765 57,616
20% 20.0% 38,510 38,482
10% 10.3% 19,255 19,748
Active Idle   0 0
Graph of results

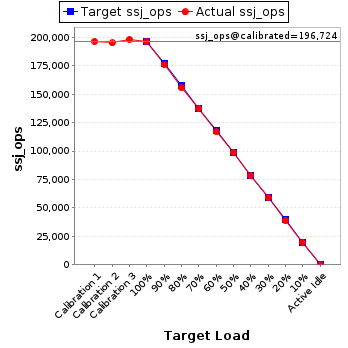

JVM 'WIN-RIQQBT4BNOH.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,579
Calibration 2     195,085
Calibration 3     198,363
ssj_ops@calibrated=196,724
100% 99.6% 196,724 196,000
90% 89.5% 177,052 176,125
80% 79.1% 157,379 155,611
70% 69.9% 137,707 137,460
60% 59.7% 118,034 117,475
50% 50.1% 98,362 98,566
40% 39.9% 78,690 78,541
30% 30.0% 59,017 58,934
20% 19.8% 39,345 39,038
10% 9.9% 19,672 19,508
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,043
Calibration 2     194,524
Calibration 3     192,727
ssj_ops@calibrated=193,625
100% 99.3% 193,625 192,238
90% 89.8% 174,263 173,816
80% 79.3% 154,900 153,581
70% 70.5% 135,538 136,460
60% 59.4% 116,175 115,091
50% 50.4% 96,813 97,649
40% 40.2% 77,450 77,791
30% 29.9% 58,088 57,817
20% 20.1% 38,725 38,936
10% 9.9% 19,363 19,112
Active Idle   0 0
Graph of results
JVM 'WIN-RIQQBT4BNOH.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,097
Calibration 2     194,920
Calibration 3     191,353
ssj_ops@calibrated=193,137
100% 99.5% 193,137 192,215
90% 89.2% 173,823 172,373
80% 80.2% 154,509 154,968
70% 69.9% 135,196 135,074
60% 60.4% 115,882 116,738
50% 49.4% 96,568 95,502
40% 39.8% 77,255 76,798
30% 29.8% 57,941 57,575
20% 19.8% 38,627 38,276
10% 10.0% 19,314 19,283
Active Idle   0 0
Graph of results
