SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid D53XQ-2U | SPECpower_ssj2008 = 12,217 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Jun 3, 2021 |
| Hardware Availability: | Apr-2021 | Software Availability: | Jan-2021 | Publication: | Jul 19, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

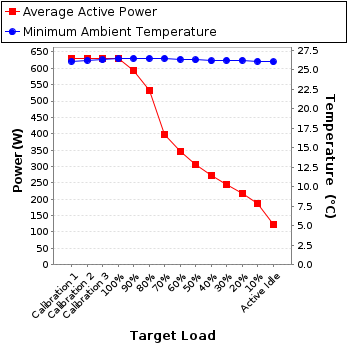

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 629 | 26.1 |
| Calibration 2 | 630 | 26.2 |
| Calibration 3 | 631 | 26.3 |
| 100% | 630 | 26.4 |
| 90% | 592 | 26.5 |
| 80% | 534 | 26.5 |
| 70% | 398 | 26.5 |
| 60% | 346 | 26.4 |
| 50% | 305 | 26.3 |
| 40% | 272 | 26.2 |
| 30% | 246 | 26.2 |
| 20% | 219 | 26.2 |
| 10% | 187 | 26.1 |
| Active Idle | 123 | 26.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omni Calibration Laboratory,Taiwan |
| Calibration Label: | ECR2114875 |
| Date of Calibration: | 4-May-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 2.92 | 5.0 | 0.995 | 629 | 0.4% |
| Calibration 2 | 217 | 300.0 | 2.92 | 5.0 | 0.995 | 630 | 0.4% |
| Calibration 3 | 217 | 300.0 | 2.92 | 5.0 | 0.995 | 631 | 0.4% |
| 100% | 217 | 300.0 | 2.93 | 5.0 | 0.995 | 630 | 0.4% |
| 90% | 216 | 300.0 | 2.75 | 5.0 | 0.994 | 592 | 0.4% |
| 80% | 216 | 300.0 | 2.48 | 5.0 | 0.993 | 534 | 0.4% |
| 70% | 217 | 300.0 | 1.86 | 5.0 | 0.987 | 398 | 0.5% |
| 60% | 217 | 300.0 | 1.62 | 2.0 | 0.986 | 346 | 0.3% |
| 50% | 216 | 300.0 | 1.43 | 2.0 | 0.982 | 305 | 0.3% |
| 40% | 216 | 300.0 | 1.29 | 2.0 | 0.978 | 272 | 0.4% |
| 30% | 216 | 300.0 | 1.17 | 2.0 | 0.973 | 246 | 0.4% |
| 20% | 216 | 300.0 | 1.04 | 2.0 | 0.967 | 219 | 0.4% |
| 10% | 217 | 300.0 | 0.904 | 2.0 | 0.956 | 187 | 0.5% |
| Active Idle | 217 | 300.0 | 0.628 | 2.0 | 0.905 | 123 | 0.6% |
