Inspur Corporation Inspur NF5180M6 SPECpower_ssj2008 = 9,100 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jun 29, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Jul 29, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 676 22.6
Calibration 2 681 22.9
Calibration 3 680 23.1
100% 680 23.2
90% 615 23.4
80% 514 23.6
70% 410 23.7
60% 351 23.2
50% 314 22.9
40% 284 22.6
30% 258 22.4
20% 234 22.2
10% 209 22.1
Active Idle 156 22.0

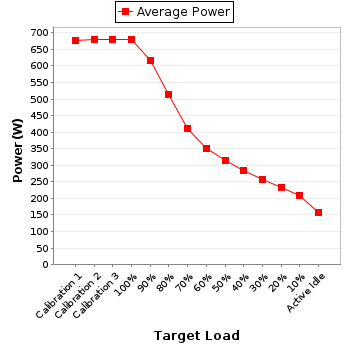

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 3.05 5.0 0.998 676 0.2%
Calibration 2 222 300.0 3.08 5.0 0.998 681 0.2%
Calibration 3 222 300.0 3.07 5.0 0.998 680 0.2%
100% 222 300.0 3.07 5.0 0.998 680 0.2%
90% 222 300.0 2.78 5.0 0.997 615 0.2%
80% 222 300.0 2.33 5.0 0.996 514 0.3%
70% 223 300.0 1.85 5.0 0.995 410 0.3%
60% 223 300.0 1.59 5.0 0.994 351 0.3%
50% 224 300.0 1.41 5.0 0.993 314 0.4%
40% 223 300.0 1.28 5.0 0.992 284 0.4%
30% 224 300.0 1.16 5.0 0.991 258 0.4%
20% 224 300.0 1.06 5.0 0.989 234 0.5%
10% 224 300.0 0.945 2.0 0.987 209 0.3%
Active Idle 224 300.0 0.709 2.0 0.982 156 0.3%
Power details for pwr1
