Inspur Corporation Inspur NF5280M5 ssj_ops@100% = 1,968,840
ssj_ops@100% per JVM = 82,035
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 2, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,970,389
Calibration 2     1,977,463
Calibration 3     1,976,106
ssj_ops@calibrated=1,976,785
100% 99.6% 1,976,785 1,968,840
90% 90.0% 1,779,106 1,778,231
80% 80.2% 1,581,428 1,584,929
70% 70.0% 1,383,749 1,383,861
60% 60.0% 1,186,071 1,186,970
50% 50.0% 988,392 987,478
40% 40.0% 790,714 791,246
30% 30.0% 593,035 592,887
20% 20.0% 395,357 395,511
10% 10.0% 197,678 197,711
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5280M5
Form Factor: 2U
CPU Name: Intel Xeon Silver 4214
CPU Characteristics: 12-Core, 2.20 GHz, 16.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 48 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 16896 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 12 x 32 GB
Memory Details: 12 x SA_32G_DDR4-2400ER_2R4_B36F_M393A4K40BB1-CRC;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105
Disk Drive: SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389
Disk Controller: INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller with 2 port;
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: 1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1728)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00]
JVM Instances: 24
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 4.1.19
Management Firmware Version: 4.26.9
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4598296
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QA6L6VTPI40.001 83,135
WIN-QA6L6VTPI40.002 81,977
WIN-QA6L6VTPI40.003 80,789
WIN-QA6L6VTPI40.004 80,225
WIN-QA6L6VTPI40.005 81,778
WIN-QA6L6VTPI40.006 80,489
WIN-QA6L6VTPI40.007 82,762
WIN-QA6L6VTPI40.008 81,135
WIN-QA6L6VTPI40.009 82,960
WIN-QA6L6VTPI40.010 81,375
WIN-QA6L6VTPI40.011 82,905
WIN-QA6L6VTPI40.012 82,741
WIN-QA6L6VTPI40.013 83,253
WIN-QA6L6VTPI40.014 80,993
WIN-QA6L6VTPI40.015 82,854
WIN-QA6L6VTPI40.016 81,945
WIN-QA6L6VTPI40.017 80,806
WIN-QA6L6VTPI40.018 83,250
WIN-QA6L6VTPI40.019 83,273
WIN-QA6L6VTPI40.020 82,210
WIN-QA6L6VTPI40.021 83,715
WIN-QA6L6VTPI40.022 79,595
WIN-QA6L6VTPI40.023 82,000
WIN-QA6L6VTPI40.024 82,673
ssj_ops@100% 1,968,840
ssj_ops@100% per JVM 82,035

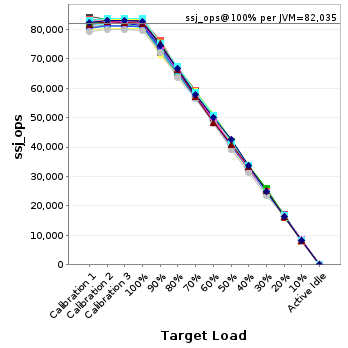

Graph of per-instance results
JVM 'WIN-QA6L6VTPI40.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,176
Calibration 2     82,874
Calibration 3     83,358
ssj_ops@calibrated=83,116
100% 100.0% 83,116 83,135
90% 91.8% 74,805 76,282
80% 80.1% 66,493 66,587
70% 71.0% 58,181 59,052
60% 60.4% 49,870 50,194
50% 50.5% 41,558 41,934
40% 40.0% 33,246 33,219
30% 30.0% 24,935 24,930
20% 20.6% 16,623 17,141
10% 9.5% 8,312 7,887
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,049
Calibration 2     82,402
Calibration 3     82,297
ssj_ops@calibrated=82,349
100% 99.5% 82,349 81,977
90% 89.7% 74,114 73,851
80% 80.3% 65,879 66,111
70% 70.6% 57,644 58,123
60% 59.7% 49,410 49,189
50% 50.2% 41,175 41,365
40% 40.2% 32,940 33,129
30% 29.9% 24,705 24,603
20% 20.7% 16,470 17,045
10% 10.0% 8,235 8,254
Active Idle   0 0
Graph of results

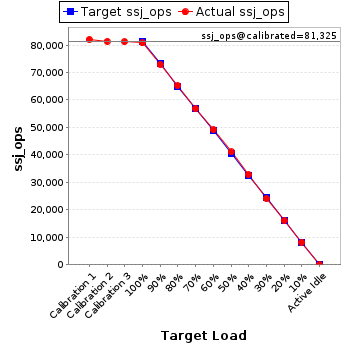

JVM 'WIN-QA6L6VTPI40.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,124
Calibration 2     81,395
Calibration 3     81,254
ssj_ops@calibrated=81,325
100% 99.3% 81,325 80,789
90% 89.8% 73,192 73,006
80% 80.3% 65,060 65,303
70% 69.9% 56,927 56,846
60% 60.6% 48,795 49,244
50% 50.6% 40,662 41,117
40% 40.4% 32,530 32,890
30% 29.7% 24,397 24,180
20% 19.9% 16,265 16,154
10% 10.1% 8,132 8,212
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,876
Calibration 2     80,435
Calibration 3     80,330
ssj_ops@calibrated=80,382
100% 99.8% 80,382 80,225
90% 88.5% 72,344 71,171
80% 80.2% 64,306 64,504
70% 70.3% 56,268 56,506
60% 60.3% 48,229 48,505
50% 49.6% 40,191 39,903
40% 39.9% 32,153 32,111
30% 30.5% 24,115 24,555
20% 19.9% 16,076 15,992
10% 10.1% 8,038 8,129
Active Idle   0 0
Graph of results

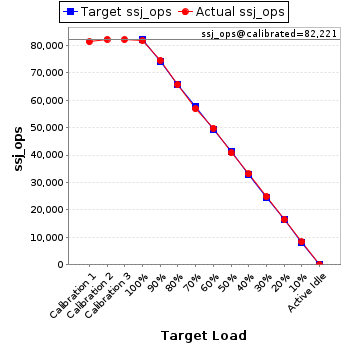

JVM 'WIN-QA6L6VTPI40.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,382
Calibration 2     82,233
Calibration 3     82,208
ssj_ops@calibrated=82,221
100% 99.5% 82,221 81,778
90% 90.8% 73,998 74,641
80% 79.9% 65,776 65,713
70% 69.2% 57,554 56,888
60% 60.6% 49,332 49,816
50% 49.7% 41,110 40,846
40% 40.3% 32,888 33,094
30% 30.3% 24,666 24,941
20% 20.2% 16,444 16,572
10% 10.1% 8,222 8,293
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,825
Calibration 2     81,398
Calibration 3     81,449
ssj_ops@calibrated=81,423
100% 98.9% 81,423 80,489
90% 89.9% 73,281 73,193
80% 80.3% 65,139 65,410
70% 70.5% 56,996 57,439
60% 60.7% 48,854 49,454
50% 49.6% 40,712 40,398
40% 39.9% 32,569 32,514
30% 31.0% 24,427 25,211
20% 20.0% 16,285 16,257
10% 10.0% 8,142 8,131
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,913
Calibration 2     82,530
Calibration 3     82,858
ssj_ops@calibrated=82,694
100% 100.1% 82,694 82,762
90% 89.5% 74,425 73,998
80% 79.4% 66,155 65,637
70% 71.2% 57,886 58,898
60% 60.7% 49,617 50,163
50% 50.1% 41,347 41,406
40% 39.3% 33,078 32,466
30% 29.9% 24,808 24,730
20% 19.9% 16,539 16,418
10% 10.5% 8,269 8,658
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,101
Calibration 2     81,181
Calibration 3     81,274
ssj_ops@calibrated=81,227
100% 99.9% 81,227 81,135
90% 88.9% 73,105 72,215
80% 80.1% 64,982 65,058
70% 69.8% 56,859 56,717
60% 59.6% 48,736 48,394
50% 50.3% 40,614 40,894
40% 39.8% 32,491 32,293
30% 30.7% 24,368 24,942
20% 19.9% 16,245 16,158
10% 10.0% 8,123 8,095
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,823
Calibration 2     83,207
Calibration 3     82,938
ssj_ops@calibrated=83,072
100% 99.9% 83,072 82,960
90% 89.1% 74,765 74,020
80% 80.1% 66,458 66,501
70% 68.5% 58,151 56,905
60% 60.3% 49,843 50,117
50% 50.3% 41,536 41,816
40% 40.7% 33,229 33,819
30% 30.0% 24,922 24,899
20% 19.5% 16,614 16,168
10% 9.8% 8,307 8,162
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,434
Calibration 2     82,136
Calibration 3     82,124
ssj_ops@calibrated=82,130
100% 99.1% 82,130 81,375
90% 89.7% 73,917 73,687
80% 81.2% 65,704 66,682
70% 69.6% 57,491 57,153
60% 60.1% 49,278 49,331
50% 49.5% 41,065 40,625
40% 40.2% 32,852 33,038
30% 29.7% 24,639 24,426
20% 20.0% 16,426 16,399
10% 10.0% 8,213 8,187
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,039
Calibration 2     82,825
Calibration 3     83,277
ssj_ops@calibrated=83,051
100% 99.8% 83,051 82,905
90% 89.0% 74,746 73,937
80% 79.8% 66,441 66,235
70% 70.4% 58,136 58,435
60% 60.1% 49,830 49,921
50% 50.2% 41,525 41,710
40% 40.6% 33,220 33,735
30% 31.0% 24,915 25,762
20% 20.1% 16,610 16,662
10% 10.1% 8,305 8,366
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,024
Calibration 2     83,131
Calibration 3     83,054
ssj_ops@calibrated=83,093
100% 99.6% 83,093 82,741
90% 90.8% 74,784 75,438
80% 80.7% 66,474 67,031
70% 70.7% 58,165 58,765
60% 59.6% 49,856 49,516
50% 49.8% 41,546 41,408
40% 39.7% 33,237 33,012
30% 30.1% 24,928 25,043
20% 19.6% 16,619 16,291
10% 9.8% 8,309 8,108
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,138
Calibration 2     83,354
Calibration 3     83,255
ssj_ops@calibrated=83,305
100% 99.9% 83,305 83,253
90% 89.9% 74,974 74,870
80% 79.9% 66,644 66,600
70% 69.0% 58,313 57,513
60% 59.9% 49,983 49,932
50% 50.0% 41,652 41,646
40% 39.7% 33,322 33,074
30% 29.7% 24,991 24,741
20% 19.5% 16,661 16,281
10% 10.3% 8,330 8,583
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,501
Calibration 2     81,046
Calibration 3     81,355
ssj_ops@calibrated=81,201
100% 99.7% 81,201 80,993
90% 89.6% 73,080 72,774
80% 79.8% 64,960 64,829
70% 69.4% 56,840 56,373
60% 59.7% 48,720 48,510
50% 49.5% 40,600 40,224
40% 40.2% 32,480 32,606
30% 30.5% 24,360 24,799
20% 20.3% 16,240 16,499
10% 10.1% 8,120 8,179
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,398
Calibration 2     83,338
Calibration 3     83,050
ssj_ops@calibrated=83,194
100% 99.6% 83,194 82,854
90% 89.4% 74,875 74,356
80% 80.4% 66,555 66,881
70% 71.3% 58,236 59,324
60% 59.0% 49,916 49,104
50% 50.5% 41,597 41,998
40% 39.8% 33,278 33,122
30% 29.5% 24,958 24,537
20% 20.0% 16,639 16,607
10% 9.7% 8,319 8,091
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,319
Calibration 2     83,219
Calibration 3     82,734
ssj_ops@calibrated=82,976
100% 98.8% 82,976 81,945
90% 90.0% 74,679 74,701
80% 80.2% 66,381 66,515
70% 69.0% 58,083 57,232
60% 59.2% 49,786 49,135
50% 49.9% 41,488 41,378
40% 40.0% 33,191 33,223
30% 30.1% 24,893 24,951
20% 19.7% 16,595 16,308
10% 9.9% 8,298 8,229
Active Idle   0 0
Graph of results

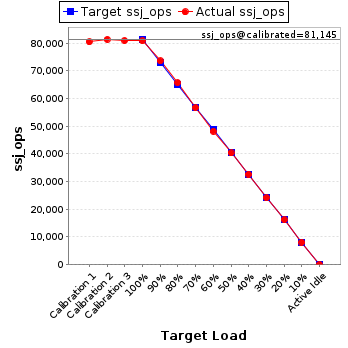

JVM 'WIN-QA6L6VTPI40.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,388
Calibration 2     81,371
Calibration 3     80,919
ssj_ops@calibrated=81,145
100% 99.6% 81,145 80,806
90% 90.7% 73,031 73,598
80% 81.0% 64,916 65,703
70% 69.9% 56,802 56,687
60% 59.4% 48,687 48,217
50% 49.7% 40,573 40,333
40% 40.3% 32,458 32,669
30% 29.7% 24,344 24,120
20% 20.0% 16,229 16,225
10% 10.0% 8,115 8,150
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,943
Calibration 2     83,594
Calibration 3     83,635
ssj_ops@calibrated=83,615
100% 99.6% 83,615 83,250
90% 90.4% 75,253 75,577
80% 79.4% 66,892 66,374
70% 70.6% 58,530 59,029
60% 61.1% 50,169 51,061
50% 50.5% 41,807 42,237
40% 40.0% 33,446 33,450
30% 29.7% 25,084 24,849
20% 20.4% 16,723 17,079
10% 10.0% 8,361 8,385
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,769
Calibration 2     83,423
Calibration 3     83,284
ssj_ops@calibrated=83,354
100% 99.9% 83,354 83,273
90% 90.2% 75,018 75,183
80% 80.6% 66,683 67,149
70% 70.4% 58,348 58,715
60% 60.4% 50,012 50,335
50% 49.2% 41,677 41,002
40% 39.7% 33,341 33,063
30% 29.4% 25,006 24,537
20% 20.0% 16,671 16,695
10% 9.9% 8,335 8,216
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,901
Calibration 2     82,799
Calibration 3     82,819
ssj_ops@calibrated=82,809
100% 99.3% 82,809 82,210
90% 90.0% 74,528 74,507
80% 79.8% 66,247 66,087
70% 69.5% 57,966 57,518
60% 59.7% 49,685 49,422
50% 49.3% 41,404 40,843
40% 39.3% 33,124 32,572
30% 29.5% 24,843 24,392
20% 20.3% 16,562 16,795
10% 10.2% 8,281 8,429
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,069
Calibration 2     83,838
Calibration 3     83,590
ssj_ops@calibrated=83,714
100% 100.0% 83,714 83,715
90% 89.7% 75,343 75,104
80% 80.5% 66,971 67,365
70% 69.8% 58,600 58,453
60% 60.5% 50,229 50,642
50% 49.8% 41,857 41,672
40% 40.3% 33,486 33,722
30% 29.1% 25,114 24,336
20% 20.1% 16,743 16,845
10% 9.9% 8,371 8,302
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,166
Calibration 2     79,973
Calibration 3     79,823
ssj_ops@calibrated=79,898
100% 99.6% 79,898 79,595
90% 90.4% 71,908 72,257
80% 79.7% 63,918 63,668
70% 70.5% 55,928 56,359
60% 60.3% 47,939 48,147
50% 48.8% 39,949 39,029
40% 39.2% 31,959 31,286
30% 29.2% 23,969 23,363
20% 20.3% 15,980 16,233
10% 10.1% 7,990 8,039
Active Idle   0 0
Graph of results

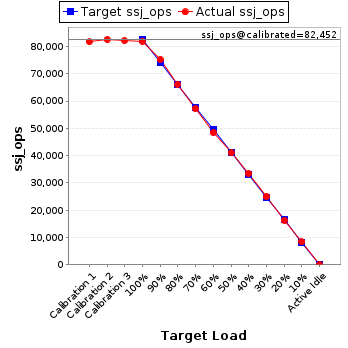

JVM 'WIN-QA6L6VTPI40.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,768
Calibration 2     82,656
Calibration 3     82,249
ssj_ops@calibrated=82,452
100% 99.5% 82,452 82,000
90% 91.4% 74,207 75,359
80% 80.3% 65,962 66,191
70% 69.4% 57,717 57,202
60% 58.8% 49,471 48,469
50% 49.7% 41,226 40,997
40% 40.6% 32,981 33,494
30% 30.4% 24,736 25,092
20% 19.8% 16,490 16,321
10% 10.1% 8,245 8,320
Active Idle   0 0
Graph of results
JVM 'WIN-QA6L6VTPI40.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,261
Calibration 2     83,105
Calibration 3     82,972
ssj_ops@calibrated=83,039
100% 99.6% 83,039 82,673
90% 89.7% 74,735 74,505
80% 80.4% 66,431 66,793
70% 69.5% 58,127 57,730
60% 60.4% 49,823 50,152
50% 51.4% 41,519 42,696
40% 40.5% 33,216 33,645
30% 30.0% 24,912 24,947
20% 19.7% 16,608 16,366
10% 10.0% 8,304 8,306
Active Idle   0 0
Graph of results
