Fujitsu FUJITSU Server PRIMERGY CX2560 M6 ssj_ops@100% = 4,615,741
ssj_ops@100% per JVM = 96,161
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Aug 7, 2021
Hardware Availability: Sep-2021 Software Availability: Dec-2020 Publication: Sep 1, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,618,484
Calibration 2     4,617,748
Calibration 3     4,620,753
ssj_ops@calibrated=4,619,250
100% 99.9% 4,619,250 4,615,741
90% 89.8% 4,157,325 4,149,923
80% 80.1% 3,695,400 3,698,917
70% 70.0% 3,233,475 3,231,921
60% 60.0% 2,771,550 2,769,554
50% 49.9% 2,309,625 2,305,240
40% 40.1% 1,847,700 1,852,595
30% 30.0% 1,385,775 1,384,540
20% 20.0% 923,850 924,286
10% 10.0% 461,925 460,933
Active Idle   0 0
Graph of results
System Under Test
Set: 'CX2560M6'
Set Identifier: CX2560M6
Set Description: System Under Test
# of Identical Nodes: 4
Comment: Multi Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY CX2560 M6
Form Factor: Blade
CPU Name: Intel Xeon Gold 5318Y
CPU Characteristics: 24-Core, 2.10GHz, 36MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 2 chips, 24 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 36 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated sSATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 10Gb X550T Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2019 Standard
OS Version: version1809, build 17763.107
Filesystem: ntfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 48
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.23.0
Management Firmware Version: 3.26P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4464455
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2.001 98,117
WIN-2.002 95,726
WIN-2.003 95,807
WIN-2.004 98,307
WIN-2.005 94,136
WIN-2.006 95,664
WIN-2.007 96,956
WIN-2.008 94,782
WIN-2.009 97,098
WIN-2.010 96,409
WIN-2.011 96,291
WIN-2.012 94,753
WIN-2.013 97,380
WIN-2.014 91,357
WIN-2.015 96,298
WIN-2.016 98,155
WIN-2.017 97,921
WIN-2.018 94,628
WIN-2.019 99,037
WIN-2.020 96,369
WIN-2.021 98,538
WIN-2.022 98,212
WIN-2.023 96,002
WIN-2.024 95,269
WIN-2.025 97,251
WIN-2.026 96,419
WIN-2.027 96,709
WIN-2.028 97,775
WIN-2.029 95,371
WIN-2.030 96,902
WIN-2.031 90,206
WIN-2.032 97,617
WIN-2.033 97,639
WIN-2.034 96,465
WIN-2.035 92,375
WIN-2.036 95,880
WIN-2.037 95,247
WIN-2.038 95,785
WIN-2.039 96,091
WIN-2.040 97,305
WIN-2.041 97,475
WIN-2.042 97,157
WIN-2.043 93,274
WIN-2.044 97,750
WIN-2.045 96,975
WIN-2.046 96,263
WIN-2.047 95,853
WIN-2.048 92,748
ssj_ops@100% 4,615,741
ssj_ops@100% per JVM 96,161

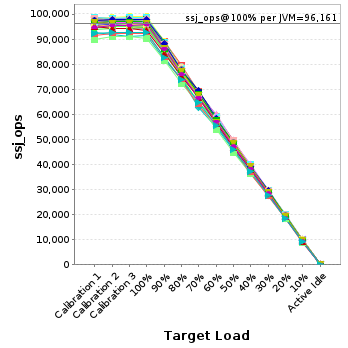

Graph of per-instance results
JVM 'WIN-2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,403
Calibration 2     97,881
Calibration 3     97,865
ssj_ops@calibrated=97,873
100% 100.2% 97,873 98,117
90% 90.8% 88,086 88,835
80% 81.0% 78,298 79,272
70% 70.5% 68,511 68,960
60% 59.5% 58,724 58,205
50% 49.3% 48,936 48,240
40% 39.8% 39,149 38,975
30% 30.0% 29,362 29,372
20% 20.3% 19,575 19,905
10% 9.9% 9,787 9,672
Active Idle   0 0
Graph of results
JVM 'WIN-2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,952
Calibration 2     95,563
Calibration 3     95,441
ssj_ops@calibrated=95,502
100% 100.2% 95,502 95,726
90% 89.9% 85,952 85,835
80% 80.0% 76,402 76,419
70% 69.9% 66,852 66,724
60% 60.9% 57,301 58,171
50% 50.2% 47,751 47,909
40% 40.2% 38,201 38,353
30% 30.5% 28,651 29,135
20% 20.3% 19,100 19,425
10% 9.9% 9,550 9,491
Active Idle   0 0
Graph of results
JVM 'WIN-2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,588
Calibration 2     95,830
Calibration 3     96,157
ssj_ops@calibrated=95,994
100% 99.8% 95,994 95,807
90% 90.0% 86,394 86,370
80% 80.5% 76,795 77,282
70% 69.5% 67,196 66,703
60% 59.7% 57,596 57,299
50% 49.7% 47,997 47,721
40% 40.6% 38,397 38,933
30% 29.5% 28,798 28,273
20% 19.8% 19,199 19,023
10% 10.1% 9,599 9,704
Active Idle   0 0
Graph of results
JVM 'WIN-2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,511
Calibration 2     98,171
Calibration 3     98,267
ssj_ops@calibrated=98,219
100% 100.1% 98,219 98,307
90% 89.8% 88,397 88,155
80% 79.8% 78,575 78,332
70% 70.7% 68,753 69,449
60% 59.7% 58,931 58,660
50% 49.6% 49,109 48,668
40% 40.1% 39,288 39,384
30% 29.8% 29,466 29,294
20% 20.2% 19,644 19,845
10% 10.0% 9,822 9,841
Active Idle   0 0
Graph of results

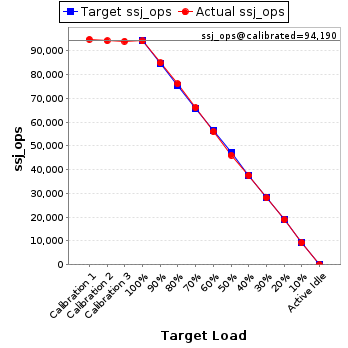

JVM 'WIN-2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,875
Calibration 2     94,288
Calibration 3     94,092
ssj_ops@calibrated=94,190
100% 99.9% 94,190 94,136
90% 90.1% 84,771 84,893
80% 80.8% 75,352 76,127
70% 70.3% 65,933 66,199
60% 59.5% 56,514 56,019
50% 49.0% 47,095 46,138
40% 40.0% 37,676 37,651
30% 29.8% 28,257 28,109
20% 20.1% 18,838 18,978
10% 9.9% 9,419 9,341
Active Idle   0 0
Graph of results
JVM 'WIN-2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,067
Calibration 2     95,354
Calibration 3     95,596
ssj_ops@calibrated=95,475
100% 100.2% 95,475 95,664
90% 90.4% 85,928 86,288
80% 80.6% 76,380 77,000
70% 69.5% 66,833 66,395
60% 59.5% 57,285 56,793
50% 50.6% 47,738 48,283
40% 40.2% 38,190 38,392
30% 29.9% 28,643 28,538
20% 20.4% 19,095 19,514
10% 10.3% 9,548 9,846
Active Idle   0 0
Graph of results
JVM 'WIN-2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,799
Calibration 2     97,521
Calibration 3     97,481
ssj_ops@calibrated=97,501
100% 99.4% 97,501 96,956
90% 89.3% 87,751 87,109
80% 79.3% 78,000 77,301
70% 69.7% 68,250 67,913
60% 59.4% 58,500 57,908
50% 50.1% 48,750 48,864
40% 39.0% 39,000 38,071
30% 30.0% 29,250 29,265
20% 19.9% 19,500 19,422
10% 9.9% 9,750 9,698
Active Idle   0 0
Graph of results

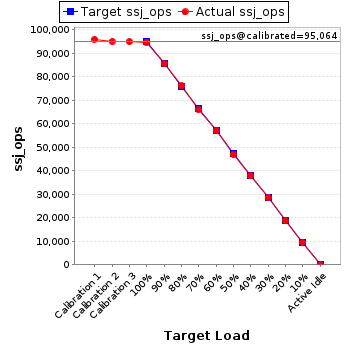

JVM 'WIN-2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,988
Calibration 2     95,114
Calibration 3     95,013
ssj_ops@calibrated=95,064
100% 99.7% 95,064 94,782
90% 90.1% 85,557 85,656
80% 80.1% 76,051 76,163
70% 69.6% 66,545 66,166
60% 59.9% 57,038 56,982
50% 49.4% 47,532 46,983
40% 39.9% 38,025 37,934
30% 30.3% 28,519 28,788
20% 19.9% 19,013 18,892
10% 10.0% 9,506 9,468
Active Idle   0 0
Graph of results
JVM 'WIN-2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,533
Calibration 2     97,390
Calibration 3     97,366
ssj_ops@calibrated=97,378
100% 99.7% 97,378 97,098
90% 90.0% 87,640 87,646
80% 81.1% 77,903 78,959
70% 69.4% 68,165 67,534
60% 59.7% 58,427 58,117
50% 50.0% 48,689 48,663
40% 39.5% 38,951 38,420
30% 29.9% 29,213 29,070
20% 20.2% 19,476 19,676
10% 9.8% 9,738 9,587
Active Idle   0 0
Graph of results
JVM 'WIN-2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,932
Calibration 2     96,937
Calibration 3     96,634
ssj_ops@calibrated=96,786
100% 99.6% 96,786 96,409
90% 89.6% 87,107 86,743
80% 79.1% 77,429 76,582
70% 69.8% 67,750 67,604
60% 59.3% 58,071 57,396
50% 49.0% 48,393 47,459
40% 40.9% 38,714 39,600
30% 30.3% 29,036 29,303
20% 19.8% 19,357 19,149
10% 10.0% 9,679 9,664
Active Idle   0 0
Graph of results
JVM 'WIN-2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,775
Calibration 2     96,798
Calibration 3     96,973
ssj_ops@calibrated=96,886
100% 99.4% 96,886 96,291
90% 89.7% 87,197 86,874
80% 79.9% 77,509 77,454
70% 69.2% 67,820 67,048
60% 59.5% 58,131 57,616
50% 50.1% 48,443 48,538
40% 40.8% 38,754 39,489
30% 30.1% 29,066 29,138
20% 19.3% 19,377 18,707
10% 9.9% 9,689 9,613
Active Idle   0 0
Graph of results
JVM 'WIN-2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,434
Calibration 2     95,014
Calibration 3     94,932
ssj_ops@calibrated=94,973
100% 99.8% 94,973 94,753
90% 90.0% 85,476 85,483
80% 80.8% 75,978 76,706
70% 70.3% 66,481 66,747
60% 60.3% 56,984 57,237
50% 49.6% 47,486 47,077
40% 40.5% 37,989 38,503
30% 30.0% 28,492 28,453
20% 19.7% 18,995 18,719
10% 9.9% 9,497 9,362
Active Idle   0 0
Graph of results
JVM 'WIN-2.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,080
Calibration 2     97,034
Calibration 3     97,285
ssj_ops@calibrated=97,160
100% 100.2% 97,160 97,380
90% 90.4% 87,444 87,784
80% 80.2% 77,728 77,874
70% 70.2% 68,012 68,178
60% 59.8% 58,296 58,120
50% 51.0% 48,580 49,531
40% 39.8% 38,864 38,634
30% 29.7% 29,148 28,883
20% 20.4% 19,432 19,793
10% 10.0% 9,716 9,691
Active Idle   0 0
Graph of results
JVM 'WIN-2.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,817
Calibration 2     91,656
Calibration 3     90,946
ssj_ops@calibrated=91,301
100% 100.1% 91,301 91,357
90% 89.7% 82,171 81,865
80% 80.9% 73,041 73,876
70% 68.8% 63,911 62,856
60% 59.7% 54,781 54,526
50% 49.9% 45,651 45,544
40% 39.6% 36,520 36,187
30% 30.2% 27,390 27,600
20% 20.0% 18,260 18,299
10% 10.3% 9,130 9,408
Active Idle   0 0
Graph of results
JVM 'WIN-2.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,764
Calibration 2     95,973
Calibration 3     96,136
ssj_ops@calibrated=96,054
100% 100.3% 96,054 96,298
90% 90.0% 86,449 86,451
80% 80.9% 76,843 77,671
70% 70.0% 67,238 67,231
60% 60.4% 57,632 58,006
50% 49.5% 48,027 47,579
40% 40.5% 38,422 38,948
30% 29.7% 28,816 28,510
20% 20.2% 19,211 19,416
10% 9.9% 9,605 9,527
Active Idle   0 0
Graph of results
JVM 'WIN-2.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,794
Calibration 2     98,087
Calibration 3     98,237
ssj_ops@calibrated=98,162
100% 100.0% 98,162 98,155
90% 90.4% 88,346 88,732
80% 80.8% 78,530 79,290
70% 69.9% 68,713 68,636
60% 60.3% 58,897 59,149
50% 50.3% 49,081 49,359
40% 39.9% 39,265 39,120
30% 30.1% 29,449 29,525
20% 19.7% 19,632 19,334
10% 10.2% 9,816 9,970
Active Idle   0 0
Graph of results
JVM 'WIN-2.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,579
Calibration 2     98,161
Calibration 3     98,040
ssj_ops@calibrated=98,101
100% 99.8% 98,101 97,921
90% 88.7% 88,291 87,053
80% 80.1% 78,481 78,616
70% 70.5% 68,671 69,199
60% 60.3% 58,860 59,107
50% 50.2% 49,050 49,273
40% 40.2% 39,240 39,435
30% 29.8% 29,430 29,228
20% 19.4% 19,620 19,057
10% 10.2% 9,810 9,964
Active Idle   0 0
Graph of results
JVM 'WIN-2.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,865
Calibration 2     94,056
Calibration 3     94,386
ssj_ops@calibrated=94,221
100% 100.4% 94,221 94,628
90% 90.0% 84,799 84,844
80% 79.4% 75,377 74,849
70% 68.7% 65,955 64,707
60% 60.7% 56,532 57,220
50% 50.1% 47,110 47,210
40% 40.4% 37,688 38,054
30% 30.3% 28,266 28,556
20% 20.1% 18,844 18,937
10% 10.1% 9,422 9,508
Active Idle   0 0
Graph of results
JVM 'WIN-2.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,400
Calibration 2     98,600
Calibration 3     99,032
ssj_ops@calibrated=98,816
100% 100.2% 98,816 99,037
90% 89.9% 88,935 88,885
80% 79.8% 79,053 78,838
70% 69.1% 69,171 68,242
60% 60.2% 59,290 59,457
50% 49.8% 49,408 49,246
40% 39.9% 39,526 39,423
30% 30.1% 29,645 29,743
20% 20.0% 19,763 19,792
10% 10.3% 9,882 10,160
Active Idle   0 0
Graph of results
JVM 'WIN-2.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,132
Calibration 2     96,485
Calibration 3     96,547
ssj_ops@calibrated=96,516
100% 99.8% 96,516 96,369
90% 89.3% 86,864 86,232
80% 79.9% 77,213 77,084
70% 69.7% 67,561 67,239
60% 59.5% 57,909 57,465
50% 49.0% 48,258 47,301
40% 40.3% 38,606 38,907
30% 30.3% 28,955 29,253
20% 20.2% 19,303 19,485
10% 10.2% 9,652 9,862
Active Idle   0 0
Graph of results
JVM 'WIN-2.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,476
Calibration 2     98,377
Calibration 3     98,476
ssj_ops@calibrated=98,427
100% 100.1% 98,427 98,538
90% 89.9% 88,584 88,444
80% 79.4% 78,741 78,118
70% 69.9% 68,899 68,822
60% 59.5% 59,056 58,604
50% 49.4% 49,213 48,583
40% 40.7% 39,371 40,037
30% 29.8% 29,528 29,283
20% 20.3% 19,685 19,937
10% 9.9% 9,843 9,716
Active Idle   0 0
Graph of results
JVM 'WIN-2.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,201
Calibration 2     97,965
Calibration 3     98,112
ssj_ops@calibrated=98,038
100% 100.2% 98,038 98,212
90% 89.5% 88,235 87,792
80% 80.8% 78,431 79,175
70% 70.2% 68,627 68,800
60% 59.7% 58,823 58,487
50% 49.3% 49,019 48,369
40% 39.6% 39,215 38,833
30% 30.1% 29,412 29,497
20% 20.4% 19,608 20,019
10% 10.0% 9,804 9,796
Active Idle   0 0
Graph of results
JVM 'WIN-2.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,825
Calibration 2     96,126
Calibration 3     96,695
ssj_ops@calibrated=96,410
100% 99.6% 96,410 96,002
90% 89.3% 86,769 86,112
80% 80.3% 77,128 77,390
70% 70.9% 67,487 68,360
60% 60.1% 57,846 57,957
50% 50.7% 48,205 48,839
40% 40.7% 38,564 39,202
30% 29.7% 28,923 28,593
20% 20.0% 19,282 19,290
10% 10.2% 9,641 9,872
Active Idle   0 0
Graph of results
JVM 'WIN-2.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,427
Calibration 2     95,956
Calibration 3     96,127
ssj_ops@calibrated=96,041
100% 99.2% 96,041 95,269
90% 89.8% 86,437 86,248
80% 81.0% 76,833 77,749
70% 69.6% 67,229 66,826
60% 60.3% 57,625 57,914
50% 50.9% 48,021 48,883
40% 39.9% 38,417 38,291
30% 29.3% 28,812 28,179
20% 20.2% 19,208 19,385
10% 10.0% 9,604 9,608
Active Idle   0 0
Graph of results
JVM 'WIN-2.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,550
Calibration 2     97,159
Calibration 3     97,326
ssj_ops@calibrated=97,242
100% 100.0% 97,242 97,251
90% 89.9% 87,518 87,425
80% 80.7% 77,794 78,447
70% 71.2% 68,070 69,254
60% 60.2% 58,345 58,519
50% 49.4% 48,621 48,031
40% 40.0% 38,897 38,850
30% 30.5% 29,173 29,642
20% 20.3% 19,448 19,787
10% 9.9% 9,724 9,615
Active Idle   0 0
Graph of results
JVM 'WIN-2.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,512
Calibration 2     96,451
Calibration 3     96,529
ssj_ops@calibrated=96,490
100% 99.9% 96,490 96,419
90% 90.0% 86,841 86,862
80% 80.0% 77,192 77,169
70% 69.3% 67,543 66,829
60% 60.1% 57,894 58,029
50% 49.8% 48,245 48,021
40% 39.9% 38,596 38,517
30% 30.0% 28,947 28,931
20% 20.0% 19,298 19,326
10% 9.8% 9,649 9,491
Active Idle   0 0
Graph of results
JVM 'WIN-2.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,678
Calibration 2     96,710
Calibration 3     96,564
ssj_ops@calibrated=96,637
100% 100.1% 96,637 96,709
90% 90.4% 86,974 87,345
80% 80.1% 77,310 77,367
70% 70.1% 67,646 67,762
60% 60.4% 57,982 58,362
50% 49.8% 48,319 48,083
40% 40.7% 38,655 39,327
30% 29.6% 28,991 28,633
20% 19.9% 19,327 19,256
10% 9.8% 9,664 9,437
Active Idle   0 0
Graph of results
JVM 'WIN-2.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,069
Calibration 2     97,515
Calibration 3     97,831
ssj_ops@calibrated=97,673
100% 100.1% 97,673 97,775
90% 91.3% 87,906 89,134
80% 80.3% 78,139 78,394
70% 70.2% 68,371 68,598
60% 60.7% 58,604 59,310
50% 50.3% 48,837 49,093
40% 40.1% 39,069 39,174
30% 29.7% 29,302 28,964
20% 19.9% 19,535 19,412
10% 10.2% 9,767 9,945
Active Idle   0 0
Graph of results
JVM 'WIN-2.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,693
Calibration 2     95,092
Calibration 3     95,057
ssj_ops@calibrated=95,075
100% 100.3% 95,075 95,371
90% 89.9% 85,567 85,483
80% 80.4% 76,060 76,431
70% 70.5% 66,552 66,984
60% 59.3% 57,045 56,410
50% 51.1% 47,537 48,610
40% 40.1% 38,030 38,154
30% 29.9% 28,522 28,406
20% 19.8% 19,015 18,826
10% 9.9% 9,507 9,377
Active Idle   0 0
Graph of results
JVM 'WIN-2.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,316
Calibration 2     97,222
Calibration 3     97,113
ssj_ops@calibrated=97,168
100% 99.7% 97,168 96,902
90% 89.4% 87,451 86,858
80% 79.2% 77,734 76,991
70% 69.6% 68,017 67,617
60% 60.2% 58,301 58,463
50% 50.3% 48,584 48,833
40% 40.1% 38,867 38,961
30% 29.6% 29,150 28,729
20% 20.2% 19,434 19,606
10% 10.2% 9,717 9,920
Active Idle   0 0
Graph of results
JVM 'WIN-2.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,865
Calibration 2     91,089
Calibration 3     91,143
ssj_ops@calibrated=91,116
100% 99.0% 91,116 90,206
90% 89.5% 82,004 81,584
80% 79.5% 72,893 72,465
70% 70.5% 63,781 64,243
60% 59.4% 54,669 54,084
50% 49.1% 45,558 44,750
40% 39.8% 36,446 36,233
30% 30.4% 27,335 27,654
20% 20.2% 18,223 18,361
10% 9.7% 9,112 8,841
Active Idle   0 0
Graph of results
JVM 'WIN-2.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,944
Calibration 2     97,831
Calibration 3     97,717
ssj_ops@calibrated=97,774
100% 99.8% 97,774 97,617
90% 90.1% 87,996 88,050
80% 80.5% 78,219 78,706
70% 70.0% 68,442 68,470
60% 60.4% 58,664 59,027
50% 49.4% 48,887 48,334
40% 39.7% 39,109 38,863
30% 30.1% 29,332 29,426
20% 19.7% 19,555 19,276
10% 10.1% 9,777 9,910
Active Idle   0 0
Graph of results

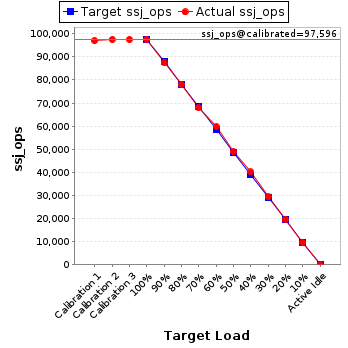

JVM 'WIN-2.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,074
Calibration 2     97,591
Calibration 3     97,602
ssj_ops@calibrated=97,596
100% 100.0% 97,596 97,639
90% 89.6% 87,837 87,465
80% 80.0% 78,077 78,108
70% 69.7% 68,317 68,034
60% 61.3% 58,558 59,830
50% 50.2% 48,798 49,039
40% 41.1% 39,039 40,157
30% 30.2% 29,279 29,477
20% 20.2% 19,519 19,745
10% 9.7% 9,760 9,488
Active Idle   0 0
Graph of results
JVM 'WIN-2.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,894
Calibration 2     96,461
Calibration 3     96,349
ssj_ops@calibrated=96,405
100% 100.1% 96,405 96,465
90% 89.6% 86,765 86,352
80% 79.6% 77,124 76,721
70% 70.2% 67,484 67,638
60% 60.6% 57,843 58,443
50% 50.2% 48,203 48,417
40% 40.1% 38,562 38,662
30% 29.9% 28,922 28,801
20% 19.7% 19,281 18,966
10% 9.7% 9,641 9,350
Active Idle   0 0
Graph of results

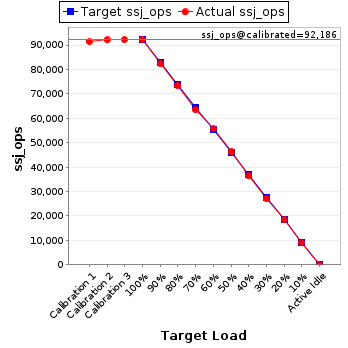

JVM 'WIN-2.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,523
Calibration 2     92,141
Calibration 3     92,230
ssj_ops@calibrated=92,186
100% 100.2% 92,186 92,375
90% 89.5% 82,967 82,521
80% 79.8% 73,748 73,544
70% 68.9% 64,530 63,506
60% 60.3% 55,311 55,598
50% 50.1% 46,093 46,185
40% 39.6% 36,874 36,476
30% 29.4% 27,656 27,113
20% 20.0% 18,437 18,445
10% 9.8% 9,219 9,002
Active Idle   0 0
Graph of results
JVM 'WIN-2.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,142
Calibration 2     95,705
Calibration 3     95,967
ssj_ops@calibrated=95,836
100% 100.0% 95,836 95,880
90% 89.8% 86,252 86,092
80% 79.8% 76,669 76,511
70% 70.6% 67,085 67,675
60% 59.9% 57,502 57,428
50% 50.4% 47,918 48,268
40% 39.7% 38,334 38,009
30% 29.8% 28,751 28,570
20% 19.9% 19,167 19,053
10% 9.8% 9,584 9,425
Active Idle   0 0
Graph of results
JVM 'WIN-2.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,415
Calibration 2     95,144
Calibration 3     94,934
ssj_ops@calibrated=95,039
100% 100.2% 95,039 95,247
90% 89.5% 85,535 85,023
80% 79.1% 76,031 75,153
70% 70.5% 66,527 66,992
60% 59.4% 57,023 56,449
50% 50.6% 47,520 48,043
40% 40.2% 38,016 38,208
30% 30.2% 28,512 28,740
20% 19.6% 19,008 18,668
10% 10.0% 9,504 9,475
Active Idle   0 0
Graph of results
JVM 'WIN-2.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,126
Calibration 2     95,604
Calibration 3     95,985
ssj_ops@calibrated=95,794
100% 100.0% 95,794 95,785
90% 90.6% 86,215 86,780
80% 80.0% 76,635 76,653
70% 70.3% 67,056 67,328
60% 60.1% 57,477 57,580
50% 49.7% 47,897 47,608
40% 39.8% 38,318 38,106
30% 30.1% 28,738 28,795
20% 19.6% 19,159 18,786
10% 10.3% 9,579 9,896
Active Idle   0 0
Graph of results
JVM 'WIN-2.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,378
Calibration 2     96,686
Calibration 3     96,573
ssj_ops@calibrated=96,629
100% 99.4% 96,629 96,091
90% 89.7% 86,966 86,686
80% 80.3% 77,303 77,632
70% 70.5% 67,640 68,153
60% 60.2% 57,978 58,152
50% 49.3% 48,315 47,646
40% 40.3% 38,652 38,900
30% 30.4% 28,989 29,382
20% 20.4% 19,326 19,695
10% 9.8% 9,663 9,427
Active Idle   0 0
Graph of results

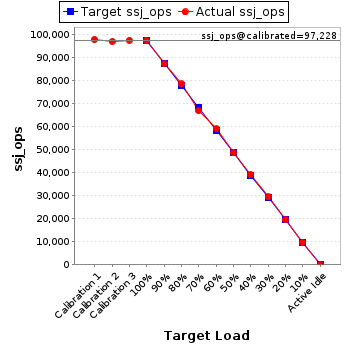

JVM 'WIN-2.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,864
Calibration 2     96,953
Calibration 3     97,502
ssj_ops@calibrated=97,228
100% 100.1% 97,228 97,305
90% 89.8% 87,505 87,262
80% 80.7% 77,782 78,452
70% 68.7% 68,059 66,827
60% 60.8% 58,337 59,085
50% 50.0% 48,614 48,589
40% 40.3% 38,891 39,224
30% 30.3% 29,168 29,444
20% 20.2% 19,446 19,612
10% 9.9% 9,723 9,671
Active Idle   0 0
Graph of results
JVM 'WIN-2.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,403
Calibration 2     97,256
Calibration 3     97,128
ssj_ops@calibrated=97,192
100% 100.3% 97,192 97,475
90% 90.5% 87,473 87,911
80% 79.6% 77,753 77,361
70% 69.6% 68,034 67,679
60% 59.7% 58,315 57,984
50% 50.9% 48,596 49,489
40% 40.3% 38,877 39,197
30% 29.8% 29,158 29,003
20% 20.3% 19,438 19,716
10% 10.0% 9,719 9,742
Active Idle   0 0
Graph of results

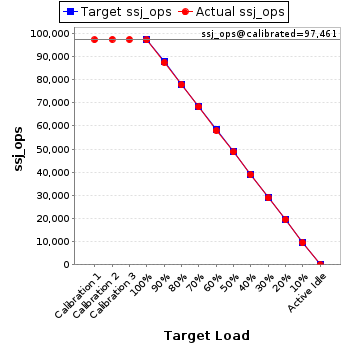

JVM 'WIN-2.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,319
Calibration 2     97,484
Calibration 3     97,438
ssj_ops@calibrated=97,461
100% 99.7% 97,461 97,157
90% 89.7% 87,715 87,467
80% 79.8% 77,969 77,819
70% 70.0% 68,223 68,253
60% 59.5% 58,477 57,988
50% 50.0% 48,731 48,731
40% 39.9% 38,984 38,919
30% 29.6% 29,238 28,870
20% 20.1% 19,492 19,596
10% 9.9% 9,746 9,604
Active Idle   0 0
Graph of results

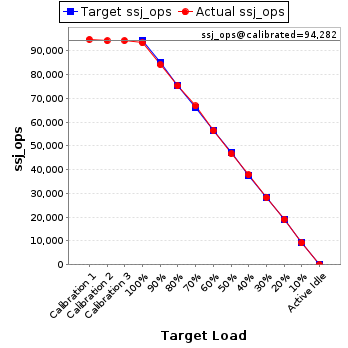

JVM 'WIN-2.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,841
Calibration 2     94,257
Calibration 3     94,307
ssj_ops@calibrated=94,282
100% 98.9% 94,282 93,274
90% 89.3% 84,853 84,176
80% 79.8% 75,425 75,248
70% 70.8% 65,997 66,762
60% 59.8% 56,569 56,417
50% 49.5% 47,141 46,702
40% 40.2% 37,713 37,899
30% 30.0% 28,284 28,272
20% 20.3% 18,856 19,139
10% 9.8% 9,428 9,266
Active Idle   0 0
Graph of results
JVM 'WIN-2.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,449
Calibration 2     97,782
Calibration 3     97,908
ssj_ops@calibrated=97,845
100% 99.9% 97,845 97,750
90% 90.1% 88,061 88,138
80% 79.0% 78,276 77,343
70% 71.0% 68,492 69,493
60% 59.7% 58,707 58,420
50% 49.3% 48,923 48,201
40% 40.1% 39,138 39,191
30% 30.2% 29,354 29,584
20% 19.5% 19,569 19,112
10% 9.9% 9,785 9,708
Active Idle   0 0
Graph of results
JVM 'WIN-2.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,654
Calibration 2     96,890
Calibration 3     97,014
ssj_ops@calibrated=96,952
100% 100.0% 96,952 96,975
90% 88.5% 87,257 85,798
80% 79.8% 77,562 77,381
70% 70.6% 67,866 68,476
60% 59.9% 58,171 58,101
50% 50.1% 48,476 48,565
40% 39.5% 38,781 38,248
30% 30.3% 29,086 29,338
20% 20.0% 19,390 19,416
10% 10.1% 9,695 9,783
Active Idle   0 0
Graph of results
JVM 'WIN-2.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,637
Calibration 2     96,165
Calibration 3     96,365
ssj_ops@calibrated=96,265
100% 100.0% 96,265 96,263
90% 89.8% 86,638 86,431
80% 80.1% 77,012 77,075
70% 70.0% 67,385 67,339
60% 59.1% 57,759 56,847
50% 50.3% 48,132 48,415
40% 40.6% 38,506 39,109
30% 30.0% 28,879 28,874
20% 20.1% 19,253 19,382
10% 10.0% 9,626 9,655
Active Idle   0 0
Graph of results
JVM 'WIN-2.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,718
Calibration 2     95,428
Calibration 3     95,528
ssj_ops@calibrated=95,478
100% 100.4% 95,478 95,853
90% 90.2% 85,930 86,153
80% 79.7% 76,383 76,063
70% 69.7% 66,835 66,592
60% 59.8% 57,287 57,108
50% 49.5% 47,739 47,279
40% 40.1% 38,191 38,272
30% 29.9% 28,643 28,525
20% 19.4% 19,096 18,507
10% 9.8% 9,548 9,387
Active Idle   0 0
Graph of results

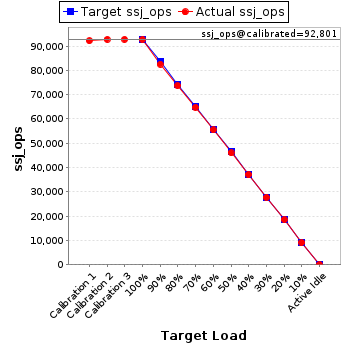

JVM 'WIN-2.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,204
Calibration 2     92,794
Calibration 3     92,808
ssj_ops@calibrated=92,801
100% 99.9% 92,801 92,748
90% 89.0% 83,521 82,599
80% 79.5% 74,241 73,757
70% 69.9% 64,961 64,881
60% 59.8% 55,681 55,504
50% 49.6% 46,401 46,051
40% 40.0% 37,120 37,161
30% 29.9% 27,840 27,779
20% 20.0% 18,560 18,599
10% 9.9% 9,280 9,150
Active Idle   0 0
Graph of results
