XSLAB V-Raptor SQ | SPECpower_ssj2008 = 3,110 overall ssj_ops/watt | ||||
Test Sponsor: | Telecommunications Technology Association | SPEC License #: | 83 | Test Method: | Multi Node |
Tested By: | Telecommunications Technology Association | Test Location: | TTA, Seongnam-city, Korea | Test Date: | Sep 16, 2021 |
Hardware Availability: | Jul-2021 | Software Availability: | Sep-2018 | Publication: | Dec 9, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

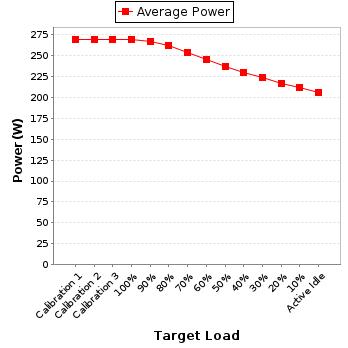

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 269 | 27.1 |
Calibration 2 | 269 | 27.2 |
Calibration 3 | 269 | 27.3 |
100% | 269 | 27.7 |
90% | 267 | 27.9 |
80% | 261 | 27.8 |
70% | 254 | 27.8 |
60% | 245 | 27.8 |
50% | 237 | 27.8 |
40% | 230 | 27.9 |
30% | 224 | 27.9 |
20% | 217 | 27.9 |
10% | 211 | 28.0 |
Active Idle | 206 | 28.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Tektronix |
Model: | PA1000 |
Serial Number: | C040933 |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | SS TECHNOLOGY INC. |
Accredited by: | KOLAS (Korea Laboratory Accreditation Scheme) |
Calibration Label: | SS-210406-0022 |
Date of Calibration: | 7-Apr-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-e8c7a49a-20201208 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | iButtonLink |
Model: | LinkUSBi + T-Probe |
Driver Version: | FTDI USB Serial Device 1.0 |
Connectivity: | USB(UART) |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 217 | 353.6 | 1.35 | 3.5 | 0.921 | 269 | 0.7% |
Calibration 2 | 217 | 353.6 | 1.35 | 3.5 | 0.921 | 269 | 0.7% |
Calibration 3 | 217 | 353.6 | 1.35 | 3.5 | 0.921 | 269 | 0.7% |
100% | 216 | 353.6 | 1.35 | 3.5 | 0.922 | 269 | 0.7% |
90% | 217 | 353.6 | 1.34 | 3.5 | 0.921 | 267 | 0.7% |
80% | 217 | 353.6 | 1.31 | 3.5 | 0.920 | 261 | 0.7% |
70% | 217 | 353.6 | 1.28 | 3.5 | 0.918 | 254 | 0.7% |
60% | 217 | 353.6 | 1.23 | 3.5 | 0.916 | 245 | 0.7% |
50% | 217 | 353.6 | 1.20 | 3.5 | 0.913 | 237 | 0.7% |
40% | 217 | 353.6 | 1.17 | 3.5 | 0.910 | 230 | 0.7% |
30% | 217 | 353.6 | 1.14 | 3.5 | 0.908 | 224 | 0.7% |
20% | 217 | 353.6 | 1.11 | 3.5 | 0.906 | 217 | 0.7% |
10% | 217 | 353.6 | 1.08 | 3.5 | 0.904 | 211 | 0.7% |
Active Idle | 217 | 353.6 | 1.05 | 3.5 | 0.901 | 206 | 0.8% |
