Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module SPECpower_ssj2008 = 11,254 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 6, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,354 25.8
Calibration 2 3,345 25.4
Calibration 3 3,346 25.2
100% 3,344 25.2
90% 3,176 25.3
80% 2,509 25.4
70% 2,182 25.7
60% 1,905 25.9
50% 1,684 26.0
40% 1,507 25.9
30% 1,364 25.9
20% 1,222 25.9
10% 1,076 26.1
Active Idle 759 26.1

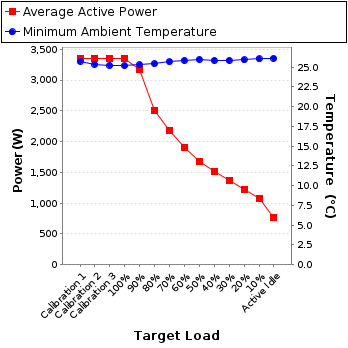

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-80-1
Date of Calibration: 14-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F91A5-220-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 3 and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-40-1
Date of Calibration: 15-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 5.32 10.0 0.992 1,133 0.4%
Calibration 2 215 300.0 5.30 10.0 0.992 1,129 0.4%
Calibration 3 215 300.0 5.29 10.0 0.991 1,130 0.4%
100% 215 300.0 5.29 10.0 0.991 1,129 0.4%
90% 215 300.0 5.05 5.0 0.990 1,075 0.3%
80% 215 300.0 3.99 5.0 0.985 846 0.4%
70% 215 300.0 3.50 5.0 0.980 737 0.4%
60% 215 300.0 3.08 5.0 0.976 647 0.4%
50% 215 300.0 2.76 5.0 0.971 578 0.5%
40% 215 300.0 2.53 5.0 0.965 525 0.5%
30% 216 300.0 2.25 2.0 0.950 461 0.4%
20% 216 300.0 1.91 2.0 0.931 382 0.4%
10% 216 300.0 1.77 2.0 0.916 349 0.4%
Active Idle 216 300.0 1.30 2.0 0.879 247 0.5%

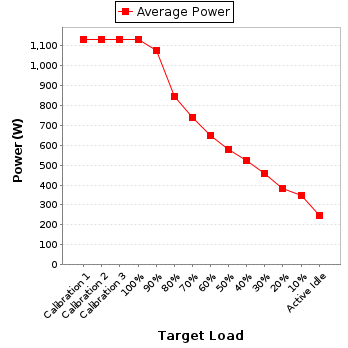

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 5.28 10.0 0.977 1,088 0.5%
Calibration 2 211 300.0 5.26 10.0 0.977 1,085 0.5%
Calibration 3 212 300.0 5.25 10.0 0.977 1,085 0.5%
100% 212 300.0 5.24 10.0 0.977 1,084 0.5%
90% 212 300.0 4.99 5.0 0.975 1,028 0.3%
80% 212 300.0 3.98 5.0 0.962 809 0.4%
70% 212 300.0 3.46 5.0 0.951 695 0.4%
60% 212 300.0 3.00 5.0 0.941 596 0.5%
50% 212 300.0 2.61 5.0 0.928 514 0.5%
40% 212 300.0 2.31 5.0 0.913 447 0.6%
30% 212 300.0 2.12 2.0 0.897 404 0.4%
20% 212 300.0 1.98 2.0 0.888 373 0.4%
10% 212 300.0 1.80 2.0 0.873 333 0.4%
Active Idle 212 300.0 1.25 2.0 0.819 218 0.6%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 5.33 10.0 0.989 1,133 0.4%
Calibration 2 215 300.0 5.32 10.0 0.989 1,130 0.4%
Calibration 3 215 300.0 5.31 10.0 0.989 1,131 0.4%
100% 215 300.0 5.31 10.0 0.989 1,130 0.4%
90% 215 300.0 5.05 5.0 0.987 1,073 0.3%
80% 215 300.0 4.05 5.0 0.980 854 0.4%
70% 215 300.0 3.58 5.0 0.974 749 0.4%
60% 215 300.0 3.17 5.0 0.969 661 0.4%
50% 215 300.0 2.86 5.0 0.962 592 0.5%
40% 215 300.0 2.60 5.0 0.953 535 0.5%
30% 216 300.0 2.45 5.0 0.944 499 0.5%
20% 216 300.0 2.32 2.0 0.936 467 0.4%
10% 216 300.0 2.01 2.0 0.911 394 0.4%
Active Idle 216 300.0 1.57 2.0 0.867 294 0.5%
Power details for pwr3
