SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module			ssj_ops@100% = 42,315,362 ssj_ops@100% per Host = 8,463,072 ssj_ops@100% per JVM = 105,788
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Dec 6, 2021
Hardware Availability:	Apr-2021	Software Availability:	Sep-2021	Publication:	Feb 3, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			42,448,437
Calibration 2			42,408,716
Calibration 3			42,449,156
ssj_ops@calibrated=42,428,936
100%	99.7%	42,428,936	42,315,362
90%	90.0%	38,186,042	38,199,077
80%	80.0%	33,943,149	33,944,513
70%	70.0%	29,700,255	29,696,103
60%	60.0%	25,457,362	25,450,396
50%	50.0%	21,214,468	21,211,920
40%	40.0%	16,971,574	16,970,389
30%	30.0%	12,728,681	12,734,915
20%	20.0%	8,485,787	8,487,869
10%	10.0%	4,242,894	4,240,453
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
5	10	400	800	1,280	5	400

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Plus Compute Module
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics:	40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (Build 17763.2183)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	I44 v1.40 (03/05/2021)
Management Firmware Version:	2.40 pass 31 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5005568

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

USB Support: All USB Ports Disabled
Internal SD Card Slot: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Intel Virtualization (Intel VT): Disabled
Access Control Service: Disabled
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Disabled
Intel UPI Link Enablement: Single Link Operation
Intel UPI Link Frequency: Min UPI Speed
Processor PMAX Power Adjustment: 20
Maximum PCI Express Speed: PCIe Generation 1.0
Synergy 4820C PCIe Link Speed: PCIe Generation 1.0
Synergy 4820C PCIe Power Management: L1 Enabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via PSExec
The second NIC port was disconnected via the Operating System
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
OS tunes:

Windows Power Options = Power Saver

Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
Minimum Processor State=0%

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

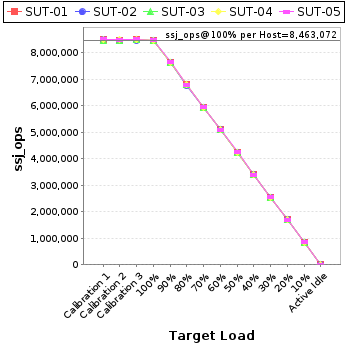

Host Instance Summary

Host	ssj_ops@100%
SUT-01	8,455,777
SUT-02	8,446,264
SUT-03	8,459,889
SUT-04	8,475,145
SUT-05	8,478,288
ssj_ops@100%	42,315,362
ssj_ops@100% per Host	8,463,072
ssj_ops@100% per JVM	105,788

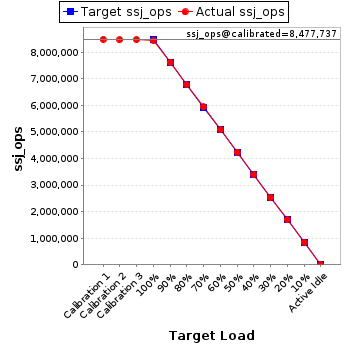

Host 'SUT-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			8,489,571
Calibration 2			8,473,282
Calibration 3			8,482,191
ssj_ops@calibrated=8,477,737
100%	99.7%	8,477,737	8,455,777
90%	90.0%	7,629,963	7,631,031
80%	80.0%	6,782,189	6,784,766
70%	70.1%	5,934,416	5,940,509
60%	60.0%	5,086,642	5,082,902
50%	49.9%	4,238,868	4,232,016
40%	40.0%	3,391,095	3,388,258
30%	30.0%	2,543,321	2,546,039
20%	20.0%	1,695,547	1,697,092
10%	10.0%	847,774	846,099
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'SUT-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			8,481,755
Calibration 2			8,468,378
Calibration 3			8,477,538
ssj_ops@calibrated=8,472,958
100%	99.7%	8,472,958	8,446,264
90%	90.1%	7,625,662	7,635,223
80%	79.9%	6,778,367	6,772,761
70%	70.0%	5,931,071	5,933,022
60%	60.0%	5,083,775	5,083,362
50%	50.1%	4,236,479	4,242,828
40%	40.0%	3,389,183	3,393,164
30%	30.0%	2,541,887	2,541,874
20%	20.1%	1,694,592	1,700,778
10%	10.0%	847,296	847,284
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'SUT-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			8,477,849
Calibration 2			8,476,369
Calibration 3			8,486,746
ssj_ops@calibrated=8,481,558
100%	99.7%	8,481,558	8,459,889
90%	90.0%	7,633,402	7,630,870
80%	80.0%	6,785,246	6,786,362
70%	69.9%	5,937,090	5,931,784
60%	60.0%	5,088,935	5,087,691
50%	50.0%	4,240,779	4,240,608
40%	40.0%	3,392,623	3,394,874
30%	30.1%	2,544,467	2,550,162
20%	20.0%	1,696,312	1,693,789
10%	10.0%	848,156	848,849
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'SUT-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			8,491,680
Calibration 2			8,496,012
Calibration 3			8,500,631
ssj_ops@calibrated=8,498,321
100%	99.7%	8,498,321	8,475,145
90%	90.0%	7,648,489	7,647,090
80%	80.1%	6,798,657	6,803,513
70%	70.0%	5,948,825	5,946,159
60%	60.0%	5,098,993	5,101,568
50%	49.9%	4,249,161	4,243,152
40%	40.0%	3,399,329	3,395,353
30%	30.0%	2,549,496	2,550,181
20%	20.0%	1,699,664	1,697,442
10%	10.0%	849,832	849,284
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'SUT-05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			8,507,582
Calibration 2			8,494,675
Calibration 3			8,502,049
ssj_ops@calibrated=8,498,362
100%	99.8%	8,498,362	8,478,288
90%	90.1%	7,648,526	7,654,863
80%	80.0%	6,798,689	6,797,112
70%	70.0%	5,948,853	5,944,629
60%	60.0%	5,099,017	5,094,874
50%	50.0%	4,249,181	4,253,316
40%	40.0%	3,399,345	3,398,739
30%	30.0%	2,549,509	2,546,659
20%	20.0%	1,699,672	1,698,768
10%	10.0%	849,836	848,936
Active Idle		0	0

See the Host Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
