Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module SPECpower_ssj2008 = 11,716 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,940 25.1
Calibration 2 5,915 24.2
Calibration 3 5,917 23.9
100% 5,912 23.9
90% 5,606 23.8
80% 4,378 23.8
70% 3,792 24.6
60% 3,292 25.2
50% 2,896 25.6
40% 2,577 25.9
30% 2,317 26.5
20% 2,060 26.8
10% 1,794 26.7
Active Idle 1,218 26.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-80-1
Date of Calibration: 14-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F91A5-220-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 3 and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-40-1
Date of Calibration: 15-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 9.37 20.0 0.997 2,011 0.5%
Calibration 2 215 300.0 9.42 20.0 0.997 2,022 0.5%
Calibration 3 215 300.0 9.41 20.0 0.997 2,013 0.5%
100% 214 300.0 9.41 20.0 0.997 2,008 0.5%
90% 214 300.0 8.84 20.0 0.996 1,888 0.5%
80% 215 300.0 6.81 10.0 0.994 1,455 0.4%
70% 215 300.0 5.86 10.0 0.992 1,249 0.4%
60% 215 300.0 5.09 10.0 0.990 1,083 0.5%
50% 215 300.0 4.47 10.0 0.988 950 0.5%
40% 215 300.0 3.97 10.0 0.985 841 0.5%
30% 216 300.0 3.57 10.0 0.981 758 0.6%
20% 216 300.0 3.19 5.0 0.978 675 0.4%
10% 217 300.0 2.81 5.0 0.971 591 0.5%
Active Idle 217 300.0 1.99 5.0 0.928 401 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 9.03 20.0 0.992 1,907 0.5%
Calibration 2 213 300.0 8.94 20.0 0.992 1,886 0.5%
Calibration 3 212 300.0 9.05 20.0 0.992 1,903 0.5%
100% 212 300.0 9.04 20.0 0.992 1,898 0.5%
90% 212 300.0 8.63 20.0 0.991 1,809 0.5%
80% 212 300.0 6.86 10.0 0.986 1,435 0.4%
70% 212 300.0 5.95 10.0 0.981 1,239 0.4%
60% 212 300.0 5.17 10.0 0.976 1,071 0.5%
50% 213 300.0 4.55 10.0 0.970 939 0.5%
40% 213 300.0 4.07 10.0 0.963 833 0.6%
30% 214 300.0 3.64 10.0 0.955 742 0.6%
20% 214 300.0 3.23 5.0 0.947 653 0.4%
10% 214 300.0 2.81 5.0 0.934 561 0.5%
Active Idle 214 300.0 1.96 5.0 0.879 370 0.7%

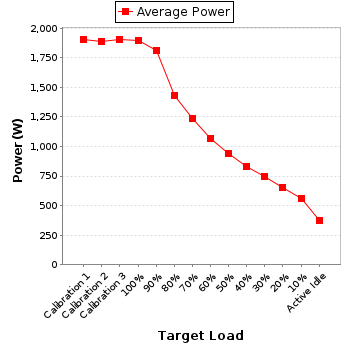

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 9.43 10.0 0.996 2,022 0.3%
Calibration 2 215 300.0 9.37 10.0 0.996 2,007 0.3%
Calibration 3 215 300.0 9.36 10.0 0.996 2,001 0.3%
100% 214 300.0 9.41 10.0 0.996 2,006 0.3%
90% 214 300.0 8.95 10.0 0.996 1,909 0.3%
80% 215 300.0 6.98 10.0 0.993 1,489 0.4%
70% 215 300.0 6.12 10.0 0.991 1,304 0.4%
60% 215 300.0 5.36 10.0 0.989 1,138 0.4%
50% 215 300.0 4.74 10.0 0.986 1,006 0.5%
40% 215 300.0 4.26 10.0 0.983 903 0.5%
30% 216 300.0 3.86 10.0 0.979 817 0.6%
20% 216 300.0 3.47 10.0 0.974 731 0.6%
10% 217 300.0 3.07 5.0 0.967 642 0.4%
Active Idle 217 300.0 2.22 5.0 0.929 448 0.6%
Power details for pwr3
