Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,481,824
ssj_ops@100% per JVM = 106,023
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,518,837
Calibration 2     8,500,835
Calibration 3     8,505,547
ssj_ops@calibrated=8,503,191
100% 99.7% 8,503,191 8,481,824
90% 89.8% 7,652,872 7,637,933
80% 80.0% 6,802,553 6,801,147
70% 70.0% 5,952,233 5,949,209
60% 60.0% 5,101,914 5,104,603
50% 50.0% 4,251,595 4,249,391
40% 39.9% 3,401,276 3,393,834
30% 30.0% 2,550,957 2,548,470
20% 20.0% 1,700,638 1,699,456
10% 10.0% 850,319 847,892
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.2183)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005568
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SUT-04.001 106,736
SUT-04.002 106,002
SUT-04.003 106,605
SUT-04.004 107,519
SUT-04.005 104,253
SUT-04.006 106,706
SUT-04.007 105,908
SUT-04.008 107,601
SUT-04.009 108,332
SUT-04.010 104,541
SUT-04.011 106,871
SUT-04.012 104,441
SUT-04.013 108,006
SUT-04.014 109,102
SUT-04.015 107,591
SUT-04.016 106,761
SUT-04.017 106,693
SUT-04.018 104,292
SUT-04.019 104,695
SUT-04.020 104,809
SUT-04.021 105,032
SUT-04.022 103,922
SUT-04.023 104,317
SUT-04.024 104,218
SUT-04.025 106,043
SUT-04.026 104,331
SUT-04.027 106,142
SUT-04.028 107,410
SUT-04.029 105,674
SUT-04.030 108,002
SUT-04.031 109,946
SUT-04.032 106,220
SUT-04.033 105,837
SUT-04.034 108,089
SUT-04.035 107,060
SUT-04.036 105,413
SUT-04.037 105,793
SUT-04.038 105,868
SUT-04.039 106,011
SUT-04.040 104,015
SUT-04.041 106,996
SUT-04.042 106,243
SUT-04.043 104,854
SUT-04.044 105,403
SUT-04.045 107,784
SUT-04.046 107,237
SUT-04.047 106,200
SUT-04.048 108,087
SUT-04.049 105,377
SUT-04.050 108,405
SUT-04.051 106,983
SUT-04.052 107,026
SUT-04.053 107,035
SUT-04.054 104,528
SUT-04.055 105,257
SUT-04.056 104,690
SUT-04.057 105,856
SUT-04.058 104,701
SUT-04.059 105,337
SUT-04.060 103,106
SUT-04.061 106,118
SUT-04.062 106,182
SUT-04.063 104,959
SUT-04.064 105,654
SUT-04.065 106,911
SUT-04.066 108,503
SUT-04.067 107,529
SUT-04.068 103,558
SUT-04.069 106,349
SUT-04.070 107,358
SUT-04.071 107,460
SUT-04.072 106,120
SUT-04.073 107,464
SUT-04.074 104,615
SUT-04.075 105,449
SUT-04.076 102,445
SUT-04.077 105,881
SUT-04.078 102,833
SUT-04.079 104,816
SUT-04.080 103,706
ssj_ops@100% 8,481,824
ssj_ops@100% per JVM 106,023
Graph of per-instance results
JVM 'SUT-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,557
Calibration 2     106,924
Calibration 3     106,817
ssj_ops@calibrated=106,871
100% 99.9% 106,871 106,736
90% 89.5% 96,184 95,662
80% 79.2% 85,497 84,639
70% 69.5% 74,810 74,247
60% 60.1% 64,123 64,184
50% 50.0% 53,435 53,461
40% 40.2% 42,748 42,916
30% 29.8% 32,061 31,839
20% 19.9% 21,374 21,312
10% 10.2% 10,687 10,870
Active Idle   0 0
Graph of results

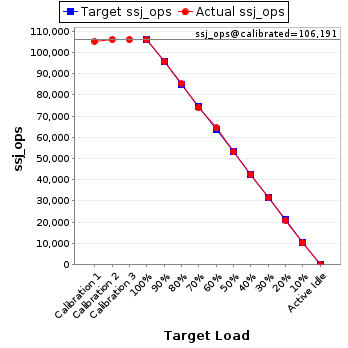

JVM 'SUT-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,306
Calibration 2     106,198
Calibration 3     106,183
ssj_ops@calibrated=106,191
100% 99.8% 106,191 106,002
90% 90.1% 95,572 95,660
80% 80.2% 84,953 85,199
70% 69.9% 74,334 74,246
60% 60.7% 63,715 64,424
50% 50.0% 53,095 53,110
40% 40.1% 42,476 42,571
30% 29.8% 31,857 31,617
20% 19.8% 21,238 21,004
10% 9.7% 10,619 10,258
Active Idle   0 0
Graph of results
JVM 'SUT-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,197
Calibration 2     106,852
Calibration 3     107,095
ssj_ops@calibrated=106,973
100% 99.7% 106,973 106,605
90% 89.9% 96,276 96,161
80% 80.0% 85,579 85,593
70% 70.6% 74,881 75,532
60% 59.6% 64,184 63,717
50% 50.9% 53,487 54,466
40% 39.6% 42,789 42,332
30% 30.3% 32,092 32,382
20% 19.9% 21,395 21,272
10% 9.9% 10,697 10,629
Active Idle   0 0
Graph of results

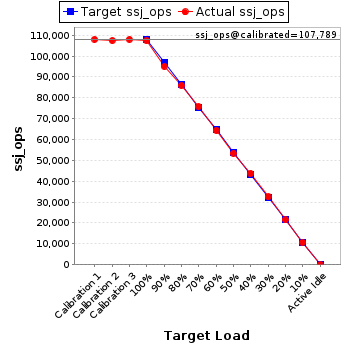

JVM 'SUT-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,039
Calibration 2     107,508
Calibration 3     108,070
ssj_ops@calibrated=107,789
100% 99.7% 107,789 107,519
90% 88.2% 97,010 95,106
80% 79.7% 86,231 85,956
70% 70.3% 75,452 75,817
60% 59.9% 64,673 64,516
50% 49.6% 53,894 53,497
40% 40.7% 43,115 43,841
30% 30.2% 32,337 32,599
20% 20.0% 21,558 21,549
10% 10.0% 10,779 10,732
Active Idle   0 0
Graph of results
JVM 'SUT-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,292
Calibration 2     104,837
Calibration 3     104,734
ssj_ops@calibrated=104,786
100% 99.5% 104,786 104,253
90% 89.7% 94,307 94,024
80% 80.2% 83,829 84,027
70% 70.8% 73,350 74,241
60% 60.1% 62,872 62,930
50% 50.5% 52,393 52,928
40% 39.3% 41,914 41,206
30% 30.3% 31,436 31,713
20% 20.0% 20,957 20,966
10% 10.0% 10,479 10,495
Active Idle   0 0
Graph of results
JVM 'SUT-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,447
Calibration 2     107,403
Calibration 3     107,051
ssj_ops@calibrated=107,227
100% 99.5% 107,227 106,706
90% 89.3% 96,505 95,712
80% 80.7% 85,782 86,497
70% 70.4% 75,059 75,511
60% 58.6% 64,336 62,842
50% 50.4% 53,614 54,047
40% 40.6% 42,891 43,490
30% 29.9% 32,168 32,012
20% 20.4% 21,445 21,828
10% 10.2% 10,723 10,989
Active Idle   0 0
Graph of results
JVM 'SUT-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,060
Calibration 2     106,260
Calibration 3     106,282
ssj_ops@calibrated=106,271
100% 99.7% 106,271 105,908
90% 89.1% 95,644 94,654
80% 79.1% 85,017 84,020
70% 70.0% 74,390 74,339
60% 60.1% 63,763 63,826
50% 49.5% 53,135 52,647
40% 39.6% 42,508 42,120
30% 30.2% 31,881 32,082
20% 19.9% 21,254 21,182
10% 10.0% 10,627 10,660
Active Idle   0 0
Graph of results
JVM 'SUT-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,099
Calibration 2     107,624
Calibration 3     107,825
ssj_ops@calibrated=107,725
100% 99.9% 107,725 107,601
90% 89.4% 96,952 96,335
80% 79.5% 86,180 85,601
70% 69.5% 75,407 74,876
60% 59.8% 64,635 64,433
50% 49.5% 53,862 53,303
40% 40.3% 43,090 43,423
30% 29.9% 32,317 32,184
20% 19.7% 21,545 21,187
10% 10.0% 10,772 10,802
Active Idle   0 0
Graph of results
JVM 'SUT-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,760
Calibration 2     108,064
Calibration 3     108,427
ssj_ops@calibrated=108,246
100% 100.1% 108,246 108,332
90% 88.9% 97,421 96,210
80% 81.2% 86,597 87,901
70% 69.6% 75,772 75,298
60% 59.9% 64,948 64,848
50% 50.1% 54,123 54,215
40% 40.2% 43,298 43,559
30% 30.0% 32,474 32,518
20% 19.9% 21,649 21,563
10% 9.8% 10,825 10,585
Active Idle   0 0
Graph of results
JVM 'SUT-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,296
Calibration 2     105,067
Calibration 3     105,072
ssj_ops@calibrated=105,069
100% 99.5% 105,069 104,541
90% 90.1% 94,563 94,618
80% 80.1% 84,056 84,156
70% 69.7% 73,549 73,220
60% 59.6% 63,042 62,647
50% 50.0% 52,535 52,533
40% 39.8% 42,028 41,789
30% 30.2% 31,521 31,728
20% 20.5% 21,014 21,490
10% 10.0% 10,507 10,470
Active Idle   0 0
Graph of results
JVM 'SUT-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,119
Calibration 2     106,825
Calibration 3     107,096
ssj_ops@calibrated=106,960
100% 99.9% 106,960 106,871
90% 89.9% 96,264 96,148
80% 79.8% 85,568 85,371
70% 69.8% 74,872 74,699
60% 60.3% 64,176 64,532
50% 50.1% 53,480 53,595
40% 39.9% 42,784 42,649
30% 29.9% 32,088 32,017
20% 20.4% 21,392 21,829
10% 9.7% 10,696 10,391
Active Idle   0 0
Graph of results
JVM 'SUT-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,474
Calibration 2     104,935
Calibration 3     104,841
ssj_ops@calibrated=104,888
100% 99.6% 104,888 104,441
90% 89.6% 94,399 94,032
80% 79.6% 83,910 83,502
70% 70.7% 73,422 74,163
60% 60.2% 62,933 63,180
50% 49.8% 52,444 52,222
40% 40.1% 41,955 42,063
30% 30.4% 31,466 31,866
20% 19.7% 20,978 20,711
10% 9.5% 10,489 10,012
Active Idle   0 0
Graph of results
JVM 'SUT-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,366
Calibration 2     108,119
Calibration 3     107,987
ssj_ops@calibrated=108,053
100% 100.0% 108,053 108,006
90% 89.7% 97,247 96,884
80% 80.3% 86,442 86,802
70% 70.2% 75,637 75,903
60% 60.5% 64,832 65,387
50% 49.3% 54,026 53,252
40% 40.0% 43,221 43,217
30% 30.1% 32,416 32,574
20% 19.6% 21,611 21,190
10% 10.1% 10,805 10,866
Active Idle   0 0
Graph of results
JVM 'SUT-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,664
Calibration 2     108,936
Calibration 3     109,187
ssj_ops@calibrated=109,061
100% 100.0% 109,061 109,102
90% 89.4% 98,155 97,449
80% 79.9% 87,249 87,125
70% 69.8% 76,343 76,173
60% 60.2% 65,437 65,648
50% 50.1% 54,531 54,588
40% 40.2% 43,624 43,801
30% 29.9% 32,718 32,648
20% 20.1% 21,812 21,872
10% 9.8% 10,906 10,683
Active Idle   0 0
Graph of results
JVM 'SUT-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,782
Calibration 2     107,649
Calibration 3     107,721
ssj_ops@calibrated=107,685
100% 99.9% 107,685 107,591
90% 90.4% 96,917 97,324
80% 80.3% 86,148 86,471
70% 68.9% 75,380 74,198
60% 60.3% 64,611 64,883
50% 50.2% 53,843 54,052
40% 39.8% 43,074 42,848
30% 29.6% 32,306 31,911
20% 19.8% 21,537 21,354
10% 9.6% 10,769 10,387
Active Idle   0 0
Graph of results
JVM 'SUT-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,357
Calibration 2     106,727
Calibration 3     107,005
ssj_ops@calibrated=106,866
100% 99.9% 106,866 106,761
90% 90.6% 96,179 96,788
80% 80.0% 85,493 85,518
70% 70.2% 74,806 74,979
60% 60.1% 64,120 64,273
50% 50.0% 53,433 53,408
40% 40.0% 42,746 42,694
30% 30.2% 32,060 32,230
20% 19.9% 21,373 21,224
10% 10.2% 10,687 10,908
Active Idle   0 0
Graph of results
JVM 'SUT-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,660
Calibration 2     106,307
Calibration 3     106,633
ssj_ops@calibrated=106,470
100% 100.2% 106,470 106,693
90% 89.7% 95,823 95,453
80% 79.9% 85,176 85,047
70% 69.9% 74,529 74,409
60% 59.9% 63,882 63,742
50% 49.9% 53,235 53,135
40% 39.8% 42,588 42,335
30% 30.1% 31,941 32,096
20% 20.2% 21,294 21,524
10% 9.5% 10,647 10,149
Active Idle   0 0
Graph of results
JVM 'SUT-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,759
Calibration 2     104,617
Calibration 3     104,279
ssj_ops@calibrated=104,448
100% 99.9% 104,448 104,292
90% 90.4% 94,003 94,397
80% 79.3% 83,558 82,827
70% 69.5% 73,113 72,616
60% 60.2% 62,669 62,847
50% 49.7% 52,224 51,903
40% 40.1% 41,779 41,906
30% 29.7% 31,334 31,003
20% 20.4% 20,890 21,336
10% 9.8% 10,445 10,273
Active Idle   0 0
Graph of results
JVM 'SUT-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,169
Calibration 2     105,745
Calibration 3     105,192
ssj_ops@calibrated=105,469
100% 99.3% 105,469 104,695
90% 90.2% 94,922 95,095
80% 79.7% 84,375 84,058
70% 70.0% 73,828 73,829
60% 59.3% 63,281 62,557
50% 50.2% 52,734 52,929
40% 40.2% 42,187 42,376
30% 29.6% 31,641 31,186
20% 20.2% 21,094 21,298
10% 10.1% 10,547 10,681
Active Idle   0 0
Graph of results
JVM 'SUT-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,683
Calibration 2     105,169
Calibration 3     105,576
ssj_ops@calibrated=105,373
100% 99.5% 105,373 104,809
90% 89.6% 94,835 94,390
80% 80.6% 84,298 84,957
70% 70.1% 73,761 73,825
60% 59.0% 63,224 62,214
50% 50.1% 52,686 52,828
40% 40.0% 42,149 42,117
30% 30.3% 31,612 31,935
20% 20.0% 21,075 21,091
10% 9.7% 10,537 10,249
Active Idle   0 0
Graph of results
JVM 'SUT-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,532
Calibration 2     104,989
Calibration 3     105,068
ssj_ops@calibrated=105,029
100% 100.0% 105,029 105,032
90% 90.1% 94,526 94,590
80% 79.4% 84,023 83,376
70% 69.0% 73,520 72,430
60% 60.4% 63,017 63,436
50% 50.1% 52,514 52,644
40% 39.9% 42,011 41,875
30% 29.0% 31,509 30,479
20% 20.0% 21,006 21,046
10% 10.1% 10,503 10,658
Active Idle   0 0
Graph of results
JVM 'SUT-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,060
Calibration 2     104,794
Calibration 3     104,518
ssj_ops@calibrated=104,656
100% 99.3% 104,656 103,922
90% 90.4% 94,191 94,641
80% 79.6% 83,725 83,315
70% 68.9% 73,259 72,132
60% 60.5% 62,794 63,279
50% 50.6% 52,328 52,927
40% 39.7% 41,862 41,568
30% 30.3% 31,397 31,721
20% 20.2% 20,931 21,176
10% 9.9% 10,466 10,366
Active Idle   0 0
Graph of results
JVM 'SUT-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,305
Calibration 2     104,147
Calibration 3     104,125
ssj_ops@calibrated=104,136
100% 100.2% 104,136 104,317
90% 90.3% 93,723 93,997
80% 80.4% 83,309 83,753
70% 69.4% 72,895 72,320
60% 60.2% 62,482 62,678
50% 49.8% 52,068 51,855
40% 40.4% 41,655 42,030
30% 30.1% 31,241 31,360
20% 20.2% 20,827 21,068
10% 10.0% 10,414 10,362
Active Idle   0 0
Graph of results
JVM 'SUT-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,139
Calibration 2     104,726
Calibration 3     104,765
ssj_ops@calibrated=104,746
100% 99.5% 104,746 104,218
90% 88.4% 94,271 92,613
80% 80.3% 83,797 84,061
70% 70.0% 73,322 73,365
60% 60.0% 62,848 62,797
50% 50.3% 52,373 52,637
40% 39.9% 41,898 41,833
30% 29.8% 31,424 31,210
20% 20.4% 20,949 21,348
10% 10.1% 10,475 10,570
Active Idle   0 0
Graph of results
JVM 'SUT-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,428
Calibration 2     106,843
Calibration 3     106,653
ssj_ops@calibrated=106,748
100% 99.3% 106,748 106,043
90% 90.7% 96,073 96,773
80% 80.2% 85,398 85,653
70% 70.1% 74,724 74,822
60% 59.8% 64,049 63,795
50% 49.7% 53,374 53,032
40% 40.4% 42,699 43,105
30% 29.4% 32,024 31,378
20% 19.9% 21,350 21,272
10% 9.9% 10,675 10,579
Active Idle   0 0
Graph of results
JVM 'SUT-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,329
Calibration 2     104,578
Calibration 3     104,906
ssj_ops@calibrated=104,742
100% 99.6% 104,742 104,331
90% 89.6% 94,268 93,826
80% 79.8% 83,793 83,552
70% 69.9% 73,319 73,167
60% 60.7% 62,845 63,546
50% 49.5% 52,371 51,889
40% 39.8% 41,897 41,692
30% 29.8% 31,423 31,179
20% 19.8% 20,948 20,714
10% 10.3% 10,474 10,751
Active Idle   0 0
Graph of results
JVM 'SUT-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,227
Calibration 2     106,613
Calibration 3     106,397
ssj_ops@calibrated=106,505
100% 99.7% 106,505 106,142
90% 89.9% 95,855 95,791
80% 79.5% 85,204 84,670
70% 70.0% 74,554 74,520
60% 59.8% 63,903 63,669
50% 49.8% 53,253 52,998
40% 39.9% 42,602 42,490
30% 29.7% 31,952 31,631
20% 20.0% 21,301 21,320
10% 10.1% 10,651 10,795
Active Idle   0 0
Graph of results
JVM 'SUT-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,757
Calibration 2     107,968
Calibration 3     107,942
ssj_ops@calibrated=107,955
100% 99.5% 107,955 107,410
90% 89.3% 97,159 96,377
80% 79.2% 86,364 85,554
70% 70.1% 75,568 75,725
60% 60.7% 64,773 65,510
50% 50.5% 53,977 54,508
40% 40.1% 43,182 43,304
30% 29.9% 32,386 32,253
20% 19.5% 21,591 21,093
10% 9.9% 10,795 10,727
Active Idle   0 0
Graph of results
JVM 'SUT-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,959
Calibration 2     105,761
Calibration 3     105,934
ssj_ops@calibrated=105,847
100% 99.8% 105,847 105,674
90% 89.8% 95,262 95,008
80% 79.9% 84,678 84,597
70% 70.4% 74,093 74,526
60% 60.8% 63,508 64,387
50% 50.6% 52,924 53,568
40% 39.6% 42,339 41,961
30% 30.1% 31,754 31,869
20% 19.8% 21,169 20,997
10% 10.5% 10,585 11,099
Active Idle   0 0
Graph of results
JVM 'SUT-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,083
Calibration 2     108,407
Calibration 3     108,410
ssj_ops@calibrated=108,408
100% 99.6% 108,408 108,002
90% 90.2% 97,568 97,792
80% 79.8% 86,727 86,534
70% 68.9% 75,886 74,727
60% 59.6% 65,045 64,642
50% 49.9% 54,204 54,126
40% 40.0% 43,363 43,387
30% 29.6% 32,523 32,135
20% 20.0% 21,682 21,720
10% 9.9% 10,841 10,741
Active Idle   0 0
Graph of results
JVM 'SUT-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,275
Calibration 2     109,753
Calibration 3     109,935
ssj_ops@calibrated=109,844
100% 100.1% 109,844 109,946
90% 89.6% 98,860 98,439
80% 80.1% 87,875 87,962
70% 69.2% 76,891 76,057
60% 60.3% 65,907 66,263
50% 49.7% 54,922 54,614
40% 39.9% 43,938 43,791
30% 30.1% 32,953 33,022
20% 19.4% 21,969 21,362
10% 9.9% 10,984 10,924
Active Idle   0 0

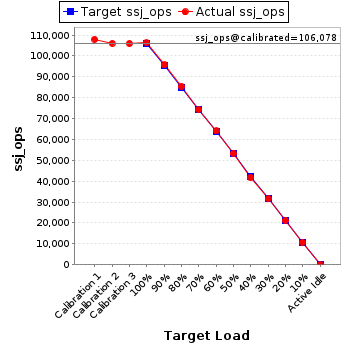

Graph of results
JVM 'SUT-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,012
Calibration 2     106,142
Calibration 3     106,014
ssj_ops@calibrated=106,078
100% 100.1% 106,078 106,220
90% 90.3% 95,470 95,740
80% 80.7% 84,863 85,570
70% 70.1% 74,255 74,341
60% 60.4% 63,647 64,046
50% 50.3% 53,039 53,376
40% 39.5% 42,431 41,896
30% 29.8% 31,823 31,657
20% 20.1% 21,216 21,330
10% 10.1% 10,608 10,741
Active Idle   0 0
Graph of results
JVM 'SUT-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,406
Calibration 2     106,093
Calibration 3     106,130
ssj_ops@calibrated=106,112
100% 99.7% 106,112 105,837
90% 89.1% 95,500 94,517
80% 79.9% 84,889 84,739
70% 70.6% 74,278 74,948
60% 60.0% 63,667 63,674
50% 49.7% 53,056 52,744
40% 39.5% 42,445 41,888
30% 30.4% 31,833 32,269
20% 20.1% 21,222 21,320
10% 10.1% 10,611 10,695
Active Idle   0 0
Graph of results
JVM 'SUT-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,918
Calibration 2     108,255
Calibration 3     108,196
ssj_ops@calibrated=108,225
100% 99.9% 108,225 108,089
90% 89.7% 97,403 97,064
80% 80.8% 86,580 87,493
70% 69.9% 75,758 75,643
60% 60.0% 64,935 64,914
50% 50.4% 54,113 54,501
40% 40.1% 43,290 43,429
30% 29.9% 32,468 32,388
20% 19.7% 21,645 21,372
10% 10.2% 10,823 11,074
Active Idle   0 0
Graph of results
JVM 'SUT-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,683
Calibration 2     106,878
Calibration 3     107,073
ssj_ops@calibrated=106,976
100% 100.1% 106,976 107,060
90% 89.9% 96,278 96,221
80% 81.4% 85,580 87,038
70% 70.6% 74,883 75,556
60% 59.5% 64,185 63,668
50% 50.3% 53,488 53,857
40% 40.0% 42,790 42,766
30% 30.1% 32,093 32,238
20% 20.0% 21,395 21,384
10% 10.4% 10,698 11,165
Active Idle   0 0
Graph of results
JVM 'SUT-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,087
Calibration 2     105,388
Calibration 3     105,484
ssj_ops@calibrated=105,436
100% 100.0% 105,436 105,413
90% 90.5% 94,892 95,466
80% 80.0% 84,349 84,312
70% 70.1% 73,805 73,879
60% 59.7% 63,262 62,896
50% 50.5% 52,718 53,256
40% 40.0% 42,174 42,123
30% 30.3% 31,631 31,901
20% 19.7% 21,087 20,753
10% 9.9% 10,544 10,441
Active Idle   0 0
Graph of results
JVM 'SUT-04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,054
Calibration 2     105,674
Calibration 3     105,514
ssj_ops@calibrated=105,594
100% 100.2% 105,594 105,793
90% 90.0% 95,035 95,074
80% 80.4% 84,475 84,877
70% 69.1% 73,916 72,976
60% 60.7% 63,356 64,063
50% 50.7% 52,797 53,532
40% 40.0% 42,238 42,186
30% 29.9% 31,678 31,576
20% 19.6% 21,119 20,644
10% 10.0% 10,559 10,512
Active Idle   0 0
Graph of results
JVM 'SUT-04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,421
Calibration 2     106,201
Calibration 3     106,108
ssj_ops@calibrated=106,155
100% 99.7% 106,155 105,868
90% 89.8% 95,539 95,329
80% 80.6% 84,924 85,541
70% 69.5% 74,308 73,776
60% 59.8% 63,693 63,479
50% 49.1% 53,077 52,160
40% 39.4% 42,462 41,789
30% 30.2% 31,846 32,098
20% 20.2% 21,231 21,454
10% 9.9% 10,615 10,550
Active Idle   0 0
Graph of results
JVM 'SUT-04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,893
Calibration 2     106,172
Calibration 3     105,778
ssj_ops@calibrated=105,975
100% 100.0% 105,975 106,011
90% 89.7% 95,377 95,056
80% 79.8% 84,780 84,515
70% 70.5% 74,182 74,669
60% 60.5% 63,585 64,164
50% 49.8% 52,987 52,816
40% 40.6% 42,390 42,975
30% 29.7% 31,792 31,519
20% 19.8% 21,195 20,978
10% 10.1% 10,597 10,744
Active Idle   0 0
Graph of results
JVM 'SUT-04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,269
Calibration 2     104,725
Calibration 3     104,477
ssj_ops@calibrated=104,601
100% 99.4% 104,601 104,015
90% 91.2% 94,140 95,417
80% 81.4% 83,680 85,117
70% 69.0% 73,220 72,196
60% 60.1% 62,760 62,880
50% 49.8% 52,300 52,085
40% 39.8% 41,840 41,615
30% 30.6% 31,380 32,020
20% 19.9% 20,920 20,811
10% 10.1% 10,460 10,585
Active Idle   0 0
Graph of results
JVM 'SUT-04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,967
Calibration 2     107,345
Calibration 3     107,357
ssj_ops@calibrated=107,351
100% 99.7% 107,351 106,996
90% 89.9% 96,616 96,501
80% 80.8% 85,881 86,737
70% 70.3% 75,146 75,431
60% 59.6% 64,411 63,986
50% 50.0% 53,676 53,692
40% 40.0% 42,940 42,963
30% 29.9% 32,205 32,130
20% 19.9% 21,470 21,374
10% 10.2% 10,735 10,916
Active Idle   0 0
Graph of results
JVM 'SUT-04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,253
Calibration 2     106,876
Calibration 3     106,935
ssj_ops@calibrated=106,905
100% 99.4% 106,905 106,243
90% 90.6% 96,215 96,829
80% 79.1% 85,524 84,598
70% 69.3% 74,834 74,138
60% 60.1% 64,143 64,237
50% 50.2% 53,453 53,680
40% 39.9% 42,762 42,690
30% 29.8% 32,072 31,894
20% 19.5% 21,381 20,827
10% 10.4% 10,691 11,070
Active Idle   0 0
Graph of results
JVM 'SUT-04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,917
Calibration 2     105,073
Calibration 3     104,804
ssj_ops@calibrated=104,939
100% 99.9% 104,939 104,854
90% 89.9% 94,445 94,366
80% 80.8% 83,951 84,838
70% 69.5% 73,457 72,956
60% 59.9% 62,963 62,815
50% 49.4% 52,469 51,791
40% 40.0% 41,975 41,982
30% 30.3% 31,482 31,770
20% 19.6% 20,988 20,620
10% 9.9% 10,494 10,387
Active Idle   0 0
Graph of results
JVM 'SUT-04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,164
Calibration 2     105,489
Calibration 3     105,496
ssj_ops@calibrated=105,493
100% 99.9% 105,493 105,403
90% 89.1% 94,943 94,027
80% 79.9% 84,394 84,298
70% 70.6% 73,845 74,523
60% 59.8% 63,296 63,059
50% 49.6% 52,746 52,275
40% 39.9% 42,197 42,110
30% 29.4% 31,648 31,031
20% 19.9% 21,099 20,957
10% 9.8% 10,549 10,287
Active Idle   0 0
Graph of results
JVM 'SUT-04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,858
Calibration 2     107,815
Calibration 3     107,812
ssj_ops@calibrated=107,813
100% 100.0% 107,813 107,784
90% 90.1% 97,032 97,095
80% 80.2% 86,251 86,483
70% 71.0% 75,469 76,530
60% 59.9% 64,688 64,614
50% 49.9% 53,907 53,827
40% 40.1% 43,125 43,213
30% 29.3% 32,344 31,598
20% 19.8% 21,563 21,334
10% 9.8% 10,781 10,552
Active Idle   0 0
Graph of results
JVM 'SUT-04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,921
Calibration 2     107,204
Calibration 3     107,297
ssj_ops@calibrated=107,251
100% 100.0% 107,251 107,237
90% 90.1% 96,526 96,684
80% 79.2% 85,801 84,961
70% 70.1% 75,075 75,231
60% 60.4% 64,350 64,815
50% 49.7% 53,625 53,293
40% 39.8% 42,900 42,679
30% 30.5% 32,175 32,682
20% 19.9% 21,450 21,307
10% 10.2% 10,725 10,949
Active Idle   0 0
Graph of results
JVM 'SUT-04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,291
Calibration 2     106,065
Calibration 3     106,155
ssj_ops@calibrated=106,110
100% 100.1% 106,110 106,200
90% 89.2% 95,499 94,686
80% 79.9% 84,888 84,763
70% 69.9% 74,277 74,157
60% 59.7% 63,666 63,317
50% 50.6% 53,055 53,724
40% 40.0% 42,444 42,450
30% 29.6% 31,833 31,436
20% 19.8% 21,222 21,006
10% 10.0% 10,611 10,592
Active Idle   0 0
Graph of results
JVM 'SUT-04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,934
Calibration 2     108,068
Calibration 3     108,363
ssj_ops@calibrated=108,216
100% 99.9% 108,216 108,087
90% 89.9% 97,394 97,276
80% 79.8% 86,573 86,370
70% 70.0% 75,751 75,772
60% 60.4% 64,930 65,386
50% 50.0% 54,108 54,094
40% 40.3% 43,286 43,659
30% 29.9% 32,465 32,396
20% 19.9% 21,643 21,504
10% 10.3% 10,822 11,110
Active Idle   0 0
Graph of results
JVM 'SUT-04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,393
Calibration 2     105,621
Calibration 3     105,441
ssj_ops@calibrated=105,531
100% 99.9% 105,531 105,377
90% 89.6% 94,978 94,553
80% 80.8% 84,425 85,222
70% 69.8% 73,872 73,661
60% 60.5% 63,319 63,831
50% 50.0% 52,765 52,740
40% 39.4% 42,212 41,559
30% 29.6% 31,659 31,207
20% 20.1% 21,106 21,162
10% 10.0% 10,553 10,512
Active Idle   0 0
Graph of results
JVM 'SUT-04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,548
Calibration 2     108,492
Calibration 3     108,765
ssj_ops@calibrated=108,629
100% 99.8% 108,629 108,405
90% 90.3% 97,766 98,143
80% 79.8% 86,903 86,663
70% 70.3% 76,040 76,345
60% 59.6% 65,177 64,725
50% 49.6% 54,314 53,882
40% 40.4% 43,452 43,884
30% 30.2% 32,589 32,827
20% 20.2% 21,726 21,945
10% 9.8% 10,863 10,599
Active Idle   0 0
Graph of results
JVM 'SUT-04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,418
Calibration 2     107,087
Calibration 3     107,399
ssj_ops@calibrated=107,243
100% 99.8% 107,243 106,983
90% 89.5% 96,519 95,935
80% 79.6% 85,795 85,352
70% 69.7% 75,070 74,700
60% 60.3% 64,346 64,623
50% 50.5% 53,622 54,138
40% 40.0% 42,897 42,938
30% 30.0% 32,173 32,213
20% 20.1% 21,449 21,590
10% 9.5% 10,724 10,166
Active Idle   0 0
Graph of results
JVM 'SUT-04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,767
Calibration 2     107,105
Calibration 3     107,056
ssj_ops@calibrated=107,080
100% 99.9% 107,080 107,026
90% 89.4% 96,372 95,700
80% 80.5% 85,664 86,208
70% 69.9% 74,956 74,825
60% 60.1% 64,248 64,328
50% 50.8% 53,540 54,417
40% 39.7% 42,832 42,495
30% 30.4% 32,124 32,529
20% 19.7% 21,416 21,099
10% 10.0% 10,708 10,699
Active Idle   0 0
Graph of results
JVM 'SUT-04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,316
Calibration 2     107,218
Calibration 3     107,750
ssj_ops@calibrated=107,484
100% 99.6% 107,484 107,035
90% 90.0% 96,735 96,774
80% 80.0% 85,987 85,954
70% 69.8% 75,239 75,077
60% 60.2% 64,490 64,688
50% 50.0% 53,742 53,748
40% 39.9% 42,994 42,898
30% 30.0% 32,245 32,244
20% 20.6% 21,497 22,190
10% 9.7% 10,748 10,445
Active Idle   0 0
Graph of results
JVM 'SUT-04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,773
Calibration 2     105,523
Calibration 3     105,415
ssj_ops@calibrated=105,469
100% 99.1% 105,469 104,528
90% 90.8% 94,922 95,746
80% 80.7% 84,375 85,161
70% 70.9% 73,828 74,747
60% 59.8% 63,281 63,112
50% 50.1% 52,734 52,795
40% 39.3% 42,187 41,441
30% 30.8% 31,641 32,455
20% 20.0% 21,094 21,091
10% 9.9% 10,547 10,433
Active Idle   0 0
Graph of results
JVM 'SUT-04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,357
Calibration 2     105,259
Calibration 3     105,343
ssj_ops@calibrated=105,301
100% 100.0% 105,301 105,257
90% 89.1% 94,771 93,830
80% 79.2% 84,241 83,444
70% 70.6% 73,710 74,375
60% 60.6% 63,180 63,842
50% 50.3% 52,650 52,980
40% 39.6% 42,120 41,683
30% 30.3% 31,590 31,919
20% 20.1% 21,060 21,183
10% 9.5% 10,530 10,054
Active Idle   0 0
Graph of results
JVM 'SUT-04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,332
Calibration 2     104,610
Calibration 3     104,518
ssj_ops@calibrated=104,564
100% 100.1% 104,564 104,690
90% 90.3% 94,108 94,462
80% 79.6% 83,651 83,210
70% 69.1% 73,195 72,258
60% 59.5% 62,738 62,203
50% 50.1% 52,282 52,389
40% 40.0% 41,826 41,847
30% 29.6% 31,369 30,935
20% 20.0% 20,913 20,955
10% 10.4% 10,456 10,849
Active Idle   0 0
Graph of results
JVM 'SUT-04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,598
Calibration 2     106,650
Calibration 3     106,625
ssj_ops@calibrated=106,637
100% 99.3% 106,637 105,856
90% 89.6% 95,974 95,513
80% 80.4% 85,310 85,780
70% 70.8% 74,646 75,539
60% 60.1% 63,982 64,067
50% 49.5% 53,319 52,764
40% 40.9% 42,655 43,562
30% 30.0% 31,991 31,943
20% 20.5% 21,327 21,858
10% 9.9% 10,664 10,606
Active Idle   0 0
Graph of results
JVM 'SUT-04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,611
Calibration 2     104,661
Calibration 3     105,036
ssj_ops@calibrated=104,848
100% 99.9% 104,848 104,701
90% 90.1% 94,363 94,491
80% 79.4% 83,879 83,284
70% 70.3% 73,394 73,746
60% 60.1% 62,909 63,061
50% 49.7% 52,424 52,100
40% 39.5% 41,939 41,403
30% 30.3% 31,454 31,776
20% 19.7% 20,970 20,696
10% 10.1% 10,485 10,579
Active Idle   0 0
Graph of results
JVM 'SUT-04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,921
Calibration 2     105,788
Calibration 3     105,822
ssj_ops@calibrated=105,805
100% 99.6% 105,805 105,337
90% 90.6% 95,224 95,902
80% 79.3% 84,644 83,891
70% 70.2% 74,063 74,254
60% 60.2% 63,483 63,747
50% 50.0% 52,902 52,873
40% 39.9% 42,322 42,263
30% 30.1% 31,741 31,797
20% 19.7% 21,161 20,874
10% 10.1% 10,580 10,733
Active Idle   0 0
Graph of results

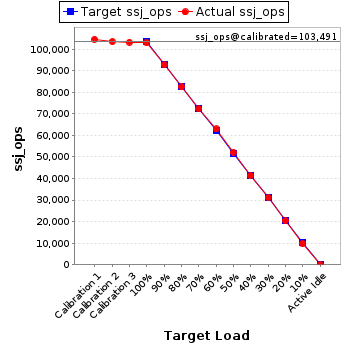

JVM 'SUT-04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,641
Calibration 2     103,625
Calibration 3     103,357
ssj_ops@calibrated=103,491
100% 99.6% 103,491 103,106
90% 89.6% 93,142 92,691
80% 79.8% 82,793 82,546
70% 69.9% 72,443 72,292
60% 60.9% 62,094 62,976
50% 50.5% 51,745 52,220
40% 39.9% 41,396 41,269
30% 30.2% 31,047 31,203
20% 19.7% 20,698 20,412
10% 9.6% 10,349 9,983
Active Idle   0 0
Graph of results
JVM 'SUT-04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,843
Calibration 2     105,814
Calibration 3     106,140
ssj_ops@calibrated=105,977
100% 100.1% 105,977 106,118
90% 89.3% 95,380 94,682
80% 80.4% 84,782 85,206
70% 69.7% 74,184 73,836
60% 60.8% 63,586 64,411
50% 50.0% 52,989 52,940
40% 40.5% 42,391 42,904
30% 30.1% 31,793 31,944
20% 19.9% 21,195 21,041
10% 9.8% 10,598 10,397
Active Idle   0 0
Graph of results
JVM 'SUT-04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,301
Calibration 2     106,378
Calibration 3     106,611
ssj_ops@calibrated=106,494
100% 99.7% 106,494 106,182
90% 89.7% 95,845 95,489
80% 80.3% 85,196 85,549
70% 70.0% 74,546 74,591
60% 59.6% 63,897 63,496
50% 50.1% 53,247 53,322
40% 39.6% 42,598 42,195
30% 29.8% 31,948 31,714
20% 20.5% 21,299 21,821
10% 9.8% 10,649 10,437
Active Idle   0 0
Graph of results

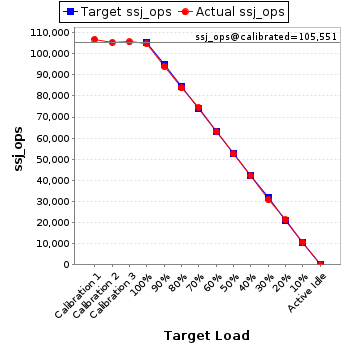

JVM 'SUT-04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,884
Calibration 2     105,457
Calibration 3     105,645
ssj_ops@calibrated=105,551
100% 99.4% 105,551 104,959
90% 89.2% 94,996 94,100
80% 79.4% 84,441 83,765
70% 70.7% 73,886 74,576
60% 59.8% 63,331 63,129
50% 49.8% 52,776 52,528
40% 40.1% 42,221 42,290
30% 29.3% 31,665 30,901
20% 20.1% 21,110 21,195
10% 10.2% 10,555 10,733
Active Idle   0 0
Graph of results
JVM 'SUT-04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,618
Calibration 2     105,919
Calibration 3     105,871
ssj_ops@calibrated=105,895
100% 99.8% 105,895 105,654
90% 90.9% 95,306 96,253
80% 79.6% 84,716 84,244
70% 69.8% 74,127 73,920
60% 60.0% 63,537 63,535
50% 50.5% 52,948 53,462
40% 40.0% 42,358 42,407
30% 30.6% 31,769 32,389
20% 20.0% 21,179 21,228
10% 10.0% 10,590 10,642
Active Idle   0 0
Graph of results
JVM 'SUT-04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,335
Calibration 2     107,636
Calibration 3     107,704
ssj_ops@calibrated=107,670
100% 99.3% 107,670 106,911
90% 89.7% 96,903 96,582
80% 79.9% 86,136 86,020
70% 70.2% 75,369 75,582
60% 59.6% 64,602 64,200
50% 50.0% 53,835 53,837
40% 40.2% 43,068 43,296
30% 30.1% 32,301 32,372
20% 20.1% 21,534 21,634
10% 9.7% 10,767 10,413
Active Idle   0 0
Graph of results
JVM 'SUT-04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,208
Calibration 2     108,453
Calibration 3     108,902
ssj_ops@calibrated=108,677
100% 99.8% 108,677 108,503
90% 90.0% 97,809 97,778
80% 79.5% 86,942 86,430
70% 69.7% 76,074 75,745
60% 59.9% 65,206 65,063
50% 49.6% 54,339 53,899
40% 40.0% 43,471 43,450
30% 30.2% 32,603 32,768
20% 20.1% 21,735 21,860
10% 9.8% 10,868 10,633
Active Idle   0 0
Graph of results
JVM 'SUT-04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,371
Calibration 2     107,687
Calibration 3     108,160
ssj_ops@calibrated=107,924
100% 99.6% 107,924 107,529
90% 89.5% 97,131 96,568
80% 79.5% 86,339 85,781
70% 69.4% 75,546 74,916
60% 59.5% 64,754 64,240
50% 49.9% 53,962 53,847
40% 39.7% 43,169 42,830
30% 30.0% 32,377 32,344
20% 19.9% 21,585 21,495
10% 9.7% 10,792 10,494
Active Idle   0 0
Graph of results
JVM 'SUT-04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,867
Calibration 2     103,582
Calibration 3     103,588
ssj_ops@calibrated=103,585
100% 100.0% 103,585 103,558
90% 90.0% 93,227 93,207
80% 78.9% 82,868 81,752
70% 69.6% 72,510 72,060
60% 59.5% 62,151 61,618
50% 50.5% 51,793 52,342
40% 39.9% 41,434 41,309
30% 30.4% 31,076 31,446
20% 19.7% 20,717 20,416
10% 9.9% 10,359 10,283
Active Idle   0 0
Graph of results
JVM 'SUT-04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,942
Calibration 2     106,513
Calibration 3     106,994
ssj_ops@calibrated=106,753
100% 99.6% 106,753 106,349
90% 90.3% 96,078 96,398
80% 79.1% 85,403 84,492
70% 69.7% 74,727 74,455
60% 60.7% 64,052 64,829
50% 50.2% 53,377 53,633
40% 39.3% 42,701 41,938
30% 30.1% 32,026 32,134
20% 19.9% 21,351 21,242
10% 10.0% 10,675 10,720
Active Idle   0 0
Graph of results
JVM 'SUT-04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,734
Calibration 2     107,495
Calibration 3     107,620
ssj_ops@calibrated=107,557
100% 99.8% 107,557 107,358
90% 90.0% 96,802 96,767
80% 79.6% 86,046 85,643
70% 70.3% 75,290 75,652
60% 60.1% 64,534 64,694
50% 49.7% 53,779 53,420
40% 39.2% 43,023 42,124
30% 29.5% 32,267 31,730
20% 20.2% 21,511 21,756
10% 9.8% 10,756 10,587
Active Idle   0 0
Graph of results
JVM 'SUT-04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,464
Calibration 2     107,445
Calibration 3     107,580
ssj_ops@calibrated=107,513
100% 100.0% 107,513 107,460
90% 89.7% 96,761 96,455
80% 80.7% 86,010 86,797
70% 70.2% 75,259 75,456
60% 59.5% 64,508 63,978
50% 49.6% 53,756 53,306
40% 39.9% 43,005 42,844
30% 30.0% 32,254 32,229
20% 19.9% 21,503 21,382
10% 10.0% 10,751 10,750
Active Idle   0 0
Graph of results
JVM 'SUT-04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,704
Calibration 2     106,486
Calibration 3     106,582
ssj_ops@calibrated=106,534
100% 99.6% 106,534 106,120
90% 89.7% 95,881 95,537
80% 80.2% 85,227 85,474
70% 70.7% 74,574 75,324
60% 60.6% 63,920 64,529
50% 49.8% 53,267 53,010
40% 40.4% 42,614 43,030
30% 29.5% 31,960 31,407
20% 20.2% 21,307 21,547
10% 10.1% 10,653 10,712
Active Idle   0 0
Graph of results
JVM 'SUT-04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,568
Calibration 2     108,185
Calibration 3     108,197
ssj_ops@calibrated=108,191
100% 99.3% 108,191 107,464
90% 90.0% 97,372 97,411
80% 81.6% 86,553 88,331
70% 70.1% 75,733 75,887
60% 59.9% 64,914 64,845
50% 50.0% 54,095 54,088
40% 39.7% 43,276 42,914
30% 29.5% 32,457 31,969
20% 20.0% 21,638 21,622
10% 10.0% 10,819 10,804
Active Idle   0 0
Graph of results
JVM 'SUT-04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,999
Calibration 2     104,279
Calibration 3     104,386
ssj_ops@calibrated=104,333
100% 100.3% 104,333 104,615
90% 89.4% 93,899 93,283
80% 79.2% 83,466 82,595
70% 69.6% 73,033 72,619
60% 60.5% 62,600 63,156
50% 49.4% 52,166 51,507
40% 39.5% 41,733 41,160
30% 29.8% 31,300 31,142
20% 20.4% 20,867 21,236
10% 10.1% 10,433 10,491
Active Idle   0 0
Graph of results
JVM 'SUT-04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,831
Calibration 2     106,197
Calibration 3     106,554
ssj_ops@calibrated=106,376
100% 99.1% 106,376 105,449
90% 89.6% 95,738 95,357
80% 81.0% 85,100 86,198
70% 69.9% 74,463 74,360
60% 59.8% 63,825 63,592
50% 49.6% 53,188 52,710
40% 39.3% 42,550 41,853
30% 29.8% 31,913 31,720
20% 20.1% 21,275 21,389
10% 10.0% 10,638 10,679
Active Idle   0 0
Graph of results
JVM 'SUT-04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,749
Calibration 2     103,058
Calibration 3     103,260
ssj_ops@calibrated=103,159
100% 99.3% 103,159 102,445
90% 89.9% 92,843 92,705
80% 79.8% 82,527 82,305
70% 69.3% 72,211 71,455
60% 60.2% 61,895 62,115
50% 49.2% 51,579 50,796
40% 39.4% 41,264 40,627
30% 29.7% 30,948 30,665
20% 20.5% 20,632 21,182
10% 10.1% 10,316 10,429
Active Idle   0 0
Graph of results
JVM 'SUT-04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,927
Calibration 2     106,464
Calibration 3     106,258
ssj_ops@calibrated=106,361
100% 99.5% 106,361 105,881
90% 90.2% 95,725 95,928
80% 80.0% 85,089 85,064
70% 70.3% 74,453 74,799
60% 59.8% 63,817 63,579
50% 49.2% 53,181 52,298
40% 39.6% 42,544 42,075
30% 30.1% 31,908 31,963
20% 19.7% 21,272 20,990
10% 9.9% 10,636 10,537
Active Idle   0 0
Graph of results
JVM 'SUT-04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,125
Calibration 2     103,433
Calibration 3     103,377
ssj_ops@calibrated=103,405
100% 99.4% 103,405 102,833
90% 90.4% 93,065 93,528
80% 79.0% 82,724 81,667
70% 70.3% 72,384 72,661
60% 59.9% 62,043 61,934
50% 50.1% 51,703 51,767
40% 39.8% 41,362 41,110
30% 30.1% 31,022 31,114
20% 19.6% 20,681 20,316
10% 10.2% 10,341 10,510
Active Idle   0 0
Graph of results
JVM 'SUT-04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,328
Calibration 2     104,595
Calibration 3     104,501
ssj_ops@calibrated=104,548
100% 100.3% 104,548 104,816
90% 88.9% 94,093 92,957
80% 79.2% 83,638 82,776
70% 70.5% 73,184 73,731
60% 59.6% 62,729 62,319
50% 49.4% 52,274 51,680
40% 39.9% 41,819 41,717
30% 30.2% 31,364 31,525
20% 20.0% 20,910 20,885
10% 10.0% 10,455 10,441
Active Idle   0 0
Graph of results

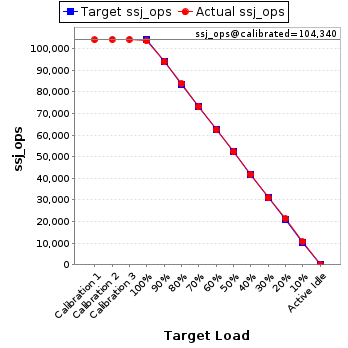

JVM 'SUT-04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,134
Calibration 2     104,312
Calibration 3     104,368
ssj_ops@calibrated=104,340
100% 99.4% 104,340 103,706
90% 90.0% 93,906 93,911
80% 80.3% 83,472 83,798
70% 70.1% 73,038 73,132
60% 59.9% 62,604 62,494
50% 50.2% 52,170 52,337
40% 40.1% 41,736 41,814
30% 29.7% 31,302 30,963
20% 20.4% 20,868 21,295
10% 10.1% 10,434 10,512
Active Idle   0 0
Graph of results
