Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module | SPECpower_ssj2008 = 11,807 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Dec 3, 2021 |
Hardware Availability: | Apr-2021 | Software Availability: | Sep-2021 | Publication: | Feb 3, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

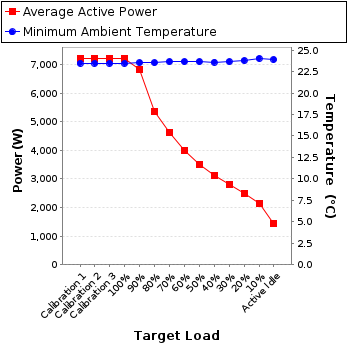

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 7,211 | 23.5 |
Calibration 2 | 7,219 | 23.5 |
Calibration 3 | 7,219 | 23.5 |
100% | 7,210 | 23.5 |
90% | 6,833 | 23.6 |
80% | 5,342 | 23.6 |
70% | 4,609 | 23.7 |
60% | 4,001 | 23.7 |
50% | 3,509 | 23.7 |
40% | 3,124 | 23.6 |
30% | 2,796 | 23.7 |
20% | 2,482 | 23.8 |
10% | 2,153 | 24.1 |
Active Idle | 1,447 | 23.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-80-1 |
Date of Calibration: | 14-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 1 and 2 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47169 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F91A5-220-1 |
Date of Calibration: | 26-Jun-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 3 and 4 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91K112854 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-40-1 |
Date of Calibration: | 15-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 5 and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

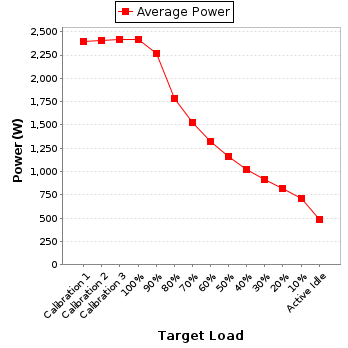

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 11.2 | 20.0 | 0.997 | 2,395 | 0.4% |
Calibration 2 | 216 | 300.0 | 11.2 | 20.0 | 0.997 | 2,408 | 0.4% |
Calibration 3 | 216 | 300.0 | 11.3 | 20.0 | 0.997 | 2,419 | 0.4% |
100% | 216 | 300.0 | 11.2 | 20.0 | 0.997 | 2,414 | 0.4% |
90% | 216 | 300.0 | 10.5 | 20.0 | 0.997 | 2,263 | 0.4% |
80% | 216 | 300.0 | 8.27 | 10.0 | 0.996 | 1,782 | 0.3% |
70% | 217 | 300.0 | 7.07 | 10.0 | 0.994 | 1,523 | 0.4% |
60% | 215 | 300.0 | 6.18 | 10.0 | 0.994 | 1,317 | 0.4% |
50% | 214 | 300.0 | 5.43 | 10.0 | 0.992 | 1,156 | 0.4% |
40% | 215 | 300.0 | 4.83 | 10.0 | 0.990 | 1,026 | 0.5% |
30% | 215 | 300.0 | 4.32 | 10.0 | 0.988 | 917 | 0.5% |
20% | 215 | 300.0 | 3.84 | 5.0 | 0.984 | 813 | 0.4% |
10% | 215 | 300.0 | 3.36 | 5.0 | 0.980 | 708 | 0.4% |
Active Idle | 215 | 300.0 | 2.34 | 5.0 | 0.959 | 484 | 0.5% |

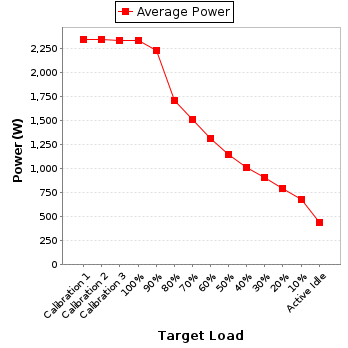

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 11.1 | 20.0 | 0.995 | 2,348 | 0.4% |
Calibration 2 | 213 | 300.0 | 11.1 | 20.0 | 0.995 | 2,345 | 0.4% |
Calibration 3 | 213 | 300.0 | 11.0 | 20.0 | 0.994 | 2,339 | 0.4% |
100% | 213 | 300.0 | 11.0 | 20.0 | 0.994 | 2,333 | 0.4% |
90% | 213 | 300.0 | 10.5 | 20.0 | 0.994 | 2,230 | 0.4% |
80% | 214 | 300.0 | 8.09 | 10.0 | 0.990 | 1,712 | 0.4% |
70% | 214 | 300.0 | 7.15 | 10.0 | 0.986 | 1,509 | 0.4% |
60% | 212 | 300.0 | 6.28 | 10.0 | 0.984 | 1,309 | 0.4% |
50% | 212 | 300.0 | 5.52 | 10.0 | 0.979 | 1,145 | 0.5% |
40% | 212 | 300.0 | 4.92 | 10.0 | 0.974 | 1,017 | 0.5% |
30% | 212 | 300.0 | 4.42 | 10.0 | 0.969 | 907 | 0.5% |
20% | 212 | 300.0 | 3.92 | 5.0 | 0.961 | 798 | 0.4% |
10% | 212 | 300.0 | 3.39 | 5.0 | 0.950 | 683 | 0.4% |
Active Idle | 213 | 300.0 | 2.26 | 5.0 | 0.910 | 437 | 0.6% |

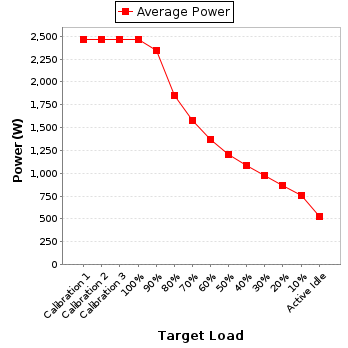

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 11.5 | 10.0 | 0.996 | 2,468 | 0.4% |
Calibration 2 | 215 | 300.0 | 11.5 | 10.0 | 0.996 | 2,465 | 0.4% |
Calibration 3 | 216 | 300.0 | 11.5 | 10.0 | 0.996 | 2,460 | 0.4% |
100% | 215 | 300.0 | 11.5 | 10.0 | 0.996 | 2,463 | 0.4% |
90% | 216 | 300.0 | 10.9 | 10.0 | 0.996 | 2,341 | 0.3% |
80% | 216 | 300.0 | 8.58 | 10.0 | 0.995 | 1,847 | 0.3% |
70% | 217 | 300.0 | 7.34 | 10.0 | 0.993 | 1,578 | 0.4% |
60% | 214 | 300.0 | 6.45 | 10.0 | 0.993 | 1,374 | 0.4% |
50% | 214 | 300.0 | 5.69 | 10.0 | 0.991 | 1,209 | 0.4% |
40% | 215 | 300.0 | 5.10 | 10.0 | 0.988 | 1,081 | 0.5% |
30% | 215 | 300.0 | 4.59 | 10.0 | 0.985 | 971 | 0.5% |
20% | 215 | 300.0 | 4.12 | 10.0 | 0.982 | 870 | 0.5% |
10% | 215 | 300.0 | 3.63 | 5.0 | 0.976 | 762 | 0.4% |
Active Idle | 215 | 300.0 | 2.57 | 5.0 | 0.951 | 527 | 0.5% |
