Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 106,640
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,476
Calibration 2     106,290
Calibration 3     106,458
ssj_ops@calibrated=106,374
100% 100.2% 106,374 106,640
90% 89.8% 95,736 95,492
80% 80.1% 85,099 85,227
70% 69.7% 74,462 74,184
60% 59.9% 63,824 63,671
50% 49.9% 53,187 53,118
40% 39.5% 42,550 41,984
30% 30.1% 31,912 32,052
20% 20.5% 21,275 21,824
10% 9.9% 10,637 10,570
Active Idle   0 0

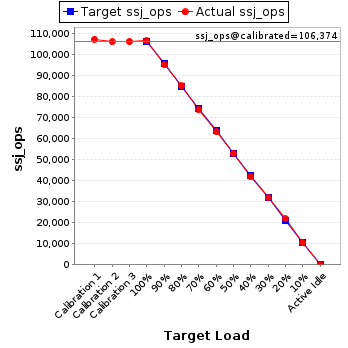

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.2183)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005568
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,831,939 1,384
Payment 7,831,934
Order Status 783,193
Delivery 783,194
Stock Level 783,195
Customer Report 7,831,931
Calibration 2 New Order 7,743,026 1,384
Payment 7,743,022
Order Status 774,302
Delivery 774,304
Stock Level 774,303
Customer Report 7,743,025
Calibration 3 New Order 7,744,362 1,384
Payment 7,744,358
Order Status 774,435
Delivery 774,438
Stock Level 774,437
Customer Report 7,744,361
100% 100.2% New Order 7,761,218 1,384
Payment 7,761,224
Order Status 776,122
Delivery 776,122
Stock Level 776,123
Customer Report 7,761,223
90% 89.8% New Order 6,945,021 1,384
Payment 6,945,017
Order Status 694,502
Delivery 694,503
Stock Level 694,502
Customer Report 6,945,019
80% 80.1% New Order 6,199,593 1,384
Payment 6,199,597
Order Status 619,959
Delivery 619,957
Stock Level 619,960
Customer Report 6,199,595
70% 69.7% New Order 5,395,441 1,384
Payment 5,395,437
Order Status 539,543
Delivery 539,545
Stock Level 539,543
Customer Report 5,395,441
60% 59.9% New Order 4,630,764 1,384
Payment 4,630,765
Order Status 463,077
Delivery 463,077
Stock Level 463,076
Customer Report 4,630,759
50% 49.9% New Order 3,863,305 1,384
Payment 3,863,300
Order Status 386,330
Delivery 386,329
Stock Level 386,330
Customer Report 3,863,300
40% 39.5% New Order 3,056,111 1,384
Payment 3,056,117
Order Status 305,611
Delivery 305,611
Stock Level 305,611
Customer Report 3,056,114
30% 30.1% New Order 2,331,210 1,384
Payment 2,331,213
Order Status 233,122
Delivery 233,122
Stock Level 233,120
Customer Report 2,331,213
20% 20.5% New Order 1,587,269 1,384
Payment 1,587,274
Order Status 158,727
Delivery 158,728
Stock Level 158,728
Customer Report 1,587,274
10% 9.9% New Order 768,788 1,384
Payment 768,784
Order Status 76,880
Delivery 76,879
Stock Level 76,880
Customer Report 768,789
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
