Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,484,135
ssj_ops@100% per JVM = 106,052
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,503,819
Calibration 2     8,504,100
Calibration 3     8,513,741
ssj_ops@calibrated=8,508,921
100% 99.7% 8,508,921 8,484,135
90% 89.9% 7,658,029 7,650,593
80% 80.1% 6,807,137 6,816,697
70% 70.0% 5,956,244 5,958,347
60% 60.0% 5,105,352 5,106,112
50% 49.9% 4,254,460 4,249,594
40% 40.0% 3,403,568 3,406,584
30% 29.9% 2,552,676 2,546,531
20% 19.9% 1,701,784 1,694,299
10% 10.0% 850,892 851,086
Active Idle   0 0

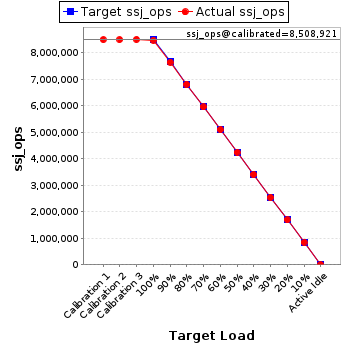

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.2183)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005568
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SUT-09.001 106,970
SUT-09.002 106,845
SUT-09.003 108,173
SUT-09.004 105,093
SUT-09.005 107,006
SUT-09.006 107,386
SUT-09.007 105,402
SUT-09.008 105,510
SUT-09.009 106,553
SUT-09.010 106,758
SUT-09.011 104,987
SUT-09.012 105,329
SUT-09.013 107,244
SUT-09.014 105,379
SUT-09.015 107,330
SUT-09.016 103,557
SUT-09.017 106,428
SUT-09.018 105,142
SUT-09.019 106,433
SUT-09.020 100,288
SUT-09.021 104,655
SUT-09.022 105,531
SUT-09.023 106,727
SUT-09.024 106,332
SUT-09.025 107,401
SUT-09.026 105,009
SUT-09.027 105,724
SUT-09.028 105,168
SUT-09.029 108,628
SUT-09.030 107,857
SUT-09.031 106,254
SUT-09.032 105,326
SUT-09.033 108,408
SUT-09.034 107,121
SUT-09.035 107,893
SUT-09.036 108,088
SUT-09.037 107,617
SUT-09.038 106,677
SUT-09.039 105,892
SUT-09.040 106,215
SUT-09.041 107,040
SUT-09.042 103,994
SUT-09.043 104,144
SUT-09.044 105,302
SUT-09.045 105,302
SUT-09.046 106,925
SUT-09.047 106,962
SUT-09.048 103,033
SUT-09.049 106,852
SUT-09.050 108,024
SUT-09.051 105,158
SUT-09.052 104,366
SUT-09.053 107,726
SUT-09.054 106,169
SUT-09.055 104,647
SUT-09.056 105,793
SUT-09.057 105,795
SUT-09.058 107,008
SUT-09.059 103,631
SUT-09.060 107,398
SUT-09.061 104,097
SUT-09.062 106,904
SUT-09.063 106,933
SUT-09.064 104,650
SUT-09.065 106,783
SUT-09.066 107,911
SUT-09.067 106,739
SUT-09.068 106,701
SUT-09.069 103,828
SUT-09.070 107,841
SUT-09.071 108,224
SUT-09.072 106,486
SUT-09.073 105,279
SUT-09.074 107,903
SUT-09.075 104,937
SUT-09.076 106,577
SUT-09.077 105,268
SUT-09.078 101,157
SUT-09.079 103,767
SUT-09.080 106,544
ssj_ops@100% 8,484,135
ssj_ops@100% per JVM 106,052
Graph of per-instance results
JVM 'SUT-09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,587
Calibration 2     107,270
Calibration 3     107,337
ssj_ops@calibrated=107,304
100% 99.7% 107,304 106,970
90% 90.8% 96,573 97,410
80% 80.5% 85,843 86,402
70% 70.6% 75,112 75,763
60% 60.1% 64,382 64,462
50% 50.8% 53,652 54,506
40% 40.6% 42,921 43,567
30% 30.5% 32,191 32,763
20% 19.9% 21,461 21,367
10% 10.0% 10,730 10,679
Active Idle   0 0
Graph of results
JVM 'SUT-09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,885
Calibration 2     107,224
Calibration 3     107,277
ssj_ops@calibrated=107,250
100% 99.6% 107,250 106,845
90% 90.7% 96,525 97,223
80% 80.2% 85,800 86,004
70% 69.3% 75,075 74,377
60% 59.5% 64,350 63,848
50% 50.7% 53,625 54,328
40% 40.5% 42,900 43,385
30% 30.1% 32,175 32,264
20% 20.2% 21,450 21,703
10% 10.3% 10,725 11,033
Active Idle   0 0
Graph of results
JVM 'SUT-09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,162
Calibration 2     108,690
Calibration 3     108,912
ssj_ops@calibrated=108,801
100% 99.4% 108,801 108,173
90% 89.8% 97,921 97,749
80% 79.3% 87,041 86,314
70% 70.6% 76,161 76,846
60% 60.1% 65,281 65,409
50% 49.5% 54,401 53,830
40% 40.2% 43,521 43,727
30% 30.5% 32,640 33,218
20% 20.3% 21,760 22,052
10% 10.1% 10,880 10,974
Active Idle   0 0
Graph of results
JVM 'SUT-09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,666
Calibration 2     105,426
Calibration 3     105,355
ssj_ops@calibrated=105,391
100% 99.7% 105,391 105,093
90% 90.5% 94,852 95,371
80% 79.5% 84,313 83,818
70% 70.4% 73,773 74,222
60% 61.6% 63,234 64,956
50% 49.8% 52,695 52,456
40% 39.7% 42,156 41,863
30% 29.9% 31,617 31,499
20% 19.8% 21,078 20,828
10% 9.8% 10,539 10,328
Active Idle   0 0
Graph of results
JVM 'SUT-09.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,509
Calibration 2     108,227
Calibration 3     107,954
ssj_ops@calibrated=108,090
100% 99.0% 108,090 107,006
90% 89.6% 97,281 96,796
80% 81.1% 86,472 87,655
70% 70.6% 75,663 76,294
60% 60.8% 64,854 65,684
50% 50.5% 54,045 54,599
40% 40.0% 43,236 43,229
30% 29.7% 32,427 32,102
20% 20.3% 21,618 21,966
10% 10.2% 10,809 11,071
Active Idle   0 0
Graph of results
JVM 'SUT-09.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,422
Calibration 2     107,299
Calibration 3     107,841
ssj_ops@calibrated=107,570
100% 99.8% 107,570 107,386
90% 89.5% 96,813 96,286
80% 80.9% 86,056 87,046
70% 69.0% 75,299 74,245
60% 60.2% 64,542 64,756
50% 50.0% 53,785 53,732
40% 40.0% 43,028 42,986
30% 29.7% 32,271 31,943
20% 19.9% 21,514 21,358
10% 9.9% 10,757 10,647
Active Idle   0 0
Graph of results
JVM 'SUT-09.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,644
Calibration 2     105,647
Calibration 3     106,085
ssj_ops@calibrated=105,866
100% 99.6% 105,866 105,402
90% 90.0% 95,280 95,245
80% 79.8% 84,693 84,517
70% 70.4% 74,106 74,481
60% 59.8% 63,520 63,270
50% 49.5% 52,933 52,425
40% 40.0% 42,346 42,304
30% 29.5% 31,760 31,231
20% 19.9% 21,173 21,097
10% 9.8% 10,587 10,416
Active Idle   0 0
Graph of results
JVM 'SUT-09.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,139
Calibration 2     105,210
Calibration 3     105,915
ssj_ops@calibrated=105,562
100% 100.0% 105,562 105,510
90% 89.8% 95,006 94,789
80% 79.7% 84,450 84,171
70% 69.5% 73,894 73,342
60% 59.5% 63,337 62,783
50% 48.5% 52,781 51,237
40% 40.3% 42,225 42,509
30% 30.1% 31,669 31,762
20% 20.5% 21,112 21,602
10% 10.1% 10,556 10,679
Active Idle   0 0
Graph of results
JVM 'SUT-09.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,190
Calibration 2     106,083
Calibration 3     106,315
ssj_ops@calibrated=106,199
100% 100.3% 106,199 106,553
90% 90.4% 95,579 96,036
80% 79.5% 84,959 84,426
70% 70.4% 74,339 74,797
60% 60.0% 63,719 63,691
50% 49.6% 53,100 52,679
40% 39.5% 42,480 41,965
30% 29.6% 31,860 31,453
20% 20.2% 21,240 21,499
10% 10.0% 10,620 10,631
Active Idle   0 0
Graph of results
JVM 'SUT-09.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,055
Calibration 2     106,948
Calibration 3     106,979
ssj_ops@calibrated=106,964
100% 99.8% 106,964 106,758
90% 90.2% 96,267 96,486
80% 80.6% 85,571 86,159
70% 70.5% 74,875 75,418
60% 59.5% 64,178 63,592
50% 50.1% 53,482 53,563
40% 40.1% 42,786 42,850
30% 29.8% 32,089 31,882
20% 19.6% 21,393 20,946
10% 10.0% 10,696 10,679
Active Idle   0 0
Graph of results
JVM 'SUT-09.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,737
Calibration 2     105,168
Calibration 3     105,629
ssj_ops@calibrated=105,399
100% 99.6% 105,399 104,987
90% 88.5% 94,859 93,308
80% 79.1% 84,319 83,377
70% 71.2% 73,779 75,072
60% 60.0% 63,239 63,215
50% 50.4% 52,699 53,103
40% 39.7% 42,159 41,806
30% 30.1% 31,620 31,674
20% 19.9% 21,080 20,967
10% 9.9% 10,540 10,406
Active Idle   0 0
Graph of results
JVM 'SUT-09.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,640
Calibration 2     105,119
Calibration 3     105,052
ssj_ops@calibrated=105,085
100% 100.2% 105,085 105,329
90% 90.0% 94,577 94,552
80% 81.1% 84,068 85,190
70% 69.2% 73,560 72,694
60% 60.8% 63,051 63,924
50% 48.6% 52,543 51,045
40% 40.3% 42,034 42,349
30% 30.1% 31,526 31,587
20% 19.9% 21,017 20,931
10% 10.2% 10,509 10,676
Active Idle   0 0
Graph of results
JVM 'SUT-09.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,995
Calibration 2     106,645
Calibration 3     106,450
ssj_ops@calibrated=106,548
100% 100.7% 106,548 107,244
90% 90.4% 95,893 96,340
80% 80.6% 85,238 85,865
70% 69.7% 74,583 74,286
60% 59.6% 63,929 63,456
50% 50.0% 53,274 53,297
40% 40.0% 42,619 42,568
30% 30.2% 31,964 32,199
20% 19.8% 21,310 21,073
10% 10.2% 10,655 10,866
Active Idle   0 0
Graph of results
JVM 'SUT-09.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,631
Calibration 2     105,770
Calibration 3     105,691
ssj_ops@calibrated=105,730
100% 99.7% 105,730 105,379
90% 89.3% 95,157 94,374
80% 80.5% 84,584 85,155
70% 70.5% 74,011 74,553
60% 59.2% 63,438 62,608
50% 50.1% 52,865 52,997
40% 40.9% 42,292 43,223
30% 30.6% 31,719 32,373
20% 19.3% 21,146 20,457
10% 10.3% 10,573 10,937
Active Idle   0 0
Graph of results
JVM 'SUT-09.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,604
Calibration 2     107,074
Calibration 3     107,097
ssj_ops@calibrated=107,085
100% 100.2% 107,085 107,330
90% 89.6% 96,377 95,905
80% 80.9% 85,668 86,590
70% 69.0% 74,960 73,938
60% 59.6% 64,251 63,771
50% 49.5% 53,543 52,964
40% 39.8% 42,834 42,580
30% 29.4% 32,126 31,536
20% 19.3% 21,417 20,708
10% 9.8% 10,709 10,483
Active Idle   0 0
Graph of results
JVM 'SUT-09.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,713
Calibration 2     104,313
Calibration 3     104,424
ssj_ops@calibrated=104,368
100% 99.2% 104,368 103,557
90% 90.5% 93,932 94,460
80% 80.4% 83,495 83,900
70% 70.5% 73,058 73,582
60% 60.2% 62,621 62,806
50% 49.4% 52,184 51,555
40% 40.4% 41,747 42,171
30% 29.5% 31,311 30,782
20% 20.0% 20,874 20,882
10% 9.8% 10,437 10,212
Active Idle   0 0
Graph of results
JVM 'SUT-09.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,768
Calibration 2     106,617
Calibration 3     106,300
ssj_ops@calibrated=106,459
100% 100.0% 106,459 106,428
90% 89.5% 95,813 95,298
80% 79.8% 85,167 84,946
70% 70.3% 74,521 74,842
60% 59.9% 63,875 63,734
50% 49.4% 53,229 52,541
40% 40.2% 42,583 42,805
30% 30.2% 31,938 32,131
20% 20.1% 21,292 21,349
10% 10.1% 10,646 10,799
Active Idle   0 0
Graph of results
JVM 'SUT-09.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,706
Calibration 2     106,144
Calibration 3     106,346
ssj_ops@calibrated=106,245
100% 99.0% 106,245 105,142
90% 89.5% 95,620 95,115
80% 80.1% 84,996 85,057
70% 70.2% 74,371 74,548
60% 60.2% 63,747 63,985
50% 50.2% 53,122 53,303
40% 39.7% 42,498 42,135
30% 30.0% 31,873 31,852
20% 20.1% 21,249 21,403
10% 9.8% 10,624 10,438
Active Idle   0 0
Graph of results
JVM 'SUT-09.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,762
Calibration 2     106,205
Calibration 3     106,354
ssj_ops@calibrated=106,279
100% 100.1% 106,279 106,433
90% 90.7% 95,651 96,348
80% 80.1% 85,024 85,157
70% 69.4% 74,396 73,744
60% 60.5% 63,768 64,338
50% 50.3% 53,140 53,414
40% 39.9% 42,512 42,450
30% 30.0% 31,884 31,843
20% 19.7% 21,256 20,905
10% 9.8% 10,628 10,379
Active Idle   0 0
Graph of results
JVM 'SUT-09.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,194
Calibration 2     100,418
Calibration 3     100,334
ssj_ops@calibrated=100,376
100% 99.9% 100,376 100,288
90% 89.2% 90,338 89,492
80% 80.1% 80,301 80,447
70% 71.0% 70,263 71,252
60% 60.4% 60,226 60,667
50% 50.5% 50,188 50,642
40% 40.3% 40,150 40,469
30% 30.3% 30,113 30,408
20% 19.9% 20,075 19,949
10% 10.0% 10,038 9,993
Active Idle   0 0
Graph of results
JVM 'SUT-09.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,524
Calibration 2     105,354
Calibration 3     105,436
ssj_ops@calibrated=105,395
100% 99.3% 105,395 104,655
90% 90.5% 94,856 95,346
80% 80.4% 84,316 84,759
70% 69.2% 73,777 72,929
60% 60.4% 63,237 63,659
50% 50.2% 52,698 52,873
40% 39.6% 42,158 41,740
30% 29.8% 31,619 31,429
20% 20.3% 21,079 21,362
10% 10.6% 10,540 11,120
Active Idle   0 0
Graph of results
JVM 'SUT-09.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,154
Calibration 2     105,895
Calibration 3     106,158
ssj_ops@calibrated=106,027
100% 99.5% 106,027 105,531
90% 89.7% 95,424 95,070
80% 81.2% 84,821 86,077
70% 70.1% 74,219 74,376
60% 59.3% 63,616 62,902
50% 50.0% 53,013 52,984
40% 40.1% 42,411 42,569
30% 29.9% 31,808 31,657
20% 19.9% 21,205 21,089
10% 10.1% 10,603 10,726
Active Idle   0 0
Graph of results
JVM 'SUT-09.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,122
Calibration 2     106,679
Calibration 3     106,800
ssj_ops@calibrated=106,739
100% 100.0% 106,739 106,727
90% 89.7% 96,066 95,728
80% 79.6% 85,392 84,986
70% 71.1% 74,718 75,940
60% 60.0% 64,044 64,017
50% 50.2% 53,370 53,631
40% 40.3% 42,696 43,059
30% 29.8% 32,022 31,856
20% 19.9% 21,348 21,275
10% 10.0% 10,674 10,649
Active Idle   0 0
Graph of results
JVM 'SUT-09.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,232
Calibration 2     107,927
Calibration 3     108,019
ssj_ops@calibrated=107,973
100% 98.5% 107,973 106,332
90% 90.4% 97,176 97,559
80% 81.4% 86,378 87,880
70% 69.2% 75,581 74,687
60% 59.5% 64,784 64,236
50% 50.5% 53,987 54,492
40% 40.4% 43,189 43,612
30% 29.8% 32,392 32,224
20% 19.7% 21,595 21,280
10% 10.0% 10,797 10,845
Active Idle   0 0
Graph of results
JVM 'SUT-09.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,532
Calibration 2     107,028
Calibration 3     107,159
ssj_ops@calibrated=107,094
100% 100.3% 107,094 107,401
90% 88.7% 96,384 95,013
80% 81.1% 85,675 86,844
70% 69.9% 74,965 74,864
60% 60.0% 64,256 64,290
50% 50.4% 53,547 53,991
40% 39.8% 42,837 42,583
30% 29.6% 32,128 31,743
20% 19.9% 21,419 21,275
10% 9.6% 10,709 10,308
Active Idle   0 0
Graph of results
JVM 'SUT-09.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,718
Calibration 2     105,048
Calibration 3     104,984
ssj_ops@calibrated=105,016
100% 100.0% 105,016 105,009
90% 89.3% 94,514 93,823
80% 81.2% 84,013 85,293
70% 70.6% 73,511 74,130
60% 59.9% 63,010 62,861
50% 50.0% 52,508 52,520
40% 40.5% 42,006 42,570
30% 30.1% 31,505 31,625
20% 20.2% 21,003 21,203
10% 10.2% 10,502 10,664
Active Idle   0 0
Graph of results
JVM 'SUT-09.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,891
Calibration 2     106,427
Calibration 3     106,389
ssj_ops@calibrated=106,408
100% 99.4% 106,408 105,724
90% 90.3% 95,767 96,108
80% 79.5% 85,127 84,568
70% 70.4% 74,486 74,952
60% 60.1% 63,845 63,959
50% 50.0% 53,204 53,170
40% 39.8% 42,563 42,331
30% 29.7% 31,922 31,581
20% 19.8% 21,282 21,086
10% 10.5% 10,641 11,124
Active Idle   0 0
Graph of results
JVM 'SUT-09.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,233
Calibration 2     105,303
Calibration 3     105,369
ssj_ops@calibrated=105,336
100% 99.8% 105,336 105,168
90% 90.7% 94,802 95,505
80% 79.5% 84,269 83,763
70% 69.9% 73,735 73,610
60% 60.4% 63,202 63,668
50% 49.1% 52,668 51,724
40% 41.3% 42,134 43,490
30% 29.8% 31,601 31,426
20% 20.3% 21,067 21,358
10% 10.0% 10,534 10,547
Active Idle   0 0
Graph of results
JVM 'SUT-09.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,990
Calibration 2     108,330
Calibration 3     108,309
ssj_ops@calibrated=108,319
100% 100.3% 108,319 108,628
90% 88.8% 97,488 96,190
80% 79.8% 86,656 86,394
70% 70.4% 75,824 76,229
60% 60.4% 64,992 65,441
50% 49.8% 54,160 53,982
40% 39.3% 43,328 42,587
30% 30.3% 32,496 32,800
20% 19.7% 21,664 21,332
10% 10.1% 10,832 10,991
Active Idle   0 0
Graph of results
JVM 'SUT-09.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,058
Calibration 2     108,424
Calibration 3     108,427
ssj_ops@calibrated=108,425
100% 99.5% 108,425 107,857
90% 89.8% 97,583 97,335
80% 79.9% 86,740 86,590
70% 70.5% 75,898 76,394
60% 60.2% 65,055 65,225
50% 50.3% 54,213 54,516
40% 40.2% 43,370 43,579
30% 29.5% 32,528 32,011
20% 20.0% 21,685 21,646
10% 9.8% 10,843 10,665
Active Idle   0 0

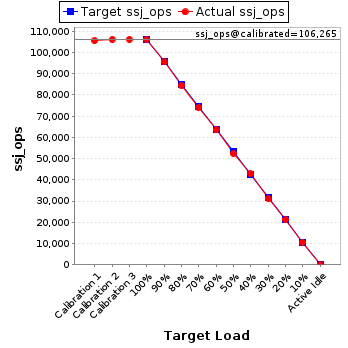

Graph of results
JVM 'SUT-09.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,628
Calibration 2     106,266
Calibration 3     106,263
ssj_ops@calibrated=106,265
100% 100.0% 106,265 106,254
90% 89.9% 95,638 95,540
80% 79.5% 85,012 84,438
70% 69.9% 74,385 74,281
60% 59.9% 63,759 63,607
50% 49.4% 53,132 52,521
40% 40.4% 42,506 42,878
30% 29.4% 31,879 31,202
20% 19.9% 21,253 21,170
10% 9.9% 10,626 10,562
Active Idle   0 0
Graph of results
JVM 'SUT-09.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,335
Calibration 2     105,446
Calibration 3     105,653
ssj_ops@calibrated=105,550
100% 99.8% 105,550 105,326
90% 89.9% 94,995 94,846
80% 79.4% 84,440 83,846
70% 70.0% 73,885 73,832
60% 60.0% 63,330 63,278
50% 49.7% 52,775 52,453
40% 39.7% 42,220 41,914
30% 30.5% 31,665 32,161
20% 20.2% 21,110 21,271
10% 9.9% 10,555 10,424
Active Idle   0 0
Graph of results
JVM 'SUT-09.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,687
Calibration 2     108,152
Calibration 3     108,336
ssj_ops@calibrated=108,244
100% 100.2% 108,244 108,408
90% 89.1% 97,420 96,494
80% 80.3% 86,595 86,875
70% 69.1% 75,771 74,757
60% 61.0% 64,946 66,018
50% 49.9% 54,122 53,969
40% 39.7% 43,298 42,999
30% 29.7% 32,473 32,185
20% 19.9% 21,649 21,491
10% 10.2% 10,824 11,020
Active Idle   0 0
Graph of results
JVM 'SUT-09.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,203
Calibration 2     107,522
Calibration 3     107,581
ssj_ops@calibrated=107,552
100% 99.6% 107,552 107,121
90% 89.6% 96,796 96,319
80% 80.9% 86,041 87,055
70% 70.4% 75,286 75,706
60% 61.1% 64,531 65,748
50% 49.6% 53,776 53,335
40% 40.1% 43,021 43,154
30% 29.8% 32,265 32,046
20% 19.5% 21,510 20,945
10% 10.0% 10,755 10,768
Active Idle   0 0
Graph of results
JVM 'SUT-09.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,783
Calibration 2     107,834
Calibration 3     107,923
ssj_ops@calibrated=107,878
100% 100.0% 107,878 107,893
90% 90.1% 97,090 97,175
80% 79.4% 86,303 85,613
70% 69.7% 75,515 75,141
60% 60.0% 64,727 64,768
50% 49.8% 53,939 53,745
40% 39.6% 43,151 42,666
30% 29.7% 32,363 32,087
20% 19.9% 21,576 21,497
10% 10.2% 10,788 10,983
Active Idle   0 0
Graph of results
JVM 'SUT-09.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,680
Calibration 2     108,277
Calibration 3     108,419
ssj_ops@calibrated=108,348
100% 99.8% 108,348 108,088
90% 90.6% 97,513 98,119
80% 79.9% 86,679 86,534
70% 69.4% 75,844 75,203
60% 59.5% 65,009 64,493
50% 50.6% 54,174 54,866
40% 40.5% 43,339 43,835
30% 30.2% 32,504 32,723
20% 19.7% 21,670 21,310
10% 10.0% 10,835 10,858
Active Idle   0 0
Graph of results
JVM 'SUT-09.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,267
Calibration 2     108,019
Calibration 3     108,025
ssj_ops@calibrated=108,022
100% 99.6% 108,022 107,617
90% 89.7% 97,220 96,918
80% 80.6% 86,418 87,117
70% 70.1% 75,616 75,743
60% 60.8% 64,813 65,642
50% 49.7% 54,011 53,638
40% 39.9% 43,209 43,146
30% 30.2% 32,407 32,574
20% 20.2% 21,604 21,845
10% 9.8% 10,802 10,629
Active Idle   0 0
Graph of results
JVM 'SUT-09.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,889
Calibration 2     106,950
Calibration 3     107,132
ssj_ops@calibrated=107,041
100% 99.7% 107,041 106,677
90% 90.0% 96,337 96,385
80% 80.0% 85,633 85,679
70% 70.9% 74,929 75,931
60% 59.7% 64,225 63,911
50% 50.3% 53,520 53,858
40% 40.3% 42,816 43,151
30% 29.9% 32,112 31,970
20% 20.1% 21,408 21,466
10% 9.6% 10,704 10,308
Active Idle   0 0
Graph of results
JVM 'SUT-09.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,490
Calibration 2     105,806
Calibration 3     105,874
ssj_ops@calibrated=105,840
100% 100.0% 105,840 105,892
90% 89.3% 95,256 94,470
80% 80.7% 84,672 85,401
70% 69.7% 74,088 73,782
60% 59.2% 63,504 62,639
50% 49.7% 52,920 52,557
40% 39.8% 42,336 42,087
30% 30.0% 31,752 31,749
20% 19.5% 21,168 20,654
10% 9.9% 10,584 10,426
Active Idle   0 0
Graph of results
JVM 'SUT-09.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,389
Calibration 2     106,261
Calibration 3     106,388
ssj_ops@calibrated=106,324
100% 99.9% 106,324 106,215
90% 89.5% 95,692 95,160
80% 80.2% 85,059 85,282
70% 70.0% 74,427 74,472
60% 59.8% 63,795 63,592
50% 50.8% 53,162 53,986
40% 39.3% 42,530 41,829
30% 30.0% 31,897 31,901
20% 19.8% 21,265 21,086
10% 10.1% 10,632 10,766
Active Idle   0 0
Graph of results
JVM 'SUT-09.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,777
Calibration 2     107,078
Calibration 3     107,301
ssj_ops@calibrated=107,190
100% 99.9% 107,190 107,040
90% 89.4% 96,471 95,807
80% 80.1% 85,752 85,889
70% 70.2% 75,033 75,258
60% 60.7% 64,314 65,053
50% 50.3% 53,595 53,954
40% 39.8% 42,876 42,675
30% 30.1% 32,157 32,273
20% 19.9% 21,438 21,371
10% 10.1% 10,719 10,841
Active Idle   0 0
Graph of results
JVM 'SUT-09.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,625
Calibration 2     104,996
Calibration 3     105,189
ssj_ops@calibrated=105,093
100% 99.0% 105,093 103,994
90% 90.0% 94,583 94,588
80% 80.5% 84,074 84,622
70% 70.2% 73,565 73,811
60% 60.6% 63,056 63,698
50% 49.4% 52,546 51,946
40% 40.4% 42,037 42,436
30% 29.9% 31,528 31,442
20% 19.7% 21,019 20,707
10% 9.8% 10,509 10,262
Active Idle   0 0
Graph of results
JVM 'SUT-09.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,574
Calibration 2     104,388
Calibration 3     104,621
ssj_ops@calibrated=104,505
100% 99.7% 104,505 104,144
90% 90.2% 94,054 94,219
80% 79.3% 83,604 82,888
70% 70.1% 73,153 73,223
60% 60.0% 62,703 62,754
50% 50.0% 52,252 52,249
40% 39.5% 41,802 41,236
30% 30.0% 31,351 31,364
20% 20.0% 20,901 20,889
10% 9.8% 10,450 10,207
Active Idle   0 0
Graph of results
JVM 'SUT-09.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,942
Calibration 2     105,525
Calibration 3     105,358
ssj_ops@calibrated=105,441
100% 99.9% 105,441 105,302
90% 90.4% 94,897 95,351
80% 79.8% 84,353 84,185
70% 70.1% 73,809 73,899
60% 61.0% 63,265 64,300
50% 49.4% 52,721 52,127
40% 39.6% 42,176 41,720
30% 29.6% 31,632 31,207
20% 19.3% 21,088 20,368
10% 10.1% 10,544 10,699
Active Idle   0 0
Graph of results
JVM 'SUT-09.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,961
Calibration 2     105,591
Calibration 3     105,623
ssj_ops@calibrated=105,607
100% 99.7% 105,607 105,302
90% 90.2% 95,046 95,241
80% 79.5% 84,486 83,929
70% 69.0% 73,925 72,817
60% 60.3% 63,364 63,731
50% 50.4% 52,803 53,260
40% 39.9% 42,243 42,153
30% 29.7% 31,682 31,354
20% 19.7% 21,121 20,798
10% 10.3% 10,561 10,870
Active Idle   0 0
Graph of results
JVM 'SUT-09.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,900
Calibration 2     107,328
Calibration 3     107,381
ssj_ops@calibrated=107,355
100% 99.6% 107,355 106,925
90% 90.7% 96,619 97,338
80% 79.9% 85,884 85,751
70% 69.7% 75,148 74,848
60% 59.9% 64,413 64,355
50% 49.7% 53,677 53,364
40% 39.7% 42,942 42,583
30% 30.2% 32,206 32,382
20% 20.3% 21,471 21,838
10% 10.1% 10,735 10,838
Active Idle   0 0
Graph of results
JVM 'SUT-09.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,383
Calibration 2     107,526
Calibration 3     107,480
ssj_ops@calibrated=107,503
100% 99.5% 107,503 106,962
90% 89.8% 96,752 96,491
80% 80.7% 86,002 86,808
70% 70.6% 75,252 75,892
60% 60.6% 64,502 65,149
50% 50.0% 53,751 53,736
40% 39.9% 43,001 42,913
30% 29.3% 32,251 31,544
20% 20.2% 21,501 21,749
10% 9.5% 10,750 10,266
Active Idle   0 0
Graph of results
JVM 'SUT-09.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,873
Calibration 2     103,326
Calibration 3     103,538
ssj_ops@calibrated=103,432
100% 99.6% 103,432 103,033
90% 90.3% 93,089 93,399
80% 79.7% 82,745 82,459
70% 69.9% 72,402 72,340
60% 59.8% 62,059 61,890
50% 50.6% 51,716 52,324
40% 40.3% 41,373 41,655
30% 30.2% 31,030 31,268
20% 19.5% 20,686 20,187
10% 10.0% 10,343 10,333
Active Idle   0 0
Graph of results
JVM 'SUT-09.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,159
Calibration 2     106,951
Calibration 3     106,999
ssj_ops@calibrated=106,975
100% 99.9% 106,975 106,852
90% 90.2% 96,277 96,445
80% 80.2% 85,580 85,817
70% 69.7% 74,882 74,587
60% 59.2% 64,185 63,363
50% 49.7% 53,487 53,136
40% 40.1% 42,790 42,895
30% 30.0% 32,092 32,123
20% 20.1% 21,395 21,487
10% 10.1% 10,697 10,754
Active Idle   0 0
Graph of results
JVM 'SUT-09.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,733
Calibration 2     108,156
Calibration 3     108,404
ssj_ops@calibrated=108,280
100% 99.8% 108,280 108,024
90% 90.4% 97,452 97,838
80% 80.1% 86,624 86,758
70% 69.8% 75,796 75,562
60% 60.1% 64,968 65,090
50% 50.3% 54,140 54,491
40% 39.3% 43,312 42,585
30% 29.6% 32,484 32,100
20% 19.9% 21,656 21,513
10% 9.5% 10,828 10,283
Active Idle   0 0
Graph of results
JVM 'SUT-09.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,798
Calibration 2     105,270
Calibration 3     105,559
ssj_ops@calibrated=105,415
100% 99.8% 105,415 105,158
90% 89.7% 94,873 94,510
80% 79.4% 84,332 83,695
70% 69.8% 73,790 73,536
60% 59.4% 63,249 62,618
50% 49.9% 52,707 52,591
40% 40.5% 42,166 42,724
30% 29.6% 31,624 31,159
20% 19.7% 21,083 20,762
10% 10.0% 10,541 10,520
Active Idle   0 0
Graph of results
JVM 'SUT-09.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,665
Calibration 2     104,332
Calibration 3     104,317
ssj_ops@calibrated=104,324
100% 100.0% 104,324 104,366
90% 90.4% 93,892 94,283
80% 79.8% 83,459 83,201
70% 69.2% 73,027 72,218
60% 60.7% 62,595 63,297
50% 49.5% 52,162 51,647
40% 39.7% 41,730 41,440
30% 29.6% 31,297 30,833
20% 19.8% 20,865 20,632
10% 10.4% 10,432 10,808
Active Idle   0 0
Graph of results
JVM 'SUT-09.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,871
Calibration 2     107,434
Calibration 3     108,047
ssj_ops@calibrated=107,741
100% 100.0% 107,741 107,726
90% 89.0% 96,967 95,861
80% 79.8% 86,193 85,991
70% 70.1% 75,419 75,531
60% 58.9% 64,645 63,477
50% 49.5% 53,870 53,356
40% 40.1% 43,096 43,154
30% 29.7% 32,322 32,051
20% 19.8% 21,548 21,296
10% 10.0% 10,774 10,808
Active Idle   0 0
Graph of results
JVM 'SUT-09.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,881
Calibration 2     106,131
Calibration 3     106,382
ssj_ops@calibrated=106,257
100% 99.9% 106,257 106,169
90% 89.5% 95,631 95,078
80% 80.2% 85,005 85,228
70% 70.1% 74,380 74,534
60% 60.1% 63,754 63,856
50% 50.6% 53,128 53,744
40% 40.1% 42,503 42,567
30% 29.9% 31,877 31,787
20% 19.7% 21,251 20,937
10% 9.9% 10,626 10,558
Active Idle   0 0
Graph of results
JVM 'SUT-09.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,829
Calibration 2     104,638
Calibration 3     104,624
ssj_ops@calibrated=104,631
100% 100.0% 104,631 104,647
90% 89.1% 94,168 93,186
80% 80.1% 83,705 83,816
70% 69.0% 73,242 72,213
60% 59.9% 62,779 62,665
50% 50.7% 52,316 53,015
40% 39.7% 41,852 41,580
30% 30.6% 31,389 31,979
20% 20.4% 20,926 21,384
10% 10.0% 10,463 10,501
Active Idle   0 0
Graph of results
JVM 'SUT-09.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,152
Calibration 2     105,829
Calibration 3     105,950
ssj_ops@calibrated=105,890
100% 99.9% 105,890 105,793
90% 89.6% 95,301 94,905
80% 80.2% 84,712 84,888
70% 69.7% 74,123 73,755
60% 59.7% 63,534 63,204
50% 49.9% 52,945 52,884
40% 40.8% 42,356 43,195
30% 29.5% 31,767 31,224
20% 19.6% 21,178 20,714
10% 9.8% 10,589 10,345
Active Idle   0 0
Graph of results

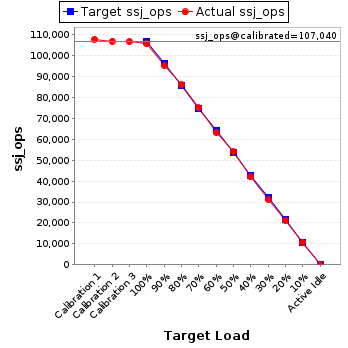

JVM 'SUT-09.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,949
Calibration 2     107,060
Calibration 3     107,021
ssj_ops@calibrated=107,040
100% 98.8% 107,040 105,795
90% 89.2% 96,336 95,491
80% 80.5% 85,632 86,169
70% 70.1% 74,928 75,053
60% 59.1% 64,224 63,269
50% 50.6% 53,520 54,118
40% 39.4% 42,816 42,134
30% 29.4% 32,112 31,436
20% 19.8% 21,408 21,231
10% 10.1% 10,704 10,762
Active Idle   0 0
Graph of results
JVM 'SUT-09.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,459
Calibration 2     107,485
Calibration 3     107,553
ssj_ops@calibrated=107,519
100% 99.5% 107,519 107,008
90% 89.9% 96,767 96,624
80% 79.5% 86,015 85,433
70% 69.6% 75,263 74,853
60% 59.2% 64,511 63,611
50% 49.5% 53,760 53,260
40% 40.2% 43,008 43,208
30% 29.9% 32,256 32,178
20% 20.2% 21,504 21,745
10% 9.8% 10,752 10,577
Active Idle   0 0
Graph of results
JVM 'SUT-09.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,152
Calibration 2     103,205
Calibration 3     103,759
ssj_ops@calibrated=103,482
100% 100.1% 103,482 103,631
90% 89.4% 93,134 92,470
80% 80.0% 82,785 82,744
70% 70.4% 72,437 72,855
60% 59.9% 62,089 61,961
50% 50.5% 51,741 52,255
40% 40.4% 41,393 41,836
30% 29.8% 31,045 30,837
20% 19.7% 20,696 20,384
10% 9.9% 10,348 10,283
Active Idle   0 0
Graph of results
JVM 'SUT-09.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,626
Calibration 2     107,185
Calibration 3     107,457
ssj_ops@calibrated=107,321
100% 100.1% 107,321 107,398
90% 90.6% 96,589 97,229
80% 80.5% 85,857 86,384
70% 70.1% 75,125 75,237
60% 59.8% 64,393 64,223
50% 50.6% 53,660 54,304
40% 40.1% 42,928 43,050
30% 29.5% 32,196 31,644
20% 20.3% 21,464 21,741
10% 10.1% 10,732 10,789
Active Idle   0 0
Graph of results
JVM 'SUT-09.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,306
Calibration 2     104,283
Calibration 3     104,367
ssj_ops@calibrated=104,325
100% 99.8% 104,325 104,097
90% 91.0% 93,892 94,984
80% 80.5% 83,460 83,956
70% 70.8% 73,027 73,829
60% 59.2% 62,595 61,762
50% 48.3% 52,162 50,378
40% 39.7% 41,730 41,452
30% 29.9% 31,297 31,158
20% 19.9% 20,865 20,728
10% 10.1% 10,432 10,499
Active Idle   0 0
Graph of results
JVM 'SUT-09.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,096
Calibration 2     107,118
Calibration 3     107,293
ssj_ops@calibrated=107,206
100% 99.7% 107,206 106,904
90% 89.8% 96,485 96,292
80% 79.9% 85,765 85,651
70% 71.0% 75,044 76,150
60% 60.6% 64,323 64,965
50% 50.3% 53,603 53,962
40% 39.6% 42,882 42,409
30% 30.9% 32,162 33,127
20% 20.1% 21,441 21,579
10% 9.5% 10,721 10,167
Active Idle   0 0
Graph of results
JVM 'SUT-09.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,644
Calibration 2     106,901
Calibration 3     107,259
ssj_ops@calibrated=107,080
100% 99.9% 107,080 106,933
90% 90.7% 96,372 97,110
80% 78.8% 85,664 84,338
70% 70.1% 74,956 75,062
60% 60.2% 64,248 64,498
50% 49.6% 53,540 53,144
40% 39.4% 42,832 42,219
30% 30.3% 32,124 32,426
20% 19.8% 21,416 21,174
10% 10.0% 10,708 10,679
Active Idle   0 0
Graph of results
JVM 'SUT-09.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,597
Calibration 2     105,782
Calibration 3     105,933
ssj_ops@calibrated=105,857
100% 98.9% 105,857 104,650
90% 90.1% 95,272 95,360
80% 79.6% 84,686 84,260
70% 69.9% 74,100 73,951
60% 60.2% 63,514 63,762
50% 49.5% 52,929 52,439
40% 40.4% 42,343 42,798
30% 29.8% 31,757 31,505
20% 19.9% 21,171 21,016
10% 9.9% 10,586 10,508
Active Idle   0 0
Graph of results
JVM 'SUT-09.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,956
Calibration 2     107,812
Calibration 3     107,984
ssj_ops@calibrated=107,898
100% 99.0% 107,898 106,783
90% 89.9% 97,108 97,034
80% 79.9% 86,318 86,193
70% 69.1% 75,529 74,515
60% 59.0% 64,739 63,684
50% 50.0% 53,949 53,904
40% 40.3% 43,159 43,532
30% 30.1% 32,369 32,479
20% 20.4% 21,580 22,016
10% 10.1% 10,790 10,888
Active Idle   0 0
Graph of results
JVM 'SUT-09.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,262
Calibration 2     107,759
Calibration 3     108,210
ssj_ops@calibrated=107,984
100% 99.9% 107,984 107,911
90% 89.8% 97,186 97,021
80% 80.2% 86,388 86,596
70% 69.4% 75,589 74,945
60% 60.6% 64,791 65,477
50% 50.5% 53,992 54,485
40% 40.6% 43,194 43,828
30% 30.3% 32,395 32,684
20% 19.9% 21,597 21,531
10% 10.1% 10,798 10,858
Active Idle   0 0
Graph of results
JVM 'SUT-09.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,933
Calibration 2     107,376
Calibration 3     107,467
ssj_ops@calibrated=107,422
100% 99.4% 107,422 106,739
90% 90.3% 96,680 96,956
80% 80.7% 85,938 86,647
70% 70.2% 75,195 75,408
60% 60.8% 64,453 65,314
50% 50.0% 53,711 53,679
40% 39.9% 42,969 42,870
30% 30.0% 32,227 32,247
20% 20.1% 21,484 21,539
10% 9.9% 10,742 10,595
Active Idle   0 0
Graph of results
JVM 'SUT-09.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,170
Calibration 2     107,072
Calibration 3     107,017
ssj_ops@calibrated=107,044
100% 99.7% 107,044 106,701
90% 90.2% 96,340 96,515
80% 79.6% 85,636 85,195
70% 70.2% 74,931 75,111
60% 59.6% 64,227 63,755
50% 50.3% 53,522 53,836
40% 39.9% 42,818 42,699
30% 29.9% 32,113 31,990
20% 19.8% 21,409 21,220
10% 9.9% 10,704 10,608
Active Idle   0 0
Graph of results
JVM 'SUT-09.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,693
Calibration 2     104,439
Calibration 3     104,948
ssj_ops@calibrated=104,693
100% 99.2% 104,693 103,828
90% 90.3% 94,224 94,551
80% 80.4% 83,755 84,168
70% 70.7% 73,285 74,009
60% 60.3% 62,816 63,084
50% 49.6% 52,347 51,958
40% 40.3% 41,877 42,157
30% 30.6% 31,408 32,002
20% 19.8% 20,939 20,778
10% 10.4% 10,469 10,845
Active Idle   0 0
Graph of results
JVM 'SUT-09.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,051
Calibration 2     108,300
Calibration 3     108,408
ssj_ops@calibrated=108,354
100% 99.5% 108,354 107,841
90% 90.2% 97,519 97,772
80% 79.9% 86,683 86,592
70% 70.4% 75,848 76,260
60% 60.1% 65,012 65,089
50% 50.4% 54,177 54,614
40% 40.6% 43,342 44,010
30% 30.1% 32,506 32,615
20% 19.5% 21,671 21,095
10% 9.8% 10,835 10,668
Active Idle   0 0
Graph of results
JVM 'SUT-09.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,072
Calibration 2     108,041
Calibration 3     108,027
ssj_ops@calibrated=108,034
100% 100.2% 108,034 108,224
90% 89.9% 97,231 97,174
80% 80.2% 86,427 86,641
70% 68.5% 75,624 73,997
60% 60.2% 64,820 65,032
50% 49.8% 54,017 53,795
40% 40.0% 43,214 43,245
30% 30.5% 32,410 32,903
20% 19.8% 21,607 21,383
10% 10.1% 10,803 10,925
Active Idle   0 0
Graph of results
JVM 'SUT-09.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,387
Calibration 2     106,584
Calibration 3     107,020
ssj_ops@calibrated=106,802
100% 99.7% 106,802 106,486
90% 90.5% 96,122 96,637
80% 80.2% 85,441 85,686
70% 70.2% 74,761 75,021
60% 59.3% 64,081 63,295
50% 49.4% 53,401 52,758
40% 40.5% 42,721 43,257
30% 29.9% 32,041 31,898
20% 20.5% 21,360 21,936
10% 10.0% 10,680 10,729
Active Idle   0 0
Graph of results
JVM 'SUT-09.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,907
Calibration 2     106,095
Calibration 3     106,317
ssj_ops@calibrated=106,206
100% 99.1% 106,206 105,279
90% 90.0% 95,585 95,622
80% 80.5% 84,965 85,469
70% 69.9% 74,344 74,188
60% 59.2% 63,724 62,896
50% 50.1% 53,103 53,210
40% 40.7% 42,482 43,173
30% 29.9% 31,862 31,737
20% 19.5% 21,241 20,684
10% 10.4% 10,621 10,995
Active Idle   0 0
Graph of results
JVM 'SUT-09.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,370
Calibration 2     107,958
Calibration 3     107,812
ssj_ops@calibrated=107,885
100% 100.0% 107,885 107,903
90% 90.1% 97,096 97,170
80% 79.8% 86,308 86,065
70% 69.8% 75,519 75,278
60% 60.4% 64,731 65,152
50% 48.8% 53,942 52,648
40% 39.8% 43,154 42,919
30% 30.0% 32,365 32,318
20% 19.7% 21,577 21,304
10% 10.0% 10,788 10,754
Active Idle   0 0
Graph of results
JVM 'SUT-09.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,928
Calibration 2     104,898
Calibration 3     104,953
ssj_ops@calibrated=104,925
100% 100.0% 104,925 104,937
90% 89.5% 94,433 93,929
80% 79.7% 83,940 83,646
70% 70.8% 73,448 74,265
60% 59.0% 62,955 61,875
50% 50.0% 52,463 52,432
40% 39.6% 41,970 41,551
30% 29.8% 31,478 31,270
20% 20.0% 20,985 20,999
10% 10.2% 10,493 10,704
Active Idle   0 0
Graph of results
JVM 'SUT-09.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,691
Calibration 2     106,931
Calibration 3     106,978
ssj_ops@calibrated=106,955
100% 99.6% 106,955 106,577
90% 88.6% 96,259 94,812
80% 79.9% 85,564 85,441
70% 69.9% 74,868 74,713
60% 60.1% 64,173 64,243
50% 50.7% 53,477 54,278
40% 39.9% 42,782 42,710
30% 30.1% 32,086 32,163
20% 19.8% 21,391 21,230
10% 9.9% 10,695 10,595
Active Idle   0 0
Graph of results
JVM 'SUT-09.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,679
Calibration 2     105,644
Calibration 3     105,837
ssj_ops@calibrated=105,741
100% 99.6% 105,741 105,268
90% 89.9% 95,167 95,061
80% 80.1% 84,593 84,703
70% 70.7% 74,019 74,732
60% 60.3% 63,444 63,736
50% 49.6% 52,870 52,457
40% 40.2% 42,296 42,474
30% 29.5% 31,722 31,226
20% 19.9% 21,148 21,079
10% 9.9% 10,574 10,516
Active Idle   0 0
Graph of results
JVM 'SUT-09.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,034
Calibration 2     101,992
Calibration 3     102,017
ssj_ops@calibrated=102,004
100% 99.2% 102,004 101,157
90% 90.9% 91,804 92,748
80% 80.6% 81,604 82,243
70% 70.1% 71,403 71,546
60% 60.7% 61,203 61,964
50% 49.9% 51,002 50,918
40% 40.2% 40,802 41,043
30% 29.4% 30,601 30,036
20% 20.2% 20,401 20,612
10% 9.9% 10,200 10,072
Active Idle   0 0
Graph of results
JVM 'SUT-09.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,834
Calibration 2     103,977
Calibration 3     104,049
ssj_ops@calibrated=104,013
100% 99.8% 104,013 103,767
90% 89.0% 93,612 92,620
80% 80.9% 83,211 84,113
70% 70.5% 72,809 73,371
60% 59.6% 62,408 62,018
50% 50.0% 52,007 52,034
40% 40.0% 41,605 41,600
30% 29.6% 31,204 30,822
20% 20.3% 20,803 21,091
10% 10.3% 10,401 10,722
Active Idle   0 0
Graph of results
JVM 'SUT-09.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,085
Calibration 2     107,258
Calibration 3     106,990
ssj_ops@calibrated=107,124
100% 99.5% 107,124 106,544
90% 90.7% 96,412 97,181
80% 79.6% 85,699 85,249
70% 69.7% 74,987 74,716
60% 59.8% 64,274 64,039
50% 50.3% 53,562 53,877
40% 39.4% 42,850 42,178
30% 30.1% 32,137 32,287
20% 19.5% 21,425 20,887
10% 10.0% 10,712 10,743
Active Idle   0 0
Graph of results
