Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module | SPECpower_ssj2008 = 11,849 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Nov 24, 2021 |
Hardware Availability: | Apr-2021 | Software Availability: | Sep-2021 | Publication: | Feb 3, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 7,854 | 23.8 |
Calibration 2 | 7,872 | 23.4 |
Calibration 3 | 7,882 | 23.4 |
100% | 7,865 | 23.7 |
90% | 7,432 | 23.7 |
80% | 5,808 | 23.9 |
70% | 5,012 | 24.1 |
60% | 4,347 | 24.2 |
50% | 3,812 | 24.3 |
40% | 3,385 | 24.2 |
30% | 3,033 | 24.3 |
20% | 2,690 | 24.4 |
10% | 2,332 | 25.1 |
Active Idle | 1,563 | 24.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-80-1 |
Date of Calibration: | 14-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 1 and 2 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47169 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F91A5-220-1 |
Date of Calibration: | 26-Jun-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 3 and 4 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91K112854 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-40-1 |
Date of Calibration: | 15-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 5 and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

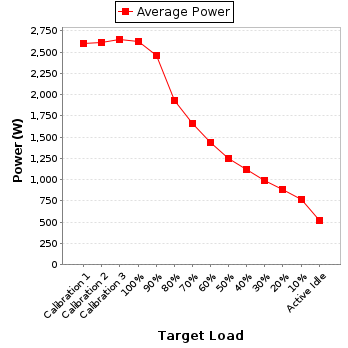

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 12.2 | 20.0 | 0.997 | 2,604 | 0.4% |
Calibration 2 | 215 | 300.0 | 12.2 | 20.0 | 0.997 | 2,617 | 0.4% |
Calibration 3 | 214 | 300.0 | 12.4 | 20.0 | 0.997 | 2,652 | 0.4% |
100% | 215 | 300.0 | 12.3 | 20.0 | 0.997 | 2,626 | 0.4% |
90% | 215 | 300.0 | 11.5 | 20.0 | 0.996 | 2,455 | 0.4% |
80% | 216 | 300.0 | 9.01 | 20.0 | 0.996 | 1,935 | 0.5% |
70% | 216 | 300.0 | 7.75 | 10.0 | 0.994 | 1,664 | 0.4% |
60% | 216 | 300.0 | 6.67 | 10.0 | 0.994 | 1,433 | 0.4% |
50% | 216 | 300.0 | 5.84 | 10.0 | 0.993 | 1,254 | 0.4% |
40% | 216 | 300.0 | 5.20 | 10.0 | 0.991 | 1,114 | 0.4% |
30% | 217 | 300.0 | 4.64 | 10.0 | 0.989 | 994 | 0.5% |
20% | 216 | 300.0 | 4.13 | 10.0 | 0.986 | 880 | 0.5% |
10% | 217 | 300.0 | 3.59 | 5.0 | 0.981 | 764 | 0.4% |
Active Idle | 217 | 300.0 | 2.48 | 5.0 | 0.963 | 518 | 0.5% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 12.1 | 20.0 | 0.994 | 2,558 | 0.4% |
Calibration 2 | 213 | 300.0 | 12.1 | 20.0 | 0.994 | 2,554 | 0.4% |
Calibration 3 | 213 | 300.0 | 12.1 | 20.0 | 0.994 | 2,555 | 0.4% |
100% | 213 | 300.0 | 12.1 | 20.0 | 0.994 | 2,556 | 0.4% |
90% | 213 | 300.0 | 11.5 | 20.0 | 0.994 | 2,430 | 0.4% |
80% | 213 | 300.0 | 8.72 | 20.0 | 0.991 | 1,844 | 0.5% |
70% | 214 | 300.0 | 7.69 | 10.0 | 0.988 | 1,622 | 0.4% |
60% | 214 | 300.0 | 6.74 | 10.0 | 0.986 | 1,421 | 0.4% |
50% | 214 | 300.0 | 5.94 | 10.0 | 0.982 | 1,247 | 0.4% |
40% | 214 | 300.0 | 5.26 | 10.0 | 0.977 | 1,101 | 0.5% |
30% | 214 | 300.0 | 4.74 | 10.0 | 0.972 | 987 | 0.5% |
20% | 214 | 300.0 | 4.21 | 10.0 | 0.965 | 870 | 0.5% |
10% | 215 | 300.0 | 3.63 | 5.0 | 0.955 | 744 | 0.4% |
Active Idle | 215 | 300.0 | 2.39 | 5.0 | 0.919 | 473 | 0.6% |

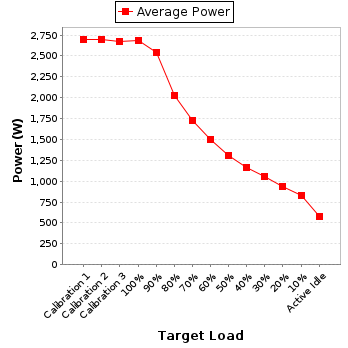

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 12.6 | 10.0 | 0.996 | 2,692 | 0.4% |
Calibration 2 | 214 | 300.0 | 12.6 | 10.0 | 0.996 | 2,700 | 0.4% |
Calibration 3 | 214 | 300.0 | 12.5 | 10.0 | 0.996 | 2,675 | 0.4% |
100% | 214 | 300.0 | 12.6 | 10.0 | 0.996 | 2,684 | 0.4% |
90% | 215 | 300.0 | 11.9 | 10.0 | 0.995 | 2,547 | 0.4% |
80% | 215 | 300.0 | 9.46 | 10.0 | 0.996 | 2,029 | 0.3% |
70% | 216 | 300.0 | 8.05 | 10.0 | 0.994 | 1,726 | 0.3% |
60% | 216 | 300.0 | 6.96 | 10.0 | 0.993 | 1,493 | 0.4% |
50% | 216 | 300.0 | 6.11 | 10.0 | 0.992 | 1,311 | 0.4% |
40% | 216 | 300.0 | 5.47 | 10.0 | 0.989 | 1,170 | 0.4% |
30% | 216 | 300.0 | 4.93 | 10.0 | 0.987 | 1,053 | 0.5% |
20% | 216 | 300.0 | 4.41 | 10.0 | 0.984 | 939 | 0.5% |
10% | 217 | 300.0 | 3.88 | 10.0 | 0.979 | 823 | 0.6% |
Active Idle | 217 | 300.0 | 2.75 | 5.0 | 0.958 | 572 | 0.5% |
