SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720-E10-R12 | SPECpower_ssj2008 = 13,600 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Dec 14, 2021 |
| Hardware Availability: | Aug-2021 | Software Availability: | Mar-2021 | Publication: | Jan 19, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

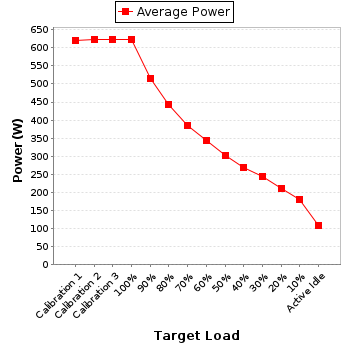

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 620 | 20.8 |
| Calibration 2 | 624 | 20.7 |
| Calibration 3 | 622 | 20.2 |
| 100% | 623 | 20.1 |
| 90% | 514 | 20.2 |
| 80% | 443 | 20.2 |
| 70% | 386 | 20.2 |
| 60% | 342 | 20.1 |
| 50% | 303 | 20.2 |
| 40% | 269 | 20.4 |
| 30% | 244 | 20.3 |
| 20% | 212 | 20.2 |
| 10% | 181 | 20.2 |
| Active Idle | 110 | 20.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-1122107F02C1 |
| Date of Calibration: | 2-Jul-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 2.86 | 5.0 | 0.995 | 620 | 0.4% |
| Calibration 2 | 218 | 300.0 | 2.87 | 5.0 | 0.995 | 624 | 0.4% |
| Calibration 3 | 218 | 300.0 | 2.87 | 5.0 | 0.995 | 622 | 0.4% |
| 100% | 218 | 300.0 | 2.87 | 5.0 | 0.995 | 623 | 0.4% |
| 90% | 218 | 300.0 | 2.37 | 5.0 | 0.994 | 514 | 0.5% |
| 80% | 218 | 300.0 | 2.04 | 5.0 | 0.994 | 443 | 0.5% |
| 70% | 218 | 300.0 | 1.78 | 5.0 | 0.992 | 386 | 0.6% |
| 60% | 219 | 300.0 | 1.58 | 5.0 | 0.991 | 342 | 0.6% |
| 50% | 219 | 300.0 | 1.40 | 2.0 | 0.990 | 303 | 0.4% |
| 40% | 219 | 300.0 | 1.25 | 2.0 | 0.988 | 269 | 0.4% |
| 30% | 219 | 300.0 | 1.13 | 2.0 | 0.986 | 244 | 0.4% |
| 20% | 219 | 300.0 | 0.983 | 2.0 | 0.984 | 212 | 0.5% |
| 10% | 219 | 300.0 | 0.844 | 2.0 | 0.981 | 181 | 0.5% |
| Active Idle | 219 | 300.0 | 0.522 | 1.0 | 0.961 | 110 | 0.5% |
