Fujitsu FUJITSU Server PRIMERGY TX1310 M5 (D3931-C100) SPECpower_ssj2008 = 8,241 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 18, 2021
Hardware Availability: Mar-2022 Software Availability: Oct-2020 Publication: Jan 19, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 61.7 27.2
Calibration 2 61.7 27.2
Calibration 3 61.8 27.9
100% 61.9 27.1
90% 57.5 28.8
80% 53.5 27.8
70% 49.3 28.1
60% 45.2 28.9
50% 41.2 27.9
40% 37.0 29.2
30% 32.4 28.1
20% 27.7 28.2
10% 23.0 29.2
Active Idle 18.6 27.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: PW3336
Serial Number: 170134584
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400087-2103
Date of Calibration: 08-Mar-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 0.345 1.0 0.866 61.7 0.4%
Calibration 2 206 300.0 0.346 1.0 0.867 61.7 0.4%
Calibration 3 206 300.0 0.346 1.0 0.866 61.8 0.4%
100% 206 300.0 0.346 1.0 0.867 61.9 0.4%
90% 206 300.0 0.329 1.0 0.849 57.5 0.4%
80% 206 300.0 0.313 1.0 0.830 53.5 0.4%
70% 206 300.0 0.297 1.0 0.807 49.3 0.5%
60% 206 300.0 0.281 1.0 0.782 45.2 0.5%
50% 206 300.0 0.265 1.0 0.754 41.2 0.6%
40% 206 300.0 0.250 1.0 0.717 37.0 0.6%
30% 206 300.0 0.235 0.5 0.668 32.4 0.4%
20% 206 300.0 0.222 0.5 0.606 27.7 0.5%
10% 206 300.0 0.213 0.5 0.525 23.0 0.6%
Active Idle 206 300.0 0.212 0.2 0.425 18.6 0.5%

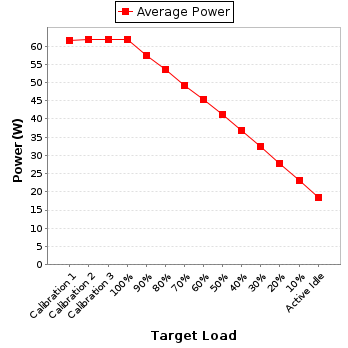

Power details for pwr1
