SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX1330 M5			SPECpower_ssj2008 = 8,700 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Dec 11, 2021
Hardware Availability:	Mar-2022	Software Availability:	Oct-2020	Publication:	Jan 19, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX1330 M5
Form Factor:	1U
CPU Name:	Intel Xeon E-2388G
CPU Characteristics:	8-Core, 3.2GHz, 16MB L3 Cache
CPU Frequency (MHz):	3200
CPU(s) Enabled:	8 cores, 1 chip, 8 cores/chip
Hardware Threads:	16 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	16 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	2 x 8196 MB
Memory Details:	2 x 8 GB 1Rx8 PC4-3200AA-ED2-11; slots 1A, 1B populated
Power Supply Quantity and Rating (W):	1 x 300
Power Supply Details:	S26113-E614-V70-1
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced
Operating System (OS):	Windows Server 2019 Standard
OS Version:	version1809, build 17763.107
Filesystem:	ntfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn9500m -Xms11000m -Xmx11000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	none
JVM Instances:	1
JVM Initial Heap (MB):	11000
JVM Maximum Heap (MB):	11000
JVM Address Bits:	64
Boot Firmware Version:	R1.30.0
Management Firmware Version:	1.01S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB4464455

None

Set "Turn off hard disk after = 1 Minute" in OS.
Set "Turn off display after = 1 Minute" in OS.
Set "Minimum processor state = 0%" in OS.
Set "Maximum processor state = 100%" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	PW3336
Serial Number:	170213562
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400088-2106
Date of Calibration:	14-Jun-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

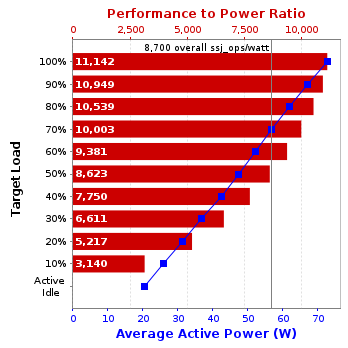

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	72.7	22.7
90%	67.0	22.7
80%	62.0	22.7
70%	56.7	22.7
60%	52.1	22.7
50%	47.3	22.6
40%	42.3	22.6
30%	36.8	22.6
20%	31.3	22.6
10%	25.8	22.6
Active Idle	20.5	22.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	22.6	11

See the Power/Temperature Details Report for additional details.

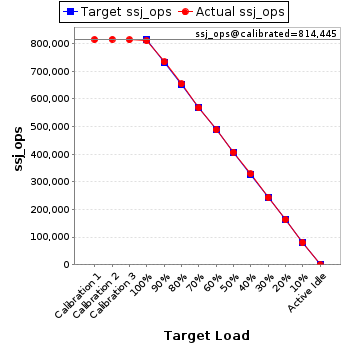

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
