Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,353,720
ssj_ops@100% per JVM = 104,421
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 11, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,725,662
Calibration 2     8,377,597
Calibration 3     8,387,011
ssj_ops@calibrated=8,382,304
100% 99.7% 8,382,304 8,353,720
90% 90.1% 7,544,074 7,549,978
80% 80.0% 6,705,843 6,704,987
70% 70.0% 5,867,613 5,866,339
60% 60.0% 5,029,383 5,026,973
50% 49.9% 4,191,152 4,186,623
40% 40.0% 3,352,922 3,350,405
30% 30.1% 2,514,691 2,519,034
20% 20.0% 1,676,461 1,679,868
10% 10.0% 838,230 840,481
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-04.001 105,763
sy480-04.002 105,099
sy480-04.003 107,302
sy480-04.004 104,470
sy480-04.005 107,449
sy480-04.006 95,076
sy480-04.007 106,533
sy480-04.008 104,793
sy480-04.009 104,972
sy480-04.010 106,443
sy480-04.011 105,292
sy480-04.012 102,795
sy480-04.013 102,301
sy480-04.014 106,457
sy480-04.015 101,701
sy480-04.016 106,508
sy480-04.017 104,141
sy480-04.018 106,266
sy480-04.019 101,895
sy480-04.020 105,060
sy480-04.021 105,539
sy480-04.022 105,640
sy480-04.023 104,922
sy480-04.024 100,975
sy480-04.025 106,212
sy480-04.026 103,967
sy480-04.027 105,420
sy480-04.028 101,469
sy480-04.029 107,931
sy480-04.030 106,972
sy480-04.031 105,003
sy480-04.032 107,694
sy480-04.033 106,357
sy480-04.034 106,936
sy480-04.035 106,152
sy480-04.036 105,925
sy480-04.037 106,010
sy480-04.038 104,695
sy480-04.039 105,327
sy480-04.040 106,070
sy480-04.041 106,409
sy480-04.042 102,999
sy480-04.043 101,610
sy480-04.044 101,100
sy480-04.045 105,751
sy480-04.046 102,615
sy480-04.047 106,655
sy480-04.048 107,246
sy480-04.049 102,332
sy480-04.050 106,509
sy480-04.051 104,998
sy480-04.052 101,035
sy480-04.053 105,882
sy480-04.054 106,593
sy480-04.055 101,173
sy480-04.056 105,359
sy480-04.057 106,005
sy480-04.058 104,722
sy480-04.059 105,139
sy480-04.060 98,965
sy480-04.061 102,465
sy480-04.062 107,165
sy480-04.063 100,324
sy480-04.064 99,051
sy480-04.065 107,700
sy480-04.066 102,198
sy480-04.067 106,778
sy480-04.068 103,803
sy480-04.069 103,194
sy480-04.070 97,243
sy480-04.071 100,177
sy480-04.072 106,625
sy480-04.073 105,650
sy480-04.074 107,449
sy480-04.075 104,384
sy480-04.076 98,048
sy480-04.077 106,033
sy480-04.078 99,887
sy480-04.079 105,808
sy480-04.080 107,106
ssj_ops@100% 8,353,720
ssj_ops@100% per JVM 104,421

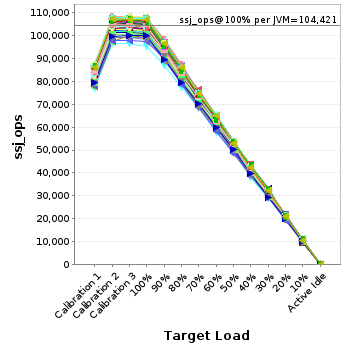

Graph of per-instance results
JVM 'sy480-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,991
Calibration 2     106,164
Calibration 3     106,152
ssj_ops@calibrated=106,158
100% 99.6% 106,158 105,763
90% 89.6% 95,542 95,170
80% 80.1% 84,926 85,053
70% 70.0% 74,311 74,274
60% 59.0% 63,695 62,646
50% 50.4% 53,079 53,479
40% 41.1% 42,463 43,642
30% 30.5% 31,847 32,352
20% 20.2% 21,232 21,403
10% 10.0% 10,616 10,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,728
Calibration 2     105,047
Calibration 3     105,062
ssj_ops@calibrated=105,055
100% 100.0% 105,055 105,099
90% 90.9% 94,549 95,453
80% 79.4% 84,044 83,393
70% 69.5% 73,538 72,982
60% 60.5% 63,033 63,511
50% 50.5% 52,527 53,008
40% 39.6% 42,022 41,621
30% 30.0% 31,516 31,547
20% 20.3% 21,011 21,324
10% 10.3% 10,505 10,826
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,410
Calibration 2     107,307
Calibration 3     107,431
ssj_ops@calibrated=107,369
100% 99.9% 107,369 107,302
90% 90.9% 96,632 97,620
80% 80.4% 85,895 86,324
70% 69.4% 75,158 74,464
60% 59.4% 64,421 63,802
50% 50.1% 53,684 53,781
40% 40.3% 42,948 43,238
30% 29.6% 32,211 31,790
20% 20.3% 21,474 21,759
10% 10.0% 10,737 10,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,043
Calibration 2     104,406
Calibration 3     104,898
ssj_ops@calibrated=104,652
100% 99.8% 104,652 104,470
90% 89.8% 94,187 93,991
80% 79.8% 83,722 83,463
70% 69.6% 73,256 72,843
60% 59.8% 62,791 62,582
50% 49.8% 52,326 52,095
40% 39.9% 41,861 41,750
30% 30.3% 31,396 31,714
20% 19.6% 20,930 20,525
10% 10.2% 10,465 10,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,219
Calibration 2     107,118
Calibration 3     107,073
ssj_ops@calibrated=107,095
100% 100.3% 107,095 107,449
90% 90.2% 96,386 96,564
80% 80.2% 85,676 85,892
70% 71.0% 74,967 76,021
60% 59.3% 64,257 63,507
50% 50.0% 53,548 53,594
40% 40.2% 42,838 43,011
30% 29.9% 32,129 31,975
20% 20.4% 21,419 21,806
10% 9.9% 10,710 10,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,784
Calibration 2     96,505
Calibration 3     96,460
ssj_ops@calibrated=96,483
100% 98.5% 96,483 95,076
90% 89.9% 86,834 86,754
80% 80.0% 77,186 77,194
70% 70.9% 67,538 68,424
60% 59.8% 57,890 57,666
50% 50.5% 48,241 48,725
40% 39.6% 38,593 38,179
30% 30.1% 28,945 29,002
20% 20.7% 19,297 19,935
10% 10.4% 9,648 9,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,369
Calibration 2     106,477
Calibration 3     106,419
ssj_ops@calibrated=106,448
100% 100.1% 106,448 106,533
90% 90.9% 95,803 96,738
80% 79.9% 85,158 85,046
70% 70.2% 74,514 74,732
60% 60.3% 63,869 64,182
50% 49.1% 53,224 52,298
40% 40.0% 42,579 42,578
30% 30.3% 31,934 32,276
20% 19.7% 21,290 20,927
10% 9.8% 10,645 10,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,421
Calibration 2     106,080
Calibration 3     105,953
ssj_ops@calibrated=106,016
100% 98.8% 106,016 104,793
90% 89.8% 95,415 95,161
80% 80.5% 84,813 85,297
70% 70.1% 74,212 74,287
60% 59.9% 63,610 63,496
50% 50.2% 53,008 53,189
40% 40.3% 42,407 42,691
30% 30.1% 31,805 31,954
20% 20.6% 21,203 21,889
10% 9.7% 10,602 10,280
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,858
Calibration 2     105,650
Calibration 3     105,700
ssj_ops@calibrated=105,675
100% 99.3% 105,675 104,972
90% 89.6% 95,107 94,700
80% 80.8% 84,540 85,407
70% 69.4% 73,972 73,327
60% 61.0% 63,405 64,441
50% 49.9% 52,837 52,713
40% 40.7% 42,270 43,041
30% 30.4% 31,702 32,177
20% 20.1% 21,135 21,257
10% 10.0% 10,567 10,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,826
Calibration 2     106,962
Calibration 3     107,086
ssj_ops@calibrated=107,024
100% 99.5% 107,024 106,443
90% 89.7% 96,321 96,045
80% 79.2% 85,619 84,749
70% 69.9% 74,917 74,859
60% 59.4% 64,214 63,546
50% 49.5% 53,512 53,003
40% 40.2% 42,809 43,056
30% 31.0% 32,107 33,219
20% 19.8% 21,405 21,192
10% 9.7% 10,702 10,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,937
Calibration 2     105,176
Calibration 3     105,262
ssj_ops@calibrated=105,219
100% 100.1% 105,219 105,292
90% 89.2% 94,697 93,845
80% 80.2% 84,175 84,385
70% 70.5% 73,653 74,199
60% 60.4% 63,131 63,552
50% 50.4% 52,609 53,001
40% 39.9% 42,088 41,970
30% 29.7% 31,566 31,296
20% 20.2% 21,044 21,229
10% 10.2% 10,522 10,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,508
Calibration 2     103,129
Calibration 3     102,896
ssj_ops@calibrated=103,013
100% 99.8% 103,013 102,795
90% 90.1% 92,711 92,791
80% 80.2% 82,410 82,603
70% 69.3% 72,109 71,405
60% 60.2% 61,808 61,999
50% 49.2% 51,506 50,636
40% 40.3% 41,205 41,555
30% 29.9% 30,904 30,808
20% 20.3% 20,603 20,903
10% 10.1% 10,301 10,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,010
Calibration 2     102,788
Calibration 3     103,067
ssj_ops@calibrated=102,927
100% 99.4% 102,927 102,301
90% 89.7% 92,635 92,346
80% 79.7% 82,342 82,015
70% 70.0% 72,049 72,088
60% 59.9% 61,756 61,613
50% 50.2% 51,464 51,691
40% 39.7% 41,171 40,889
30% 29.7% 30,878 30,547
20% 19.9% 20,585 20,444
10% 9.8% 10,293 10,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,763
Calibration 2     106,946
Calibration 3     107,011
ssj_ops@calibrated=106,979
100% 99.5% 106,979 106,457
90% 88.6% 96,281 94,823
80% 80.3% 85,583 85,908
70% 70.6% 74,885 75,531
60% 60.6% 64,187 64,809
50% 49.3% 53,489 52,765
40% 40.1% 42,791 42,905
30% 29.6% 32,094 31,664
20% 20.1% 21,396 21,542
10% 10.1% 10,698 10,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,103
Calibration 2     101,891
Calibration 3     102,113
ssj_ops@calibrated=102,002
100% 99.7% 102,002 101,701
90% 89.4% 91,802 91,178
80% 79.2% 81,602 80,760
70% 69.6% 71,401 70,974
60% 59.9% 61,201 61,071
50% 51.0% 51,001 51,986
40% 40.2% 40,801 40,999
30% 29.9% 30,601 30,468
20% 19.7% 20,400 20,142
10% 10.0% 10,200 10,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,693
Calibration 2     106,493
Calibration 3     106,538
ssj_ops@calibrated=106,515
100% 100.0% 106,515 106,508
90% 91.0% 95,864 96,879
80% 79.8% 85,212 85,041
70% 68.8% 74,561 73,298
60% 59.3% 63,909 63,184
50% 49.4% 53,258 52,580
40% 39.6% 42,606 42,206
30% 29.8% 31,955 31,786
20% 20.4% 21,303 21,697
10% 9.9% 10,652 10,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,386
Calibration 2     104,304
Calibration 3     104,512
ssj_ops@calibrated=104,408
100% 99.7% 104,408 104,141
90% 89.9% 93,967 93,843
80% 79.2% 83,527 82,720
70% 70.4% 73,086 73,466
60% 59.6% 62,645 62,271
50% 49.8% 52,204 52,043
40% 40.3% 41,763 42,042
30% 30.1% 31,322 31,426
20% 19.8% 20,882 20,629
10% 10.0% 10,441 10,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,807
Calibration 2     107,182
Calibration 3     107,214
ssj_ops@calibrated=107,198
100% 99.1% 107,198 106,266
90% 89.9% 96,478 96,369
80% 80.4% 85,758 86,229
70% 70.5% 75,039 75,537
60% 59.6% 64,319 63,915
50% 49.9% 53,599 53,493
40% 39.9% 42,879 42,723
30% 29.8% 32,159 31,987
20% 20.1% 21,440 21,555
10% 9.8% 10,720 10,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,099
Calibration 2     102,262
Calibration 3     102,355
ssj_ops@calibrated=102,309
100% 99.6% 102,309 101,895
90% 90.7% 92,078 92,800
80% 79.0% 81,847 80,839
70% 70.4% 71,616 71,977
60% 59.3% 61,385 60,694
50% 49.5% 51,154 50,676
40% 39.4% 40,923 40,309
30% 29.7% 30,693 30,422
20% 19.6% 20,462 20,086
10% 10.1% 10,231 10,359
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,922
Calibration 2     105,526
Calibration 3     105,483
ssj_ops@calibrated=105,504
100% 99.6% 105,504 105,060
90% 90.3% 94,954 95,321
80% 80.6% 84,403 85,082
70% 70.0% 73,853 73,879
60% 59.9% 63,303 63,199
50% 49.9% 52,752 52,622
40% 39.1% 42,202 41,202
30% 30.4% 31,651 32,078
20% 20.4% 21,101 21,510
10% 10.1% 10,550 10,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,977
Calibration 2     105,812
Calibration 3     105,918
ssj_ops@calibrated=105,865
100% 99.7% 105,865 105,539
90% 90.1% 95,278 95,400
80% 79.7% 84,692 84,408
70% 69.6% 74,105 73,672
60% 59.6% 63,519 63,096
50% 50.2% 52,932 53,179
40% 39.7% 42,346 41,986
30% 30.3% 31,759 32,063
20% 20.3% 21,173 21,478
10% 10.0% 10,586 10,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,920
Calibration 2     106,350
Calibration 3     106,203
ssj_ops@calibrated=106,277
100% 99.4% 106,277 105,640
90% 89.7% 95,649 95,307
80% 78.9% 85,021 83,826
70% 70.4% 74,394 74,833
60% 60.6% 63,766 64,448
50% 50.2% 53,138 53,363
40% 39.9% 42,511 42,420
30% 30.6% 31,883 32,474
20% 20.2% 21,255 21,481
10% 10.0% 10,628 10,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,184
Calibration 2     106,240
Calibration 3     106,123
ssj_ops@calibrated=106,182
100% 98.8% 106,182 104,922
90% 90.6% 95,563 96,218
80% 80.2% 84,945 85,130
70% 70.2% 74,327 74,518
60% 59.9% 63,709 63,578
50% 49.9% 53,091 52,945
40% 40.3% 42,473 42,743
30% 30.6% 31,854 32,465
20% 20.1% 21,236 21,384
10% 10.0% 10,618 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,065
Calibration 2     101,109
Calibration 3     101,060
ssj_ops@calibrated=101,085
100% 99.9% 101,085 100,975
90% 90.2% 90,976 91,157
80% 80.4% 80,868 81,303
70% 70.3% 70,759 71,074
60% 60.8% 60,651 61,483
50% 49.4% 50,542 49,960
40% 39.9% 40,434 40,334
30% 30.1% 30,325 30,389
20% 19.5% 20,217 19,736
10% 10.1% 10,108 10,193
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,348
Calibration 2     106,680
Calibration 3     106,578
ssj_ops@calibrated=106,629
100% 99.6% 106,629 106,212
90% 90.1% 95,966 96,091
80% 80.9% 85,303 86,297
70% 69.5% 74,641 74,128
60% 60.2% 63,978 64,228
50% 49.6% 53,315 52,918
40% 39.5% 42,652 42,096
30% 30.7% 31,989 32,708
20% 20.0% 21,326 21,325
10% 10.1% 10,663 10,724
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,881
Calibration 2     104,106
Calibration 3     104,145
ssj_ops@calibrated=104,126
100% 99.8% 104,126 103,967
90% 90.6% 93,713 94,345
80% 79.7% 83,300 82,951
70% 69.0% 72,888 71,831
60% 60.3% 62,475 62,803
50% 50.3% 52,063 52,355
40% 39.9% 41,650 41,495
30% 29.6% 31,238 30,863
20% 19.9% 20,825 20,699
10% 10.3% 10,413 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,863
Calibration 2     105,261
Calibration 3     105,383
ssj_ops@calibrated=105,322
100% 100.1% 105,322 105,420
90% 90.1% 94,790 94,923
80% 79.8% 84,258 84,060
70% 70.3% 73,725 73,993
60% 59.3% 63,193 62,418
50% 49.5% 52,661 52,181
40% 39.7% 42,129 41,826
30% 30.0% 31,597 31,610
20% 20.0% 21,064 21,110
10% 9.6% 10,532 10,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,944
Calibration 2     101,648
Calibration 3     101,834
ssj_ops@calibrated=101,741
100% 99.7% 101,741 101,469
90% 90.6% 91,567 92,210
80% 80.0% 81,392 81,354
70% 69.6% 71,218 70,768
60% 60.4% 61,044 61,481
50% 50.2% 50,870 51,036
40% 40.0% 40,696 40,729
30% 29.7% 30,522 30,198
20% 19.6% 20,348 19,988
10% 10.3% 10,174 10,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,385
Calibration 2     108,250
Calibration 3     108,215
ssj_ops@calibrated=108,232
100% 99.7% 108,232 107,931
90% 90.6% 97,409 98,104
80% 80.6% 86,586 87,278
70% 69.8% 75,763 75,581
60% 59.2% 64,939 64,077
50% 49.8% 54,116 53,873
40% 40.1% 43,293 43,449
30% 29.8% 32,470 32,272
20% 19.9% 21,646 21,588
10% 10.2% 10,823 11,060
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,647
Calibration 2     107,112
Calibration 3     107,027
ssj_ops@calibrated=107,070
100% 99.9% 107,070 106,972
90% 90.1% 96,363 96,433
80% 81.1% 85,656 86,801
70% 70.4% 74,949 75,338
60% 60.3% 64,242 64,523
50% 49.5% 53,535 53,049
40% 39.7% 42,828 42,551
30% 30.1% 32,121 32,273
20% 20.2% 21,414 21,586
10% 9.6% 10,707 10,327
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,292
Calibration 2     104,113
Calibration 3     104,984
ssj_ops@calibrated=104,549
100% 100.4% 104,549 105,003
90% 90.2% 94,094 94,263
80% 80.2% 83,639 83,866
70% 70.7% 73,184 73,869
60% 59.8% 62,729 62,569
50% 49.7% 52,274 51,954
40% 40.1% 41,819 41,937
30% 30.0% 31,365 31,406
20% 20.7% 20,910 21,659
10% 10.0% 10,455 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

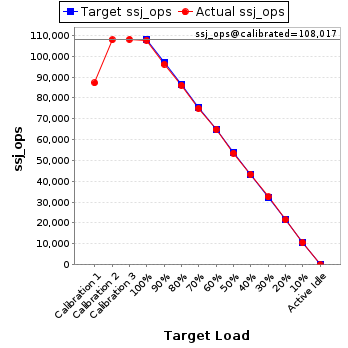

JVM 'sy480-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,197
Calibration 2     107,893
Calibration 3     108,141
ssj_ops@calibrated=108,017
100% 99.7% 108,017 107,694
90% 89.1% 97,215 96,234
80% 79.7% 86,414 86,077
70% 69.5% 75,612 75,049
60% 60.1% 64,810 64,905
50% 49.6% 54,009 53,560
40% 40.1% 43,207 43,344
30% 30.1% 32,405 32,487
20% 19.9% 21,603 21,537
10% 9.9% 10,802 10,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,302
Calibration 2     105,743
Calibration 3     106,131
ssj_ops@calibrated=105,937
100% 100.4% 105,937 106,357
90% 90.0% 95,343 95,327
80% 80.0% 84,750 84,756
70% 70.3% 74,156 74,458
60% 59.8% 63,562 63,316
50% 49.9% 52,968 52,878
40% 39.9% 42,375 42,223
30% 30.1% 31,781 31,839
20% 19.5% 21,187 20,675
10% 9.8% 10,594 10,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,654
Calibration 2     107,712
Calibration 3     107,582
ssj_ops@calibrated=107,647
100% 99.3% 107,647 106,936
90% 90.5% 96,882 97,458
80% 79.6% 86,117 85,689
70% 70.4% 75,353 75,747
60% 60.9% 64,588 65,583
50% 50.2% 53,823 54,030
40% 39.7% 43,059 42,782
30% 30.4% 32,294 32,729
20% 19.9% 21,529 21,412
10% 10.2% 10,765 10,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,551
Calibration 2     106,565
Calibration 3     107,458
ssj_ops@calibrated=107,012
100% 99.2% 107,012 106,152
90% 89.7% 96,310 96,012
80% 80.9% 85,609 86,587
70% 70.1% 74,908 75,008
60% 60.0% 64,207 64,237
50% 50.1% 53,506 53,641
40% 39.8% 42,805 42,540
30% 29.9% 32,103 32,002
20% 20.0% 21,402 21,439
10% 10.1% 10,701 10,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,016
Calibration 2     105,997
Calibration 3     106,116
ssj_ops@calibrated=106,057
100% 99.9% 106,057 105,925
90% 89.8% 95,451 95,268
80% 79.0% 84,845 83,822
70% 70.4% 74,240 74,689
60% 59.8% 63,634 63,374
50% 49.4% 53,028 52,363
40% 39.9% 42,423 42,287
30% 30.6% 31,817 32,430
20% 20.5% 21,211 21,702
10% 10.0% 10,606 10,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,962
Calibration 2     106,297
Calibration 3     106,396
ssj_ops@calibrated=106,346
100% 99.7% 106,346 106,010
90% 89.9% 95,712 95,586
80% 80.4% 85,077 85,455
70% 70.0% 74,442 74,458
60% 60.2% 63,808 63,989
50% 49.6% 53,173 52,695
40% 39.9% 42,539 42,437
30% 30.0% 31,904 31,910
20% 19.9% 21,269 21,178
10% 10.1% 10,635 10,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,542
Calibration 2     105,020
Calibration 3     104,913
ssj_ops@calibrated=104,966
100% 99.7% 104,966 104,695
90% 90.2% 94,469 94,698
80% 81.6% 83,973 85,660
70% 69.4% 73,476 72,816
60% 60.8% 62,980 63,834
50% 50.3% 52,483 52,748
40% 39.8% 41,986 41,793
30% 30.2% 31,490 31,735
20% 20.4% 20,993 21,409
10% 10.0% 10,497 10,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,926
Calibration 2     105,861
Calibration 3     105,864
ssj_ops@calibrated=105,862
100% 99.5% 105,862 105,327
90% 89.2% 95,276 94,436
80% 79.4% 84,690 84,079
70% 70.5% 74,104 74,606
60% 60.5% 63,517 64,037
50% 50.4% 52,931 53,314
40% 40.2% 42,345 42,552
30% 30.2% 31,759 31,985
20% 20.0% 21,172 21,164
10% 9.7% 10,586 10,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,899
Calibration 2     106,480
Calibration 3     106,553
ssj_ops@calibrated=106,516
100% 99.6% 106,516 106,070
90% 90.3% 95,865 96,161
80% 80.7% 85,213 85,947
70% 70.0% 74,561 74,595
60% 59.9% 63,910 63,769
50% 49.8% 53,258 53,083
40% 40.1% 42,606 42,751
30% 29.6% 31,955 31,577
20% 19.9% 21,303 21,177
10% 10.5% 10,652 11,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,427
Calibration 2     105,890
Calibration 3     106,191
ssj_ops@calibrated=106,041
100% 100.3% 106,041 106,409
90% 89.5% 95,437 94,903
80% 79.9% 84,833 84,752
70% 69.6% 74,229 73,810
60% 60.5% 63,624 64,178
50% 49.2% 53,020 52,210
40% 40.2% 42,416 42,636
30% 30.0% 31,812 31,864
20% 20.1% 21,208 21,286
10% 10.4% 10,604 11,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,912
Calibration 2     102,887
Calibration 3     102,805
ssj_ops@calibrated=102,846
100% 100.1% 102,846 102,999
90% 89.7% 92,561 92,244
80% 78.6% 82,277 80,858
70% 70.6% 71,992 72,602
60% 60.6% 61,708 62,362
50% 49.8% 51,423 51,236
40% 39.7% 41,138 40,795
30% 29.5% 30,854 30,329
20% 20.3% 20,569 20,856
10% 9.9% 10,285 10,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,643
Calibration 2     101,581
Calibration 3     101,792
ssj_ops@calibrated=101,686
100% 99.9% 101,686 101,610
90% 90.6% 91,518 92,148
80% 80.9% 81,349 82,307
70% 69.7% 71,181 70,909
60% 59.4% 61,012 60,364
50% 50.2% 50,843 51,086
40% 39.7% 40,675 40,359
30% 29.9% 30,506 30,407
20% 20.2% 20,337 20,574
10% 9.5% 10,169 9,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,920
Calibration 2     102,242
Calibration 3     102,316
ssj_ops@calibrated=102,279
100% 98.8% 102,279 101,100
90% 89.5% 92,051 91,521
80% 80.4% 81,823 82,211
70% 70.2% 71,596 71,790
60% 60.5% 61,368 61,903
50% 49.9% 51,140 51,048
40% 40.5% 40,912 41,405
30% 30.2% 30,684 30,933
20% 20.0% 20,456 20,412
10% 10.0% 10,228 10,272
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,660
Calibration 2     106,173
Calibration 3     106,258
ssj_ops@calibrated=106,215
100% 99.6% 106,215 105,751
90% 90.9% 95,594 96,502
80% 80.8% 84,972 85,862
70% 70.5% 74,351 74,878
60% 59.2% 63,729 62,928
50% 50.0% 53,108 53,059
40% 40.6% 42,486 43,076
30% 29.9% 31,865 31,735
20% 19.7% 21,243 20,968
10% 10.4% 10,622 11,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,717
Calibration 2     103,140
Calibration 3     103,204
ssj_ops@calibrated=103,172
100% 99.5% 103,172 102,615
90% 90.1% 92,855 92,968
80% 80.1% 82,538 82,637
70% 70.3% 72,221 72,549
60% 60.2% 61,903 62,143
50% 49.6% 51,586 51,144
40% 40.2% 41,269 41,433
30% 30.5% 30,952 31,449
20% 19.9% 20,634 20,546
10% 10.0% 10,317 10,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,085
Calibration 2     106,814
Calibration 3     106,955
ssj_ops@calibrated=106,884
100% 99.8% 106,884 106,655
90% 90.7% 96,196 96,936
80% 80.6% 85,507 86,146
70% 69.9% 74,819 74,670
60% 60.3% 64,131 64,503
50% 50.7% 53,442 54,234
40% 40.4% 42,754 43,167
30% 29.9% 32,065 31,938
20% 20.3% 21,377 21,666
10% 10.1% 10,688 10,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,817
Calibration 2     107,262
Calibration 3     107,386
ssj_ops@calibrated=107,324
100% 99.9% 107,324 107,246
90% 90.9% 96,592 97,515
80% 80.2% 85,859 86,038
70% 70.3% 75,127 75,489
60% 60.4% 64,394 64,781
50% 49.3% 53,662 52,960
40% 39.9% 42,930 42,816
30% 30.3% 32,197 32,474
20% 20.1% 21,465 21,594
10% 10.0% 10,732 10,722
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,799
Calibration 2     103,896
Calibration 3     103,956
ssj_ops@calibrated=103,926
100% 98.5% 103,926 102,332
90% 91.2% 93,533 94,754
80% 79.8% 83,141 82,976
70% 69.6% 72,748 72,383
60% 59.5% 62,356 61,787
50% 49.8% 51,963 51,707
40% 40.3% 41,570 41,879
30% 29.9% 31,178 31,116
20% 19.8% 20,785 20,572
10% 10.1% 10,393 10,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,004
Calibration 2     106,748
Calibration 3     106,899
ssj_ops@calibrated=106,824
100% 99.7% 106,824 106,509
90% 89.4% 96,141 95,540
80% 79.5% 85,459 84,921
70% 71.7% 74,776 76,595
60% 60.6% 64,094 64,738
50% 49.3% 53,412 52,658
40% 39.6% 42,729 42,351
30% 29.8% 32,047 31,873
20% 19.7% 21,365 21,054
10% 9.9% 10,682 10,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,929
Calibration 2     106,230
Calibration 3     106,364
ssj_ops@calibrated=106,297
100% 98.8% 106,297 104,998
90% 88.9% 95,668 94,496
80% 79.7% 85,038 84,721
70% 69.5% 74,408 73,902
60% 60.1% 63,778 63,844
50% 50.1% 53,149 53,291
40% 40.8% 42,519 43,367
30% 29.9% 31,889 31,763
20% 20.2% 21,259 21,421
10% 9.7% 10,630 10,297
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,949
Calibration 2     101,557
Calibration 3     101,515
ssj_ops@calibrated=101,536
100% 99.5% 101,536 101,035
90% 90.3% 91,382 91,724
80% 80.5% 81,229 81,713
70% 69.9% 71,075 71,002
60% 59.6% 60,922 60,478
50% 50.2% 50,768 50,935
40% 39.7% 40,614 40,272
30% 30.3% 30,461 30,758
20% 19.9% 20,307 20,252
10% 10.2% 10,154 10,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,497
Calibration 2     106,056
Calibration 3     105,877
ssj_ops@calibrated=105,967
100% 99.9% 105,967 105,882
90% 89.4% 95,370 94,751
80% 79.0% 84,773 83,738
70% 69.3% 74,177 73,455
60% 60.4% 63,580 63,958
50% 49.9% 52,983 52,868
40% 40.1% 42,387 42,528
30% 30.2% 31,790 32,031
20% 19.6% 21,193 20,781
10% 9.8% 10,597 10,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,426
Calibration 2     106,735
Calibration 3     106,964
ssj_ops@calibrated=106,849
100% 99.8% 106,849 106,593
90% 90.6% 96,165 96,793
80% 79.5% 85,480 84,955
70% 70.4% 74,795 75,254
60% 59.7% 64,110 63,791
50% 50.1% 53,425 53,537
40% 39.7% 42,740 42,471
30% 30.2% 32,055 32,295
20% 20.0% 21,370 21,378
10% 10.1% 10,685 10,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,898
Calibration 2     101,796
Calibration 3     101,960
ssj_ops@calibrated=101,878
100% 99.3% 101,878 101,173
90% 90.1% 91,690 91,807
80% 79.5% 81,502 81,019
70% 71.0% 71,314 72,315
60% 59.9% 61,127 61,051
50% 50.4% 50,939 51,377
40% 40.5% 40,751 41,292
30% 29.9% 30,563 30,445
20% 19.8% 20,376 20,125
10% 9.8% 10,188 9,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,585
Calibration 2     106,301
Calibration 3     106,390
ssj_ops@calibrated=106,345
100% 99.1% 106,345 105,359
90% 89.2% 95,711 94,870
80% 79.9% 85,076 84,930
70% 69.6% 74,442 74,037
60% 60.3% 63,807 64,101
50% 50.7% 53,173 53,921
40% 39.8% 42,538 42,328
30% 29.6% 31,904 31,434
20% 20.2% 21,269 21,483
10% 10.0% 10,635 10,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,577
Calibration 2     105,742
Calibration 3     106,273
ssj_ops@calibrated=106,007
100% 100.0% 106,007 106,005
90% 91.2% 95,407 96,639
80% 79.9% 84,806 84,690
70% 70.5% 74,205 74,689
60% 59.1% 63,604 62,650
50% 50.3% 53,004 53,363
40% 40.1% 42,403 42,539
30% 29.6% 31,802 31,388
20% 19.6% 21,201 20,798
10% 10.2% 10,601 10,781
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,377
Calibration 2     104,786
Calibration 3     104,971
ssj_ops@calibrated=104,878
100% 99.9% 104,878 104,722
90% 91.1% 94,391 95,493
80% 79.3% 83,903 83,219
70% 69.5% 73,415 72,855
60% 59.9% 62,927 62,808
50% 50.7% 52,439 53,196
40% 40.0% 41,951 41,908
30% 29.4% 31,464 30,800
20% 20.5% 20,976 21,504
10% 10.1% 10,488 10,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,770
Calibration 2     105,546
Calibration 3     105,578
ssj_ops@calibrated=105,562
100% 99.6% 105,562 105,139
90% 89.3% 95,006 94,238
80% 80.5% 84,450 85,017
70% 68.6% 73,894 72,395
60% 59.5% 63,337 62,816
50% 50.6% 52,781 53,374
40% 40.3% 42,225 42,495
30% 30.6% 31,669 32,331
20% 20.2% 21,112 21,339
10% 9.9% 10,556 10,484
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,757
Calibration 2     97,511
Calibration 3     100,086
ssj_ops@calibrated=98,799
100% 100.2% 98,799 98,965
90% 89.9% 88,919 88,823
80% 80.5% 79,039 79,504
70% 70.7% 69,159 69,856
60% 60.2% 59,279 59,522
50% 49.5% 49,399 48,942
40% 39.2% 39,519 38,690
30% 30.1% 29,640 29,731
20% 20.3% 19,760 20,083
10% 10.0% 9,880 9,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,133
Calibration 2     102,982
Calibration 3     103,222
ssj_ops@calibrated=103,102
100% 99.4% 103,102 102,465
90% 90.4% 92,792 93,223
80% 80.4% 82,482 82,945
70% 69.7% 72,172 71,876
60% 59.9% 61,861 61,707
50% 49.3% 51,551 50,853
40% 40.3% 41,241 41,538
30% 30.1% 30,931 30,987
20% 20.2% 20,620 20,844
10% 10.2% 10,310 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,449
Calibration 2     107,310
Calibration 3     107,259
ssj_ops@calibrated=107,284
100% 99.9% 107,284 107,165
90% 89.5% 96,556 95,991
80% 79.6% 85,827 85,409
70% 70.1% 75,099 75,207
60% 60.2% 64,371 64,610
50% 50.1% 53,642 53,736
40% 39.9% 42,914 42,785
30% 29.9% 32,185 32,104
20% 20.2% 21,457 21,680
10% 9.9% 10,728 10,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,724
Calibration 2     100,457
Calibration 3     100,401
ssj_ops@calibrated=100,429
100% 99.9% 100,429 100,324
90% 90.9% 90,386 91,249
80% 80.6% 80,343 80,923
70% 69.5% 70,300 69,756
60% 59.3% 60,257 59,577
50% 49.7% 50,215 49,941
40% 39.7% 40,172 39,834
30% 30.0% 30,129 30,131
20% 20.0% 20,086 20,133
10% 10.4% 10,043 10,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,566
Calibration 2     99,033
Calibration 3     98,969
ssj_ops@calibrated=99,001
100% 100.1% 99,001 99,051
90% 90.0% 89,101 89,089
80% 79.8% 79,201 79,028
70% 70.0% 69,301 69,253
60% 59.9% 59,400 59,280
50% 49.5% 49,500 48,990
40% 39.3% 39,600 38,954
30% 29.6% 29,700 29,335
20% 20.3% 19,800 20,127
10% 10.2% 9,900 10,142
Active Idle   0 0

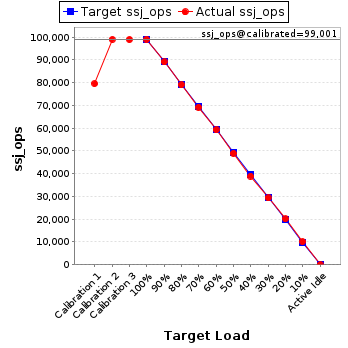

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,950
Calibration 2     107,482
Calibration 3     107,622
ssj_ops@calibrated=107,552
100% 100.1% 107,552 107,700
90% 90.1% 96,797 96,910
80% 79.2% 86,042 85,191
70% 70.1% 75,287 75,439
60% 59.9% 64,531 64,378
50% 50.2% 53,776 53,975
40% 40.2% 43,021 43,241
30% 29.8% 32,266 32,092
20% 19.6% 21,510 21,082
10% 9.7% 10,755 10,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,190
Calibration 2     102,549
Calibration 3     102,454
ssj_ops@calibrated=102,502
100% 99.7% 102,502 102,198
90% 90.3% 92,252 92,571
80% 79.4% 82,001 81,399
70% 69.5% 71,751 71,250
60% 59.9% 61,501 61,354
50% 50.6% 51,251 51,820
40% 39.8% 41,001 40,829
30% 30.2% 30,751 30,907
20% 20.3% 20,500 20,782
10% 9.8% 10,250 10,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,900
Calibration 2     106,928
Calibration 3     107,071
ssj_ops@calibrated=107,000
100% 99.8% 107,000 106,778
90% 89.9% 96,300 96,171
80% 80.8% 85,600 86,409
70% 69.4% 74,900 74,232
60% 59.5% 64,200 63,675
50% 50.3% 53,500 53,840
40% 39.7% 42,800 42,451
30% 30.2% 32,100 32,278
20% 20.6% 21,400 22,042
10% 10.1% 10,700 10,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,784
Calibration 2     103,752
Calibration 3     103,927
ssj_ops@calibrated=103,839
100% 100.0% 103,839 103,803
90% 89.8% 93,455 93,268
80% 79.9% 83,071 82,975
70% 70.2% 72,687 72,922
60% 59.9% 62,303 62,208
50% 50.1% 51,920 51,980
40% 39.5% 41,536 41,031
30% 30.3% 31,152 31,479
20% 20.1% 20,768 20,889
10% 10.2% 10,384 10,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,432
Calibration 2     104,742
Calibration 3     104,808
ssj_ops@calibrated=104,775
100% 98.5% 104,775 103,194
90% 89.5% 94,297 93,738
80% 79.8% 83,820 83,626
70% 70.7% 73,342 74,031
60% 59.8% 62,865 62,629
50% 50.0% 52,387 52,398
40% 39.5% 41,910 41,381
30% 30.2% 31,432 31,644
20% 19.6% 20,955 20,584
10% 10.1% 10,477 10,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,133
Calibration 2     97,598
Calibration 3     97,719
ssj_ops@calibrated=97,659
100% 99.6% 97,659 97,243
90% 92.1% 87,893 89,911
80% 80.3% 78,127 78,392
70% 70.3% 68,361 68,618
60% 59.5% 58,595 58,100
50% 49.6% 48,829 48,453
40% 40.1% 39,063 39,171
30% 30.2% 29,298 29,468
20% 19.7% 19,532 19,244
10% 10.3% 9,766 10,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,622
Calibration 2     100,433
Calibration 3     100,579
ssj_ops@calibrated=100,506
100% 99.7% 100,506 100,177
90% 90.3% 90,455 90,721
80% 80.3% 80,405 80,692
70% 70.1% 70,354 70,486
60% 60.5% 60,304 60,769
50% 50.2% 50,253 50,411
40% 40.2% 40,202 40,392
30% 29.7% 30,152 29,874
20% 20.3% 20,101 20,450
10% 9.9% 10,051 9,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,746
Calibration 2     107,025
Calibration 3     107,154
ssj_ops@calibrated=107,089
100% 99.6% 107,089 106,625
90% 90.2% 96,381 96,612
80% 78.7% 85,672 84,291
70% 69.8% 74,963 74,762
60% 60.0% 64,254 64,258
50% 50.0% 53,545 53,552
40% 40.2% 42,836 43,026
30% 30.5% 32,127 32,701
20% 19.9% 21,418 21,271
10% 9.9% 10,709 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,579
Calibration 2     105,759
Calibration 3     105,866
ssj_ops@calibrated=105,813
100% 99.8% 105,813 105,650
90% 89.7% 95,231 94,955
80% 80.3% 84,650 84,951
70% 70.2% 74,069 74,279
60% 60.2% 63,488 63,747
50% 49.7% 52,906 52,633
40% 40.3% 42,325 42,653
30% 29.8% 31,744 31,577
20% 20.1% 21,163 21,311
10% 10.2% 10,581 10,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,832
Calibration 2     107,702
Calibration 3     107,479
ssj_ops@calibrated=107,590
100% 99.9% 107,590 107,449
90% 89.2% 96,831 96,004
80% 80.0% 86,072 86,020
70% 69.8% 75,313 75,083
60% 60.1% 64,554 64,676
50% 50.0% 53,795 53,822
40% 39.9% 43,036 42,879
30% 29.7% 32,277 31,926
20% 19.9% 21,518 21,440
10% 10.0% 10,759 10,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,152
Calibration 2     104,718
Calibration 3     104,493
ssj_ops@calibrated=104,606
100% 99.8% 104,606 104,384
90% 88.8% 94,145 92,869
80% 79.3% 83,685 82,996
70% 70.1% 73,224 73,277
60% 59.6% 62,763 62,388
50% 49.5% 52,303 51,809
40% 39.8% 41,842 41,644
30% 30.0% 31,382 31,366
20% 19.9% 20,921 20,847
10% 10.0% 10,461 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,967
Calibration 2     98,998
Calibration 3     98,916
ssj_ops@calibrated=98,957
100% 99.1% 98,957 98,048
90% 91.9% 89,062 90,973
80% 80.5% 79,166 79,676
70% 69.1% 69,270 68,421
60% 59.9% 59,374 59,244
50% 50.2% 49,479 49,707
40% 39.9% 39,583 39,465
30% 30.3% 29,687 29,936
20% 19.8% 19,791 19,575
10% 9.8% 9,896 9,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,571
Calibration 2     106,204
Calibration 3     106,382
ssj_ops@calibrated=106,293
100% 99.8% 106,293 106,033
90% 90.0% 95,664 95,706
80% 80.0% 85,035 85,035
70% 69.1% 74,405 73,453
60% 60.2% 63,776 64,014
50% 50.2% 53,147 53,352
40% 39.8% 42,517 42,252
30% 29.9% 31,888 31,785
20% 20.1% 21,259 21,410
10% 10.1% 10,629 10,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,337
Calibration 2     99,534
Calibration 3     99,738
ssj_ops@calibrated=99,636
100% 100.3% 99,636 99,887
90% 89.7% 89,673 89,422
80% 79.7% 79,709 79,405
70% 70.5% 69,745 70,197
60% 59.9% 59,782 59,703
50% 50.4% 49,818 50,236
40% 39.8% 39,855 39,698
30% 29.6% 29,891 29,458
20% 20.1% 19,927 20,027
10% 10.3% 9,964 10,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,228
Calibration 2     106,668
Calibration 3     106,870
ssj_ops@calibrated=106,769
100% 99.1% 106,769 105,808
90% 89.3% 96,092 95,393
80% 79.1% 85,415 84,501
70% 69.4% 74,739 74,135
60% 59.5% 64,062 63,504
50% 50.1% 53,385 53,451
40% 40.3% 42,708 43,030
30% 30.6% 32,031 32,668
20% 19.5% 21,354 20,816
10% 10.2% 10,677 10,905
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,186
Calibration 2     107,164
Calibration 3     107,034
ssj_ops@calibrated=107,099
100% 100.0% 107,099 107,106
90% 90.1% 96,389 96,521
80% 80.5% 85,679 86,162
70% 69.7% 74,969 74,627
60% 60.7% 64,260 65,010
50% 49.5% 53,550 53,014
40% 39.6% 42,840 42,460
30% 30.2% 32,130 32,323
20% 19.7% 21,420 21,137
10% 10.0% 10,710 10,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
