Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,377,438
ssj_ops@100% per JVM = 104,718
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 11, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,748,830
Calibration 2     8,397,400
Calibration 3     8,403,537
ssj_ops@calibrated=8,400,468
100% 99.7% 8,400,468 8,377,438
90% 89.9% 7,560,421 7,553,539
80% 80.0% 6,720,374 6,721,047
70% 70.1% 5,880,328 5,888,782
60% 59.8% 5,040,281 5,024,016
50% 49.9% 4,200,234 4,193,612
40% 40.0% 3,360,187 3,356,776
30% 30.0% 2,520,140 2,520,211
20% 20.0% 1,680,094 1,679,511
10% 10.0% 840,047 837,965
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-07.001 106,365
sy480-07.002 107,912
sy480-07.003 101,392
sy480-07.004 106,927
sy480-07.005 105,709
sy480-07.006 105,811
sy480-07.007 100,964
sy480-07.008 107,288
sy480-07.009 105,112
sy480-07.010 105,129
sy480-07.011 106,434
sy480-07.012 103,911
sy480-07.013 103,448
sy480-07.014 106,077
sy480-07.015 103,707
sy480-07.016 105,004
sy480-07.017 105,079
sy480-07.018 106,781
sy480-07.019 104,823
sy480-07.020 103,433
sy480-07.021 106,377
sy480-07.022 106,083
sy480-07.023 107,743
sy480-07.024 101,818
sy480-07.025 101,203
sy480-07.026 107,903
sy480-07.027 105,525
sy480-07.028 93,644
sy480-07.029 107,444
sy480-07.030 106,569
sy480-07.031 102,957
sy480-07.032 106,916
sy480-07.033 107,220
sy480-07.034 105,146
sy480-07.035 102,403
sy480-07.036 105,159
sy480-07.037 105,674
sy480-07.038 103,830
sy480-07.039 108,279
sy480-07.040 98,437
sy480-07.041 104,123
sy480-07.042 104,265
sy480-07.043 103,138
sy480-07.044 105,798
sy480-07.045 104,806
sy480-07.046 106,155
sy480-07.047 98,576
sy480-07.048 104,948
sy480-07.049 105,273
sy480-07.050 106,191
sy480-07.051 104,395
sy480-07.052 105,973
sy480-07.053 105,873
sy480-07.054 103,329
sy480-07.055 105,458
sy480-07.056 106,760
sy480-07.057 105,240
sy480-07.058 103,740
sy480-07.059 103,960
sy480-07.060 102,567
sy480-07.061 99,582
sy480-07.062 105,459
sy480-07.063 102,903
sy480-07.064 105,322
sy480-07.065 105,093
sy480-07.066 104,514
sy480-07.067 104,522
sy480-07.068 105,755
sy480-07.069 106,992
sy480-07.070 102,118
sy480-07.071 108,422
sy480-07.072 107,018
sy480-07.073 106,780
sy480-07.074 105,921
sy480-07.075 105,039
sy480-07.076 101,744
sy480-07.077 105,158
sy480-07.078 105,060
sy480-07.079 103,995
sy480-07.080 103,837
ssj_ops@100% 8,377,438
ssj_ops@100% per JVM 104,718
Graph of per-instance results
JVM 'sy480-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,093
Calibration 2     106,120
Calibration 3     106,491
ssj_ops@calibrated=106,305
100% 100.1% 106,305 106,365
90% 90.4% 95,675 96,109
80% 79.5% 85,044 84,542
70% 69.7% 74,414 74,087
60% 59.5% 63,783 63,219
50% 50.3% 53,153 53,468
40% 39.9% 42,522 42,454
30% 30.0% 31,892 31,911
20% 19.9% 21,261 21,178
10% 10.2% 10,631 10,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,916
Calibration 2     107,853
Calibration 3     107,865
ssj_ops@calibrated=107,859
100% 100.0% 107,859 107,912
90% 90.3% 97,073 97,375
80% 80.5% 86,287 86,862
70% 70.5% 75,501 76,012
60% 58.9% 64,716 63,500
50% 49.4% 53,930 53,329
40% 40.3% 43,144 43,463
30% 29.9% 32,358 32,268
20% 20.2% 21,572 21,815
10% 9.8% 10,786 10,603
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,025
Calibration 2     101,983
Calibration 3     101,960
ssj_ops@calibrated=101,972
100% 99.4% 101,972 101,392
90% 90.0% 91,775 91,800
80% 79.1% 81,577 80,624
70% 69.0% 71,380 70,370
60% 60.1% 61,183 61,329
50% 49.5% 50,986 50,454
40% 40.2% 40,789 41,007
30% 30.0% 30,592 30,609
20% 19.8% 20,394 20,222
10% 9.9% 10,197 10,130
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,066
Calibration 2     107,068
Calibration 3     107,122
ssj_ops@calibrated=107,095
100% 99.8% 107,095 106,927
90% 89.1% 96,386 95,454
80% 79.4% 85,676 85,079
70% 71.1% 74,967 76,095
60% 60.1% 64,257 64,375
50% 50.0% 53,548 53,593
40% 40.4% 42,838 43,264
30% 29.8% 32,129 31,935
20% 20.6% 21,419 22,099
10% 9.7% 10,710 10,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,996
Calibration 2     105,417
Calibration 3     105,466
ssj_ops@calibrated=105,441
100% 100.3% 105,441 105,709
90% 89.5% 94,897 94,350
80% 79.7% 84,353 84,051
70% 69.4% 73,809 73,186
60% 59.3% 63,265 62,477
50% 49.7% 52,721 52,361
40% 40.0% 42,176 42,182
30% 29.9% 31,632 31,575
20% 19.6% 21,088 20,648
10% 9.8% 10,544 10,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,145
Calibration 2     106,055
Calibration 3     106,028
ssj_ops@calibrated=106,042
100% 99.8% 106,042 105,811
90% 90.2% 95,437 95,652
80% 80.0% 84,833 84,871
70% 70.8% 74,229 75,102
60% 59.9% 63,625 63,527
50% 49.7% 53,021 52,662
40% 40.2% 42,417 42,641
30% 30.0% 31,812 31,858
20% 19.6% 21,208 20,808
10% 10.4% 10,604 10,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,536
Calibration 2     101,388
Calibration 3     101,719
ssj_ops@calibrated=101,554
100% 99.4% 101,554 100,964
90% 89.7% 91,398 91,044
80% 79.9% 81,243 81,094
70% 70.4% 71,087 71,498
60% 59.8% 60,932 60,748
50% 49.5% 50,777 50,284
40% 40.4% 40,621 41,041
30% 30.3% 30,466 30,790
20% 20.0% 20,311 20,360
10% 10.2% 10,155 10,364
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,813
Calibration 2     107,129
Calibration 3     107,176
ssj_ops@calibrated=107,153
100% 100.1% 107,153 107,288
90% 89.0% 96,437 95,360
80% 79.0% 85,722 84,644
70% 69.0% 75,007 73,884
60% 60.8% 64,292 65,144
50% 49.7% 53,576 53,300
40% 39.6% 42,861 42,404
30% 29.9% 32,146 31,985
20% 20.0% 21,431 21,397
10% 9.7% 10,715 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,313
Calibration 2     104,920
Calibration 3     105,308
ssj_ops@calibrated=105,114
100% 100.0% 105,114 105,112
90% 89.8% 94,602 94,411
80% 79.6% 84,091 83,657
70% 69.3% 73,580 72,845
60% 60.5% 63,068 63,645
50% 50.3% 52,557 52,828
40% 40.5% 42,045 42,581
30% 30.0% 31,534 31,502
20% 20.4% 21,023 21,404
10% 10.4% 10,511 10,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,372
Calibration 2     104,830
Calibration 3     104,920
ssj_ops@calibrated=104,875
100% 100.2% 104,875 105,129
90% 90.3% 94,388 94,743
80% 80.0% 83,900 83,906
70% 70.3% 73,413 73,741
60% 59.8% 62,925 62,767
50% 49.3% 52,438 51,683
40% 39.8% 41,950 41,728
30% 30.0% 31,463 31,472
20% 20.6% 20,975 21,552
10% 9.9% 10,488 10,426
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,322
Calibration 2     106,940
Calibration 3     106,908
ssj_ops@calibrated=106,924
100% 99.5% 106,924 106,434
90% 90.6% 96,232 96,869
80% 80.6% 85,539 86,225
70% 69.4% 74,847 74,237
60% 58.9% 64,154 63,011
50% 49.8% 53,462 53,206
40% 39.8% 42,770 42,565
30% 29.9% 32,077 32,016
20% 19.7% 21,385 21,020
10% 9.9% 10,692 10,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,481
Calibration 2     105,217
Calibration 3     105,046
ssj_ops@calibrated=105,131
100% 98.8% 105,131 103,911
90% 87.9% 94,618 92,403
80% 81.2% 84,105 85,316
70% 69.8% 73,592 73,408
60% 59.5% 63,079 62,547
50% 49.0% 52,566 51,470
40% 39.6% 42,053 41,613
30% 30.4% 31,539 31,927
20% 20.1% 21,026 21,147
10% 9.8% 10,513 10,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,009
Calibration 2     103,461
Calibration 3     103,313
ssj_ops@calibrated=103,387
100% 100.1% 103,387 103,448
90% 90.3% 93,048 93,384
80% 78.9% 82,710 81,610
70% 69.9% 72,371 72,306
60% 60.4% 62,032 62,487
50% 49.7% 51,694 51,357
40% 40.2% 41,355 41,602
30% 29.9% 31,016 30,871
20% 20.2% 20,677 20,851
10% 9.9% 10,339 10,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

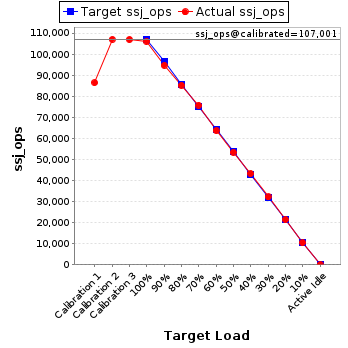

JVM 'sy480-07.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,455
Calibration 2     107,043
Calibration 3     106,960
ssj_ops@calibrated=107,001
100% 99.1% 107,001 106,077
90% 88.5% 96,301 94,734
80% 79.7% 85,601 85,232
70% 70.8% 74,901 75,797
60% 59.5% 64,201 63,675
50% 50.0% 53,501 53,471
40% 40.5% 42,801 43,342
30% 30.1% 32,100 32,185
20% 20.1% 21,400 21,462
10% 9.8% 10,700 10,509
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,267
Calibration 2     104,127
Calibration 3     104,145
ssj_ops@calibrated=104,136
100% 99.6% 104,136 103,707
90% 89.9% 93,722 93,599
80% 79.8% 83,309 83,151
70% 70.5% 72,895 73,441
60% 60.4% 62,482 62,885
50% 50.0% 52,068 52,087
40% 40.0% 41,654 41,694
30% 30.1% 31,241 31,349
20% 20.2% 20,827 21,021
10% 10.0% 10,414 10,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,400
Calibration 2     107,076
Calibration 3     107,233
ssj_ops@calibrated=107,155
100% 98.0% 107,155 105,004
90% 89.9% 96,439 96,353
80% 79.6% 85,724 85,302
70% 70.0% 75,008 75,007
60% 59.9% 64,293 64,220
50% 50.4% 53,577 54,034
40% 40.0% 42,862 42,890
30% 30.3% 32,146 32,418
20% 20.3% 21,431 21,736
10% 9.8% 10,715 10,519
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,533
Calibration 2     105,390
Calibration 3     105,642
ssj_ops@calibrated=105,516
100% 99.6% 105,516 105,079
90% 89.4% 94,965 94,323
80% 80.9% 84,413 85,311
70% 70.7% 73,861 74,569
60% 59.8% 63,310 63,095
50% 49.9% 52,758 52,695
40% 40.3% 42,206 42,492
30% 29.8% 31,655 31,450
20% 19.9% 21,103 21,008
10% 9.8% 10,552 10,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,000
Calibration 2     107,010
Calibration 3     106,933
ssj_ops@calibrated=106,972
100% 99.8% 106,972 106,781
90% 89.7% 96,275 95,949
80% 79.7% 85,577 85,280
70% 69.5% 74,880 74,365
60% 59.0% 64,183 63,146
50% 50.1% 53,486 53,565
40% 40.0% 42,789 42,789
30% 30.1% 32,092 32,158
20% 20.1% 21,394 21,462
10% 10.1% 10,697 10,814
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,879
Calibration 2     104,831
Calibration 3     104,823
ssj_ops@calibrated=104,827
100% 100.0% 104,827 104,823
90% 89.2% 94,345 93,513
80% 79.5% 83,862 83,357
70% 70.2% 73,379 73,539
60% 60.4% 62,896 63,294
50% 49.9% 52,414 52,279
40% 39.1% 41,931 40,991
30% 29.8% 31,448 31,270
20% 20.2% 20,965 21,179
10% 9.9% 10,483 10,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,909
Calibration 2     104,007
Calibration 3     103,880
ssj_ops@calibrated=103,944
100% 99.5% 103,944 103,433
90% 89.4% 93,549 92,946
80% 80.2% 83,155 83,372
70% 70.4% 72,761 73,197
60% 60.6% 62,366 63,023
50% 50.3% 51,972 52,261
40% 39.7% 41,577 41,255
30% 30.2% 31,183 31,390
20% 20.1% 20,789 20,889
10% 9.9% 10,394 10,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,608
Calibration 2     106,504
Calibration 3     106,344
ssj_ops@calibrated=106,424
100% 100.0% 106,424 106,377
90% 90.5% 95,782 96,358
80% 80.6% 85,139 85,765
70% 69.6% 74,497 74,025
60% 59.8% 63,854 63,610
50% 50.6% 53,212 53,876
40% 40.3% 42,570 42,904
30% 29.2% 31,927 31,081
20% 19.9% 21,285 21,199
10% 9.7% 10,642 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,066
Calibration 2     106,221
Calibration 3     106,153
ssj_ops@calibrated=106,187
100% 99.9% 106,187 106,083
90% 89.8% 95,568 95,393
80% 81.0% 84,950 85,969
70% 70.9% 74,331 75,266
60% 59.4% 63,712 63,117
50% 49.7% 53,094 52,765
40% 40.1% 42,475 42,576
30% 30.1% 31,856 31,939
20% 19.9% 21,237 21,159
10% 9.9% 10,619 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,709
Calibration 2     107,545
Calibration 3     107,616
ssj_ops@calibrated=107,580
100% 100.2% 107,580 107,743
90% 90.9% 96,822 97,770
80% 80.3% 86,064 86,342
70% 70.7% 75,306 76,088
60% 60.0% 64,548 64,504
50% 50.8% 53,790 54,628
40% 39.5% 43,032 42,442
30% 30.0% 32,274 32,317
20% 20.0% 21,516 21,516
10% 10.1% 10,758 10,860
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,438
Calibration 2     101,950
Calibration 3     101,828
ssj_ops@calibrated=101,889
100% 99.9% 101,889 101,818
90% 89.9% 91,700 91,618
80% 81.1% 81,511 82,680
70% 70.2% 71,322 71,483
60% 59.9% 61,133 61,017
50% 50.2% 50,945 51,106
40% 40.0% 40,756 40,788
30% 30.8% 30,567 31,387
20% 19.8% 20,378 20,211
10% 10.3% 10,189 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,640
Calibration 2     101,930
Calibration 3     101,815
ssj_ops@calibrated=101,872
100% 99.3% 101,872 101,203
90% 90.9% 91,685 92,568
80% 79.7% 81,498 81,168
70% 69.6% 71,311 70,929
60% 59.4% 61,123 60,539
50% 49.2% 50,936 50,146
40% 39.3% 40,749 40,022
30% 29.6% 30,562 30,174
20% 20.9% 20,374 21,257
10% 9.8% 10,187 9,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,685
Calibration 2     108,134
Calibration 3     107,954
ssj_ops@calibrated=108,044
100% 99.9% 108,044 107,903
90% 90.1% 97,240 97,356
80% 80.5% 86,435 86,978
70% 69.9% 75,631 75,483
60% 60.0% 64,827 64,782
50% 49.9% 54,022 53,966
40% 40.3% 43,218 43,539
30% 30.0% 32,413 32,432
20% 19.8% 21,609 21,419
10% 9.6% 10,804 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,075
Calibration 2     105,677
Calibration 3     105,750
ssj_ops@calibrated=105,713
100% 99.8% 105,713 105,525
90% 90.6% 95,142 95,821
80% 80.2% 84,570 84,769
70% 69.9% 73,999 73,884
60% 59.6% 63,428 63,042
50% 50.1% 52,857 52,940
40% 39.9% 42,285 42,168
30% 30.5% 31,714 32,295
20% 20.0% 21,143 21,179
10% 10.0% 10,571 10,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,676
Calibration 2     93,981
Calibration 3     93,619
ssj_ops@calibrated=93,800
100% 99.8% 93,800 93,644
90% 90.3% 84,420 84,694
80% 79.2% 75,040 74,328
70% 70.6% 65,660 66,254
60% 59.9% 56,280 56,171
50% 50.1% 46,900 47,036
40% 39.1% 37,520 36,706
30% 29.4% 28,140 27,580
20% 20.2% 18,760 18,987
10% 10.2% 9,380 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,441
Calibration 2     107,075
Calibration 3     107,124
ssj_ops@calibrated=107,099
100% 100.3% 107,099 107,444
90% 89.3% 96,389 95,656
80% 79.6% 85,679 85,219
70% 70.3% 74,969 75,318
60% 59.8% 64,260 64,036
50% 49.8% 53,550 53,340
40% 40.4% 42,840 43,216
30% 29.8% 32,130 31,873
20% 19.8% 21,420 21,207
10% 10.1% 10,710 10,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,871
Calibration 2     106,483
Calibration 3     106,343
ssj_ops@calibrated=106,413
100% 100.1% 106,413 106,569
90% 89.1% 95,772 94,812
80% 80.7% 85,130 85,827
70% 69.9% 74,489 74,340
60% 59.9% 63,848 63,769
50% 50.0% 53,207 53,231
40% 39.9% 42,565 42,443
30% 30.5% 31,924 32,404
20% 20.2% 21,283 21,517
10% 10.0% 10,641 10,609
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,095
Calibration 2     103,073
Calibration 3     103,186
ssj_ops@calibrated=103,130
100% 99.8% 103,130 102,957
90% 89.9% 92,817 92,680
80% 80.3% 82,504 82,804
70% 70.3% 72,191 72,470
60% 59.2% 61,878 61,042
50% 50.3% 51,565 51,827
40% 40.3% 41,252 41,575
30% 30.2% 30,939 31,122
20% 20.0% 20,626 20,621
10% 10.0% 10,313 10,276
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,469
Calibration 2     106,976
Calibration 3     106,843
ssj_ops@calibrated=106,910
100% 100.0% 106,910 106,916
90% 89.0% 96,219 95,108
80% 79.4% 85,528 84,840
70% 70.5% 74,837 75,335
60% 60.3% 64,146 64,486
50% 49.4% 53,455 52,771
40% 40.0% 42,764 42,762
30% 29.7% 32,073 31,716
20% 19.7% 21,382 21,113
10% 10.1% 10,691 10,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,678
Calibration 2     106,744
Calibration 3     106,883
ssj_ops@calibrated=106,814
100% 100.4% 106,814 107,220
90% 90.4% 96,132 96,596
80% 80.2% 85,451 85,676
70% 70.3% 74,770 75,076
60% 59.4% 64,088 63,414
50% 49.9% 53,407 53,258
40% 39.3% 42,726 41,972
30% 29.6% 32,044 31,625
20% 20.1% 21,363 21,499
10% 9.6% 10,681 10,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,967
Calibration 2     105,301
Calibration 3     105,534
ssj_ops@calibrated=105,417
100% 99.7% 105,417 105,146
90% 91.4% 94,875 96,375
80% 79.2% 84,334 83,513
70% 70.9% 73,792 74,740
60% 60.0% 63,250 63,271
50% 50.4% 52,709 53,119
40% 39.8% 42,167 41,951
30% 29.9% 31,625 31,486
20% 20.2% 21,083 21,311
10% 10.1% 10,542 10,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,718
Calibration 2     103,866
Calibration 3     103,963
ssj_ops@calibrated=103,915
100% 98.5% 103,915 102,403
90% 90.4% 93,523 93,891
80% 78.8% 83,132 81,928
70% 69.9% 72,740 72,611
60% 59.3% 62,349 61,603
50% 49.7% 51,957 51,668
40% 40.4% 41,566 42,019
30% 30.2% 31,174 31,431
20% 19.8% 20,783 20,605
10% 10.2% 10,391 10,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,795
Calibration 2     106,165
Calibration 3     106,143
ssj_ops@calibrated=106,154
100% 99.1% 106,154 105,159
90% 90.2% 95,539 95,775
80% 80.0% 84,923 84,885
70% 70.0% 74,308 74,281
60% 59.0% 63,692 62,623
50% 49.8% 53,077 52,828
40% 40.5% 42,462 42,966
30% 29.6% 31,846 31,438
20% 19.7% 21,231 20,897
10% 10.0% 10,615 10,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,287
Calibration 2     106,759
Calibration 3     106,685
ssj_ops@calibrated=106,722
100% 99.0% 106,722 105,674
90% 90.9% 96,050 96,988
80% 80.7% 85,377 86,099
70% 69.2% 74,705 73,806
60% 60.3% 64,033 64,323
50% 50.5% 53,361 53,893
40% 40.3% 42,689 42,969
30% 30.0% 32,017 31,975
20% 19.8% 21,344 21,083
10% 9.8% 10,672 10,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,444
Calibration 2     104,408
Calibration 3     104,357
ssj_ops@calibrated=104,382
100% 99.5% 104,382 103,830
90% 90.3% 93,944 94,246
80% 80.5% 83,506 84,052
70% 70.2% 73,068 73,328
60% 59.8% 62,629 62,388
50% 50.0% 52,191 52,207
40% 39.8% 41,753 41,496
30% 29.5% 31,315 30,794
20% 19.8% 20,876 20,683
10% 10.3% 10,438 10,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,542
Calibration 2     107,495
Calibration 3     108,068
ssj_ops@calibrated=107,781
100% 100.5% 107,781 108,279
90% 89.6% 97,003 96,540
80% 80.9% 86,225 87,172
70% 69.9% 75,447 75,340
60% 60.5% 64,669 65,162
50% 49.8% 53,891 53,706
40% 40.5% 43,113 43,631
30% 30.1% 32,334 32,421
20% 20.1% 21,556 21,632
10% 9.9% 10,778 10,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,748
Calibration 2     98,169
Calibration 3     98,065
ssj_ops@calibrated=98,117
100% 100.3% 98,117 98,437
90% 89.0% 88,305 87,354
80% 80.0% 78,493 78,491
70% 70.0% 68,682 68,637
60% 59.8% 58,870 58,634
50% 49.6% 49,058 48,641
40% 40.2% 39,247 39,411
30% 29.5% 29,435 28,959
20% 20.3% 19,623 19,957
10% 10.3% 9,812 10,074
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,008
Calibration 2     104,596
Calibration 3     104,422
ssj_ops@calibrated=104,509
100% 99.6% 104,509 104,123
90% 89.9% 94,058 93,984
80% 80.1% 83,607 83,683
70% 70.1% 73,156 73,216
60% 59.0% 62,706 61,696
50% 49.1% 52,255 51,357
40% 39.6% 41,804 41,364
30% 29.6% 31,353 30,904
20% 20.0% 20,902 20,861
10% 10.2% 10,451 10,627
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,475
Calibration 2     104,538
Calibration 3     104,428
ssj_ops@calibrated=104,483
100% 99.8% 104,483 104,265
90% 89.6% 94,035 93,593
80% 80.0% 83,586 83,569
70% 70.3% 73,138 73,451
60% 60.2% 62,690 62,906
50% 50.1% 52,242 52,390
40% 40.4% 41,793 42,183
30% 29.9% 31,345 31,256
20% 20.3% 20,897 21,211
10% 9.9% 10,448 10,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,333
Calibration 2     103,185
Calibration 3     103,312
ssj_ops@calibrated=103,248
100% 99.9% 103,248 103,138
90% 90.1% 92,923 93,062
80% 80.8% 82,599 83,472
70% 70.3% 72,274 72,538
60% 59.9% 61,949 61,814
50% 49.8% 51,624 51,412
40% 39.7% 41,299 40,996
30% 29.5% 30,974 30,473
20% 20.0% 20,650 20,658
10% 10.3% 10,325 10,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,493
Calibration 2     105,622
Calibration 3     105,753
ssj_ops@calibrated=105,688
100% 100.1% 105,688 105,798
90% 89.2% 95,119 94,254
80% 79.9% 84,550 84,426
70% 70.6% 73,981 74,627
60% 60.6% 63,413 64,072
50% 50.7% 52,844 53,541
40% 39.7% 42,275 41,925
30% 29.8% 31,706 31,519
20% 20.1% 21,138 21,222
10% 9.8% 10,569 10,352
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,562
Calibration 2     104,973
Calibration 3     105,250
ssj_ops@calibrated=105,112
100% 99.7% 105,112 104,806
90% 89.5% 94,600 94,056
80% 79.9% 84,089 83,972
70% 70.8% 73,578 74,400
60% 60.5% 63,067 63,564
50% 49.8% 52,556 52,334
40% 39.8% 42,045 41,828
30% 30.2% 31,533 31,701
20% 19.9% 21,022 20,900
10% 10.2% 10,511 10,723
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,149
Calibration 2     106,371
Calibration 3     106,516
ssj_ops@calibrated=106,444
100% 99.7% 106,444 106,155
90% 89.9% 95,799 95,665
80% 80.3% 85,155 85,457
70% 69.5% 74,511 73,972
60% 59.6% 63,866 63,454
50% 50.7% 53,222 53,918
40% 39.6% 42,577 42,176
30% 29.7% 31,933 31,628
20% 19.7% 21,289 20,951
10% 9.9% 10,644 10,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,377
Calibration 2     98,555
Calibration 3     98,789
ssj_ops@calibrated=98,672
100% 99.9% 98,672 98,576
90% 88.4% 88,805 87,259
80% 80.0% 78,938 78,906
70% 70.6% 69,071 69,684
60% 60.9% 59,203 60,091
50% 50.2% 49,336 49,520
40% 40.4% 39,469 39,875
30% 29.9% 29,602 29,550
20% 19.9% 19,734 19,616
10% 9.8% 9,867 9,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,562
Calibration 2     105,605
Calibration 3     105,749
ssj_ops@calibrated=105,677
100% 99.3% 105,677 104,948
90% 89.3% 95,109 94,399
80% 79.7% 84,542 84,183
70% 69.9% 73,974 73,823
60% 58.2% 63,406 61,515
50% 49.4% 52,838 52,154
40% 40.2% 42,271 42,435
30% 29.9% 31,703 31,578
20% 19.7% 21,135 20,815
10% 10.0% 10,568 10,620
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,241
Calibration 2     105,623
Calibration 3     105,723
ssj_ops@calibrated=105,673
100% 99.6% 105,673 105,273
90% 90.5% 95,106 95,626
80% 78.9% 84,538 83,343
70% 70.4% 73,971 74,355
60% 58.6% 63,404 61,964
50% 49.2% 52,836 52,006
40% 39.8% 42,269 42,049
30% 29.8% 31,702 31,508
20% 19.9% 21,135 21,031
10% 9.9% 10,567 10,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,296
Calibration 2     106,651
Calibration 3     106,714
ssj_ops@calibrated=106,683
100% 99.5% 106,683 106,191
90% 90.2% 96,014 96,222
80% 80.0% 85,346 85,372
70% 71.0% 74,678 75,754
60% 60.3% 64,010 64,349
50% 50.5% 53,341 53,908
40% 39.3% 42,673 41,949
30% 30.0% 32,005 31,987
20% 19.8% 21,337 21,078
10% 9.8% 10,668 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,698
Calibration 2     105,325
Calibration 3     104,754
ssj_ops@calibrated=105,039
100% 99.4% 105,039 104,395
90% 89.9% 94,535 94,438
80% 79.9% 84,031 83,968
70% 70.3% 73,528 73,823
60% 59.9% 63,024 62,890
50% 48.8% 52,520 51,278
40% 39.3% 42,016 41,249
30% 30.2% 31,512 31,709
20% 19.9% 21,008 20,917
10% 10.2% 10,504 10,743
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

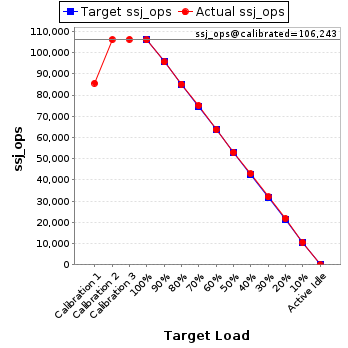

JVM 'sy480-07.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,643
Calibration 2     106,188
Calibration 3     106,298
ssj_ops@calibrated=106,243
100% 99.7% 106,243 105,973
90% 90.0% 95,619 95,614
80% 80.2% 84,995 85,191
70% 70.7% 74,370 75,151
60% 60.0% 63,746 63,730
50% 49.9% 53,122 53,047
40% 40.5% 42,497 42,989
30% 30.1% 31,873 31,977
20% 20.6% 21,249 21,931
10% 10.0% 10,624 10,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,061
Calibration 2     106,164
Calibration 3     106,198
ssj_ops@calibrated=106,181
100% 99.7% 106,181 105,873
90% 90.8% 95,563 96,394
80% 80.9% 84,945 85,869
70% 70.1% 74,327 74,475
60% 60.1% 63,709 63,831
50% 49.8% 53,091 52,904
40% 39.9% 42,472 42,396
30% 30.4% 31,854 32,320
20% 20.0% 21,236 21,274
10% 10.2% 10,618 10,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,315
Calibration 2     103,857
Calibration 3     103,915
ssj_ops@calibrated=103,886
100% 99.5% 103,886 103,329
90% 89.5% 93,497 93,012
80% 79.6% 83,109 82,673
70% 71.0% 72,720 73,720
60% 59.3% 62,332 61,584
50% 49.4% 51,943 51,354
40% 39.9% 41,554 41,415
30% 29.9% 31,166 31,048
20% 20.0% 20,777 20,819
10% 10.0% 10,389 10,393
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,929
Calibration 2     105,150
Calibration 3     105,354
ssj_ops@calibrated=105,252
100% 100.2% 105,252 105,458
90% 88.8% 94,727 93,489
80% 79.6% 84,201 83,791
70% 70.2% 73,676 73,888
60% 60.0% 63,151 63,137
50% 50.1% 52,626 52,735
40% 39.7% 42,101 41,793
30% 30.0% 31,576 31,581
20% 19.9% 21,050 20,952
10% 10.1% 10,525 10,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,999
Calibration 2     106,586
Calibration 3     106,931
ssj_ops@calibrated=106,758
100% 100.0% 106,758 106,760
90% 90.8% 96,082 96,936
80% 79.6% 85,407 85,027
70% 70.2% 74,731 74,900
60% 59.1% 64,055 63,109
50% 49.9% 53,379 53,277
40% 39.6% 42,703 42,296
30% 30.4% 32,027 32,481
20% 20.3% 21,352 21,718
10% 9.8% 10,676 10,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,736
Calibration 2     105,709
Calibration 3     105,888
ssj_ops@calibrated=105,799
100% 99.5% 105,799 105,240
90% 89.4% 95,219 94,536
80% 80.0% 84,639 84,612
70% 70.1% 74,059 74,135
60% 59.8% 63,479 63,286
50% 50.6% 52,899 53,518
40% 40.0% 42,319 42,357
30% 30.4% 31,740 32,170
20% 19.2% 21,160 20,284
10% 10.2% 10,580 10,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,374
Calibration 2     104,304
Calibration 3     104,459
ssj_ops@calibrated=104,381
100% 99.4% 104,381 103,740
90% 90.8% 93,943 94,770
80% 79.9% 83,505 83,448
70% 69.4% 73,067 72,466
60% 60.1% 62,629 62,682
50% 49.6% 52,191 51,814
40% 40.0% 41,752 41,730
30% 30.1% 31,314 31,444
20% 20.0% 20,876 20,842
10% 9.9% 10,438 10,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,610
Calibration 2     104,213
Calibration 3     104,102
ssj_ops@calibrated=104,158
100% 99.8% 104,158 103,960
90% 89.5% 93,742 93,203
80% 79.3% 83,326 82,641
70% 71.1% 72,910 74,024
60% 59.7% 62,495 62,161
50% 51.0% 52,079 53,083
40% 39.5% 41,663 41,116
30% 30.6% 31,247 31,828
20% 20.1% 20,832 20,935
10% 9.8% 10,416 10,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,543
Calibration 2     103,274
Calibration 3     103,622
ssj_ops@calibrated=103,448
100% 99.1% 103,448 102,567
90% 89.7% 93,103 92,782
80% 79.7% 82,759 82,483
70% 69.7% 72,414 72,137
60% 60.4% 62,069 62,444
50% 50.3% 51,724 52,061
40% 40.5% 41,379 41,923
30% 29.6% 31,034 30,574
20% 19.8% 20,690 20,500
10% 9.9% 10,345 10,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,791
Calibration 2     100,281
Calibration 3     100,288
ssj_ops@calibrated=100,285
100% 99.3% 100,285 99,582
90% 89.4% 90,256 89,665
80% 79.9% 80,228 80,128
70% 70.2% 70,199 70,445
60% 59.8% 60,171 59,987
50% 49.2% 50,142 49,329
40% 39.6% 40,114 39,664
30% 30.1% 30,085 30,162
20% 19.6% 20,057 19,679
10% 10.0% 10,028 10,013
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,493
Calibration 2     105,910
Calibration 3     106,100
ssj_ops@calibrated=106,005
100% 99.5% 106,005 105,459
90% 90.8% 95,404 96,249
80% 79.8% 84,804 84,605
70% 69.8% 74,203 73,992
60% 58.4% 63,603 61,944
50% 49.7% 53,002 52,735
40% 39.3% 42,402 41,661
30% 30.5% 31,801 32,339
20% 19.5% 21,201 20,696
10% 10.0% 10,600 10,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,037
Calibration 2     103,007
Calibration 3     103,101
ssj_ops@calibrated=103,054
100% 99.9% 103,054 102,903
90% 90.4% 92,748 93,184
80% 79.8% 82,443 82,200
70% 70.0% 72,138 72,129
60% 60.3% 61,832 62,190
50% 49.9% 51,527 51,467
40% 39.8% 41,222 40,967
30% 30.0% 30,916 30,958
20% 20.5% 20,611 21,108
10% 9.6% 10,305 9,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,153
Calibration 2     105,486
Calibration 3     105,767
ssj_ops@calibrated=105,626
100% 99.7% 105,626 105,322
90% 89.8% 95,064 94,904
80% 80.4% 84,501 84,945
70% 70.7% 73,939 74,671
60% 58.8% 63,376 62,120
50% 50.1% 52,813 52,915
40% 39.8% 42,251 41,988
30% 30.3% 31,688 32,030
20% 19.5% 21,125 20,640
10% 10.2% 10,563 10,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,196
Calibration 2     105,497
Calibration 3     105,498
ssj_ops@calibrated=105,498
100% 99.6% 105,498 105,093
90% 90.5% 94,948 95,445
80% 80.8% 84,398 85,221
70% 69.6% 73,848 73,455
60% 59.8% 63,299 63,118
50% 50.6% 52,749 53,384
40% 39.8% 42,199 42,023
30% 29.9% 31,649 31,578
20% 19.7% 21,100 20,826
10% 10.0% 10,550 10,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,433
Calibration 2     104,987
Calibration 3     105,414
ssj_ops@calibrated=105,200
100% 99.3% 105,200 104,514
90% 90.3% 94,680 94,968
80% 79.6% 84,160 83,761
70% 69.9% 73,640 73,536
60% 59.7% 63,120 62,824
50% 50.0% 52,600 52,595
40% 39.6% 42,080 41,682
30% 30.2% 31,560 31,761
20% 19.9% 21,040 20,983
10% 9.9% 10,520 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,828
Calibration 2     104,395
Calibration 3     104,540
ssj_ops@calibrated=104,467
100% 100.1% 104,467 104,522
90% 90.0% 94,021 93,994
80% 80.2% 83,574 83,804
70% 69.5% 73,127 72,646
60% 59.7% 62,680 62,400
50% 49.5% 52,234 51,673
40% 39.6% 41,787 41,358
30% 30.0% 31,340 31,295
20% 20.5% 20,893 21,366
10% 10.1% 10,447 10,556
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,489
Calibration 2     105,958
Calibration 3     106,132
ssj_ops@calibrated=106,045
100% 99.7% 106,045 105,755
90% 90.9% 95,440 96,352
80% 80.5% 84,836 85,368
70% 70.2% 74,231 74,418
60% 59.9% 63,627 63,507
50% 50.4% 53,022 53,401
40% 40.5% 42,418 42,972
30% 29.5% 31,813 31,323
20% 20.2% 21,209 21,423
10% 9.9% 10,604 10,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,573
Calibration 2     106,954
Calibration 3     106,850
ssj_ops@calibrated=106,902
100% 100.1% 106,902 106,992
90% 90.0% 96,212 96,250
80% 80.2% 85,522 85,698
70% 69.2% 74,831 74,013
60% 60.0% 64,141 64,159
50% 49.8% 53,451 53,270
40% 39.6% 42,761 42,350
30% 30.3% 32,071 32,378
20% 19.7% 21,380 21,042
10% 10.2% 10,690 10,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,671
Calibration 2     101,831
Calibration 3     101,994
ssj_ops@calibrated=101,913
100% 100.2% 101,913 102,118
90% 89.6% 91,721 91,329
80% 80.8% 81,530 82,300
70% 69.4% 71,339 70,748
60% 59.7% 61,148 60,808
50% 50.3% 50,956 51,212
40% 40.2% 40,765 40,929
30% 30.8% 30,574 31,372
20% 20.1% 20,383 20,476
10% 9.9% 10,191 10,088
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,548
Calibration 2     108,472
Calibration 3     108,521
ssj_ops@calibrated=108,496
100% 99.9% 108,496 108,422
90% 90.8% 97,647 98,500
80% 80.0% 86,797 86,755
70% 69.0% 75,947 74,815
60% 59.7% 65,098 64,752
50% 50.5% 54,248 54,752
40% 40.4% 43,399 43,809
30% 29.8% 32,549 32,290
20% 19.6% 21,699 21,287
10% 9.7% 10,850 10,501
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,771
Calibration 2     106,791
Calibration 3     106,920
ssj_ops@calibrated=106,856
100% 100.2% 106,856 107,018
90% 90.2% 96,170 96,428
80% 79.9% 85,485 85,381
70% 70.1% 74,799 74,873
60% 60.0% 64,113 64,061
50% 50.1% 53,428 53,495
40% 39.9% 42,742 42,609
30% 29.9% 32,057 31,962
20% 20.1% 21,371 21,522
10% 9.8% 10,686 10,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,009
Calibration 2     106,753
Calibration 3     107,034
ssj_ops@calibrated=106,894
100% 99.9% 106,894 106,780
90% 90.6% 96,204 96,818
80% 79.7% 85,515 85,233
70% 70.3% 74,826 75,200
60% 60.8% 64,136 64,966
50% 49.9% 53,447 53,375
40% 40.0% 42,758 42,742
30% 29.9% 32,068 31,912
20% 20.1% 21,379 21,492
10% 9.7% 10,689 10,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,658
Calibration 2     106,246
Calibration 3     106,226
ssj_ops@calibrated=106,236
100% 99.7% 106,236 105,921
90% 89.8% 95,612 95,410
80% 80.3% 84,989 85,323
70% 70.1% 74,365 74,423
60% 60.1% 63,742 63,857
50% 49.2% 53,118 52,224
40% 39.9% 42,494 42,369
30% 30.3% 31,871 32,229
20% 19.6% 21,247 20,842
10% 10.3% 10,624 10,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,065
Calibration 2     105,217
Calibration 3     105,364
ssj_ops@calibrated=105,291
100% 99.8% 105,291 105,039
90% 89.3% 94,762 94,038
80% 80.0% 84,233 84,195
70% 69.3% 73,703 72,970
60% 59.2% 63,174 62,298
50% 49.5% 52,645 52,141
40% 39.6% 42,116 41,709
30% 29.6% 31,587 31,204
20% 20.2% 21,058 21,230
10% 9.9% 10,529 10,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,350
Calibration 2     101,318
Calibration 3     101,699
ssj_ops@calibrated=101,509
100% 100.2% 101,509 101,744
90% 89.7% 91,358 91,101
80% 80.4% 81,207 81,575
70% 70.8% 71,056 71,825
60% 59.6% 60,905 60,489
50% 49.5% 50,754 50,275
40% 40.8% 40,603 41,387
30% 30.2% 30,453 30,657
20% 20.0% 20,302 20,306
10% 10.3% 10,151 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,387
Calibration 2     105,446
Calibration 3     105,859
ssj_ops@calibrated=105,653
100% 99.5% 105,653 105,158
90% 90.6% 95,087 95,744
80% 80.4% 84,522 84,920
70% 71.5% 73,957 75,545
60% 60.5% 63,392 63,904
50% 50.1% 52,826 52,915
40% 40.5% 42,261 42,824
30% 30.0% 31,696 31,717
20% 20.2% 21,131 21,299
10% 9.8% 10,565 10,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,516
Calibration 2     105,357
Calibration 3     105,518
ssj_ops@calibrated=105,437
100% 99.6% 105,437 105,060
90% 89.6% 94,894 94,487
80% 79.8% 84,350 84,094
70% 70.2% 73,806 74,066
60% 59.8% 63,262 63,015
50% 50.3% 52,719 53,060
40% 40.4% 42,175 42,634
30% 30.6% 31,631 32,303
20% 19.6% 21,087 20,625
10% 9.8% 10,544 10,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,182
Calibration 2     103,642
Calibration 3     104,001
ssj_ops@calibrated=103,822
100% 100.2% 103,822 103,995
90% 89.1% 93,439 92,482
80% 79.9% 83,057 83,000
70% 68.6% 72,675 71,204
60% 60.2% 62,293 62,464
50% 49.5% 51,911 51,389
40% 39.9% 41,529 41,415
30% 29.4% 31,146 30,538
20% 20.0% 20,764 20,751
10% 10.0% 10,382 10,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-07.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,792
Calibration 2     105,043
Calibration 3     105,317
ssj_ops@calibrated=105,180
100% 98.7% 105,180 103,837
90% 90.3% 94,662 94,928
80% 80.3% 84,144 84,464
70% 70.3% 73,626 73,889
60% 60.1% 63,108 63,227
50% 50.4% 52,590 53,056
40% 40.0% 42,072 42,090
30% 30.0% 31,554 31,580
20% 20.1% 21,036 21,093
10% 10.2% 10,518 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
