Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,342,213
ssj_ops@100% per JVM = 104,278
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 11, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,708,687
Calibration 2     8,359,061
Calibration 3     8,366,998
ssj_ops@calibrated=8,363,029
100% 99.8% 8,363,029 8,342,213
90% 89.9% 7,526,726 7,517,541
80% 80.0% 6,690,423 6,688,438
70% 70.1% 5,854,121 5,865,093
60% 60.1% 5,017,818 5,022,667
50% 50.0% 4,181,515 4,179,309
40% 40.0% 3,345,212 3,344,714
30% 30.0% 2,508,909 2,509,987
20% 20.0% 1,672,606 1,674,451
10% 10.0% 836,303 835,341
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-01.001 104,627
sy480-01.002 102,980
sy480-01.003 104,006
sy480-01.004 103,340
sy480-01.005 106,828
sy480-01.006 105,860
sy480-01.007 97,446
sy480-01.008 106,961
sy480-01.009 104,265
sy480-01.010 105,988
sy480-01.011 100,949
sy480-01.012 100,413
sy480-01.013 105,209
sy480-01.014 101,432
sy480-01.015 106,063
sy480-01.016 106,626
sy480-01.017 106,935
sy480-01.018 105,375
sy480-01.019 101,735
sy480-01.020 103,970
sy480-01.021 101,831
sy480-01.022 105,701
sy480-01.023 106,094
sy480-01.024 106,024
sy480-01.025 104,426
sy480-01.026 106,727
sy480-01.027 97,814
sy480-01.028 101,545
sy480-01.029 104,486
sy480-01.030 107,867
sy480-01.031 106,050
sy480-01.032 104,590
sy480-01.033 103,160
sy480-01.034 104,518
sy480-01.035 99,112
sy480-01.036 105,385
sy480-01.037 106,125
sy480-01.038 104,985
sy480-01.039 104,502
sy480-01.040 99,539
sy480-01.041 102,885
sy480-01.042 106,134
sy480-01.043 106,463
sy480-01.044 99,365
sy480-01.045 107,470
sy480-01.046 106,981
sy480-01.047 101,782
sy480-01.048 105,256
sy480-01.049 102,125
sy480-01.050 105,240
sy480-01.051 104,438
sy480-01.052 102,574
sy480-01.053 102,953
sy480-01.054 106,219
sy480-01.055 106,968
sy480-01.056 105,170
sy480-01.057 105,943
sy480-01.058 104,356
sy480-01.059 103,581
sy480-01.060 103,173
sy480-01.061 105,050
sy480-01.062 106,284
sy480-01.063 101,924
sy480-01.064 106,586
sy480-01.065 106,743
sy480-01.066 105,536
sy480-01.067 105,636
sy480-01.068 105,474
sy480-01.069 106,195
sy480-01.070 103,011
sy480-01.071 104,908
sy480-01.072 103,908
sy480-01.073 107,284
sy480-01.074 108,657
sy480-01.075 94,824
sy480-01.076 106,457
sy480-01.077 107,367
sy480-01.078 105,313
sy480-01.079 105,063
sy480-01.080 95,425
ssj_ops@100% 8,342,213
ssj_ops@100% per JVM 104,278

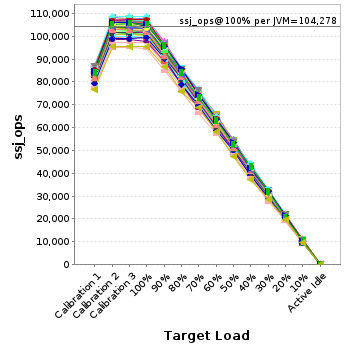

Graph of per-instance results
JVM 'sy480-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,032
Calibration 2     104,601
Calibration 3     104,578
ssj_ops@calibrated=104,590
100% 100.0% 104,590 104,627
90% 89.4% 94,131 93,460
80% 78.5% 83,672 82,095
70% 70.5% 73,213 73,732
60% 59.6% 62,754 62,363
50% 50.0% 52,295 52,314
40% 40.1% 41,836 41,957
30% 30.1% 31,377 31,505
20% 19.9% 20,918 20,849
10% 10.4% 10,459 10,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,968
Calibration 2     103,829
Calibration 3     103,729
ssj_ops@calibrated=103,779
100% 99.2% 103,779 102,980
90% 90.4% 93,401 93,853
80% 80.9% 83,023 83,976
70% 70.0% 72,645 72,609
60% 60.3% 62,267 62,593
50% 49.6% 51,889 51,445
40% 39.4% 41,512 40,879
30% 29.9% 31,134 31,072
20% 20.0% 20,756 20,755
10% 10.2% 10,378 10,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,871
Calibration 2     104,168
Calibration 3     104,307
ssj_ops@calibrated=104,238
100% 99.8% 104,238 104,006
90% 90.3% 93,814 94,077
80% 80.4% 83,390 83,834
70% 69.2% 72,967 72,178
60% 59.5% 62,543 62,011
50% 49.7% 52,119 51,791
40% 40.2% 41,695 41,860
30% 29.8% 31,271 31,112
20% 20.0% 20,848 20,846
10% 10.2% 10,424 10,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,952
Calibration 2     103,608
Calibration 3     103,763
ssj_ops@calibrated=103,686
100% 99.7% 103,686 103,340
90% 90.9% 93,317 94,217
80% 80.0% 82,949 82,899
70% 69.9% 72,580 72,468
60% 60.4% 62,212 62,625
50% 50.0% 51,843 51,873
40% 39.5% 41,474 40,926
30% 29.8% 31,106 30,863
20% 19.9% 20,737 20,608
10% 9.9% 10,369 10,230
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,012
Calibration 2     106,732
Calibration 3     106,641
ssj_ops@calibrated=106,686
100% 100.1% 106,686 106,828
90% 89.9% 96,018 95,929
80% 79.6% 85,349 84,930
70% 70.3% 74,681 74,970
60% 58.9% 64,012 62,872
50% 49.7% 53,343 53,016
40% 39.7% 42,675 42,327
30% 29.8% 32,006 31,782
20% 19.8% 21,337 21,156
10% 9.9% 10,669 10,602
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,127
Calibration 2     106,329
Calibration 3     106,326
ssj_ops@calibrated=106,328
100% 99.6% 106,328 105,860
90% 90.5% 95,695 96,175
80% 80.5% 85,062 85,624
70% 69.6% 74,429 74,031
60% 59.8% 63,797 63,592
50% 49.5% 53,164 52,647
40% 39.9% 42,531 42,378
30% 30.4% 31,898 32,358
20% 20.4% 21,266 21,692
10% 9.7% 10,633 10,276
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,696
Calibration 2     97,109
Calibration 3     97,316
ssj_ops@calibrated=97,212
100% 100.2% 97,212 97,446
90% 90.2% 87,491 87,682
80% 79.8% 77,770 77,553
70% 70.5% 68,049 68,581
60% 59.7% 58,327 58,060
50% 49.5% 48,606 48,141
40% 39.4% 38,885 38,306
30% 29.9% 29,164 29,036
20% 19.6% 19,442 19,076
10% 9.9% 9,721 9,639
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,896
Calibration 2     106,548
Calibration 3     107,137
ssj_ops@calibrated=106,842
100% 100.1% 106,842 106,961
90% 90.3% 96,158 96,443
80% 80.4% 85,474 85,954
70% 70.9% 74,790 75,699
60% 61.3% 64,105 65,524
50% 49.6% 53,421 52,981
40% 39.7% 42,737 42,446
30% 29.3% 32,053 31,266
20% 20.1% 21,368 21,526
10% 9.9% 10,684 10,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,026
Calibration 2     104,715
Calibration 3     104,907
ssj_ops@calibrated=104,811
100% 99.5% 104,811 104,265
90% 89.8% 94,330 94,071
80% 80.3% 83,849 84,129
70% 69.9% 73,368 73,247
60% 60.5% 62,887 63,420
50% 50.7% 52,405 53,162
40% 40.0% 41,924 41,952
30% 30.6% 31,443 32,104
20% 19.7% 20,962 20,665
10% 9.8% 10,481 10,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,399
Calibration 2     106,420
Calibration 3     106,480
ssj_ops@calibrated=106,450
100% 99.6% 106,450 105,988
90% 90.1% 95,805 95,894
80% 79.8% 85,160 84,922
70% 69.3% 74,515 73,768
60% 59.2% 63,870 62,969
50% 50.0% 53,225 53,220
40% 40.2% 42,580 42,747
30% 30.5% 31,935 32,519
20% 20.1% 21,290 21,384
10% 10.0% 10,645 10,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,569
Calibration 2     100,887
Calibration 3     101,161
ssj_ops@calibrated=101,024
100% 99.9% 101,024 100,949
90% 90.9% 90,922 91,881
80% 81.1% 80,819 81,913
70% 69.8% 70,717 70,558
60% 59.9% 60,614 60,548
50% 49.3% 50,512 49,810
40% 39.9% 40,410 40,334
30% 29.6% 30,307 29,901
20% 20.4% 20,205 20,617
10% 9.8% 10,102 9,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,967
Calibration 2     100,576
Calibration 3     100,732
ssj_ops@calibrated=100,654
100% 99.8% 100,654 100,413
90% 90.5% 90,589 91,083
80% 79.9% 80,523 80,413
70% 70.1% 70,458 70,541
60% 59.7% 60,393 60,081
50% 50.3% 50,327 50,647
40% 40.2% 40,262 40,478
30% 30.2% 30,196 30,419
20% 20.5% 20,131 20,590
10% 10.0% 10,065 10,088
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,536
Calibration 2     105,217
Calibration 3     105,369
ssj_ops@calibrated=105,293
100% 99.9% 105,293 105,209
90% 90.2% 94,764 94,979
80% 80.0% 84,235 84,187
70% 70.7% 73,705 74,481
60% 59.8% 63,176 62,956
50% 49.6% 52,647 52,205
40% 40.2% 42,117 42,315
30% 30.2% 31,588 31,787
20% 19.6% 21,059 20,593
10% 10.4% 10,529 10,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,996
Calibration 2     101,838
Calibration 3     102,021
ssj_ops@calibrated=101,929
100% 99.5% 101,929 101,432
90% 90.1% 91,736 91,823
80% 79.9% 81,543 81,481
70% 69.9% 71,351 71,229
60% 61.2% 61,158 62,387
50% 50.0% 50,965 50,931
40% 39.8% 40,772 40,546
30% 30.0% 30,579 30,625
20% 20.3% 20,386 20,737
10% 9.9% 10,193 10,047
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,962
Calibration 2     105,969
Calibration 3     106,159
ssj_ops@calibrated=106,064
100% 100.0% 106,064 106,063
90% 88.6% 95,458 94,024
80% 80.3% 84,851 85,171
70% 70.1% 74,245 74,402
60% 59.9% 63,639 63,567
50% 49.9% 53,032 52,950
40% 41.4% 42,426 43,870
30% 30.2% 31,819 32,007
20% 20.2% 21,213 21,433
10% 9.8% 10,606 10,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,791
Calibration 2     106,453
Calibration 3     106,516
ssj_ops@calibrated=106,484
100% 100.1% 106,484 106,626
90% 90.0% 95,836 95,798
80% 80.5% 85,188 85,736
70% 69.6% 74,539 74,112
60% 60.1% 63,891 64,043
50% 50.6% 53,242 53,922
40% 40.3% 42,594 42,953
30% 29.9% 31,945 31,870
20% 20.1% 21,297 21,358
10% 9.7% 10,648 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,879
Calibration 2     106,802
Calibration 3     106,842
ssj_ops@calibrated=106,822
100% 100.1% 106,822 106,935
90% 89.9% 96,139 95,993
80% 79.9% 85,457 85,303
70% 70.3% 74,775 75,087
60% 59.1% 64,093 63,180
50% 50.0% 53,411 53,428
40% 39.7% 42,729 42,367
30% 30.5% 32,046 32,529
20% 20.3% 21,364 21,684
10% 9.7% 10,682 10,380
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,781
Calibration 2     105,268
Calibration 3     105,485
ssj_ops@calibrated=105,376
100% 100.0% 105,376 105,375
90% 90.4% 94,838 95,305
80% 81.3% 84,301 85,628
70% 69.8% 73,763 73,539
60% 60.2% 63,226 63,436
50% 49.7% 52,688 52,320
40% 40.1% 42,150 42,274
30% 30.0% 31,613 31,570
20% 19.8% 21,075 20,862
10% 10.0% 10,538 10,543
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,423
Calibration 2     102,042
Calibration 3     102,188
ssj_ops@calibrated=102,115
100% 99.6% 102,115 101,735
90% 90.1% 91,904 92,001
80% 78.9% 81,692 80,528
70% 70.0% 71,481 71,529
60% 60.3% 61,269 61,577
50% 49.0% 51,058 50,049
40% 40.4% 40,846 41,223
30% 30.2% 30,635 30,861
20% 19.9% 20,423 20,360
10% 9.9% 10,212 10,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,851
Calibration 2     104,633
Calibration 3     104,791
ssj_ops@calibrated=104,712
100% 99.3% 104,712 103,970
90% 90.1% 94,241 94,352
80% 80.1% 83,770 83,879
70% 70.0% 73,298 73,328
60% 59.5% 62,827 62,347
50% 49.6% 52,356 51,946
40% 40.2% 41,885 42,134
30% 29.9% 31,414 31,344
20% 19.9% 20,942 20,828
10% 10.0% 10,471 10,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,735
Calibration 2     101,784
Calibration 3     101,912
ssj_ops@calibrated=101,848
100% 100.0% 101,848 101,831
90% 89.7% 91,663 91,393
80% 79.0% 81,479 80,438
70% 70.2% 71,294 71,493
60% 60.2% 61,109 61,341
50% 49.9% 50,924 50,799
40% 39.3% 40,739 39,978
30% 30.6% 30,554 31,203
20% 20.0% 20,370 20,337
10% 10.2% 10,185 10,388
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,234
Calibration 2     105,529
Calibration 3     105,567
ssj_ops@calibrated=105,548
100% 100.1% 105,548 105,701
90% 90.2% 94,993 95,249
80% 80.5% 84,438 84,923
70% 70.7% 73,884 74,597
60% 59.7% 63,329 63,058
50% 50.3% 52,774 53,072
40% 39.9% 42,219 42,071
30% 30.5% 31,664 32,228
20% 20.2% 21,110 21,350
10% 9.9% 10,555 10,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,545
Calibration 2     106,479
Calibration 3     106,374
ssj_ops@calibrated=106,427
100% 99.7% 106,427 106,094
90% 90.2% 95,784 96,029
80% 80.2% 85,141 85,319
70% 70.1% 74,499 74,570
60% 60.4% 63,856 64,284
50% 50.8% 53,213 54,045
40% 40.5% 42,571 43,055
30% 30.0% 31,928 31,914
20% 20.5% 21,285 21,804
10% 10.0% 10,643 10,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,557
Calibration 2     106,131
Calibration 3     106,194
ssj_ops@calibrated=106,162
100% 99.9% 106,162 106,024
90% 90.5% 95,546 96,043
80% 79.6% 84,930 84,556
70% 69.9% 74,314 74,178
60% 60.7% 63,697 64,437
50% 50.3% 53,081 53,370
40% 39.4% 42,465 41,852
30% 30.2% 31,849 32,023
20% 20.2% 21,232 21,407
10% 9.9% 10,616 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,584
Calibration 2     104,288
Calibration 3     104,348
ssj_ops@calibrated=104,318
100% 100.1% 104,318 104,426
90% 90.2% 93,886 94,125
80% 79.6% 83,454 83,045
70% 70.2% 73,023 73,269
60% 60.0% 62,591 62,540
50% 50.0% 52,159 52,108
40% 40.1% 41,727 41,880
30% 30.5% 31,295 31,786
20% 19.7% 20,864 20,590
10% 10.1% 10,432 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,787
Calibration 2     107,281
Calibration 3     107,189
ssj_ops@calibrated=107,235
100% 99.5% 107,235 106,727
90% 89.5% 96,511 95,947
80% 80.0% 85,788 85,764
70% 69.3% 75,064 74,357
60% 60.8% 64,341 65,166
50% 50.1% 53,617 53,681
40% 40.4% 42,894 43,373
30% 30.0% 32,170 32,220
20% 20.4% 21,447 21,892
10% 10.1% 10,723 10,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,862
Calibration 2     98,429
Calibration 3     98,523
ssj_ops@calibrated=98,476
100% 99.3% 98,476 97,814
90% 90.2% 88,628 88,837
80% 80.2% 78,781 78,934
70% 69.6% 68,933 68,529
60% 59.9% 59,086 58,995
50% 50.1% 49,238 49,317
40% 40.2% 39,390 39,554
30% 29.5% 29,543 29,029
20% 20.2% 19,695 19,858
10% 10.3% 9,848 10,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,333
Calibration 2     101,792
Calibration 3     101,551
ssj_ops@calibrated=101,672
100% 99.9% 101,672 101,545
90% 89.3% 91,504 90,839
80% 80.2% 81,337 81,556
70% 70.2% 71,170 71,413
60% 60.1% 61,003 61,131
50% 49.9% 50,836 50,704
40% 39.2% 40,669 39,892
30% 30.4% 30,501 30,908
20% 20.1% 20,334 20,421
10% 10.2% 10,167 10,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,813
Calibration 2     104,864
Calibration 3     105,032
ssj_ops@calibrated=104,948
100% 99.6% 104,948 104,486
90% 90.8% 94,453 95,313
80% 80.0% 83,958 83,950
70% 70.0% 73,464 73,503
60% 60.0% 62,969 62,947
50% 50.3% 52,474 52,766
40% 39.4% 41,979 41,334
30% 29.9% 31,484 31,425
20% 19.8% 20,990 20,731
10% 10.3% 10,495 10,778
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,735
Calibration 2     108,054
Calibration 3     107,958
ssj_ops@calibrated=108,006
100% 99.9% 108,006 107,867
90% 89.9% 97,205 97,130
80% 79.4% 86,405 85,705
70% 69.7% 75,604 75,296
60% 60.7% 64,804 65,562
50% 50.1% 54,003 54,078
40% 40.3% 43,202 43,528
30% 30.0% 32,402 32,394
20% 20.1% 21,601 21,669
10% 9.9% 10,801 10,643
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,059
Calibration 2     106,239
Calibration 3     106,545
ssj_ops@calibrated=106,392
100% 99.7% 106,392 106,050
90% 89.1% 95,753 94,768
80% 79.4% 85,114 84,478
70% 70.5% 74,474 75,038
60% 60.5% 63,835 64,372
50% 50.2% 53,196 53,422
40% 39.8% 42,557 42,319
30% 29.7% 31,918 31,581
20% 20.1% 21,278 21,378
10% 10.0% 10,639 10,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,709
Calibration 2     104,729
Calibration 3     104,758
ssj_ops@calibrated=104,744
100% 99.9% 104,744 104,590
90% 91.0% 94,269 95,294
80% 80.2% 83,795 84,034
70% 70.7% 73,321 74,046
60% 60.4% 62,846 63,300
50% 50.4% 52,372 52,834
40% 40.5% 41,897 42,468
30% 30.1% 31,423 31,489
20% 19.9% 20,949 20,881
10% 9.9% 10,474 10,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,956
Calibration 2     103,284
Calibration 3     103,567
ssj_ops@calibrated=103,425
100% 99.7% 103,425 103,160
90% 89.5% 93,083 92,560
80% 80.8% 82,740 83,577
70% 69.7% 72,398 72,078
60% 59.5% 62,055 61,499
50% 50.7% 51,713 52,483
40% 39.1% 41,370 40,417
30% 29.2% 31,028 30,178
20% 19.7% 20,685 20,335
10% 10.2% 10,343 10,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,223
Calibration 2     105,108
Calibration 3     105,252
ssj_ops@calibrated=105,180
100% 99.4% 105,180 104,518
90% 89.7% 94,662 94,307
80% 80.0% 84,144 84,106
70% 70.2% 73,626 73,838
60% 59.4% 63,108 62,520
50% 49.8% 52,590 52,385
40% 40.3% 42,072 42,401
30% 30.1% 31,554 31,668
20% 19.4% 21,036 20,387
10% 9.8% 10,518 10,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,211
Calibration 2     99,611
Calibration 3     99,688
ssj_ops@calibrated=99,649
100% 99.5% 99,649 99,112
90% 89.0% 89,684 88,682
80% 79.9% 79,719 79,625
70% 70.3% 69,755 70,058
60% 60.4% 59,790 60,229
50% 50.3% 49,825 50,148
40% 40.6% 39,860 40,423
30% 29.7% 29,895 29,637
20% 19.5% 19,930 19,451
10% 10.0% 9,965 9,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,704
Calibration 2     105,732
Calibration 3     105,968
ssj_ops@calibrated=105,850
100% 99.6% 105,850 105,385
90% 90.0% 95,265 95,257
80% 81.1% 84,680 85,837
70% 69.2% 74,095 73,259
60% 60.7% 63,510 64,258
50% 50.6% 52,925 53,577
40% 40.0% 42,340 42,308
30% 30.1% 31,755 31,909
20% 20.2% 21,170 21,343
10% 10.0% 10,585 10,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,868
Calibration 2     106,705
Calibration 3     106,874
ssj_ops@calibrated=106,789
100% 99.4% 106,789 106,125
90% 90.7% 96,110 96,812
80% 79.4% 85,431 84,779
70% 70.4% 74,752 75,147
60% 59.1% 64,074 63,109
50% 49.5% 53,395 52,900
40% 39.7% 42,716 42,402
30% 30.2% 32,037 32,279
20% 19.9% 21,358 21,255
10% 10.0% 10,679 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,464
Calibration 2     105,647
Calibration 3     105,512
ssj_ops@calibrated=105,579
100% 99.4% 105,579 104,985
90% 89.5% 95,022 94,463
80% 80.3% 84,464 84,770
70% 70.3% 73,906 74,229
60% 60.3% 63,348 63,631
50% 50.6% 52,790 53,418
40% 40.1% 42,232 42,378
30% 29.9% 31,674 31,530
20% 20.4% 21,116 21,589
10% 10.1% 10,558 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,488
Calibration 2     105,486
Calibration 3     105,572
ssj_ops@calibrated=105,529
100% 99.0% 105,529 104,502
90% 89.1% 94,976 94,041
80% 79.6% 84,423 83,992
70% 69.1% 73,870 72,957
60% 59.9% 63,318 63,238
50% 49.5% 52,765 52,281
40% 40.2% 42,212 42,396
30% 30.0% 31,659 31,642
20% 20.3% 21,106 21,428
10% 10.1% 10,553 10,642
Active Idle   0 0

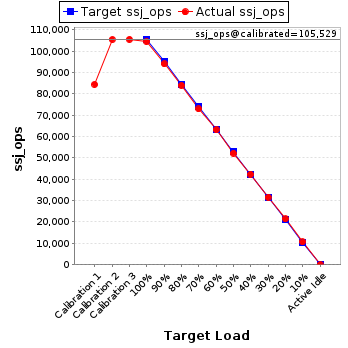

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,719
Calibration 2     99,816
Calibration 3     99,758
ssj_ops@calibrated=99,787
100% 99.8% 99,787 99,539
90% 90.4% 89,808 90,209
80% 79.5% 79,829 79,319
70% 70.9% 69,851 70,741
60% 59.1% 59,872 58,982
50% 49.7% 49,893 49,591
40% 40.5% 39,915 40,423
30% 29.7% 29,936 29,590
20% 20.3% 19,957 20,267
10% 10.2% 9,979 10,182
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,526
Calibration 2     103,134
Calibration 3     103,358
ssj_ops@calibrated=103,246
100% 99.7% 103,246 102,885
90% 90.9% 92,921 93,800
80% 80.0% 82,597 82,559
70% 70.5% 72,272 72,790
60% 60.3% 61,948 62,248
50% 50.1% 51,623 51,741
40% 40.2% 41,298 41,456
30% 30.3% 30,974 31,329
20% 20.2% 20,649 20,883
10% 9.8% 10,325 10,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,066
Calibration 2     106,251
Calibration 3     106,334
ssj_ops@calibrated=106,292
100% 99.9% 106,292 106,134
90% 90.0% 95,663 95,625
80% 80.1% 85,034 85,110
70% 70.2% 74,405 74,587
60% 60.0% 63,775 63,765
50% 49.5% 53,146 52,619
40% 40.4% 42,517 42,975
30% 30.2% 31,888 32,078
20% 19.7% 21,258 20,918
10% 9.7% 10,629 10,303
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,120
Calibration 2     105,949
Calibration 3     106,048
ssj_ops@calibrated=105,999
100% 100.4% 105,999 106,463
90% 89.7% 95,399 95,084
80% 79.3% 84,799 84,015
70% 70.2% 74,199 74,377
60% 60.4% 63,599 64,014
50% 49.9% 52,999 52,848
40% 40.3% 42,399 42,763
30% 29.7% 31,800 31,509
20% 19.6% 21,200 20,762
10% 10.3% 10,600 10,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,271
Calibration 2     98,840
Calibration 3     98,909
ssj_ops@calibrated=98,874
100% 100.5% 98,874 99,365
90% 91.4% 88,987 90,401
80% 79.8% 79,099 78,906
70% 70.3% 69,212 69,462
60% 59.6% 59,325 58,889
50% 50.7% 49,437 50,158
40% 39.4% 39,550 38,945
30% 29.7% 29,662 29,336
20% 20.0% 19,775 19,808
10% 10.0% 9,887 9,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,067
Calibration 2     107,328
Calibration 3     107,395
ssj_ops@calibrated=107,361
100% 100.1% 107,361 107,470
90% 89.9% 96,625 96,541
80% 79.6% 85,889 85,452
70% 70.2% 75,153 75,326
60% 59.6% 64,417 63,971
50% 50.9% 53,681 54,668
40% 40.0% 42,945 42,959
30% 30.4% 32,208 32,644
20% 20.1% 21,472 21,582
10% 9.9% 10,736 10,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,346
Calibration 2     107,487
Calibration 3     107,557
ssj_ops@calibrated=107,522
100% 99.5% 107,522 106,981
90% 89.0% 96,770 95,716
80% 80.1% 86,017 86,076
70% 70.1% 75,265 75,357
60% 60.9% 64,513 65,523
50% 50.4% 53,761 54,196
40% 40.1% 43,009 43,084
30% 29.5% 32,257 31,758
20% 20.0% 21,504 21,473
10% 10.2% 10,752 10,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,449
Calibration 2     101,681
Calibration 3     101,767
ssj_ops@calibrated=101,724
100% 100.1% 101,724 101,782
90% 89.9% 91,552 91,472
80% 80.2% 81,379 81,623
70% 69.8% 71,207 71,026
60% 59.3% 61,034 60,359
50% 49.3% 50,862 50,129
40% 40.0% 40,690 40,688
30% 30.3% 30,517 30,854
20% 19.9% 20,345 20,274
10% 10.0% 10,172 10,169
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,982
Calibration 2     105,113
Calibration 3     105,218
ssj_ops@calibrated=105,165
100% 100.1% 105,165 105,256
90% 88.9% 94,649 93,489
80% 79.3% 84,132 83,440
70% 69.8% 73,616 73,415
60% 59.9% 63,099 63,026
50% 49.3% 52,583 51,868
40% 40.1% 42,066 42,187
30% 30.2% 31,550 31,788
20% 20.0% 21,033 21,019
10% 9.8% 10,517 10,281
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,636
Calibration 2     101,671
Calibration 3     101,786
ssj_ops@calibrated=101,728
100% 100.4% 101,728 102,125
90% 89.4% 91,556 90,911
80% 80.2% 81,383 81,560
70% 70.6% 71,210 71,806
60% 59.3% 61,037 60,285
50% 49.9% 50,864 50,735
40% 39.6% 40,691 40,283
30% 29.8% 30,519 30,347
20% 19.9% 20,346 20,239
10% 10.0% 10,173 10,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,150
Calibration 2     105,663
Calibration 3     105,420
ssj_ops@calibrated=105,542
100% 99.7% 105,542 105,240
90% 90.8% 94,988 95,870
80% 80.3% 84,433 84,726
70% 70.7% 73,879 74,650
60% 60.4% 63,325 63,747
50% 50.6% 52,771 53,398
40% 40.1% 42,217 42,292
30% 30.4% 31,663 32,035
20% 20.2% 21,108 21,296
10% 9.9% 10,554 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,295
Calibration 2     104,934
Calibration 3     105,001
ssj_ops@calibrated=104,967
100% 99.5% 104,967 104,438
90% 89.0% 94,471 93,453
80% 79.6% 83,974 83,549
70% 71.2% 73,477 74,769
60% 59.4% 62,980 62,353
50% 49.8% 52,484 52,227
40% 39.4% 41,987 41,370
30% 29.8% 31,490 31,277
20% 20.0% 20,993 21,044
10% 10.0% 10,497 10,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,133
Calibration 2     102,837
Calibration 3     102,649
ssj_ops@calibrated=102,743
100% 99.8% 102,743 102,574
90% 89.6% 92,469 92,103
80% 80.4% 82,194 82,601
70% 70.7% 71,920 72,666
60% 60.3% 61,646 61,966
50% 49.7% 51,372 51,110
40% 40.4% 41,097 41,556
30% 30.4% 30,823 31,196
20% 19.6% 20,549 20,183
10% 10.4% 10,274 10,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,495
Calibration 2     103,230
Calibration 3     103,225
ssj_ops@calibrated=103,227
100% 99.7% 103,227 102,953
90% 90.6% 92,905 93,523
80% 81.1% 82,582 83,721
70% 71.0% 72,259 73,297
60% 60.6% 61,936 62,520
50% 49.8% 51,614 51,363
40% 40.1% 41,291 41,395
30% 30.6% 30,968 31,543
20% 20.1% 20,645 20,705
10% 10.1% 10,323 10,438
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,852
Calibration 2     106,328
Calibration 3     106,326
ssj_ops@calibrated=106,327
100% 99.9% 106,327 106,219
90% 89.2% 95,694 94,884
80% 79.4% 85,062 84,451
70% 70.9% 74,429 75,382
60% 60.0% 63,796 63,801
50% 49.9% 53,163 53,078
40% 40.0% 42,531 42,551
30% 29.8% 31,898 31,677
20% 20.5% 21,265 21,800
10% 10.0% 10,633 10,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,861
Calibration 2     106,719
Calibration 3     106,808
ssj_ops@calibrated=106,764
100% 100.2% 106,764 106,968
90% 90.0% 96,087 96,070
80% 80.8% 85,411 86,304
70% 70.2% 74,734 74,983
60% 60.9% 64,058 65,005
50% 49.5% 53,382 52,877
40% 40.1% 42,705 42,782
30% 30.2% 32,029 32,274
20% 20.5% 21,353 21,937
10% 10.3% 10,676 11,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,887
Calibration 2     105,009
Calibration 3     105,015
ssj_ops@calibrated=105,012
100% 100.2% 105,012 105,170
90% 89.7% 94,511 94,157
80% 80.0% 84,010 84,030
70% 69.5% 73,508 72,959
60% 60.1% 63,007 63,164
50% 49.8% 52,506 52,271
40% 40.2% 42,005 42,256
30% 30.0% 31,504 31,520
20% 20.1% 21,002 21,137
10% 9.9% 10,501 10,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,840
Calibration 2     106,481
Calibration 3     106,415
ssj_ops@calibrated=106,448
100% 99.5% 106,448 105,943
90% 88.5% 95,803 94,169
80% 78.9% 85,159 84,032
70% 70.4% 74,514 74,954
60% 61.2% 63,869 65,170
50% 50.0% 53,224 53,172
40% 40.0% 42,579 42,609
30% 30.0% 31,934 31,986
20% 20.3% 21,290 21,596
10% 10.1% 10,645 10,748
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,380
Calibration 2     105,446
Calibration 3     105,443
ssj_ops@calibrated=105,445
100% 99.0% 105,445 104,356
90% 89.0% 94,900 93,855
80% 79.9% 84,356 84,240
70% 69.4% 73,811 73,179
60% 60.6% 63,267 63,856
50% 49.5% 52,722 52,152
40% 39.5% 42,178 41,655
30% 29.7% 31,633 31,287
20% 19.8% 21,089 20,828
10% 9.8% 10,544 10,363
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,092
Calibration 2     103,822
Calibration 3     103,962
ssj_ops@calibrated=103,892
100% 99.7% 103,892 103,581
90% 90.0% 93,503 93,498
80% 79.4% 83,114 82,481
70% 70.5% 72,725 73,233
60% 60.9% 62,335 63,241
50% 50.1% 51,946 52,044
40% 39.6% 41,557 41,152
30% 29.9% 31,168 31,076
20% 19.8% 20,778 20,531
10% 9.8% 10,389 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,576
Calibration 2     103,702
Calibration 3     103,509
ssj_ops@calibrated=103,606
100% 99.6% 103,606 103,173
90% 89.8% 93,245 93,033
80% 79.9% 82,885 82,808
70% 70.5% 72,524 73,082
60% 60.3% 62,164 62,465
50% 50.4% 51,803 52,180
40% 39.6% 41,442 41,039
30% 29.9% 31,082 31,000
20% 19.9% 20,721 20,622
10% 9.8% 10,361 10,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,221
Calibration 2     105,471
Calibration 3     106,021
ssj_ops@calibrated=105,746
100% 99.3% 105,746 105,050
90% 89.8% 95,172 94,972
80% 80.2% 84,597 84,820
70% 70.1% 74,022 74,149
60% 59.5% 63,448 62,968
50% 49.2% 52,873 52,053
40% 40.5% 42,298 42,861
30% 30.3% 31,724 31,994
20% 19.4% 21,149 20,494
10% 10.1% 10,575 10,689
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,189
Calibration 2     105,340
Calibration 3     105,893
ssj_ops@calibrated=105,616
100% 100.6% 105,616 106,284
90% 89.4% 95,055 94,394
80% 80.2% 84,493 84,667
70% 70.0% 73,931 73,879
60% 59.6% 63,370 62,984
50% 50.0% 52,808 52,758
40% 40.2% 42,247 42,435
30% 29.8% 31,685 31,425
20% 20.0% 21,123 21,117
10% 10.1% 10,562 10,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,093
Calibration 2     102,804
Calibration 3     102,822
ssj_ops@calibrated=102,813
100% 99.1% 102,813 101,924
90% 88.9% 92,532 91,373
80% 80.3% 82,250 82,549
70% 69.8% 71,969 71,740
60% 59.6% 61,688 61,272
50% 49.8% 51,406 51,251
40% 40.1% 41,125 41,204
30% 30.1% 30,844 30,899
20% 19.9% 20,563 20,448
10% 10.2% 10,281 10,502
Active Idle   0 0

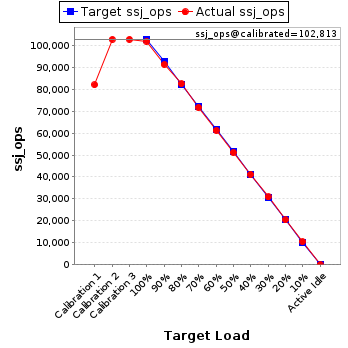

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,207
Calibration 2     106,922
Calibration 3     107,031
ssj_ops@calibrated=106,976
100% 99.6% 106,976 106,586
90% 89.0% 96,279 95,222
80% 80.1% 85,581 85,694
70% 69.7% 74,884 74,578
60% 59.9% 64,186 64,056
50% 51.0% 53,488 54,611
40% 39.9% 42,791 42,686
30% 30.1% 32,093 32,165
20% 19.3% 21,395 20,691
10% 9.7% 10,698 10,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,682
Calibration 2     106,583
Calibration 3     106,587
ssj_ops@calibrated=106,585
100% 100.1% 106,585 106,743
90% 90.5% 95,927 96,491
80% 78.8% 85,268 83,979
70% 69.8% 74,610 74,373
60% 60.1% 63,951 64,037
50% 49.6% 53,293 52,897
40% 40.4% 42,634 43,059
30% 29.2% 31,976 31,114
20% 19.8% 21,317 21,087
10% 10.0% 10,659 10,659
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,664
Calibration 2     105,350
Calibration 3     105,534
ssj_ops@calibrated=105,442
100% 100.1% 105,442 105,536
90% 89.5% 94,898 94,323
80% 79.8% 84,354 84,164
70% 69.7% 73,809 73,490
60% 59.6% 63,265 62,875
50% 49.8% 52,721 52,485
40% 39.6% 42,177 41,721
30% 30.2% 31,633 31,811
20% 20.3% 21,088 21,427
10% 10.0% 10,544 10,526
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,071
Calibration 2     105,828
Calibration 3     105,938
ssj_ops@calibrated=105,883
100% 99.8% 105,883 105,636
90% 89.9% 95,295 95,211
80% 80.6% 84,706 85,339
70% 70.4% 74,118 74,496
60% 59.9% 63,530 63,390
50% 50.3% 52,941 53,291
40% 39.5% 42,353 41,843
30% 30.4% 31,765 32,144
20% 19.9% 21,177 21,124
10% 9.9% 10,588 10,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,725
Calibration 2     106,077
Calibration 3     106,124
ssj_ops@calibrated=106,101
100% 99.4% 106,101 105,474
90% 89.7% 95,491 95,188
80% 79.2% 84,880 84,044
70% 69.6% 74,270 73,817
60% 59.9% 63,660 63,563
50% 50.3% 53,050 53,327
40% 39.6% 42,440 42,056
30% 30.0% 31,830 31,842
20% 20.5% 21,220 21,725
10% 10.0% 10,610 10,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,679
Calibration 2     105,728
Calibration 3     105,867
ssj_ops@calibrated=105,798
100% 100.4% 105,798 106,195
90% 88.9% 95,218 94,105
80% 79.8% 84,638 84,405
70% 70.3% 74,058 74,414
60% 60.5% 63,479 64,052
50% 49.6% 52,899 52,448
40% 39.5% 42,319 41,744
30% 29.9% 31,739 31,625
20% 19.3% 21,160 20,404
10% 9.7% 10,580 10,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,345
Calibration 2     104,343
Calibration 3     104,404
ssj_ops@calibrated=104,374
100% 98.7% 104,374 103,011
90% 90.5% 93,936 94,470
80% 79.9% 83,499 83,421
70% 69.8% 73,062 72,863
60% 60.5% 62,624 63,104
50% 50.5% 52,187 52,719
40% 40.0% 41,749 41,776
30% 30.2% 31,312 31,487
20% 19.8% 20,875 20,685
10% 9.7% 10,437 10,162
Active Idle   0 0

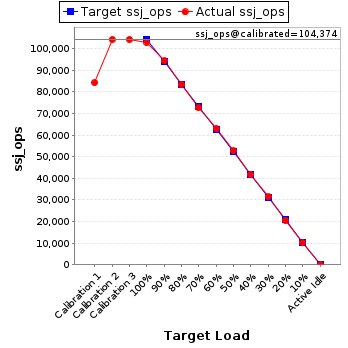

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,993
Calibration 2     105,910
Calibration 3     106,181
ssj_ops@calibrated=106,046
100% 98.9% 106,046 104,908
90% 89.0% 95,441 94,341
80% 80.7% 84,836 85,565
70% 70.6% 74,232 74,846
60% 60.3% 63,627 63,940
50% 50.0% 53,023 53,045
40% 40.1% 42,418 42,473
30% 29.7% 31,814 31,453
20% 20.3% 21,209 21,529
10% 10.2% 10,605 10,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,529
Calibration 2     105,381
Calibration 3     105,596
ssj_ops@calibrated=105,489
100% 98.5% 105,489 103,908
90% 90.3% 94,940 95,309
80% 80.5% 84,391 84,880
70% 69.4% 73,842 73,170
60% 59.9% 63,293 63,173
50% 50.3% 52,744 53,078
40% 40.3% 42,195 42,548
30% 29.7% 31,647 31,321
20% 20.0% 21,098 21,077
10% 9.5% 10,549 10,060
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,527
Calibration 2     107,237
Calibration 3     107,416
ssj_ops@calibrated=107,326
100% 100.0% 107,326 107,284
90% 91.0% 96,594 97,661
80% 79.6% 85,861 85,402
70% 70.4% 75,128 75,573
60% 60.9% 64,396 65,325
50% 49.8% 53,663 53,453
40% 40.8% 42,931 43,737
30% 30.3% 32,198 32,495
20% 20.3% 21,465 21,795
10% 10.1% 10,733 10,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,867
Calibration 2     108,408
Calibration 3     108,597
ssj_ops@calibrated=108,503
100% 100.1% 108,503 108,657
90% 88.1% 97,652 95,575
80% 79.3% 86,802 86,006
70% 70.7% 75,952 76,662
60% 59.7% 65,102 64,750
50% 48.7% 54,251 52,892
40% 40.7% 43,401 44,161
30% 30.4% 32,551 33,011
20% 20.3% 21,701 21,984
10% 9.9% 10,850 10,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,269
Calibration 2     95,045
Calibration 3     95,130
ssj_ops@calibrated=95,088
100% 99.7% 95,088 94,824
90% 89.2% 85,579 84,862
80% 79.7% 76,070 75,823
70% 69.7% 66,561 66,322
60% 60.2% 57,053 57,248
50% 50.5% 47,544 48,021
40% 40.1% 38,035 38,094
30% 29.1% 28,526 27,634
20% 20.1% 19,018 19,131
10% 10.0% 9,509 9,552
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,623
Calibration 2     106,581
Calibration 3     106,627
ssj_ops@calibrated=106,604
100% 99.9% 106,604 106,457
90% 89.9% 95,944 95,867
80% 80.0% 85,283 85,328
70% 71.4% 74,623 76,098
60% 59.2% 63,962 63,147
50% 50.0% 53,302 53,287
40% 39.6% 42,642 42,265
30% 29.1% 31,981 31,052
20% 20.3% 21,321 21,662
10% 9.8% 10,660 10,410
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,606
Calibration 2     107,009
Calibration 3     107,148
ssj_ops@calibrated=107,079
100% 100.3% 107,079 107,367
90% 89.8% 96,371 96,111
80% 79.9% 85,663 85,516
70% 69.4% 74,955 74,324
60% 59.9% 64,247 64,186
50% 49.9% 53,539 53,432
40% 40.0% 42,832 42,793
30% 30.2% 32,124 32,388
20% 20.0% 21,416 21,424
10% 10.2% 10,708 10,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,636
Calibration 2     106,052
Calibration 3     106,082
ssj_ops@calibrated=106,067
100% 99.3% 106,067 105,313
90% 90.2% 95,460 95,634
80% 81.1% 84,854 86,001
70% 70.2% 74,247 74,432
60% 59.7% 63,640 63,330
50% 50.6% 53,034 53,677
40% 39.8% 42,427 42,237
30% 30.1% 31,820 31,877
20% 20.3% 21,213 21,521
10% 9.7% 10,607 10,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,902
Calibration 2     105,136
Calibration 3     105,575
ssj_ops@calibrated=105,355
100% 99.7% 105,355 105,063
90% 91.0% 94,820 95,909
80% 80.0% 84,284 84,314
70% 69.3% 73,749 73,021
60% 59.8% 63,213 63,048
50% 49.9% 52,678 52,573
40% 40.8% 42,142 43,024
30% 30.4% 31,607 32,005
20% 19.8% 21,071 20,823
10% 10.2% 10,536 10,760
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,516
Calibration 2     95,497
Calibration 3     95,689
ssj_ops@calibrated=95,593
100% 99.8% 95,593 95,425
90% 90.5% 86,034 86,536
80% 79.5% 76,475 75,976
70% 72.0% 66,915 68,862
60% 60.8% 57,356 58,103
50% 49.6% 47,797 47,398
40% 39.0% 38,237 37,279
30% 29.9% 28,678 28,571
20% 20.6% 19,119 19,671
10% 10.3% 9,559 9,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
