Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,338,611
ssj_ops@100% per JVM = 104,233
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 11, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,711,211
Calibration 2     8,354,146
Calibration 3     8,362,679
ssj_ops@calibrated=8,358,412
100% 99.8% 8,358,412 8,338,611
90% 89.9% 7,522,571 7,517,500
80% 80.0% 6,686,730 6,688,459
70% 70.0% 5,850,889 5,848,686
60% 59.9% 5,015,047 5,008,207
50% 49.9% 4,179,206 4,172,475
40% 40.0% 3,343,365 3,345,086
30% 30.0% 2,507,524 2,505,013
20% 20.0% 1,671,682 1,669,461
10% 10.0% 835,841 835,286
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-02.001 104,592
sy480-02.002 101,594
sy480-02.003 101,566
sy480-02.004 102,944
sy480-02.005 97,851
sy480-02.006 102,882
sy480-02.007 105,843
sy480-02.008 103,975
sy480-02.009 103,855
sy480-02.010 105,300
sy480-02.011 102,801
sy480-02.012 105,012
sy480-02.013 106,279
sy480-02.014 103,021
sy480-02.015 105,328
sy480-02.016 105,654
sy480-02.017 106,463
sy480-02.018 106,328
sy480-02.019 101,478
sy480-02.020 102,958
sy480-02.021 105,696
sy480-02.022 98,972
sy480-02.023 101,366
sy480-02.024 104,957
sy480-02.025 107,129
sy480-02.026 102,909
sy480-02.027 105,239
sy480-02.028 104,098
sy480-02.029 106,394
sy480-02.030 101,636
sy480-02.031 104,449
sy480-02.032 105,641
sy480-02.033 106,036
sy480-02.034 102,838
sy480-02.035 105,088
sy480-02.036 104,148
sy480-02.037 104,848
sy480-02.038 99,308
sy480-02.039 104,396
sy480-02.040 105,974
sy480-02.041 106,150
sy480-02.042 104,150
sy480-02.043 101,957
sy480-02.044 105,748
sy480-02.045 102,797
sy480-02.046 105,917
sy480-02.047 107,070
sy480-02.048 108,055
sy480-02.049 102,463
sy480-02.050 106,971
sy480-02.051 105,865
sy480-02.052 103,294
sy480-02.053 104,108
sy480-02.054 105,801
sy480-02.055 100,273
sy480-02.056 104,156
sy480-02.057 105,040
sy480-02.058 106,517
sy480-02.059 97,476
sy480-02.060 102,765
sy480-02.061 104,573
sy480-02.062 104,550
sy480-02.063 106,306
sy480-02.064 105,992
sy480-02.065 104,175
sy480-02.066 100,531
sy480-02.067 106,397
sy480-02.068 105,828
sy480-02.069 105,085
sy480-02.070 104,140
sy480-02.071 102,295
sy480-02.072 107,097
sy480-02.073 104,117
sy480-02.074 106,415
sy480-02.075 104,970
sy480-02.076 105,094
sy480-02.077 106,152
sy480-02.078 105,928
sy480-02.079 105,384
sy480-02.080 100,165
ssj_ops@100% 8,338,611
ssj_ops@100% per JVM 104,233
Graph of per-instance results
JVM 'sy480-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,496
Calibration 2     105,447
Calibration 3     105,381
ssj_ops@calibrated=105,414
100% 99.2% 105,414 104,592
90% 89.8% 94,872 94,687
80% 80.2% 84,331 84,546
70% 70.1% 73,790 73,848
60% 59.0% 63,248 62,187
50% 50.3% 52,707 53,031
40% 39.7% 42,166 41,871
30% 29.9% 31,624 31,479
20% 19.6% 21,083 20,632
10% 10.4% 10,541 10,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,738
Calibration 2     101,937
Calibration 3     101,907
ssj_ops@calibrated=101,922
100% 99.7% 101,922 101,594
90% 89.4% 91,730 91,151
80% 80.8% 81,538 82,335
70% 70.1% 71,345 71,461
60% 59.7% 61,153 60,845
50% 49.6% 50,961 50,602
40% 39.7% 40,769 40,506
30% 29.2% 30,577 29,802
20% 20.5% 20,384 20,903
10% 10.4% 10,192 10,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,036
Calibration 2     101,739
Calibration 3     101,801
ssj_ops@calibrated=101,770
100% 99.8% 101,770 101,566
90% 89.1% 91,593 90,714
80% 80.2% 81,416 81,618
70% 70.0% 71,239 71,208
60% 59.7% 61,062 60,717
50% 50.0% 50,885 50,895
40% 39.9% 40,708 40,630
30% 29.8% 30,531 30,364
20% 19.7% 20,354 20,048
10% 10.2% 10,177 10,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,962
Calibration 2     102,753
Calibration 3     102,675
ssj_ops@calibrated=102,714
100% 100.2% 102,714 102,944
90% 90.0% 92,443 92,489
80% 79.8% 82,171 81,994
70% 70.0% 71,900 71,924
60% 59.0% 61,628 60,555
50% 49.7% 51,357 51,080
40% 40.1% 41,086 41,225
30% 30.0% 30,814 30,812
20% 20.7% 20,543 21,222
10% 10.0% 10,271 10,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,063
Calibration 2     97,918
Calibration 3     98,347
ssj_ops@calibrated=98,133
100% 99.7% 98,133 97,851
90% 89.6% 88,319 87,956
80% 80.6% 78,506 79,101
70% 70.2% 68,693 68,935
60% 60.0% 58,880 58,833
50% 50.4% 49,066 49,486
40% 39.3% 39,253 38,594
30% 30.7% 29,440 30,160
20% 19.9% 19,627 19,546
10% 10.1% 9,813 9,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,706
Calibration 2     103,260
Calibration 3     103,358
ssj_ops@calibrated=103,309
100% 99.6% 103,309 102,882
90% 90.2% 92,978 93,146
80% 79.5% 82,647 82,157
70% 70.1% 72,316 72,428
60% 60.0% 61,986 62,006
50% 49.7% 51,655 51,298
40% 39.4% 41,324 40,662
30% 30.2% 30,993 31,204
20% 20.3% 20,662 20,942
10% 10.0% 10,331 10,294
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,246
Calibration 2     106,329
Calibration 3     106,306
ssj_ops@calibrated=106,318
100% 99.6% 106,318 105,843
90% 90.2% 95,686 95,941
80% 80.7% 85,054 85,797
70% 69.4% 74,422 73,821
60% 60.5% 63,791 64,278
50% 50.7% 53,159 53,888
40% 39.7% 42,527 42,179
30% 29.6% 31,895 31,462
20% 20.1% 21,264 21,317
10% 10.3% 10,632 10,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,471
Calibration 2     104,323
Calibration 3     104,418
ssj_ops@calibrated=104,370
100% 99.6% 104,370 103,975
90% 89.7% 93,933 93,620
80% 80.2% 83,496 83,684
70% 70.6% 73,059 73,688
60% 59.8% 62,622 62,397
50% 50.1% 52,185 52,249
40% 39.5% 41,748 41,257
30% 30.4% 31,311 31,772
20% 19.7% 20,874 20,593
10% 9.7% 10,437 10,153
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,228
Calibration 2     103,377
Calibration 3     103,571
ssj_ops@calibrated=103,474
100% 100.4% 103,474 103,855
90% 90.9% 93,127 94,024
80% 80.7% 82,779 83,552
70% 69.4% 72,432 71,765
60% 60.6% 62,085 62,682
50% 49.9% 51,737 51,677
40% 39.8% 41,390 41,180
30% 30.5% 31,042 31,538
20% 20.0% 20,695 20,737
10% 9.8% 10,347 10,184
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,604
Calibration 2     105,464
Calibration 3     105,555
ssj_ops@calibrated=105,509
100% 99.8% 105,509 105,300
90% 91.0% 94,958 96,042
80% 79.7% 84,407 84,058
70% 70.5% 73,857 74,403
60% 59.4% 63,306 62,662
50% 49.5% 52,755 52,236
40% 40.0% 42,204 42,224
30% 29.9% 31,653 31,544
20% 19.7% 21,102 20,771
10% 9.8% 10,551 10,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,365
Calibration 2     102,754
Calibration 3     102,804
ssj_ops@calibrated=102,779
100% 100.0% 102,779 102,801
90% 89.7% 92,501 92,227
80% 80.4% 82,223 82,628
70% 69.7% 71,945 71,609
60% 60.0% 61,667 61,662
50% 49.9% 51,389 51,238
40% 40.2% 41,112 41,334
30% 30.3% 30,834 31,106
20% 19.7% 20,556 20,231
10% 10.2% 10,278 10,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,913
Calibration 2     105,384
Calibration 3     105,252
ssj_ops@calibrated=105,318
100% 99.7% 105,318 105,012
90% 90.7% 94,786 95,491
80% 78.9% 84,254 83,064
70% 69.5% 73,723 73,148
60% 59.9% 63,191 63,035
50% 49.8% 52,659 52,465
40% 39.5% 42,127 41,634
30% 30.4% 31,595 31,983
20% 19.6% 21,064 20,617
10% 10.0% 10,532 10,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,129
Calibration 2     106,430
Calibration 3     106,318
ssj_ops@calibrated=106,374
100% 99.9% 106,374 106,279
90% 89.7% 95,737 95,429
80% 81.3% 85,099 86,491
70% 68.8% 74,462 73,168
60% 60.0% 63,824 63,800
50% 49.9% 53,187 53,040
40% 39.6% 42,550 42,126
30% 30.3% 31,912 32,275
20% 20.4% 21,275 21,696
10% 9.7% 10,637 10,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,581
Calibration 2     102,920
Calibration 3     103,072
ssj_ops@calibrated=102,996
100% 100.0% 102,996 103,021
90% 90.4% 92,696 93,123
80% 79.8% 82,397 82,139
70% 69.1% 72,097 71,188
60% 60.2% 61,798 61,977
50% 49.6% 51,498 51,065
40% 40.3% 41,198 41,483
30% 30.2% 30,899 31,150
20% 19.7% 20,599 20,279
10% 10.3% 10,300 10,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,816
Calibration 2     105,427
Calibration 3     105,548
ssj_ops@calibrated=105,488
100% 99.8% 105,488 105,328
90% 90.1% 94,939 95,021
80% 79.6% 84,390 83,931
70% 70.2% 73,841 74,015
60% 60.3% 63,293 63,578
50% 49.9% 52,744 52,662
40% 40.2% 42,195 42,455
30% 30.1% 31,646 31,719
20% 20.2% 21,098 21,321
10% 9.9% 10,549 10,413
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,318
Calibration 2     105,546
Calibration 3     105,722
ssj_ops@calibrated=105,634
100% 100.0% 105,634 105,654
90% 89.7% 95,070 94,766
80% 80.6% 84,507 85,136
70% 70.4% 73,944 74,317
60% 59.7% 63,380 63,085
50% 50.6% 52,817 53,474
40% 40.3% 42,254 42,598
30% 29.5% 31,690 31,140
20% 20.6% 21,127 21,749
10% 10.3% 10,563 10,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,933
Calibration 2     106,127
Calibration 3     106,264
ssj_ops@calibrated=106,196
100% 100.3% 106,196 106,463
90% 90.4% 95,576 95,965
80% 79.6% 84,957 84,513
70% 69.6% 74,337 73,876
60% 61.2% 63,717 64,981
50% 49.8% 53,098 52,878
40% 39.8% 42,478 42,229
30% 30.4% 31,859 32,245
20% 19.7% 21,239 20,972
10% 10.1% 10,620 10,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,306
Calibration 2     106,081
Calibration 3     106,197
ssj_ops@calibrated=106,139
100% 100.2% 106,139 106,328
90% 90.8% 95,525 96,409
80% 80.8% 84,911 85,799
70% 69.6% 74,298 73,902
60% 59.8% 63,684 63,445
50% 50.0% 53,070 53,103
40% 39.6% 42,456 42,005
30% 30.1% 31,842 31,985
20% 19.9% 21,228 21,133
10% 9.6% 10,614 10,163
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,717
Calibration 2     101,874
Calibration 3     101,935
ssj_ops@calibrated=101,905
100% 99.6% 101,905 101,478
90% 89.6% 91,714 91,319
80% 80.2% 81,524 81,752
70% 71.2% 71,333 72,591
60% 59.8% 61,143 60,890
50% 49.5% 50,952 50,451
40% 40.2% 40,762 40,936
30% 29.5% 30,571 30,063
20% 19.9% 20,381 20,330
10% 9.7% 10,190 9,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,070
Calibration 2     102,919
Calibration 3     103,027
ssj_ops@calibrated=102,973
100% 100.0% 102,973 102,958
90% 89.3% 92,676 92,003
80% 80.2% 82,379 82,631
70% 69.7% 72,081 71,727
60% 59.8% 61,784 61,584
50% 49.0% 51,487 50,437
40% 40.1% 41,189 41,305
30% 30.0% 30,892 30,905
20% 19.7% 20,595 20,239
10% 9.9% 10,297 10,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,579
Calibration 2     105,854
Calibration 3     105,985
ssj_ops@calibrated=105,919
100% 99.8% 105,919 105,696
90% 89.3% 95,327 94,631
80% 79.8% 84,735 84,491
70% 69.9% 74,144 74,056
60% 60.3% 63,552 63,897
50% 49.3% 52,960 52,259
40% 40.2% 42,368 42,549
30% 29.6% 31,776 31,384
20% 20.5% 21,184 21,729
10% 10.1% 10,592 10,653
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,254
Calibration 2     98,780
Calibration 3     98,824
ssj_ops@calibrated=98,802
100% 100.2% 98,802 98,972
90% 90.9% 88,922 89,855
80% 78.4% 79,042 77,460
70% 70.2% 69,162 69,327
60% 60.0% 59,281 59,238
50% 49.5% 49,401 48,924
40% 39.4% 39,521 38,917
30% 29.8% 29,641 29,442
20% 20.3% 19,760 20,027
10% 10.1% 9,880 9,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,995
Calibration 2     101,084
Calibration 3     101,160
ssj_ops@calibrated=101,122
100% 100.2% 101,122 101,366
90% 89.6% 91,010 90,647
80% 80.7% 80,897 81,561
70% 70.1% 70,785 70,880
60% 59.7% 60,673 60,390
50% 50.4% 50,561 50,941
40% 39.8% 40,449 40,280
30% 29.9% 30,337 30,223
20% 20.9% 20,224 21,096
10% 10.1% 10,112 10,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,667
Calibration 2     105,261
Calibration 3     105,203
ssj_ops@calibrated=105,232
100% 99.7% 105,232 104,957
90% 89.5% 94,709 94,222
80% 80.5% 84,186 84,679
70% 70.6% 73,662 74,261
60% 59.3% 63,139 62,401
50% 50.2% 52,616 52,876
40% 39.8% 42,093 41,920
30% 29.9% 31,570 31,422
20% 19.4% 21,046 20,453
10% 10.0% 10,523 10,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,331
Calibration 2     108,005
Calibration 3     108,065
ssj_ops@calibrated=108,035
100% 99.2% 108,035 107,129
90% 89.3% 97,232 96,443
80% 80.0% 86,428 86,459
70% 70.2% 75,625 75,840
60% 59.5% 64,821 64,272
50% 50.0% 54,018 54,053
40% 40.1% 43,214 43,283
30% 29.2% 32,411 31,562
20% 20.1% 21,607 21,701
10% 9.8% 10,804 10,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,568
Calibration 2     103,653
Calibration 3     103,830
ssj_ops@calibrated=103,742
100% 99.2% 103,742 102,909
90% 89.5% 93,367 92,881
80% 80.2% 82,993 83,165
70% 70.0% 72,619 72,602
60% 59.7% 62,245 61,893
50% 50.1% 51,871 51,928
40% 39.7% 41,497 41,176
30% 30.3% 31,122 31,389
20% 20.3% 20,748 21,014
10% 10.0% 10,374 10,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,746
Calibration 2     105,611
Calibration 3     105,706
ssj_ops@calibrated=105,659
100% 99.6% 105,659 105,239
90% 89.9% 95,093 95,000
80% 79.9% 84,527 84,428
70% 69.8% 73,961 73,703
60% 60.3% 63,395 63,691
50% 50.4% 52,829 53,209
40% 40.0% 42,264 42,237
30% 29.7% 31,698 31,372
20% 20.0% 21,132 21,100
10% 9.8% 10,566 10,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,801
Calibration 2     104,472
Calibration 3     104,541
ssj_ops@calibrated=104,507
100% 99.6% 104,507 104,098
90% 89.9% 94,056 93,993
80% 80.0% 83,605 83,581
70% 70.8% 73,155 73,949
60% 59.2% 62,704 61,876
50% 49.8% 52,253 52,007
40% 40.3% 41,803 42,068
30% 30.3% 31,352 31,687
20% 19.2% 20,901 20,113
10% 10.1% 10,451 10,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,713
Calibration 2     106,390
Calibration 3     107,228
ssj_ops@calibrated=106,809
100% 99.6% 106,809 106,394
90% 90.0% 96,129 96,107
80% 80.1% 85,448 85,540
70% 70.0% 74,767 74,749
60% 59.2% 64,086 63,262
50% 50.6% 53,405 54,016
40% 40.2% 42,724 42,957
30% 30.4% 32,043 32,472
20% 20.1% 21,362 21,487
10% 10.1% 10,681 10,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,270
Calibration 2     101,728
Calibration 3     101,972
ssj_ops@calibrated=101,850
100% 99.8% 101,850 101,636
90% 91.9% 91,665 93,626
80% 80.2% 81,480 81,713
70% 70.4% 71,295 71,731
60% 60.6% 61,110 61,715
50% 49.7% 50,925 50,611
40% 39.7% 40,740 40,430
30% 30.1% 30,555 30,654
20% 20.2% 20,370 20,575
10% 10.1% 10,185 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,016
Calibration 2     104,932
Calibration 3     104,915
ssj_ops@calibrated=104,923
100% 99.5% 104,923 104,449
90% 89.9% 94,431 94,378
80% 81.0% 83,939 84,999
70% 70.4% 73,446 73,847
60% 59.3% 62,954 62,201
50% 49.6% 52,462 52,033
40% 39.9% 41,969 41,829
30% 30.3% 31,477 31,762
20% 20.1% 20,985 21,075
10% 9.9% 10,492 10,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,273
Calibration 2     105,718
Calibration 3     105,672
ssj_ops@calibrated=105,695
100% 99.9% 105,695 105,641
90% 89.3% 95,126 94,338
80% 78.5% 84,556 83,006
70% 70.4% 73,987 74,450
60% 60.5% 63,417 63,950
50% 50.5% 52,848 53,411
40% 39.7% 42,278 41,940
30% 30.2% 31,709 31,895
20% 19.8% 21,139 20,962
10% 10.0% 10,570 10,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,503
Calibration 2     105,927
Calibration 3     105,930
ssj_ops@calibrated=105,929
100% 100.1% 105,929 106,036
90% 91.2% 95,336 96,635
80% 79.6% 84,743 84,340
70% 70.7% 74,150 74,936
60% 59.7% 63,557 63,262
50% 49.3% 52,964 52,211
40% 40.1% 42,372 42,511
30% 30.1% 31,779 31,914
20% 20.4% 21,186 21,658
10% 10.2% 10,593 10,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,554
Calibration 2     103,028
Calibration 3     103,026
ssj_ops@calibrated=103,027
100% 99.8% 103,027 102,838
90% 89.2% 92,725 91,871
80% 79.5% 82,422 81,934
70% 70.2% 72,119 72,298
60% 60.3% 61,816 62,150
50% 49.8% 51,514 51,331
40% 39.7% 41,211 40,886
30% 30.1% 30,908 30,971
20% 19.9% 20,605 20,533
10% 10.0% 10,303 10,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,015
Calibration 2     105,062
Calibration 3     105,224
ssj_ops@calibrated=105,143
100% 99.9% 105,143 105,088
90% 90.3% 94,629 94,907
80% 79.4% 84,114 83,507
70% 69.4% 73,600 72,937
60% 60.0% 63,086 63,039
50% 50.0% 52,571 52,600
40% 40.2% 42,057 42,253
30% 29.4% 31,543 30,961
20% 19.8% 21,029 20,785
10% 10.2% 10,514 10,722
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,401
Calibration 2     104,859
Calibration 3     104,748
ssj_ops@calibrated=104,803
100% 99.4% 104,803 104,148
90% 90.7% 94,323 95,020
80% 79.9% 83,843 83,772
70% 69.5% 73,362 72,797
60% 59.1% 62,882 61,971
50% 49.4% 52,402 51,745
40% 39.4% 41,921 41,337
30% 30.5% 31,441 32,001
20% 20.2% 20,961 21,120
10% 9.8% 10,480 10,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,095
Calibration 2     105,465
Calibration 3     105,524
ssj_ops@calibrated=105,494
100% 99.4% 105,494 104,848
90% 91.4% 94,945 96,419
80% 80.6% 84,395 85,065
70% 69.4% 73,846 73,187
60% 59.9% 63,297 63,152
50% 50.7% 52,747 53,458
40% 39.9% 42,198 42,114
30% 30.3% 31,648 31,949
20% 19.6% 21,099 20,725
10% 10.0% 10,549 10,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,431
Calibration 2     99,147
Calibration 3     99,206
ssj_ops@calibrated=99,176
100% 100.1% 99,176 99,308
90% 90.0% 89,259 89,286
80% 80.2% 79,341 79,498
70% 69.5% 69,423 68,945
60% 60.2% 59,506 59,668
50% 50.5% 49,588 50,131
40% 39.7% 39,670 39,378
30% 30.0% 29,753 29,709
20% 20.4% 19,835 20,196
10% 9.7% 9,918 9,660
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,098
Calibration 2     104,853
Calibration 3     104,926
ssj_ops@calibrated=104,890
100% 99.5% 104,890 104,396
90% 89.2% 94,401 93,554
80% 80.2% 83,912 84,078
70% 70.1% 73,423 73,489
60% 59.6% 62,934 62,544
50% 50.1% 52,445 52,506
40% 40.0% 41,956 41,931
30% 30.3% 31,467 31,738
20% 20.2% 20,978 21,145
10% 10.0% 10,489 10,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,072
Calibration 2     105,795
Calibration 3     105,875
ssj_ops@calibrated=105,835
100% 100.1% 105,835 105,974
90% 89.3% 95,252 94,512
80% 80.3% 84,668 85,030
70% 69.0% 74,085 72,995
60% 61.1% 63,501 64,698
50% 49.6% 52,918 52,460
40% 39.7% 42,334 42,037
30% 29.7% 31,751 31,479
20% 20.1% 21,167 21,321
10% 9.8% 10,584 10,413
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,489
Calibration 2     106,018
Calibration 3     106,120
ssj_ops@calibrated=106,069
100% 100.1% 106,069 106,150
90% 89.5% 95,462 94,925
80% 79.9% 84,855 84,714
70% 70.6% 74,248 74,840
60% 60.1% 63,641 63,723
50% 49.8% 53,035 52,791
40% 40.7% 42,428 43,176
30% 29.9% 31,821 31,767
20% 20.0% 21,214 21,164
10% 9.9% 10,607 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,753
Calibration 2     105,625
Calibration 3     105,667
ssj_ops@calibrated=105,646
100% 98.6% 105,646 104,150
90% 89.8% 95,082 94,837
80% 79.4% 84,517 83,883
70% 70.3% 73,952 74,253
60% 59.7% 63,388 63,092
50% 48.8% 52,823 51,563
40% 40.1% 42,259 42,402
30% 30.0% 31,694 31,671
20% 19.9% 21,129 20,982
10% 10.2% 10,565 10,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,280
Calibration 2     101,870
Calibration 3     101,831
ssj_ops@calibrated=101,851
100% 100.1% 101,851 101,957
90% 90.1% 91,665 91,744
80% 80.0% 81,480 81,469
70% 68.7% 71,295 69,955
60% 59.7% 61,110 60,782
50% 49.5% 50,925 50,378
40% 40.2% 40,740 40,964
30% 29.6% 30,555 30,132
20% 19.3% 20,370 19,651
10% 9.8% 10,185 9,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,666
Calibration 2     106,327
Calibration 3     106,599
ssj_ops@calibrated=106,463
100% 99.3% 106,463 105,748
90% 89.5% 95,817 95,313
80% 79.8% 85,170 84,914
70% 69.2% 74,524 73,719
60% 59.9% 63,878 63,779
50% 49.6% 53,232 52,768
40% 40.6% 42,585 43,273
30% 30.3% 31,939 32,218
20% 20.0% 21,293 21,257
10% 10.2% 10,646 10,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,695
Calibration 2     103,215
Calibration 3     103,175
ssj_ops@calibrated=103,195
100% 99.6% 103,195 102,797
90% 88.9% 92,875 91,722
80% 79.5% 82,556 82,089
70% 69.3% 72,236 71,532
60% 60.2% 61,917 62,169
50% 50.3% 51,597 51,899
40% 40.0% 41,278 41,238
30% 30.2% 30,958 31,208
20% 19.8% 20,639 20,431
10% 9.7% 10,319 10,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,450
Calibration 2     106,123
Calibration 3     106,425
ssj_ops@calibrated=106,274
100% 99.7% 106,274 105,917
90% 89.7% 95,647 95,320
80% 79.8% 85,019 84,830
70% 69.5% 74,392 73,837
60% 59.4% 63,764 63,104
50% 50.4% 53,137 53,594
40% 40.7% 42,510 43,236
30% 29.8% 31,882 31,708
20% 20.0% 21,255 21,278
10% 10.1% 10,627 10,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,881
Calibration 2     106,992
Calibration 3     107,272
ssj_ops@calibrated=107,132
100% 99.9% 107,132 107,070
90% 89.4% 96,418 95,769
80% 79.5% 85,705 85,125
70% 70.1% 74,992 75,055
60% 59.4% 64,279 63,652
50% 49.7% 53,566 53,238
40% 40.1% 42,853 42,925
30% 29.9% 32,139 31,996
20% 19.8% 21,426 21,162
10% 10.1% 10,713 10,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

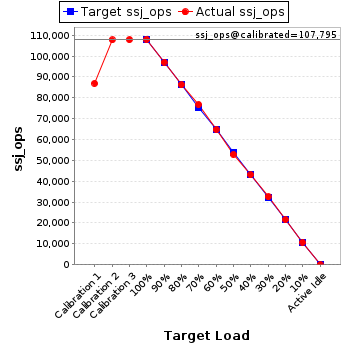

JVM 'sy480-02.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,966
Calibration 2     107,718
Calibration 3     107,872
ssj_ops@calibrated=107,795
100% 100.2% 107,795 108,055
90% 90.1% 97,016 97,123
80% 80.0% 86,236 86,227
70% 71.3% 75,457 76,835
60% 60.2% 64,677 64,855
50% 49.1% 53,898 52,938
40% 39.9% 43,118 43,045
30% 30.2% 32,339 32,605
20% 20.1% 21,559 21,632
10% 10.0% 10,780 10,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,649
Calibration 2     102,721
Calibration 3     102,154
ssj_ops@calibrated=102,438
100% 100.0% 102,438 102,463
90% 90.1% 92,194 92,346
80% 80.5% 81,950 82,504
70% 70.2% 71,706 71,941
60% 59.6% 61,463 61,091
50% 49.9% 51,219 51,113
40% 39.4% 40,975 40,368
30% 30.2% 30,731 30,948
20% 20.5% 20,488 21,038
10% 9.8% 10,244 10,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,964
Calibration 2     106,988
Calibration 3     107,134
ssj_ops@calibrated=107,061
100% 99.9% 107,061 106,971
90% 89.3% 96,355 95,617
80% 79.8% 85,649 85,385
70% 69.9% 74,943 74,838
60% 60.1% 64,237 64,311
50% 49.6% 53,531 53,125
40% 40.3% 42,824 43,191
30% 29.5% 32,118 31,635
20% 19.9% 21,412 21,273
10% 9.8% 10,706 10,490
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,254
Calibration 2     106,030
Calibration 3     106,236
ssj_ops@calibrated=106,133
100% 99.7% 106,133 105,865
90% 90.9% 95,520 96,513
80% 79.8% 84,906 84,653
70% 70.7% 74,293 75,055
60% 59.5% 63,680 63,183
50% 50.4% 53,066 53,447
40% 40.1% 42,453 42,548
30% 30.0% 31,840 31,797
20% 20.2% 21,227 21,391
10% 10.0% 10,613 10,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,982
Calibration 2     103,304
Calibration 3     103,786
ssj_ops@calibrated=103,545
100% 99.8% 103,545 103,294
90% 90.1% 93,190 93,262
80% 80.7% 82,836 83,541
70% 70.5% 72,481 73,000
60% 59.8% 62,127 61,873
50% 50.6% 51,772 52,342
40% 39.9% 41,418 41,319
30% 29.8% 31,063 30,854
20% 19.7% 20,709 20,367
10% 10.1% 10,354 10,476
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,649
Calibration 2     104,641
Calibration 3     104,624
ssj_ops@calibrated=104,633
100% 99.5% 104,633 104,108
90% 89.9% 94,170 94,117
80% 80.4% 83,706 84,087
70% 70.0% 73,243 73,192
60% 60.2% 62,780 62,977
50% 49.9% 52,316 52,214
40% 40.0% 41,853 41,860
30% 29.9% 31,390 31,267
20% 19.9% 20,927 20,808
10% 10.0% 10,463 10,484
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,736
Calibration 2     105,398
Calibration 3     105,643
ssj_ops@calibrated=105,520
100% 100.3% 105,520 105,801
90% 88.9% 94,968 93,811
80% 80.5% 84,416 84,995
70% 69.2% 73,864 73,010
60% 59.9% 63,312 63,243
50% 50.2% 52,760 53,009
40% 40.1% 42,208 42,332
30% 30.1% 31,656 31,804
20% 20.3% 21,104 21,392
10% 10.1% 10,552 10,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,245
Calibration 2     100,551
Calibration 3     100,583
ssj_ops@calibrated=100,567
100% 99.7% 100,567 100,273
90% 90.1% 90,510 90,599
80% 79.9% 80,454 80,314
70% 69.3% 70,397 69,657
60% 60.0% 60,340 60,297
50% 49.1% 50,284 49,420
40% 41.5% 40,227 41,690
30% 29.2% 30,170 29,373
20% 19.7% 20,113 19,856
10% 10.0% 10,057 10,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,655
Calibration 2     105,380
Calibration 3     105,497
ssj_ops@calibrated=105,439
100% 98.8% 105,439 104,156
90% 89.7% 94,895 94,624
80% 79.2% 84,351 83,530
70% 70.9% 73,807 74,758
60% 60.1% 63,263 63,409
50% 49.9% 52,719 52,565
40% 39.1% 42,176 41,228
30% 30.4% 31,632 32,066
20% 19.5% 21,088 20,606
10% 9.8% 10,544 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,871
Calibration 2     104,928
Calibration 3     105,208
ssj_ops@calibrated=105,068
100% 100.0% 105,068 105,040
90% 89.3% 94,561 93,824
80% 79.6% 84,055 83,679
70% 70.6% 73,548 74,147
60% 60.1% 63,041 63,162
50% 50.2% 52,534 52,789
40% 40.8% 42,027 42,818
30% 29.2% 31,520 30,703
20% 19.9% 21,014 20,897
10% 9.8% 10,507 10,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,702
Calibration 2     106,273
Calibration 3     106,300
ssj_ops@calibrated=106,287
100% 100.2% 106,287 106,517
90% 90.5% 95,658 96,209
80% 79.6% 85,030 84,646
70% 69.8% 74,401 74,138
60% 59.5% 63,772 63,290
50% 50.8% 53,143 53,956
40% 40.2% 42,515 42,734
30% 30.2% 31,886 32,132
20% 19.9% 21,257 21,138
10% 9.8% 10,629 10,401
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,482
Calibration 2     97,443
Calibration 3     97,577
ssj_ops@calibrated=97,510
100% 100.0% 97,510 97,476
90% 89.7% 87,759 87,510
80% 80.3% 78,008 78,293
70% 69.7% 68,257 67,917
60% 60.4% 58,506 58,878
50% 49.1% 48,755 47,867
40% 40.0% 39,004 38,980
30% 30.4% 29,253 29,691
20% 19.5% 19,502 18,990
10% 9.8% 9,751 9,589
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,169
Calibration 2     103,448
Calibration 3     103,468
ssj_ops@calibrated=103,458
100% 99.3% 103,458 102,765
90% 89.5% 93,112 92,566
80% 80.7% 82,766 83,495
70% 70.1% 72,421 72,508
60% 60.2% 62,075 62,254
50% 50.2% 51,729 51,929
40% 40.6% 41,383 41,998
30% 29.8% 31,037 30,867
20% 20.5% 20,692 21,169
10% 9.8% 10,346 10,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,303
Calibration 2     104,396
Calibration 3     104,508
ssj_ops@calibrated=104,452
100% 100.1% 104,452 104,573
90% 90.2% 94,007 94,207
80% 79.3% 83,562 82,816
70% 70.2% 73,116 73,342
60% 60.2% 62,671 62,857
50% 49.6% 52,226 51,806
40% 39.2% 41,781 40,946
30% 29.7% 31,336 31,027
20% 20.0% 20,890 20,871
10% 9.8% 10,445 10,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,194
Calibration 2     105,029
Calibration 3     105,187
ssj_ops@calibrated=105,108
100% 99.5% 105,108 104,550
90% 90.7% 94,598 95,331
80% 79.7% 84,087 83,766
70% 69.7% 73,576 73,226
60% 59.6% 63,065 62,669
50% 50.1% 52,554 52,640
40% 40.1% 42,043 42,184
30% 30.5% 31,533 32,082
20% 19.8% 21,022 20,832
10% 10.0% 10,511 10,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,388
Calibration 2     106,237
Calibration 3     106,385
ssj_ops@calibrated=106,311
100% 100.0% 106,311 106,306
90% 89.5% 95,680 95,134
80% 78.3% 85,049 83,196
70% 69.8% 74,418 74,201
60% 60.4% 63,787 64,177
50% 49.6% 53,155 52,692
40% 39.5% 42,524 42,035
30% 30.4% 31,893 32,356
20% 19.6% 21,262 20,871
10% 10.1% 10,631 10,768
Active Idle   0 0

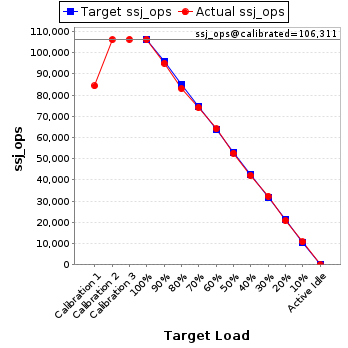

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,959
Calibration 2     105,618
Calibration 3     105,914
ssj_ops@calibrated=105,766
100% 100.2% 105,766 105,992
90% 89.3% 95,189 94,436
80% 79.4% 84,613 83,941
70% 69.4% 74,036 73,407
60% 60.8% 63,460 64,319
50% 50.6% 52,883 53,492
40% 39.7% 42,306 42,019
30% 29.6% 31,730 31,356
20% 20.2% 21,153 21,321
10% 10.0% 10,577 10,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,927
Calibration 2     104,446
Calibration 3     104,667
ssj_ops@calibrated=104,556
100% 99.6% 104,556 104,175
90% 90.2% 94,101 94,272
80% 81.5% 83,645 85,187
70% 70.3% 73,190 73,518
60% 59.3% 62,734 62,006
50% 49.7% 52,278 52,013
40% 40.3% 41,823 42,150
30% 29.5% 31,367 30,856
20% 20.4% 20,911 21,335
10% 9.9% 10,456 10,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,338
Calibration 2     100,056
Calibration 3     100,432
ssj_ops@calibrated=100,244
100% 100.3% 100,244 100,531
90% 89.1% 90,220 89,307
80% 79.8% 80,195 80,000
70% 69.9% 70,171 70,116
60% 60.2% 60,147 60,325
50% 50.3% 50,122 50,403
40% 39.9% 40,098 40,038
30% 29.5% 30,073 29,529
20% 20.0% 20,049 20,014
10% 10.1% 10,024 10,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,883
Calibration 2     106,935
Calibration 3     106,799
ssj_ops@calibrated=106,867
100% 99.6% 106,867 106,397
90% 89.4% 96,180 95,519
80% 79.6% 85,493 85,072
70% 69.9% 74,807 74,701
60% 60.0% 64,120 64,159
50% 50.6% 53,433 54,026
40% 39.7% 42,747 42,389
30% 29.9% 32,060 31,957
20% 19.7% 21,373 21,012
10% 9.8% 10,687 10,425
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,894
Calibration 2     105,602
Calibration 3     105,635
ssj_ops@calibrated=105,618
100% 100.2% 105,618 105,828
90% 91.1% 95,056 96,261
80% 80.3% 84,495 84,791
70% 70.2% 73,933 74,171
60% 59.8% 63,371 63,158
50% 49.5% 52,809 52,235
40% 40.1% 42,247 42,329
30% 30.1% 31,685 31,804
20% 20.3% 21,124 21,394
10% 10.1% 10,562 10,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,539
Calibration 2     105,688
Calibration 3     106,057
ssj_ops@calibrated=105,873
100% 99.3% 105,873 105,085
90% 90.0% 95,285 95,291
80% 80.0% 84,698 84,698
70% 70.3% 74,111 74,398
60% 60.3% 63,524 63,841
50% 49.8% 52,936 52,752
40% 40.3% 42,349 42,687
30% 29.7% 31,762 31,463
20% 20.0% 21,175 21,192
10% 9.7% 10,587 10,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,552
Calibration 2     103,980
Calibration 3     104,250
ssj_ops@calibrated=104,115
100% 100.0% 104,115 104,140
90% 90.2% 93,704 93,923
80% 80.5% 83,292 83,800
70% 70.5% 72,881 73,389
60% 60.1% 62,469 62,551
50% 50.1% 52,058 52,152
40% 40.4% 41,646 42,041
30% 30.3% 31,235 31,546
20% 19.9% 20,823 20,675
10% 9.9% 10,412 10,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,735
Calibration 2     102,575
Calibration 3     102,613
ssj_ops@calibrated=102,594
100% 99.7% 102,594 102,295
90% 90.3% 92,335 92,601
80% 80.1% 82,075 82,190
70% 69.8% 71,816 71,615
60% 59.8% 61,556 61,397
50% 50.5% 51,297 51,833
40% 40.4% 41,038 41,425
30% 30.2% 30,778 30,955
20% 20.2% 20,519 20,742
10% 10.1% 10,259 10,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,257
Calibration 2     106,873
Calibration 3     106,941
ssj_ops@calibrated=106,907
100% 100.2% 106,907 107,097
90% 89.6% 96,216 95,784
80% 79.7% 85,526 85,233
70% 70.6% 74,835 75,435
60% 60.4% 64,144 64,576
50% 49.8% 53,453 53,267
40% 39.4% 42,763 42,158
30% 30.0% 32,072 32,097
20% 19.9% 21,381 21,245
10% 10.0% 10,691 10,735
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,791
Calibration 2     104,828
Calibration 3     104,890
ssj_ops@calibrated=104,859
100% 99.3% 104,859 104,117
90% 89.1% 94,373 93,429
80% 80.3% 83,887 84,204
70% 69.4% 73,401 72,776
60% 59.3% 62,915 62,201
50% 49.2% 52,429 51,610
40% 40.2% 41,944 42,204
30% 29.8% 31,458 31,262
20% 20.0% 20,972 20,953
10% 10.2% 10,486 10,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,677
Calibration 2     106,590
Calibration 3     106,581
ssj_ops@calibrated=106,585
100% 99.8% 106,585 106,415
90% 90.2% 95,927 96,157
80% 80.5% 85,268 85,823
70% 69.0% 74,610 73,516
60% 59.2% 63,951 63,122
50% 49.9% 53,293 53,229
40% 40.1% 42,634 42,741
30% 29.3% 31,976 31,272
20% 20.1% 21,317 21,452
10% 10.0% 10,659 10,709
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,148
Calibration 2     105,353
Calibration 3     105,766
ssj_ops@calibrated=105,559
100% 99.4% 105,559 104,970
90% 90.4% 95,004 95,421
80% 80.5% 84,448 84,998
70% 69.8% 73,892 73,649
60% 60.6% 63,336 63,924
50% 50.3% 52,780 53,128
40% 40.7% 42,224 42,969
30% 29.7% 31,668 31,323
20% 19.8% 21,112 20,875
10% 10.2% 10,556 10,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,640
Calibration 2     105,539
Calibration 3     105,513
ssj_ops@calibrated=105,526
100% 99.6% 105,526 105,094
90% 90.9% 94,974 95,949
80% 79.6% 84,421 83,952
70% 70.7% 73,868 74,624
60% 59.9% 63,316 63,256
50% 49.2% 52,763 51,923
40% 40.7% 42,210 42,987
30% 29.9% 31,658 31,559
20% 19.6% 21,105 20,721
10% 10.2% 10,553 10,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,744
Calibration 2     105,912
Calibration 3     106,121
ssj_ops@calibrated=106,017
100% 100.1% 106,017 106,152
90% 89.7% 95,415 95,145
80% 80.6% 84,813 85,408
70% 70.7% 74,212 74,998
60% 60.0% 63,610 63,612
50% 50.3% 53,008 53,364
40% 40.0% 42,407 42,373
30% 29.7% 31,805 31,484
20% 20.4% 21,203 21,611
10% 10.0% 10,602 10,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,088
Calibration 2     106,233
Calibration 3     106,357
ssj_ops@calibrated=106,295
100% 99.7% 106,295 105,928
90% 89.8% 95,665 95,450
80% 80.3% 85,036 85,389
70% 71.1% 74,406 75,582
60% 59.3% 63,777 63,083
50% 49.8% 53,147 52,918
40% 40.6% 42,518 43,135
30% 30.2% 31,888 32,083
20% 19.5% 21,259 20,766
10% 10.1% 10,629 10,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,281
Calibration 2     106,187
Calibration 3     106,348
ssj_ops@calibrated=106,267
100% 99.2% 106,267 105,384
90% 88.8% 95,640 94,386
80% 79.9% 85,014 84,886
70% 69.4% 74,387 73,780
60% 60.5% 63,760 64,253
50% 49.9% 53,134 52,984
40% 40.1% 42,507 42,630
30% 29.5% 31,880 31,351
20% 19.8% 21,253 21,076
10% 9.9% 10,627 10,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-02.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,254
Calibration 2     101,441
Calibration 3     101,522
ssj_ops@calibrated=101,481
100% 98.7% 101,481 100,165
90% 90.6% 91,333 91,899
80% 80.3% 81,185 81,503
70% 69.0% 71,037 70,054
60% 60.2% 60,889 61,130
50% 50.4% 50,741 51,100
40% 41.2% 40,593 41,852
30% 30.1% 30,444 30,515
20% 19.6% 20,296 19,929
10% 9.8% 10,148 9,952
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
