Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,360,518
ssj_ops@100% per JVM = 104,506
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 11, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,746,886
Calibration 2     8,384,916
Calibration 3     8,393,258
ssj_ops@calibrated=8,389,087
100% 99.7% 8,389,087 8,360,518
90% 90.0% 7,550,179 7,547,461
80% 79.8% 6,711,270 6,697,802
70% 69.8% 5,872,361 5,858,947
60% 59.9% 5,033,452 5,027,312
50% 49.9% 4,194,544 4,190,116
40% 39.9% 3,355,635 3,350,790
30% 30.1% 2,516,726 2,521,332
20% 20.0% 1,677,817 1,675,468
10% 10.0% 838,909 839,149
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-04.001 104,981
sy480-04.002 105,566
sy480-04.003 102,108
sy480-04.004 104,672
sy480-04.005 102,110
sy480-04.006 105,395
sy480-04.007 102,063
sy480-04.008 106,271
sy480-04.009 105,160
sy480-04.010 105,586
sy480-04.011 106,599
sy480-04.012 105,345
sy480-04.013 108,104
sy480-04.014 107,649
sy480-04.015 104,838
sy480-04.016 105,390
sy480-04.017 104,715
sy480-04.018 103,711
sy480-04.019 102,549
sy480-04.020 101,079
sy480-04.021 100,648
sy480-04.022 106,275
sy480-04.023 106,304
sy480-04.024 105,776
sy480-04.025 107,539
sy480-04.026 106,673
sy480-04.027 101,268
sy480-04.028 106,307
sy480-04.029 106,158
sy480-04.030 105,331
sy480-04.031 106,415
sy480-04.032 106,754
sy480-04.033 107,027
sy480-04.034 107,398
sy480-04.035 105,710
sy480-04.036 104,916
sy480-04.037 102,540
sy480-04.038 105,928
sy480-04.039 105,520
sy480-04.040 100,406
sy480-04.041 105,950
sy480-04.042 99,251
sy480-04.043 103,756
sy480-04.044 105,437
sy480-04.045 106,234
sy480-04.046 98,545
sy480-04.047 107,992
sy480-04.048 101,468
sy480-04.049 98,364
sy480-04.050 101,518
sy480-04.051 105,586
sy480-04.052 98,998
sy480-04.053 106,632
sy480-04.054 99,284
sy480-04.055 105,664
sy480-04.056 101,143
sy480-04.057 103,985
sy480-04.058 105,249
sy480-04.059 101,470
sy480-04.060 104,129
sy480-04.061 104,700
sy480-04.062 103,516
sy480-04.063 105,520
sy480-04.064 105,496
sy480-04.065 106,890
sy480-04.066 99,952
sy480-04.067 106,016
sy480-04.068 106,526
sy480-04.069 106,905
sy480-04.070 106,577
sy480-04.071 106,053
sy480-04.072 107,375
sy480-04.073 105,020
sy480-04.074 105,576
sy480-04.075 104,754
sy480-04.076 106,776
sy480-04.077 101,049
sy480-04.078 106,131
sy480-04.079 104,918
sy480-04.080 101,329
ssj_ops@100% 8,360,518
ssj_ops@100% per JVM 104,506
Graph of per-instance results
JVM 'sy480-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,019
Calibration 2     105,026
Calibration 3     104,748
ssj_ops@calibrated=104,887
100% 100.1% 104,887 104,981
90% 89.6% 94,398 93,974
80% 80.7% 83,910 84,672
70% 69.5% 73,421 72,898
60% 59.2% 62,932 62,085
50% 49.6% 52,444 52,046
40% 40.4% 41,955 42,415
30% 30.8% 31,466 32,285
20% 19.8% 20,977 20,803
10% 10.0% 10,489 10,529
Active Idle   0 0
Graph of results
JVM 'sy480-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,190
Calibration 2     105,584
Calibration 3     105,606
ssj_ops@calibrated=105,595
100% 100.0% 105,595 105,566
90% 89.8% 95,035 94,779
80% 79.7% 84,476 84,190
70% 69.5% 73,916 73,369
60% 59.1% 63,357 62,448
50% 51.0% 52,797 53,811
40% 39.9% 42,238 42,167
30% 29.7% 31,678 31,398
20% 20.5% 21,119 21,660
10% 9.8% 10,559 10,335
Active Idle   0 0
Graph of results
JVM 'sy480-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,745
Calibration 2     102,025
Calibration 3     102,303
ssj_ops@calibrated=102,164
100% 99.9% 102,164 102,108
90% 90.4% 91,947 92,370
80% 79.5% 81,731 81,174
70% 70.3% 71,515 71,807
60% 59.9% 61,298 61,223
50% 49.4% 51,082 50,429
40% 40.0% 40,865 40,834
30% 30.3% 30,649 31,000
20% 19.6% 20,433 20,072
10% 10.1% 10,216 10,316
Active Idle   0 0
Graph of results
JVM 'sy480-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,955
Calibration 2     105,382
Calibration 3     105,575
ssj_ops@calibrated=105,478
100% 99.2% 105,478 104,672
90% 89.1% 94,930 93,933
80% 80.1% 84,383 84,482
70% 69.1% 73,835 72,906
60% 59.5% 63,287 62,735
50% 50.8% 52,739 53,606
40% 40.5% 42,191 42,718
30% 30.0% 31,643 31,604
20% 20.4% 21,096 21,542
10% 9.9% 10,548 10,492
Active Idle   0 0
Graph of results
JVM 'sy480-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,487
Calibration 2     101,981
Calibration 3     102,022
ssj_ops@calibrated=102,002
100% 100.1% 102,002 102,110
90% 91.2% 91,802 93,013
80% 79.8% 81,601 81,397
70% 70.4% 71,401 71,856
60% 60.1% 61,201 61,270
50% 51.0% 51,001 51,984
40% 40.6% 40,801 41,369
30% 29.7% 30,601 30,290
20% 20.0% 20,400 20,406
10% 10.1% 10,200 10,339
Active Idle   0 0
Graph of results
JVM 'sy480-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,188
Calibration 2     106,920
Calibration 3     106,987
ssj_ops@calibrated=106,954
100% 98.5% 106,954 105,395
90% 89.2% 96,258 95,447
80% 80.6% 85,563 86,204
70% 69.5% 74,868 74,302
60% 59.8% 64,172 63,937
50% 49.6% 53,477 53,093
40% 39.9% 42,781 42,704
30% 30.2% 32,086 32,313
20% 20.0% 21,391 21,402
10% 10.0% 10,695 10,693
Active Idle   0 0
Graph of results
JVM 'sy480-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,838
Calibration 2     102,333
Calibration 3     102,324
ssj_ops@calibrated=102,328
100% 99.7% 102,328 102,063
90% 90.2% 92,096 92,292
80% 80.1% 81,863 81,928
70% 70.3% 71,630 71,960
60% 59.5% 61,397 60,881
50% 50.7% 51,164 51,910
40% 39.6% 40,931 40,533
30% 29.4% 30,699 30,113
20% 19.9% 20,466 20,376
10% 9.9% 10,233 10,112
Active Idle   0 0
Graph of results
JVM 'sy480-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,390
Calibration 2     106,288
Calibration 3     106,398
ssj_ops@calibrated=106,343
100% 99.9% 106,343 106,271
90% 89.1% 95,709 94,743
80% 79.9% 85,074 84,958
70% 70.3% 74,440 74,720
60% 60.4% 63,806 64,198
50% 49.8% 53,171 52,972
40% 40.6% 42,537 43,154
30% 30.4% 31,903 32,312
20% 19.9% 21,269 21,180
10% 10.1% 10,634 10,704
Active Idle   0 0
Graph of results
JVM 'sy480-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,779
Calibration 2     105,104
Calibration 3     105,272
ssj_ops@calibrated=105,188
100% 100.0% 105,188 105,160
90% 89.0% 94,669 93,579
80% 79.8% 84,151 83,960
70% 70.4% 73,632 74,051
60% 60.4% 63,113 63,483
50% 50.4% 52,594 53,012
40% 40.2% 42,075 42,242
30% 30.6% 31,556 32,158
20% 20.1% 21,038 21,172
10% 9.9% 10,519 10,392
Active Idle   0 0
Graph of results
JVM 'sy480-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,632
Calibration 2     106,290
Calibration 3     106,216
ssj_ops@calibrated=106,253
100% 99.4% 106,253 105,586
90% 90.2% 95,628 95,815
80% 79.0% 85,002 83,912
70% 69.0% 74,377 73,349
60% 59.7% 63,752 63,408
50% 49.0% 53,127 52,108
40% 39.4% 42,501 41,852
30% 29.6% 31,876 31,443
20% 19.3% 21,251 20,512
10% 9.8% 10,625 10,433
Active Idle   0 0
Graph of results
JVM 'sy480-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,328
Calibration 2     106,769
Calibration 3     106,578
ssj_ops@calibrated=106,673
100% 99.9% 106,673 106,599
90% 89.7% 96,006 95,639
80% 80.1% 85,339 85,404
70% 69.5% 74,671 74,098
60% 60.5% 64,004 64,524
50% 50.1% 53,337 53,431
40% 39.7% 42,669 42,396
30% 30.1% 32,002 32,110
20% 19.9% 21,335 21,255
10% 10.2% 10,667 10,835
Active Idle   0 0
Graph of results
JVM 'sy480-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,075
Calibration 2     105,520
Calibration 3     105,448
ssj_ops@calibrated=105,484
100% 99.9% 105,484 105,345
90% 90.6% 94,936 95,518
80% 79.1% 84,387 83,462
70% 69.9% 73,839 73,692
60% 59.4% 63,290 62,660
50% 49.8% 52,742 52,550
40% 39.7% 42,194 41,903
30% 30.2% 31,645 31,821
20% 20.0% 21,097 21,089
10% 10.0% 10,548 10,541
Active Idle   0 0
Graph of results
JVM 'sy480-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,567
Calibration 2     108,049
Calibration 3     108,293
ssj_ops@calibrated=108,171
100% 99.9% 108,171 108,104
90% 89.7% 97,354 97,028
80% 79.0% 86,537 85,423
70% 70.8% 75,720 76,557
60% 60.2% 64,903 65,117
50% 49.9% 54,086 53,952
40% 39.7% 43,268 42,942
30% 29.8% 32,451 32,257
20% 20.0% 21,634 21,616
10% 9.8% 10,817 10,567
Active Idle   0 0
Graph of results
JVM 'sy480-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,702
Calibration 2     107,740
Calibration 3     107,889
ssj_ops@calibrated=107,814
100% 99.8% 107,814 107,649
90% 89.2% 97,033 96,183
80% 79.3% 86,251 85,513
70% 69.6% 75,470 75,003
60% 60.1% 64,688 64,751
50% 49.5% 53,907 53,356
40% 39.8% 43,126 42,944
30% 30.2% 32,344 32,520
20% 20.1% 21,563 21,714
10% 9.9% 10,781 10,667
Active Idle   0 0
Graph of results
JVM 'sy480-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,446
Calibration 2     105,390
Calibration 3     105,385
ssj_ops@calibrated=105,387
100% 99.5% 105,387 104,838
90% 89.6% 94,848 94,385
80% 80.1% 84,310 84,450
70% 70.0% 73,771 73,814
60% 59.3% 63,232 62,464
50% 50.1% 52,694 52,821
40% 39.2% 42,155 41,292
30% 30.5% 31,616 32,096
20% 19.7% 21,077 20,750
10% 10.0% 10,539 10,559
Active Idle   0 0
Graph of results
JVM 'sy480-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,332
Calibration 2     105,127
Calibration 3     105,507
ssj_ops@calibrated=105,317
100% 100.1% 105,317 105,390
90% 89.1% 94,785 93,882
80% 80.3% 84,253 84,543
70% 70.9% 73,722 74,641
60% 59.9% 63,190 63,067
50% 49.4% 52,658 52,000
40% 39.8% 42,127 41,896
30% 30.3% 31,595 31,878
20% 20.2% 21,063 21,301
10% 10.1% 10,532 10,600
Active Idle   0 0
Graph of results
JVM 'sy480-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,601
Calibration 2     105,407
Calibration 3     105,134
ssj_ops@calibrated=105,271
100% 99.5% 105,271 104,715
90% 90.1% 94,744 94,857
80% 79.7% 84,217 83,880
70% 70.5% 73,690 74,198
60% 60.3% 63,162 63,430
50% 49.7% 52,635 52,285
40% 40.0% 42,108 42,150
30% 29.6% 31,581 31,202
20% 20.0% 21,054 21,006
10% 9.8% 10,527 10,348
Active Idle   0 0
Graph of results
JVM 'sy480-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,974
Calibration 2     104,348
Calibration 3     104,403
ssj_ops@calibrated=104,375
100% 99.4% 104,375 103,711
90% 90.6% 93,938 94,557
80% 79.7% 83,500 83,156
70% 69.7% 73,063 72,784
60% 60.6% 62,625 63,278
50% 50.3% 52,188 52,498
40% 40.8% 41,750 42,547
30% 30.0% 31,313 31,326
20% 20.2% 20,875 21,092
10% 9.8% 10,438 10,179
Active Idle   0 0
Graph of results
JVM 'sy480-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,283
Calibration 2     102,654
Calibration 3     102,528
ssj_ops@calibrated=102,591
100% 100.0% 102,591 102,549
90% 90.1% 92,332 92,481
80% 80.1% 82,073 82,126
70% 70.3% 71,814 72,071
60% 59.6% 61,555 61,124
50% 49.8% 51,295 51,047
40% 39.9% 41,036 40,963
30% 29.9% 30,777 30,665
20% 19.9% 20,518 20,426
10% 10.2% 10,259 10,423
Active Idle   0 0
Graph of results
JVM 'sy480-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,625
Calibration 2     100,905
Calibration 3     101,156
ssj_ops@calibrated=101,030
100% 100.0% 101,030 101,079
90% 89.3% 90,927 90,188
80% 80.0% 80,824 80,785
70% 69.8% 70,721 70,490
60% 59.6% 60,618 60,190
50% 49.1% 50,515 49,591
40% 39.8% 40,412 40,187
30% 29.6% 30,309 29,911
20% 20.0% 20,206 20,187
10% 10.3% 10,103 10,359
Active Idle   0 0
Graph of results
JVM 'sy480-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,208
Calibration 2     101,544
Calibration 3     101,470
ssj_ops@calibrated=101,507
100% 99.2% 101,507 100,648
90% 89.8% 91,356 91,200
80% 79.4% 81,206 80,587
70% 68.5% 71,055 69,538
60% 60.3% 60,904 61,203
50% 49.2% 50,753 49,939
40% 39.5% 40,603 40,139
30% 30.3% 30,452 30,748
20% 20.3% 20,301 20,558
10% 10.0% 10,151 10,158
Active Idle   0 0
Graph of results
JVM 'sy480-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,049
Calibration 2     106,403
Calibration 3     106,473
ssj_ops@calibrated=106,438
100% 99.8% 106,438 106,275
90% 90.2% 95,794 95,964
80% 79.7% 85,150 84,861
70% 69.7% 74,507 74,190
60% 60.4% 63,863 64,287
50% 49.1% 53,219 52,288
40% 40.4% 42,575 43,005
30% 30.2% 31,931 32,161
20% 20.3% 21,288 21,646
10% 10.1% 10,644 10,796
Active Idle   0 0
Graph of results
JVM 'sy480-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,294
Calibration 2     106,578
Calibration 3     106,740
ssj_ops@calibrated=106,659
100% 99.7% 106,659 106,304
90% 90.8% 95,993 96,819
80% 80.7% 85,327 86,100
70% 69.8% 74,661 74,411
60% 60.8% 63,995 64,851
50% 50.1% 53,329 53,487
40% 39.3% 42,664 41,942
30% 29.8% 31,998 31,775
20% 19.7% 21,332 21,057
10% 10.2% 10,666 10,857
Active Idle   0 0
Graph of results
JVM 'sy480-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,249
Calibration 2     105,369
Calibration 3     105,573
ssj_ops@calibrated=105,471
100% 100.3% 105,471 105,776
90% 89.8% 94,924 94,663
80% 79.9% 84,377 84,221
70% 70.2% 73,830 74,024
60% 59.6% 63,283 62,851
50% 49.8% 52,736 52,473
40% 39.4% 42,188 41,606
30% 29.6% 31,641 31,200
20% 19.7% 21,094 20,808
10% 9.8% 10,547 10,350
Active Idle   0 0
Graph of results
JVM 'sy480-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,443
Calibration 2     107,367
Calibration 3     107,243
ssj_ops@calibrated=107,305
100% 100.2% 107,305 107,539
90% 90.5% 96,574 97,109
80% 80.1% 85,844 85,952
70% 69.7% 75,113 74,813
60% 60.5% 64,383 64,960
50% 48.8% 53,652 52,359
40% 39.5% 42,922 42,430
30% 29.7% 32,191 31,879
20% 20.2% 21,461 21,692
10% 10.4% 10,730 11,137
Active Idle   0 0
Graph of results
JVM 'sy480-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,489
Calibration 2     106,750
Calibration 3     106,666
ssj_ops@calibrated=106,708
100% 100.0% 106,708 106,673
90% 89.1% 96,037 95,112
80% 79.7% 85,366 85,033
70% 69.5% 74,695 74,195
60% 59.9% 64,025 63,870
50% 49.9% 53,354 53,218
40% 39.4% 42,683 42,079
30% 30.3% 32,012 32,383
20% 19.7% 21,342 21,075
10% 10.1% 10,671 10,733
Active Idle   0 0
Graph of results
JVM 'sy480-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,377
Calibration 2     101,570
Calibration 3     101,567
ssj_ops@calibrated=101,568
100% 99.7% 101,568 101,268
90% 88.6% 91,411 90,029
80% 81.1% 81,255 82,420
70% 69.8% 71,098 70,909
60% 59.9% 60,941 60,813
50% 49.9% 50,784 50,728
40% 40.2% 40,627 40,873
30% 29.8% 30,470 30,220
20% 20.0% 20,314 20,361
10% 10.1% 10,157 10,225
Active Idle   0 0
Graph of results
JVM 'sy480-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,448
Calibration 2     106,665
Calibration 3     106,618
ssj_ops@calibrated=106,641
100% 99.7% 106,641 106,307
90% 89.6% 95,977 95,543
80% 79.3% 85,313 84,529
70% 70.1% 74,649 74,805
60% 59.4% 63,985 63,359
50% 50.4% 53,321 53,794
40% 40.3% 42,657 43,013
30% 29.7% 31,992 31,625
20% 20.4% 21,328 21,723
10% 10.2% 10,664 10,875
Active Idle   0 0
Graph of results
JVM 'sy480-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,311
Calibration 2     106,676
Calibration 3     106,683
ssj_ops@calibrated=106,679
100% 99.5% 106,679 106,158
90% 90.6% 96,011 96,701
80% 80.9% 85,343 86,292
70% 68.9% 74,676 73,449
60% 59.9% 64,008 63,886
50% 50.3% 53,340 53,704
40% 40.2% 42,672 42,863
30% 30.0% 32,004 32,015
20% 20.2% 21,336 21,522
10% 9.9% 10,668 10,587
Active Idle   0 0
Graph of results
JVM 'sy480-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,261
Calibration 2     105,707
Calibration 3     105,850
ssj_ops@calibrated=105,778
100% 99.6% 105,778 105,331
90% 90.2% 95,201 95,438
80% 80.4% 84,623 85,010
70% 69.6% 74,045 73,657
60% 59.0% 63,467 62,422
50% 50.1% 52,889 52,995
40% 40.0% 42,311 42,299
30% 30.0% 31,734 31,720
20% 19.7% 21,156 20,833
10% 9.9% 10,578 10,479
Active Idle   0 0
Graph of results
JVM 'sy480-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,186
Calibration 2     106,255
Calibration 3     106,580
ssj_ops@calibrated=106,417
100% 100.0% 106,417 106,415
90% 89.5% 95,776 95,292
80% 80.0% 85,134 85,173
70% 70.1% 74,492 74,566
60% 59.4% 63,850 63,169
50% 50.1% 53,209 53,294
40% 39.7% 42,567 42,242
30% 30.4% 31,925 32,372
20% 19.8% 21,283 21,117
10% 10.0% 10,642 10,621
Active Idle   0 0
Graph of results
JVM 'sy480-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,957
Calibration 2     107,553
Calibration 3     107,507
ssj_ops@calibrated=107,530
100% 99.3% 107,530 106,754
90% 89.6% 96,777 96,386
80% 80.8% 86,024 86,933
70% 70.8% 75,271 76,103
60% 60.0% 64,518 64,469
50% 50.5% 53,765 54,281
40% 40.0% 43,012 43,019
30% 29.8% 32,259 32,059
20% 20.1% 21,506 21,602
10% 10.2% 10,753 10,958
Active Idle   0 0
Graph of results
JVM 'sy480-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,773
Calibration 2     107,705
Calibration 3     107,838
ssj_ops@calibrated=107,771
100% 99.3% 107,771 107,027
90% 89.5% 96,994 96,457
80% 79.8% 86,217 86,053
70% 69.7% 75,440 75,086
60% 60.1% 64,663 64,742
50% 49.8% 53,886 53,618
40% 39.9% 43,109 42,960
30% 30.0% 32,331 32,304
20% 20.1% 21,554 21,646
10% 9.8% 10,777 10,550
Active Idle   0 0
Graph of results
JVM 'sy480-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,402
Calibration 2     108,512
Calibration 3     108,767
ssj_ops@calibrated=108,639
100% 98.9% 108,639 107,398
90% 90.8% 97,775 98,602
80% 79.5% 86,912 86,316
70% 69.9% 76,048 75,964
60% 60.1% 65,184 65,263
50% 49.7% 54,320 54,034
40% 39.9% 43,456 43,373
30% 30.1% 32,592 32,676
20% 19.9% 21,728 21,666
10% 10.0% 10,864 10,829
Active Idle   0 0
Graph of results
JVM 'sy480-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,368
Calibration 2     105,895
Calibration 3     106,020
ssj_ops@calibrated=105,957
100% 99.8% 105,957 105,710
90% 89.2% 95,361 94,513
80% 79.5% 84,766 84,231
70% 69.3% 74,170 73,379
60% 59.1% 63,574 62,573
50% 49.7% 52,979 52,690
40% 40.0% 42,383 42,389
30% 30.3% 31,787 32,132
20% 20.1% 21,191 21,261
10% 10.1% 10,596 10,701
Active Idle   0 0
Graph of results

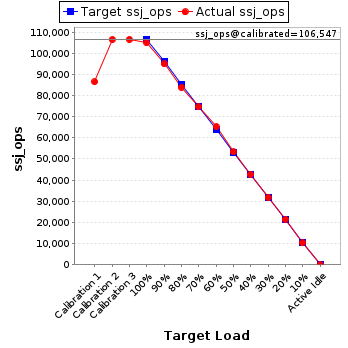

JVM 'sy480-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,490
Calibration 2     106,497
Calibration 3     106,597
ssj_ops@calibrated=106,547
100% 98.5% 106,547 104,916
90% 89.1% 95,892 94,947
80% 78.8% 85,238 83,963
70% 70.0% 74,583 74,618
60% 61.3% 63,928 65,354
50% 50.1% 53,273 53,344
40% 40.2% 42,619 42,843
30% 29.9% 31,964 31,897
20% 20.2% 21,309 21,547
10% 9.6% 10,655 10,266
Active Idle   0 0
Graph of results
JVM 'sy480-04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,147
Calibration 2     103,080
Calibration 3     103,451
ssj_ops@calibrated=103,265
100% 99.3% 103,265 102,540
90% 89.6% 92,939 92,490
80% 79.8% 82,612 82,424
70% 69.8% 72,286 72,084
60% 60.0% 61,959 61,987
50% 50.3% 51,633 51,907
40% 40.6% 41,306 41,928
30% 29.9% 30,980 30,867
20% 20.1% 20,653 20,791
10% 10.4% 10,327 10,696
Active Idle   0 0
Graph of results
JVM 'sy480-04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,013
Calibration 2     105,730
Calibration 3     105,815
ssj_ops@calibrated=105,773
100% 100.1% 105,773 105,928
90% 89.6% 95,195 94,739
80% 79.3% 84,618 83,929
70% 69.2% 74,041 73,229
60% 60.1% 63,464 63,558
50% 50.3% 52,886 53,217
40% 40.0% 42,309 42,304
30% 30.7% 31,732 32,426
20% 19.6% 21,155 20,689
10% 10.4% 10,577 10,992
Active Idle   0 0
Graph of results
JVM 'sy480-04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,089
Calibration 2     105,521
Calibration 3     105,602
ssj_ops@calibrated=105,561
100% 100.0% 105,561 105,520
90% 89.9% 95,005 94,879
80% 79.5% 84,449 83,942
70% 69.5% 73,893 73,386
60% 59.5% 63,337 62,858
50% 49.9% 52,781 52,684
40% 39.8% 42,225 42,042
30% 29.7% 31,668 31,387
20% 20.0% 21,112 21,155
10% 10.1% 10,556 10,613
Active Idle   0 0
Graph of results
JVM 'sy480-04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,753
Calibration 2     100,301
Calibration 3     100,451
ssj_ops@calibrated=100,376
100% 100.0% 100,376 100,406
90% 90.5% 90,338 90,886
80% 80.0% 80,301 80,292
70% 70.4% 70,263 70,673
60% 60.1% 60,226 60,301
50% 49.8% 50,188 49,977
40% 40.4% 40,150 40,525
30% 30.4% 30,113 30,504
20% 20.5% 20,075 20,541
10% 9.5% 10,038 9,579
Active Idle   0 0
Graph of results
JVM 'sy480-04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,058
Calibration 2     105,877
Calibration 3     105,852
ssj_ops@calibrated=105,865
100% 100.1% 105,865 105,950
90% 89.3% 95,278 94,568
80% 79.5% 84,692 84,193
70% 70.4% 74,105 74,491
60% 60.6% 63,519 64,148
50% 49.0% 52,932 51,903
40% 39.4% 42,346 41,676
30% 31.0% 31,759 32,846
20% 20.0% 21,173 21,152
10% 10.2% 10,586 10,792
Active Idle   0 0
Graph of results
JVM 'sy480-04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,037
Calibration 2     99,781
Calibration 3     99,970
ssj_ops@calibrated=99,876
100% 99.4% 99,876 99,251
90% 90.0% 89,888 89,854
80% 80.4% 79,901 80,303
70% 68.9% 69,913 68,849
60% 60.0% 59,925 59,904
50% 51.0% 49,938 50,901
40% 40.3% 39,950 40,201
30% 30.2% 29,963 30,129
20% 20.0% 19,975 20,004
10% 9.8% 9,988 9,829
Active Idle   0 0
Graph of results
JVM 'sy480-04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,001
Calibration 2     103,873
Calibration 3     103,958
ssj_ops@calibrated=103,915
100% 99.8% 103,915 103,756
90% 91.9% 93,524 95,484
80% 79.8% 83,132 82,947
70% 70.1% 72,741 72,853
60% 60.2% 62,349 62,521
50% 50.3% 51,958 52,301
40% 40.2% 41,566 41,762
30% 30.0% 31,175 31,158
20% 20.2% 20,783 20,952
10% 9.9% 10,392 10,269
Active Idle   0 0
Graph of results
JVM 'sy480-04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,287
Calibration 2     106,468
Calibration 3     106,465
ssj_ops@calibrated=106,467
100% 99.0% 106,467 105,437
90% 90.6% 95,820 96,490
80% 80.2% 85,173 85,402
70% 69.9% 74,527 74,463
60% 59.3% 63,880 63,089
50% 50.4% 53,233 53,634
40% 40.8% 42,587 43,418
30% 29.9% 31,940 31,840
20% 19.7% 21,293 20,981
10% 10.0% 10,647 10,695
Active Idle   0 0
Graph of results
JVM 'sy480-04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,122
Calibration 2     106,986
Calibration 3     107,107
ssj_ops@calibrated=107,046
100% 99.2% 107,046 106,234
90% 90.3% 96,342 96,656
80% 80.7% 85,637 86,394
70% 68.7% 74,933 73,590
60% 59.8% 64,228 64,034
50% 50.4% 53,523 53,953
40% 39.7% 42,819 42,538
30% 29.5% 32,114 31,531
20% 19.9% 21,409 21,256
10% 10.0% 10,705 10,724
Active Idle   0 0
Graph of results
JVM 'sy480-04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,084
Calibration 2     99,575
Calibration 3     99,665
ssj_ops@calibrated=99,620
100% 98.9% 99,620 98,545
90% 89.4% 89,658 89,017
80% 79.8% 79,696 79,515
70% 69.1% 69,734 68,802
60% 60.3% 59,772 60,065
50% 50.6% 49,810 50,389
40% 39.5% 39,848 39,371
30% 29.4% 29,886 29,337
20% 19.9% 19,924 19,867
10% 10.1% 9,962 10,079
Active Idle   0 0
Graph of results
JVM 'sy480-04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,698
Calibration 2     108,069
Calibration 3     108,472
ssj_ops@calibrated=108,270
100% 99.7% 108,270 107,992
90% 90.2% 97,443 97,639
80% 80.3% 86,616 86,914
70% 70.3% 75,789 76,064
60% 59.5% 64,962 64,387
50% 49.6% 54,135 53,680
40% 40.1% 43,308 43,422
30% 30.0% 32,481 32,527
20% 19.8% 21,654 21,464
10% 9.8% 10,827 10,625
Active Idle   0 0
Graph of results
JVM 'sy480-04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,422
Calibration 2     102,220
Calibration 3     102,340
ssj_ops@calibrated=102,280
100% 99.2% 102,280 101,468
90% 89.9% 92,052 91,973
80% 79.2% 81,824 81,054
70% 69.5% 71,596 71,122
60% 60.2% 61,368 61,581
50% 49.4% 51,140 50,549
40% 39.8% 40,912 40,708
30% 29.9% 30,684 30,624
20% 19.8% 20,456 20,250
10% 10.2% 10,228 10,471
Active Idle   0 0
Graph of results
JVM 'sy480-04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,383
Calibration 2     99,045
Calibration 3     99,231
ssj_ops@calibrated=99,138
100% 99.2% 99,138 98,364
90% 89.9% 89,224 89,093
80% 79.3% 79,310 78,661
70% 69.8% 69,397 69,206
60% 60.2% 59,483 59,684
50% 50.0% 49,569 49,601
40% 40.1% 39,655 39,730
30% 29.8% 29,741 29,517
20% 19.8% 19,828 19,658
10% 9.5% 9,914 9,451
Active Idle   0 0
Graph of results
JVM 'sy480-04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,624
Calibration 2     101,590
Calibration 3     101,637
ssj_ops@calibrated=101,614
100% 99.9% 101,614 101,518
90% 89.7% 91,452 91,113
80% 79.7% 81,291 81,009
70% 70.0% 71,130 71,148
60% 59.6% 60,968 60,586
50% 50.0% 50,807 50,810
40% 40.1% 40,645 40,720
30% 29.7% 30,484 30,145
20% 20.3% 20,323 20,620
10% 10.0% 10,161 10,115
Active Idle   0 0
Graph of results
JVM 'sy480-04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,007
Calibration 2     105,542
Calibration 3     105,576
ssj_ops@calibrated=105,559
100% 100.0% 105,559 105,586
90% 90.0% 95,003 95,055
80% 80.2% 84,447 84,653
70% 68.9% 73,891 72,753
60% 59.8% 63,336 63,160
50% 49.2% 52,780 51,886
40% 39.5% 42,224 41,667
30% 30.1% 31,668 31,774
20% 20.2% 21,112 21,283
10% 10.2% 10,556 10,755
Active Idle   0 0
Graph of results
JVM 'sy480-04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,008
Calibration 2     99,465
Calibration 3     99,660
ssj_ops@calibrated=99,563
100% 99.4% 99,563 98,998
90% 90.8% 89,606 90,395
80% 79.9% 79,650 79,505
70% 69.2% 69,694 68,854
60% 60.0% 59,738 59,740
50% 50.0% 49,781 49,754
40% 40.0% 39,825 39,850
30% 30.3% 29,869 30,149
20% 19.7% 19,913 19,567
10% 9.9% 9,956 9,810
Active Idle   0 0
Graph of results
JVM 'sy480-04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,719
Calibration 2     106,961
Calibration 3     107,069
ssj_ops@calibrated=107,015
100% 99.6% 107,015 106,632
90% 90.2% 96,313 96,542
80% 79.3% 85,612 84,869
70% 70.3% 74,910 75,251
60% 60.3% 64,209 64,522
50% 49.2% 53,507 52,660
40% 40.2% 42,806 42,982
30% 30.1% 32,104 32,159
20% 19.9% 21,403 21,305
10% 10.2% 10,701 10,936
Active Idle   0 0
Graph of results
JVM 'sy480-04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,643
Calibration 2     99,033
Calibration 3     99,321
ssj_ops@calibrated=99,177
100% 100.1% 99,177 99,284
90% 89.5% 89,259 88,752
80% 79.8% 79,342 79,097
70% 69.7% 69,424 69,144
60% 59.1% 59,506 58,612
50% 50.1% 49,588 49,726
40% 39.9% 39,671 39,551
30% 30.6% 29,753 30,369
20% 19.4% 19,835 19,233
10% 10.0% 9,918 9,892
Active Idle   0 0
Graph of results
JVM 'sy480-04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,616
Calibration 2     105,920
Calibration 3     106,113
ssj_ops@calibrated=106,016
100% 99.7% 106,016 105,664
90% 89.7% 95,415 95,103
80% 79.6% 84,813 84,340
70% 69.5% 74,211 73,630
60% 59.7% 63,610 63,308
50% 50.1% 53,008 53,135
40% 39.5% 42,407 41,889
30% 29.8% 31,805 31,624
20% 20.1% 21,203 21,350
10% 9.9% 10,602 10,533
Active Idle   0 0
Graph of results

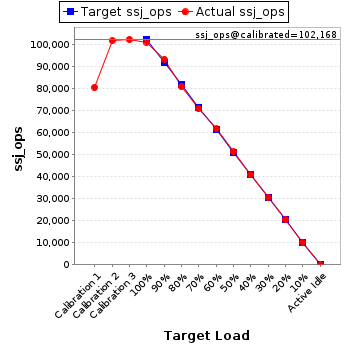

JVM 'sy480-04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,615
Calibration 2     101,899
Calibration 3     102,437
ssj_ops@calibrated=102,168
100% 99.0% 102,168 101,143
90% 91.4% 91,951 93,412
80% 79.4% 81,734 81,073
70% 69.6% 71,518 71,062
60% 60.5% 61,301 61,841
50% 50.2% 51,084 51,320
40% 39.9% 40,867 40,788
30% 30.1% 30,650 30,730
20% 20.1% 20,434 20,540
10% 10.0% 10,217 10,254
Active Idle   0 0
Graph of results
JVM 'sy480-04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,242
Calibration 2     104,318
Calibration 3     104,499
ssj_ops@calibrated=104,409
100% 99.6% 104,409 103,985
90% 90.5% 93,968 94,474
80% 79.3% 83,527 82,805
70% 70.4% 73,086 73,535
60% 59.7% 62,645 62,328
50% 49.8% 52,204 51,951
40% 40.3% 41,763 42,106
30% 29.9% 31,323 31,197
20% 19.5% 20,882 20,335
10% 10.2% 10,441 10,667
Active Idle   0 0
Graph of results
JVM 'sy480-04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,410
Calibration 2     105,129
Calibration 3     105,120
ssj_ops@calibrated=105,125
100% 100.1% 105,125 105,249
90% 90.1% 94,612 94,746
80% 80.3% 84,100 84,377
70% 70.5% 73,587 74,156
60% 59.7% 63,075 62,767
50% 49.5% 52,562 52,040
40% 39.9% 42,050 41,905
30% 30.0% 31,537 31,590
20% 20.0% 21,025 21,029
10% 10.0% 10,512 10,467
Active Idle   0 0
Graph of results
JVM 'sy480-04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,387
Calibration 2     101,297
Calibration 3     101,607
ssj_ops@calibrated=101,452
100% 100.0% 101,452 101,470
90% 90.0% 91,307 91,339
80% 79.6% 81,162 80,725
70% 69.5% 71,016 70,529
60% 59.4% 60,871 60,268
50% 49.7% 50,726 50,406
40% 40.3% 40,581 40,917
30% 30.7% 30,436 31,095
20% 19.8% 20,290 20,070
10% 9.6% 10,145 9,769
Active Idle   0 0
Graph of results
JVM 'sy480-04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,477
Calibration 2     105,067
Calibration 3     105,072
ssj_ops@calibrated=105,069
100% 99.1% 105,069 104,129
90% 90.1% 94,562 94,618
80% 79.2% 84,056 83,243
70% 69.6% 73,549 73,162
60% 59.7% 63,042 62,724
50% 49.8% 52,535 52,348
40% 40.2% 42,028 42,232
30% 29.8% 31,521 31,348
20% 19.5% 21,014 20,446
10% 10.2% 10,507 10,666
Active Idle   0 0
Graph of results
JVM 'sy480-04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,391
Calibration 2     104,808
Calibration 3     104,950
ssj_ops@calibrated=104,879
100% 99.8% 104,879 104,700
90% 89.4% 94,391 93,719
80% 79.7% 83,903 83,545
70% 70.1% 73,415 73,521
60% 60.3% 62,927 63,264
50% 49.8% 52,440 52,218
40% 39.4% 41,952 41,303
30% 30.1% 31,464 31,582
20% 20.0% 20,976 21,009
10% 9.9% 10,488 10,421
Active Idle   0 0
Graph of results
JVM 'sy480-04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,997
Calibration 2     103,556
Calibration 3     103,764
ssj_ops@calibrated=103,660
100% 99.9% 103,660 103,516
90% 89.8% 93,294 93,069
80% 80.2% 82,928 83,119
70% 70.5% 72,562 73,032
60% 59.6% 62,196 61,806
50% 49.8% 51,830 51,583
40% 39.9% 41,464 41,387
30% 30.0% 31,098 31,074
20% 20.2% 20,732 20,972
10% 9.7% 10,366 10,080
Active Idle   0 0
Graph of results
JVM 'sy480-04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,103
Calibration 2     105,552
Calibration 3     105,615
ssj_ops@calibrated=105,583
100% 99.9% 105,583 105,520
90% 89.7% 95,025 94,710
80% 79.3% 84,467 83,757
70% 70.0% 73,908 73,860
60% 60.3% 63,350 63,675
50% 50.3% 52,792 53,075
40% 39.8% 42,233 41,976
30% 30.4% 31,675 32,122
20% 19.9% 21,117 20,971
10% 10.0% 10,558 10,583
Active Idle   0 0
Graph of results
JVM 'sy480-04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,674
Calibration 2     105,319
Calibration 3     105,489
ssj_ops@calibrated=105,404
100% 100.1% 105,404 105,496
90% 90.2% 94,864 95,037
80% 80.6% 84,323 84,941
70% 70.4% 73,783 74,164
60% 60.6% 63,242 63,912
50% 50.4% 52,702 53,084
40% 39.9% 42,162 42,029
30% 29.7% 31,621 31,315
20% 20.5% 21,081 21,657
10% 9.9% 10,540 10,442
Active Idle   0 0
Graph of results
JVM 'sy480-04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,990
Calibration 2     107,499
Calibration 3     107,628
ssj_ops@calibrated=107,563
100% 99.4% 107,563 106,890
90% 90.9% 96,807 97,824
80% 81.0% 86,051 87,169
70% 70.3% 75,294 75,599
60% 60.5% 64,538 65,120
50% 50.2% 53,782 54,040
40% 40.8% 43,025 43,863
30% 30.6% 32,269 32,929
20% 19.9% 21,513 21,451
10% 10.0% 10,756 10,717
Active Idle   0 0
Graph of results
JVM 'sy480-04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,784
Calibration 2     99,685
Calibration 3     99,836
ssj_ops@calibrated=99,760
100% 100.2% 99,760 99,952
90% 90.5% 89,784 90,272
80% 79.3% 79,808 79,127
70% 69.7% 69,832 69,510
60% 60.4% 59,856 60,236
50% 50.3% 49,880 50,210
40% 39.9% 39,904 39,794
30% 30.0% 29,928 29,887
20% 19.8% 19,952 19,783
10% 9.7% 9,976 9,640
Active Idle   0 0
Graph of results
JVM 'sy480-04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,813
Calibration 2     105,737
Calibration 3     105,951
ssj_ops@calibrated=105,844
100% 100.2% 105,844 106,016
90% 89.7% 95,260 94,906
80% 79.7% 84,675 84,322
70% 69.8% 74,091 73,850
60% 59.6% 63,506 63,039
50% 49.8% 52,922 52,746
40% 40.3% 42,338 42,612
30% 29.7% 31,753 31,401
20% 19.9% 21,169 21,072
10% 10.6% 10,584 11,225
Active Idle   0 0
Graph of results
JVM 'sy480-04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,613
Calibration 2     107,079
Calibration 3     107,144
ssj_ops@calibrated=107,111
100% 99.5% 107,111 106,526
90% 88.9% 96,400 95,207
80% 79.4% 85,689 85,091
70% 70.4% 74,978 75,455
60% 59.6% 64,267 63,816
50% 50.2% 53,556 53,808
40% 39.7% 42,845 42,496
30% 30.5% 32,133 32,667
20% 20.1% 21,422 21,579
10% 9.9% 10,711 10,627
Active Idle   0 0
Graph of results
JVM 'sy480-04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,234
Calibration 2     106,788
Calibration 3     106,835
ssj_ops@calibrated=106,811
100% 100.1% 106,811 106,905
90% 90.6% 96,130 96,809
80% 79.7% 85,449 85,159
70% 70.0% 74,768 74,721
60% 60.5% 64,087 64,633
50% 49.7% 53,406 53,089
40% 39.5% 42,725 42,201
30% 29.8% 32,043 31,862
20% 20.4% 21,362 21,758
10% 9.7% 10,681 10,407
Active Idle   0 0
Graph of results
JVM 'sy480-04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,048
Calibration 2     106,972
Calibration 3     107,103
ssj_ops@calibrated=107,037
100% 99.6% 107,037 106,577
90% 90.2% 96,334 96,534
80% 79.7% 85,630 85,264
70% 70.3% 74,926 75,284
60% 59.9% 64,222 64,122
50% 50.5% 53,519 54,096
40% 40.0% 42,815 42,762
30% 31.1% 32,111 33,338
20% 19.8% 21,407 21,185
10% 9.9% 10,704 10,600
Active Idle   0 0
Graph of results
JVM 'sy480-04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,243
Calibration 2     106,564
Calibration 3     106,432
ssj_ops@calibrated=106,498
100% 99.6% 106,498 106,053
90% 90.9% 95,848 96,763
80% 79.8% 85,198 85,024
70% 69.3% 74,549 73,760
60% 59.9% 63,899 63,749
50% 49.6% 53,249 52,859
40% 39.3% 42,599 41,866
30% 30.0% 31,949 31,960
20% 20.1% 21,300 21,459
10% 9.8% 10,650 10,387
Active Idle   0 0
Graph of results
JVM 'sy480-04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,644
Calibration 2     107,593
Calibration 3     107,647
ssj_ops@calibrated=107,620
100% 99.8% 107,620 107,375
90% 89.0% 96,858 95,792
80% 79.3% 86,096 85,297
70% 70.1% 75,334 75,476
60% 60.3% 64,572 64,922
50% 49.4% 53,810 53,193
40% 39.8% 43,048 42,826
30% 30.1% 32,286 32,433
20% 19.7% 21,524 21,204
10% 9.9% 10,762 10,701
Active Idle   0 0
Graph of results
JVM 'sy480-04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,824
Calibration 2     105,004
Calibration 3     105,176
ssj_ops@calibrated=105,090
100% 99.9% 105,090 105,020
90% 90.8% 94,581 95,434
80% 80.2% 84,072 84,276
70% 71.0% 73,563 74,568
60% 59.7% 63,054 62,788
50% 49.5% 52,545 51,990
40% 40.0% 42,036 42,020
30% 29.8% 31,527 31,330
20% 19.6% 21,018 20,600
10% 10.2% 10,509 10,754
Active Idle   0 0
Graph of results
JVM 'sy480-04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,331
Calibration 2     106,098
Calibration 3     105,941
ssj_ops@calibrated=106,019
100% 99.6% 106,019 105,576
90% 89.6% 95,417 95,036
80% 79.9% 84,815 84,752
70% 69.6% 74,214 73,796
60% 59.6% 63,612 63,151
50% 50.0% 53,010 52,986
40% 39.5% 42,408 41,873
30% 29.8% 31,806 31,553
20% 20.2% 21,204 21,374
10% 10.2% 10,602 10,775
Active Idle   0 0
Graph of results
JVM 'sy480-04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,845
Calibration 2     104,861
Calibration 3     104,933
ssj_ops@calibrated=104,897
100% 99.9% 104,897 104,754
90% 90.9% 94,407 95,339
80% 79.2% 83,918 83,122
70% 70.5% 73,428 73,978
60% 60.0% 62,938 62,908
50% 50.5% 52,449 52,938
40% 39.8% 41,959 41,706
30% 30.1% 31,469 31,544
20% 20.2% 20,979 21,213
10% 10.3% 10,490 10,783
Active Idle   0 0
Graph of results
JVM 'sy480-04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,864
Calibration 2     106,415
Calibration 3     107,177
ssj_ops@calibrated=106,796
100% 100.0% 106,796 106,776
90% 91.1% 96,116 97,273
80% 79.6% 85,437 85,024
70% 69.4% 74,757 74,130
60% 60.6% 64,078 64,734
50% 50.2% 53,398 53,643
40% 40.1% 42,718 42,873
30% 30.1% 32,039 32,105
20% 20.0% 21,359 21,392
10% 10.1% 10,680 10,771
Active Idle   0 0
Graph of results
JVM 'sy480-04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,850
Calibration 2     101,516
Calibration 3     101,659
ssj_ops@calibrated=101,587
100% 99.5% 101,587 101,049
90% 90.5% 91,429 91,978
80% 80.3% 81,270 81,575
70% 68.8% 71,111 69,857
60% 59.7% 60,952 60,613
50% 49.8% 50,794 50,628
40% 40.0% 40,635 40,630
30% 29.8% 30,476 30,259
20% 20.0% 20,317 20,315
10% 10.0% 10,159 10,183
Active Idle   0 0
Graph of results
JVM 'sy480-04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,503
Calibration 2     106,130
Calibration 3     106,122
ssj_ops@calibrated=106,126
100% 100.0% 106,126 106,131
90% 89.8% 95,513 95,312
80% 80.4% 84,901 85,297
70% 69.6% 74,288 73,879
60% 59.6% 63,676 63,202
50% 49.9% 53,063 52,926
40% 40.1% 42,450 42,515
30% 30.2% 31,838 32,083
20% 19.5% 21,225 20,657
10% 10.1% 10,613 10,767
Active Idle   0 0

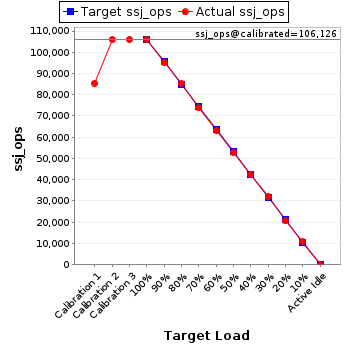

Graph of results
JVM 'sy480-04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,182
Calibration 2     106,860
Calibration 3     106,879
ssj_ops@calibrated=106,870
100% 98.2% 106,870 104,918
90% 89.6% 96,183 95,726
80% 80.0% 85,496 85,545
70% 70.0% 74,809 74,806
60% 60.0% 64,122 64,158
50% 50.2% 53,435 53,632
40% 39.9% 42,748 42,658
30% 30.4% 32,061 32,472
20% 20.0% 21,374 21,401
10% 10.2% 10,687 10,929
Active Idle   0 0
Graph of results
JVM 'sy480-04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,651
Calibration 2     102,248
Calibration 3     102,528
ssj_ops@calibrated=102,388
100% 99.0% 102,388 101,329
90% 89.8% 92,149 91,968
80% 79.5% 81,910 81,437
70% 69.7% 71,672 71,393
60% 59.7% 61,433 61,143
50% 50.7% 51,194 51,892
40% 39.9% 40,955 40,887
30% 30.0% 30,716 30,678
20% 19.7% 20,478 20,205
10% 9.9% 10,239 10,132
Active Idle   0 0
Graph of results
