Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module SPECpower_ssj2008 = 11,670 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 12, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,171 26.4
Calibration 2 5,311 25.7
Calibration 3 5,318 25.4
100% 5,313 25.3
90% 4,853 25.2
80% 3,691 25.3
70% 3,242 25.8
60% 2,843 26.4
50% 2,543 26.8
40% 2,295 27.1
30% 2,081 27.3
20% 1,854 27.1
10% 1,614 26.9
Active Idle 1,324 26.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-80-1
Date of Calibration: 14-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F91A5-220-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-40-1
Date of Calibration: 15-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 6.77 20.0 0.993 1,393 0.6%
Calibration 2 214 300.0 8.37 20.0 0.997 1,785 0.5%
Calibration 3 214 300.0 8.39 20.0 0.997 1,790 0.5%
100% 214 300.0 8.36 20.0 0.997 1,783 0.5%
90% 214 300.0 7.61 20.0 0.996 1,622 0.5%
80% 215 300.0 5.83 20.0 0.994 1,244 0.7%
70% 215 300.0 5.08 10.0 0.990 1,081 0.5%
60% 215 300.0 4.38 10.0 0.988 931 0.5%
50% 215 300.0 3.93 10.0 0.985 830 0.5%
40% 215 300.0 3.55 10.0 0.982 749 0.6%
30% 215 300.0 3.24 10.0 0.979 680 0.6%
20% 215 300.0 2.92 10.0 0.975 610 0.7%
10% 215 300.0 2.59 5.0 0.968 538 0.5%
Active Idle 215 300.0 2.16 5.0 0.946 440 0.6%

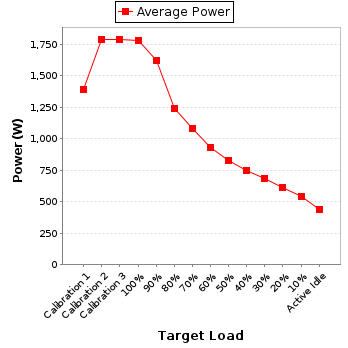

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 6.73 20.0 0.982 1,357 0.7%
Calibration 2 211 300.0 8.22 20.0 0.991 1,719 0.5%
Calibration 3 211 300.0 8.22 20.0 0.991 1,718 0.5%
100% 211 300.0 8.27 20.0 0.991 1,728 0.5%
90% 211 300.0 7.64 20.0 0.989 1,593 0.6%
80% 211 300.0 5.78 20.0 0.982 1,199 0.7%
70% 212 300.0 5.07 10.0 0.976 1,049 0.5%
60% 212 300.0 4.48 10.0 0.970 922 0.5%
50% 212 300.0 4.03 10.0 0.964 821 0.6%
40% 212 300.0 3.63 10.0 0.957 735 0.6%
30% 212 300.0 3.29 10.0 0.950 663 0.7%
20% 212 300.0 2.90 10.0 0.940 578 0.7%
10% 212 300.0 2.46 5.0 0.923 481 0.5%
Active Idle 212 300.0 2.05 5.0 0.895 389 0.6%

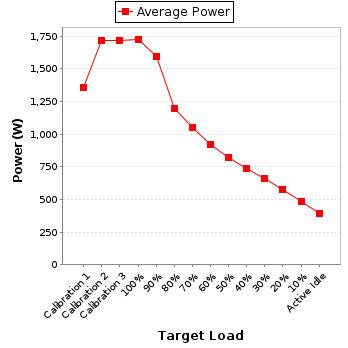

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 6.89 20.0 0.991 1,421 0.6%
Calibration 2 214 300.0 8.48 20.0 0.996 1,807 0.5%
Calibration 3 214 300.0 8.49 20.0 0.996 1,810 0.5%
100% 214 300.0 8.47 20.0 0.996 1,803 0.5%
90% 214 300.0 7.70 20.0 0.994 1,637 0.5%
80% 215 300.0 5.87 10.0 0.991 1,248 0.4%
70% 215 300.0 5.24 10.0 0.989 1,112 0.5%
60% 215 300.0 4.67 10.0 0.986 990 0.5%
50% 215 300.0 4.23 10.0 0.983 892 0.5%
40% 215 300.0 3.86 10.0 0.979 811 0.6%
30% 215 300.0 3.52 10.0 0.975 738 0.6%
20% 215 300.0 3.20 10.0 0.970 666 0.7%
10% 215 300.0 2.88 5.0 0.963 596 0.5%
Active Idle 215 300.0 2.43 5.0 0.946 495 0.5%

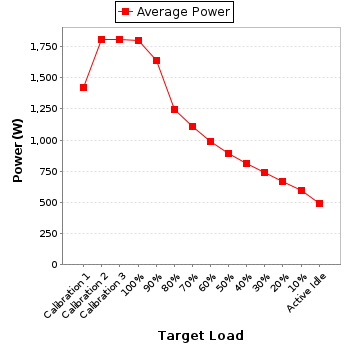

Power details for pwr3
