Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,368,956
ssj_ops@100% per JVM = 104,612
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 12, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,771,743
Calibration 2     8,399,629
Calibration 3     8,405,275
ssj_ops@calibrated=8,402,452
100% 99.6% 8,402,452 8,368,956
90% 90.0% 7,562,207 7,559,114
80% 80.1% 6,721,962 6,726,175
70% 70.0% 5,881,716 5,880,398
60% 60.0% 5,041,471 5,039,218
50% 50.0% 4,201,226 4,198,643
40% 40.0% 3,360,981 3,363,996
30% 30.0% 2,520,736 2,524,197
20% 20.0% 1,680,490 1,681,808
10% 10.0% 840,245 842,223
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-01.001 105,038
sy480-01.002 104,987
sy480-01.003 102,265
sy480-01.004 104,640
sy480-01.005 106,050
sy480-01.006 104,923
sy480-01.007 104,081
sy480-01.008 105,889
sy480-01.009 104,835
sy480-01.010 106,166
sy480-01.011 106,563
sy480-01.012 104,740
sy480-01.013 106,009
sy480-01.014 104,964
sy480-01.015 106,834
sy480-01.016 105,795
sy480-01.017 103,497
sy480-01.018 105,236
sy480-01.019 105,553
sy480-01.020 98,329
sy480-01.021 104,371
sy480-01.022 104,270
sy480-01.023 105,886
sy480-01.024 105,075
sy480-01.025 105,578
sy480-01.026 104,864
sy480-01.027 104,801
sy480-01.028 101,540
sy480-01.029 102,602
sy480-01.030 102,617
sy480-01.031 101,033
sy480-01.032 104,566
sy480-01.033 105,632
sy480-01.034 105,757
sy480-01.035 106,757
sy480-01.036 102,884
sy480-01.037 103,952
sy480-01.038 105,712
sy480-01.039 98,451
sy480-01.040 105,396
sy480-01.041 104,991
sy480-01.042 105,618
sy480-01.043 105,082
sy480-01.044 106,129
sy480-01.045 104,208
sy480-01.046 102,337
sy480-01.047 106,388
sy480-01.048 106,912
sy480-01.049 105,082
sy480-01.050 107,207
sy480-01.051 104,278
sy480-01.052 105,032
sy480-01.053 103,586
sy480-01.054 105,538
sy480-01.055 104,100
sy480-01.056 101,434
sy480-01.057 106,658
sy480-01.058 104,086
sy480-01.059 102,592
sy480-01.060 105,469
sy480-01.061 105,183
sy480-01.062 105,703
sy480-01.063 103,705
sy480-01.064 105,981
sy480-01.065 104,812
sy480-01.066 105,616
sy480-01.067 105,587
sy480-01.068 102,224
sy480-01.069 105,335
sy480-01.070 102,769
sy480-01.071 104,188
sy480-01.072 104,252
sy480-01.073 104,703
sy480-01.074 107,942
sy480-01.075 103,992
sy480-01.076 105,558
sy480-01.077 104,330
sy480-01.078 101,771
sy480-01.079 105,111
sy480-01.080 105,327
ssj_ops@100% 8,368,956
ssj_ops@100% per JVM 104,612

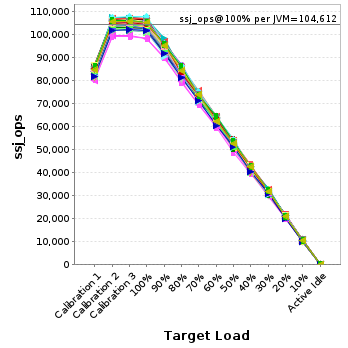

Graph of per-instance results
JVM 'sy480-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,863
Calibration 2     105,296
Calibration 3     105,461
ssj_ops@calibrated=105,378
100% 99.7% 105,378 105,038
90% 90.8% 94,841 95,696
80% 80.3% 84,303 84,630
70% 69.5% 73,765 73,243
60% 60.2% 63,227 63,390
50% 49.9% 52,689 52,593
40% 40.3% 42,151 42,442
30% 29.3% 31,614 30,884
20% 20.4% 21,076 21,463
10% 9.9% 10,538 10,471
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,765
Calibration 2     105,402
Calibration 3     105,397
ssj_ops@calibrated=105,399
100% 99.6% 105,399 104,987
90% 89.2% 94,860 93,996
80% 80.6% 84,320 85,001
70% 69.8% 73,780 73,607
60% 59.6% 63,240 62,819
50% 49.9% 52,700 52,626
40% 40.3% 42,160 42,503
30% 30.3% 31,620 31,902
20% 20.0% 21,080 21,097
10% 10.0% 10,540 10,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,852
Calibration 2     102,353
Calibration 3     102,380
ssj_ops@calibrated=102,367
100% 99.9% 102,367 102,265
90% 89.4% 92,130 91,468
80% 81.0% 81,893 82,939
70% 70.2% 71,657 71,838
60% 60.5% 61,420 61,924
50% 50.3% 51,183 51,467
40% 40.7% 40,947 41,665
30% 30.5% 30,710 31,202
20% 19.9% 20,473 20,347
10% 10.0% 10,237 10,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,191
Calibration 2     104,499
Calibration 3     104,575
ssj_ops@calibrated=104,537
100% 100.1% 104,537 104,640
90% 89.9% 94,084 93,950
80% 79.5% 83,630 83,138
70% 70.1% 73,176 73,265
60% 60.3% 62,722 63,064
50% 48.9% 52,269 51,125
40% 39.3% 41,815 41,135
30% 29.5% 31,361 30,865
20% 20.3% 20,907 21,215
10% 10.0% 10,454 10,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,533
Calibration 2     106,222
Calibration 3     106,090
ssj_ops@calibrated=106,156
100% 99.9% 106,156 106,050
90% 88.7% 95,540 94,178
80% 80.6% 84,925 85,597
70% 70.4% 74,309 74,757
60% 60.9% 63,693 64,597
50% 50.4% 53,078 53,461
40% 40.0% 42,462 42,470
30% 30.3% 31,847 32,214
20% 20.1% 21,231 21,374
10% 10.1% 10,616 10,714
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,798
Calibration 2     105,950
Calibration 3     105,991
ssj_ops@calibrated=105,971
100% 99.0% 105,971 104,923
90% 90.3% 95,373 95,653
80% 80.1% 84,776 84,873
70% 70.4% 74,179 74,598
60% 59.4% 63,582 62,961
50% 50.4% 52,985 53,405
40% 39.9% 42,388 42,327
30% 29.5% 31,791 31,259
20% 19.8% 21,194 20,947
10% 10.3% 10,597 10,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,812
Calibration 2     104,331
Calibration 3     104,463
ssj_ops@calibrated=104,397
100% 99.7% 104,397 104,081
90% 90.4% 93,957 94,371
80% 79.9% 83,518 83,453
70% 69.9% 73,078 72,946
60% 59.9% 62,638 62,540
50% 49.8% 52,199 51,959
40% 40.2% 41,759 41,918
30% 29.5% 31,319 30,749
20% 20.3% 20,879 21,221
10% 10.0% 10,440 10,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,706
Calibration 2     106,125
Calibration 3     106,314
ssj_ops@calibrated=106,220
100% 99.7% 106,220 105,889
90% 90.8% 95,598 96,476
80% 79.9% 84,976 84,898
70% 68.6% 74,354 72,845
60% 59.9% 63,732 63,633
50% 49.8% 53,110 52,863
40% 40.0% 42,488 42,473
30% 30.2% 31,866 32,103
20% 20.3% 21,244 21,582
10% 9.9% 10,622 10,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,596
Calibration 2     104,897
Calibration 3     105,027
ssj_ops@calibrated=104,962
100% 99.9% 104,962 104,835
90% 89.3% 94,466 93,741
80% 80.9% 83,970 84,920
70% 71.1% 73,473 74,672
60% 61.0% 62,977 63,991
50% 51.7% 52,481 54,236
40% 40.0% 41,985 41,981
30% 29.7% 31,489 31,210
20% 20.1% 20,992 21,077
10% 10.0% 10,496 10,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,272
Calibration 2     106,155
Calibration 3     106,162
ssj_ops@calibrated=106,158
100% 100.0% 106,158 106,166
90% 89.6% 95,543 95,071
80% 79.2% 84,927 84,053
70% 70.6% 74,311 74,968
60% 59.8% 63,695 63,533
50% 49.9% 53,079 53,021
40% 39.8% 42,463 42,225
30% 29.8% 31,848 31,687
20% 20.2% 21,232 21,429
10% 10.1% 10,616 10,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,549
Calibration 2     106,767
Calibration 3     106,571
ssj_ops@calibrated=106,669
100% 99.9% 106,669 106,563
90% 90.0% 96,002 96,010
80% 80.5% 85,335 85,843
70% 69.6% 74,668 74,225
60% 59.5% 64,001 63,481
50% 49.9% 53,335 53,269
40% 39.4% 42,668 42,062
30% 30.3% 32,001 32,358
20% 19.7% 21,334 20,996
10% 10.0% 10,667 10,713
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,731
Calibration 2     105,026
Calibration 3     105,058
ssj_ops@calibrated=105,042
100% 99.7% 105,042 104,740
90% 89.8% 94,538 94,348
80% 79.2% 84,034 83,213
70% 69.8% 73,529 73,268
60% 60.4% 63,025 63,422
50% 50.8% 52,521 53,328
40% 40.0% 42,017 41,995
30% 30.2% 31,513 31,680
20% 19.6% 21,008 20,567
10% 9.9% 10,504 10,410
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,294
Calibration 2     106,191
Calibration 3     105,996
ssj_ops@calibrated=106,093
100% 99.9% 106,093 106,009
90% 89.7% 95,484 95,143
80% 79.6% 84,874 84,496
70% 70.6% 74,265 74,921
60% 60.6% 63,656 64,336
50% 50.6% 53,047 53,694
40% 40.0% 42,437 42,460
30% 30.1% 31,828 31,883
20% 19.9% 21,219 21,096
10% 10.1% 10,609 10,681
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,436
Calibration 2     106,300
Calibration 3     106,403
ssj_ops@calibrated=106,351
100% 98.7% 106,351 104,964
90% 89.2% 95,716 94,889
80% 80.3% 85,081 85,361
70% 70.0% 74,446 74,417
60% 60.3% 63,811 64,140
50% 49.4% 53,176 52,557
40% 40.1% 42,541 42,648
30% 30.7% 31,905 32,690
20% 20.0% 21,270 21,223
10% 9.9% 10,635 10,477
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,914
Calibration 2     107,411
Calibration 3     107,472
ssj_ops@calibrated=107,442
100% 99.4% 107,442 106,834
90% 90.5% 96,698 97,210
80% 80.2% 85,953 86,162
70% 69.7% 75,209 74,883
60% 59.0% 64,465 63,435
50% 49.7% 53,721 53,420
40% 39.8% 42,977 42,762
30% 29.6% 32,233 31,792
20% 20.2% 21,488 21,745
10% 10.1% 10,744 10,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,960
Calibration 2     106,643
Calibration 3     106,783
ssj_ops@calibrated=106,713
100% 99.1% 106,713 105,795
90% 89.5% 96,042 95,545
80% 80.0% 85,370 85,376
70% 69.9% 74,699 74,617
60% 59.7% 64,028 63,686
50% 50.3% 53,357 53,636
40% 40.1% 42,685 42,792
30% 29.9% 32,014 31,919
20% 20.3% 21,343 21,683
10% 10.0% 10,671 10,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,217
Calibration 2     104,976
Calibration 3     104,832
ssj_ops@calibrated=104,904
100% 98.7% 104,904 103,497
90% 90.6% 94,414 95,034
80% 80.4% 83,923 84,350
70% 70.4% 73,433 73,835
60% 59.9% 62,942 62,827
50% 50.3% 52,452 52,810
40% 38.7% 41,962 40,549
30% 29.9% 31,471 31,371
20% 19.9% 20,981 20,863
10% 10.0% 10,490 10,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,570
Calibration 2     105,202
Calibration 3     105,363
ssj_ops@calibrated=105,283
100% 100.0% 105,283 105,236
90% 88.9% 94,754 93,625
80% 79.3% 84,226 83,466
70% 70.8% 73,698 74,532
60% 59.7% 63,170 62,802
50% 50.1% 52,641 52,746
40% 40.2% 42,113 42,329
30% 30.4% 31,585 31,979
20% 20.3% 21,057 21,346
10% 10.1% 10,528 10,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,222
Calibration 2     105,231
Calibration 3     105,347
ssj_ops@calibrated=105,289
100% 100.3% 105,289 105,553
90% 90.6% 94,760 95,360
80% 79.9% 84,231 84,118
70% 69.9% 73,702 73,625
60% 60.0% 63,173 63,210
50% 50.5% 52,645 53,173
40% 39.8% 42,116 41,908
30% 31.0% 31,587 32,607
20% 20.1% 21,058 21,182
10% 9.9% 10,529 10,406
Active Idle   0 0

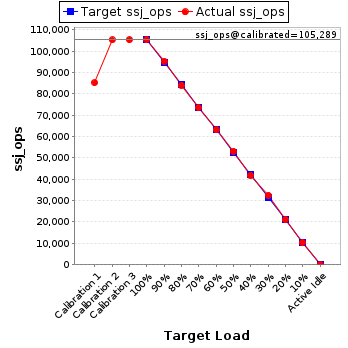

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,252
Calibration 2     99,591
Calibration 3     99,563
ssj_ops@calibrated=99,577
100% 98.7% 99,577 98,329
90% 90.2% 89,620 89,801
80% 79.8% 79,662 79,470
70% 69.8% 69,704 69,542
60% 60.6% 59,746 60,344
50% 50.2% 49,789 50,012
40% 40.1% 39,831 39,916
30% 29.8% 29,873 29,645
20% 20.0% 19,915 19,951
10% 10.5% 9,958 10,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,015
Calibration 2     104,776
Calibration 3     104,607
ssj_ops@calibrated=104,692
100% 99.7% 104,692 104,371
90% 89.8% 94,222 94,006
80% 79.7% 83,753 83,469
70% 69.4% 73,284 72,661
60% 59.5% 62,815 62,239
50% 50.5% 52,346 52,821
40% 40.5% 41,877 42,430
30% 30.6% 31,407 32,067
20% 20.3% 20,938 21,216
10% 9.9% 10,469 10,393
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,342
Calibration 2     104,709
Calibration 3     104,613
ssj_ops@calibrated=104,661
100% 99.6% 104,661 104,270
90% 90.2% 94,195 94,425
80% 81.3% 83,729 85,048
70% 70.0% 73,263 73,255
60% 60.8% 62,797 63,673
50% 49.7% 52,331 52,019
40% 39.6% 41,864 41,437
30% 29.7% 31,398 31,095
20% 20.4% 20,932 21,312
10% 9.9% 10,466 10,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,566
Calibration 2     105,677
Calibration 3     105,387
ssj_ops@calibrated=105,532
100% 100.3% 105,532 105,886
90% 90.6% 94,979 95,597
80% 79.9% 84,426 84,312
70% 69.5% 73,873 73,356
60% 59.8% 63,319 63,144
50% 49.6% 52,766 52,390
40% 40.6% 42,213 42,795
30% 29.6% 31,660 31,271
20% 20.3% 21,106 21,455
10% 10.4% 10,553 10,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,504
Calibration 2     104,995
Calibration 3     105,058
ssj_ops@calibrated=105,027
100% 100.0% 105,027 105,075
90% 89.4% 94,524 93,938
80% 80.2% 84,021 84,213
70% 70.6% 73,519 74,146
60% 59.5% 63,016 62,451
50% 50.7% 52,513 53,286
40% 40.1% 42,011 42,090
30% 30.3% 31,508 31,801
20% 19.6% 21,005 20,575
10% 9.7% 10,503 10,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,879
Calibration 2     106,419
Calibration 3     106,365
ssj_ops@calibrated=106,392
100% 99.2% 106,392 105,578
90% 89.8% 95,753 95,504
80% 79.6% 85,114 84,645
70% 70.4% 74,474 74,927
60% 60.6% 63,835 64,515
50% 49.8% 53,196 53,014
40% 39.8% 42,557 42,327
30% 30.8% 31,918 32,745
20% 20.1% 21,278 21,359
10% 10.1% 10,639 10,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,749
Calibration 2     105,228
Calibration 3     105,546
ssj_ops@calibrated=105,387
100% 99.5% 105,387 104,864
90% 90.0% 94,848 94,855
80% 80.8% 84,310 85,150
70% 69.8% 73,771 73,517
60% 59.3% 63,232 62,540
50% 50.1% 52,693 52,750
40% 39.9% 42,155 42,098
30% 30.4% 31,616 32,077
20% 20.1% 21,077 21,171
10% 10.2% 10,539 10,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,069
Calibration 2     105,097
Calibration 3     105,239
ssj_ops@calibrated=105,168
100% 99.7% 105,168 104,801
90% 89.3% 94,651 93,909
80% 80.6% 84,134 84,766
70% 68.3% 73,618 71,864
60% 59.7% 63,101 62,824
50% 49.6% 52,584 52,151
40% 39.7% 42,067 41,755
30% 30.1% 31,550 31,697
20% 20.0% 21,034 21,075
10% 9.9% 10,517 10,386
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,378
Calibration 2     101,910
Calibration 3     101,641
ssj_ops@calibrated=101,775
100% 99.8% 101,775 101,540
90% 89.8% 91,598 91,394
80% 80.7% 81,420 82,092
70% 69.6% 71,243 70,804
60% 60.2% 61,065 61,222
50% 49.9% 50,888 50,793
40% 40.5% 40,710 41,242
30% 29.8% 30,533 30,308
20% 20.2% 20,355 20,517
10% 10.1% 10,178 10,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,557
Calibration 2     103,111
Calibration 3     102,876
ssj_ops@calibrated=102,994
100% 99.6% 102,994 102,602
90% 89.3% 92,694 91,997
80% 80.2% 82,395 82,626
70% 68.7% 72,096 70,783
60% 60.4% 61,796 62,157
50% 49.7% 51,497 51,165
40% 39.8% 41,197 41,029
30% 30.1% 30,898 30,965
20% 20.3% 20,599 20,860
10% 10.3% 10,299 10,651
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,765
Calibration 2     103,001
Calibration 3     103,108
ssj_ops@calibrated=103,054
100% 99.6% 103,054 102,617
90% 90.8% 92,749 93,583
80% 79.5% 82,443 81,957
70% 69.9% 72,138 72,064
60% 59.6% 61,832 61,423
50% 50.1% 51,527 51,665
40% 40.7% 41,222 41,920
30% 30.0% 30,916 30,956
20% 20.1% 20,611 20,762
10% 10.1% 10,305 10,457
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,622
Calibration 2     102,642
Calibration 3     102,652
ssj_ops@calibrated=102,647
100% 98.4% 102,647 101,033
90% 91.2% 92,382 93,626
80% 80.6% 82,118 82,760
70% 70.8% 71,853 72,643
60% 60.3% 61,588 61,873
50% 50.2% 51,324 51,570
40% 39.1% 41,059 40,140
30% 29.7% 30,794 30,440
20% 19.8% 20,529 20,373
10% 10.2% 10,265 10,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,241
Calibration 2     105,282
Calibration 3     105,237
ssj_ops@calibrated=105,259
100% 99.3% 105,259 104,566
90% 89.7% 94,733 94,466
80% 80.6% 84,207 84,876
70% 71.3% 73,681 75,003
60% 60.2% 63,155 63,389
50% 50.3% 52,630 52,926
40% 40.1% 42,104 42,173
30% 29.8% 31,578 31,390
20% 19.9% 21,052 20,899
10% 9.6% 10,526 10,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,445
Calibration 2     106,305
Calibration 3     106,201
ssj_ops@calibrated=106,253
100% 99.4% 106,253 105,632
90% 90.4% 95,628 96,036
80% 79.9% 85,002 84,912
70% 69.9% 74,377 74,255
60% 59.3% 63,752 63,036
50% 49.6% 53,126 52,710
40% 40.0% 42,501 42,483
30% 30.3% 31,876 32,248
20% 19.9% 21,251 21,129
10% 10.1% 10,625 10,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,572
Calibration 2     106,495
Calibration 3     106,212
ssj_ops@calibrated=106,353
100% 99.4% 106,353 105,757
90% 89.0% 95,718 94,693
80% 80.0% 85,082 85,069
70% 69.4% 74,447 73,791
60% 60.3% 63,812 64,084
50% 50.7% 53,177 53,879
40% 39.6% 42,541 42,130
30% 30.5% 31,906 32,398
20% 19.9% 21,271 21,146
10% 10.0% 10,635 10,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,297
Calibration 2     106,918
Calibration 3     106,807
ssj_ops@calibrated=106,862
100% 99.9% 106,862 106,757
90% 90.0% 96,176 96,198
80% 80.8% 85,490 86,357
70% 70.2% 74,804 74,996
60% 60.4% 64,117 64,531
50% 50.1% 53,431 53,494
40% 40.2% 42,745 42,935
30% 30.4% 32,059 32,526
20% 19.6% 21,372 20,979
10% 9.8% 10,686 10,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,838
Calibration 2     103,037
Calibration 3     104,024
ssj_ops@calibrated=103,531
100% 99.4% 103,531 102,884
90% 90.8% 93,178 93,993
80% 79.8% 82,824 82,611
70% 70.3% 72,471 72,778
60% 60.0% 62,118 62,135
50% 50.3% 51,765 52,078
40% 40.0% 41,412 41,371
30% 29.7% 31,059 30,775
20% 19.8% 20,706 20,469
10% 10.0% 10,353 10,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,907
Calibration 2     103,843
Calibration 3     103,882
ssj_ops@calibrated=103,862
100% 100.1% 103,862 103,952
90% 90.2% 93,476 93,731
80% 79.6% 83,090 82,697
70% 68.6% 72,704 71,279
60% 59.6% 62,317 61,887
50% 49.2% 51,931 51,142
40% 40.1% 41,545 41,649
30% 30.4% 31,159 31,609
20% 20.1% 20,772 20,833
10% 9.8% 10,386 10,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,061
Calibration 2     105,890
Calibration 3     106,011
ssj_ops@calibrated=105,951
100% 99.8% 105,951 105,712
90% 90.4% 95,356 95,791
80% 79.9% 84,760 84,700
70% 69.5% 74,165 73,657
60% 60.3% 63,570 63,869
50% 49.8% 52,975 52,777
40% 40.2% 42,380 42,562
30% 29.8% 31,785 31,523
20% 20.2% 21,190 21,437
10% 10.2% 10,595 10,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,564
Calibration 2     99,408
Calibration 3     99,357
ssj_ops@calibrated=99,382
100% 99.1% 99,382 98,451
90% 90.7% 89,444 90,118
80% 79.8% 79,506 79,325
70% 70.2% 69,568 69,795
60% 60.0% 59,629 59,678
50% 48.9% 49,691 48,598
40% 39.8% 39,753 39,588
30% 30.8% 29,815 30,652
20% 20.0% 19,876 19,924
10% 10.1% 9,938 10,060
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,843
Calibration 2     106,026
Calibration 3     105,917
ssj_ops@calibrated=105,972
100% 99.5% 105,972 105,396
90% 89.0% 95,374 94,275
80% 79.6% 84,777 84,374
70% 70.2% 74,180 74,398
60% 60.1% 63,583 63,662
50% 49.6% 52,986 52,547
40% 39.5% 42,389 41,808
30% 30.1% 31,791 31,944
20% 20.1% 21,194 21,282
10% 9.8% 10,597 10,406
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,229
Calibration 2     105,832
Calibration 3     105,821
ssj_ops@calibrated=105,827
100% 99.2% 105,827 104,991
90% 89.9% 95,244 95,123
80% 80.2% 84,661 84,886
70% 70.5% 74,079 74,581
60% 60.5% 63,496 64,021
50% 50.9% 52,913 53,854
40% 39.4% 42,331 41,728
30% 30.0% 31,748 31,727
20% 19.9% 21,165 21,076
10% 10.1% 10,583 10,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,536
Calibration 2     105,428
Calibration 3     105,485
ssj_ops@calibrated=105,456
100% 100.2% 105,456 105,618
90% 90.1% 94,911 95,061
80% 79.7% 84,365 84,055
70% 70.9% 73,819 74,725
60% 60.3% 63,274 63,538
50% 49.0% 52,728 51,662
40% 40.5% 42,183 42,714
30% 30.1% 31,637 31,784
20% 20.0% 21,091 21,133
10% 10.2% 10,546 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

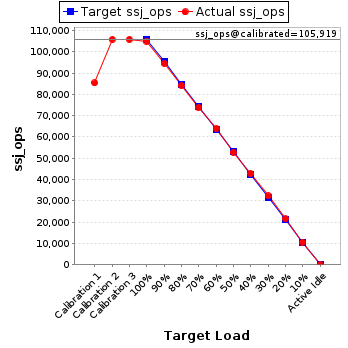

JVM 'sy480-01.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,388
Calibration 2     105,900
Calibration 3     105,937
ssj_ops@calibrated=105,919
100% 99.2% 105,919 105,082
90% 89.4% 95,327 94,700
80% 79.5% 84,735 84,248
70% 69.9% 74,143 74,073
60% 60.5% 63,551 64,048
50% 49.9% 52,959 52,887
40% 40.6% 42,367 42,960
30% 30.5% 31,776 32,312
20% 20.4% 21,184 21,575
10% 10.1% 10,592 10,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,708
Calibration 2     106,136
Calibration 3     106,102
ssj_ops@calibrated=106,119
100% 100.0% 106,119 106,129
90% 89.9% 95,507 95,448
80% 79.6% 84,895 84,419
70% 69.6% 74,283 73,878
60% 59.2% 63,671 62,863
50% 50.0% 53,060 53,013
40% 40.2% 42,448 42,632
30% 29.5% 31,836 31,283
20% 20.3% 21,224 21,505
10% 10.2% 10,612 10,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,627
Calibration 2     105,000
Calibration 3     105,045
ssj_ops@calibrated=105,022
100% 99.2% 105,022 104,208
90% 90.3% 94,520 94,798
80% 79.3% 84,018 83,279
70% 69.5% 73,516 72,997
60% 59.7% 63,013 62,694
50% 49.9% 52,511 52,384
40% 40.8% 42,009 42,809
30% 29.8% 31,507 31,251
20% 19.6% 21,004 20,584
10% 10.1% 10,502 10,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,468
Calibration 2     101,959
Calibration 3     102,237
ssj_ops@calibrated=102,098
100% 100.2% 102,098 102,337
90% 89.5% 91,888 91,409
80% 80.1% 81,678 81,825
70% 69.8% 71,469 71,259
60% 60.5% 61,259 61,758
50% 50.2% 51,049 51,276
40% 39.4% 40,839 40,238
30% 30.1% 30,629 30,705
20% 20.3% 20,420 20,743
10% 10.3% 10,210 10,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,484
Calibration 2     107,167
Calibration 3     107,090
ssj_ops@calibrated=107,128
100% 99.3% 107,128 106,388
90% 89.7% 96,415 96,082
80% 81.4% 85,703 87,170
70% 69.4% 74,990 74,391
60% 59.3% 64,277 63,509
50% 49.0% 53,564 52,464
40% 39.5% 42,851 42,306
30% 29.8% 32,138 31,960
20% 20.2% 21,426 21,687
10% 9.9% 10,713 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,490
Calibration 2     107,313
Calibration 3     107,242
ssj_ops@calibrated=107,277
100% 99.7% 107,277 106,912
90% 91.8% 96,550 98,532
80% 78.9% 85,822 84,641
70% 70.4% 75,094 75,477
60% 59.4% 64,366 63,766
50% 49.5% 53,639 53,080
40% 39.9% 42,911 42,854
30% 30.9% 32,183 33,137
20% 20.0% 21,455 21,482
10% 9.8% 10,728 10,481
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,143
Calibration 2     106,050
Calibration 3     105,987
ssj_ops@calibrated=106,018
100% 99.1% 106,018 105,082
90% 89.8% 95,416 95,245
80% 80.1% 84,815 84,912
70% 69.9% 74,213 74,118
60% 59.9% 63,611 63,513
50% 50.6% 53,009 53,634
40% 40.1% 42,407 42,560
30% 30.0% 31,805 31,858
20% 20.1% 21,204 21,331
10% 9.7% 10,602 10,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

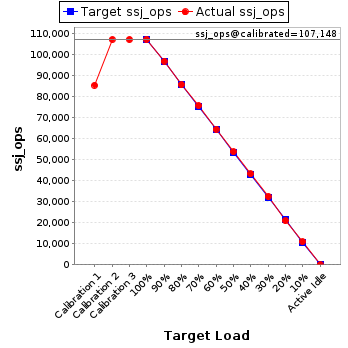

JVM 'sy480-01.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,439
Calibration 2     107,139
Calibration 3     107,156
ssj_ops@calibrated=107,148
100% 100.1% 107,148 107,207
90% 90.4% 96,433 96,836
80% 79.9% 85,718 85,615
70% 70.7% 75,003 75,758
60% 60.2% 64,289 64,472
50% 50.2% 53,574 53,787
40% 40.3% 42,859 43,208
30% 30.4% 32,144 32,551
20% 19.6% 21,430 20,950
10% 10.2% 10,715 10,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,622
Calibration 2     104,849
Calibration 3     104,976
ssj_ops@calibrated=104,913
100% 99.4% 104,913 104,278
90% 90.5% 94,421 94,948
80% 79.6% 83,930 83,555
70% 70.3% 73,439 73,712
60% 60.2% 62,948 63,139
50% 50.2% 52,456 52,641
40% 40.9% 41,965 42,869
30% 29.7% 31,474 31,128
20% 19.7% 20,983 20,697
10% 10.1% 10,491 10,557
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,813
Calibration 2     105,186
Calibration 3     105,388
ssj_ops@calibrated=105,287
100% 99.8% 105,287 105,032
90% 90.0% 94,758 94,720
80% 79.6% 84,230 83,812
70% 70.4% 73,701 74,162
60% 60.0% 63,172 63,188
50% 49.4% 52,643 52,044
40% 40.3% 42,115 42,461
30% 29.7% 31,586 31,235
20% 19.8% 21,057 20,871
10% 10.1% 10,529 10,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,331
Calibration 2     103,585
Calibration 3     103,455
ssj_ops@calibrated=103,520
100% 100.1% 103,520 103,586
90% 89.7% 93,168 92,838
80% 80.4% 82,816 83,281
70% 69.5% 72,464 71,954
60% 59.9% 62,112 62,048
50% 49.3% 51,760 51,064
40% 40.4% 41,408 41,794
30% 30.0% 31,056 31,070
20% 20.1% 20,704 20,811
10% 10.1% 10,352 10,485
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,861
Calibration 2     105,373
Calibration 3     105,351
ssj_ops@calibrated=105,362
100% 100.2% 105,362 105,538
90% 88.8% 94,826 93,545
80% 80.0% 84,290 84,270
70% 69.7% 73,753 73,405
60% 60.6% 63,217 63,835
50% 50.6% 52,681 53,273
40% 40.4% 42,145 42,542
30% 30.2% 31,609 31,859
20% 19.9% 21,072 20,946
10% 10.4% 10,536 10,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,668
Calibration 2     104,931
Calibration 3     105,155
ssj_ops@calibrated=105,043
100% 99.1% 105,043 104,100
90% 90.2% 94,538 94,712
80% 79.0% 84,034 82,968
70% 69.8% 73,530 73,359
60% 60.1% 63,026 63,101
50% 49.1% 52,521 51,546
40% 39.9% 42,017 41,960
30% 29.7% 31,513 31,244
20% 19.8% 21,009 20,791
10% 9.9% 10,504 10,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,973
Calibration 2     101,766
Calibration 3     102,055
ssj_ops@calibrated=101,910
100% 99.5% 101,910 101,434
90% 89.0% 91,719 90,740
80% 79.0% 81,528 80,477
70% 70.6% 71,337 71,933
60% 59.7% 61,146 60,825
50% 50.0% 50,955 50,932
40% 40.5% 40,764 41,256
30% 29.3% 30,573 29,887
20% 20.6% 20,382 20,971
10% 9.8% 10,191 10,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,862
Calibration 2     106,574
Calibration 3     106,528
ssj_ops@calibrated=106,551
100% 100.1% 106,551 106,658
90% 89.4% 95,896 95,261
80% 80.0% 85,241 85,193
70% 68.9% 74,586 73,417
60% 60.1% 63,931 63,996
50% 49.4% 53,275 52,663
40% 40.1% 42,620 42,734
30% 29.9% 31,965 31,873
20% 19.5% 21,310 20,748
10% 10.2% 10,655 10,840
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,509
Calibration 2     105,295
Calibration 3     105,258
ssj_ops@calibrated=105,277
100% 98.9% 105,277 104,086
90% 90.0% 94,749 94,739
80% 79.4% 84,221 83,601
70% 70.3% 73,694 73,994
60% 60.8% 63,166 63,982
50% 49.6% 52,638 52,205
40% 40.4% 42,111 42,513
30% 29.8% 31,583 31,421
20% 20.3% 21,055 21,390
10% 9.6% 10,528 10,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,932
Calibration 2     102,910
Calibration 3     103,061
ssj_ops@calibrated=102,985
100% 99.6% 102,985 102,592
90% 89.4% 92,687 92,080
80% 79.8% 82,388 82,172
70% 69.6% 72,090 71,674
60% 60.0% 61,791 61,819
50% 49.2% 51,493 50,685
40% 40.2% 41,194 41,412
30% 29.5% 30,896 30,373
20% 20.0% 20,597 20,579
10% 9.6% 10,299 9,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,916
Calibration 2     105,678
Calibration 3     105,632
ssj_ops@calibrated=105,655
100% 99.8% 105,655 105,469
90% 89.7% 95,090 94,757
80% 79.9% 84,524 84,408
70% 70.2% 73,959 74,132
60% 59.3% 63,393 62,704
50% 49.8% 52,828 52,571
40% 40.5% 42,262 42,779
30% 30.3% 31,697 31,970
20% 20.0% 21,131 21,151
10% 10.1% 10,566 10,639
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,527
Calibration 2     105,003
Calibration 3     105,161
ssj_ops@calibrated=105,082
100% 100.1% 105,082 105,183
90% 90.1% 94,574 94,639
80% 80.6% 84,066 84,725
70% 70.3% 73,558 73,864
60% 59.4% 63,049 62,446
50% 49.8% 52,541 52,348
40% 40.1% 42,033 42,176
30% 29.9% 31,525 31,392
20% 20.4% 21,016 21,433
10% 10.0% 10,508 10,506
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,927
Calibration 2     105,932
Calibration 3     106,070
ssj_ops@calibrated=106,001
100% 99.7% 106,001 105,703
90% 90.5% 95,401 95,975
80% 80.4% 84,801 85,175
70% 70.4% 74,201 74,573
60% 60.3% 63,601 63,916
50% 50.1% 53,001 53,155
40% 39.8% 42,400 42,185
30% 29.8% 31,800 31,610
20% 19.9% 21,200 21,100
10% 9.9% 10,600 10,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,675
Calibration 2     104,573
Calibration 3     104,774
ssj_ops@calibrated=104,673
100% 99.1% 104,673 103,705
90% 90.4% 94,206 94,603
80% 79.8% 83,739 83,566
70% 69.8% 73,271 73,053
60% 59.3% 62,804 62,099
50% 49.8% 52,337 52,145
40% 40.1% 41,869 41,999
30% 30.2% 31,402 31,644
20% 20.3% 20,935 21,209
10% 10.1% 10,467 10,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,526
Calibration 2     105,559
Calibration 3     105,621
ssj_ops@calibrated=105,590
100% 100.4% 105,590 105,981
90% 90.3% 95,031 95,300
80% 80.8% 84,472 85,311
70% 70.5% 73,913 74,448
60% 59.4% 63,354 62,677
50% 50.0% 52,795 52,754
40% 39.8% 42,236 42,077
30% 30.6% 31,677 32,291
20% 19.6% 21,118 20,711
10% 9.9% 10,559 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,413
Calibration 2     105,033
Calibration 3     105,421
ssj_ops@calibrated=105,227
100% 99.6% 105,227 104,812
90% 89.7% 94,704 94,364
80% 80.2% 84,182 84,385
70% 70.0% 73,659 73,707
60% 59.2% 63,136 62,280
50% 50.5% 52,613 53,102
40% 40.1% 42,091 42,206
30% 30.6% 31,568 32,213
20% 19.7% 21,045 20,746
10% 10.1% 10,523 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,671
Calibration 2     106,303
Calibration 3     106,442
ssj_ops@calibrated=106,372
100% 99.3% 106,372 105,616
90% 89.1% 95,735 94,733
80% 80.3% 85,098 85,453
70% 69.7% 74,461 74,142
60% 59.3% 63,823 63,067
50% 50.2% 53,186 53,432
40% 40.7% 42,549 43,322
30% 29.9% 31,912 31,772
20% 20.0% 21,274 21,298
10% 10.3% 10,637 11,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,181
Calibration 2     105,886
Calibration 3     105,933
ssj_ops@calibrated=105,909
100% 99.7% 105,909 105,587
90% 90.6% 95,318 96,004
80% 80.9% 84,728 85,694
70% 69.3% 74,137 73,426
60% 59.9% 63,546 63,388
50% 50.0% 52,955 52,916
40% 39.4% 42,364 41,683
30% 29.5% 31,773 31,220
20% 20.2% 21,182 21,342
10% 10.0% 10,591 10,643
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,201
Calibration 2     101,969
Calibration 3     102,305
ssj_ops@calibrated=102,137
100% 100.1% 102,137 102,224
90% 88.4% 91,923 90,316
80% 81.1% 81,710 82,838
70% 69.5% 71,496 70,990
60% 60.5% 61,282 61,821
50% 49.9% 51,068 50,934
40% 39.9% 40,855 40,705
30% 29.7% 30,641 30,366
20% 20.5% 20,427 20,980
10% 10.3% 10,214 10,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,474
Calibration 2     105,891
Calibration 3     105,846
ssj_ops@calibrated=105,868
100% 99.5% 105,868 105,335
90% 90.2% 95,281 95,514
80% 80.4% 84,695 85,137
70% 70.5% 74,108 74,674
60% 60.6% 63,521 64,133
50% 50.0% 52,934 52,968
40% 41.1% 42,347 43,547
30% 29.8% 31,760 31,497
20% 19.7% 21,174 20,904
10% 10.3% 10,587 10,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,181
Calibration 2     103,692
Calibration 3     104,028
ssj_ops@calibrated=103,860
100% 98.9% 103,860 102,769
90% 89.7% 93,474 93,165
80% 79.3% 83,088 82,378
70% 70.9% 72,702 73,635
60% 59.5% 62,316 61,788
50% 49.7% 51,930 51,639
40% 39.6% 41,544 41,171
30% 29.6% 31,158 30,757
20% 20.1% 20,772 20,878
10% 9.7% 10,386 10,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,632
Calibration 2     104,273
Calibration 3     104,630
ssj_ops@calibrated=104,452
100% 99.7% 104,452 104,188
90% 89.8% 94,007 93,823
80% 80.2% 83,561 83,799
70% 69.8% 73,116 72,866
60% 59.2% 62,671 61,791
50% 49.3% 52,226 51,444
40% 40.5% 41,781 42,252
30% 30.2% 31,336 31,558
20% 19.9% 20,890 20,773
10% 10.3% 10,445 10,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,783
Calibration 2     104,988
Calibration 3     105,125
ssj_ops@calibrated=105,056
100% 99.2% 105,056 104,252
90% 90.9% 94,551 95,445
80% 80.9% 84,045 85,037
70% 70.4% 73,539 73,950
60% 60.9% 63,034 64,020
50% 49.9% 52,528 52,449
40% 39.4% 42,022 41,358
30% 30.5% 31,517 32,027
20% 20.2% 21,011 21,173
10% 9.8% 10,506 10,269
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,335
Calibration 2     105,108
Calibration 3     105,487
ssj_ops@calibrated=105,298
100% 99.4% 105,298 104,703
90% 90.4% 94,768 95,203
80% 79.5% 84,238 83,735
70% 70.5% 73,708 74,272
60% 59.3% 63,179 62,494
50% 50.3% 52,649 52,926
40% 40.4% 42,119 42,535
30% 29.9% 31,589 31,522
20% 20.1% 21,060 21,182
10% 10.0% 10,530 10,482
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,350
Calibration 2     107,420
Calibration 3     107,727
ssj_ops@calibrated=107,573
100% 100.3% 107,573 107,942
90% 89.5% 96,816 96,282
80% 80.6% 86,059 86,698
70% 70.0% 75,301 75,333
60% 60.0% 64,544 64,514
50% 50.6% 53,787 54,408
40% 39.2% 43,029 42,153
30% 29.5% 32,272 31,768
20% 19.7% 21,515 21,210
10% 9.7% 10,757 10,413
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,570
Calibration 2     104,591
Calibration 3     104,859
ssj_ops@calibrated=104,725
100% 99.3% 104,725 103,992
90% 90.0% 94,253 94,300
80% 79.5% 83,780 83,272
70% 69.9% 73,308 73,218
60% 60.2% 62,835 63,049
50% 50.2% 52,363 52,567
40% 39.9% 41,890 41,767
30% 30.4% 31,418 31,829
20% 19.9% 20,945 20,866
10% 9.8% 10,473 10,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,675
Calibration 2     105,278
Calibration 3     105,541
ssj_ops@calibrated=105,409
100% 100.1% 105,409 105,558
90% 90.5% 94,868 95,372
80% 79.8% 84,327 84,078
70% 70.2% 73,786 73,998
60% 60.5% 63,245 63,773
50% 50.2% 52,705 52,944
40% 39.9% 42,164 42,098
30% 29.8% 31,623 31,422
20% 19.8% 21,082 20,836
10% 10.2% 10,541 10,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,267
Calibration 2     104,867
Calibration 3     105,107
ssj_ops@calibrated=104,987
100% 99.4% 104,987 104,330
90% 91.4% 94,488 95,977
80% 79.3% 83,989 83,284
70% 70.3% 73,491 73,760
60% 60.6% 62,992 63,662
50% 49.9% 52,493 52,440
40% 40.3% 41,995 42,343
30% 29.8% 31,496 31,246
20% 19.7% 20,997 20,701
10% 10.1% 10,499 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,908
Calibration 2     101,874
Calibration 3     102,138
ssj_ops@calibrated=102,006
100% 99.8% 102,006 101,771
90% 90.0% 91,806 91,847
80% 79.7% 81,605 81,314
70% 69.9% 71,404 71,267
60% 59.2% 61,204 60,357
50% 50.4% 51,003 51,365
40% 39.6% 40,803 40,384
30% 30.2% 30,602 30,828
20% 19.8% 20,401 20,167
10% 9.9% 10,201 10,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,049
Calibration 2     106,331
Calibration 3     106,357
ssj_ops@calibrated=106,344
100% 98.8% 106,344 105,111
90% 90.2% 95,710 95,877
80% 80.8% 85,075 85,973
70% 69.3% 74,441 73,658
60% 60.4% 63,806 64,244
50% 50.2% 53,172 53,379
40% 40.1% 42,538 42,693
30% 30.4% 31,903 32,331
20% 19.7% 21,269 20,942
10% 9.8% 10,634 10,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-01.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,655
Calibration 2     105,651
Calibration 3     105,756
ssj_ops@calibrated=105,703
100% 99.6% 105,703 105,327
90% 90.0% 95,133 95,100
80% 79.7% 84,563 84,221
70% 70.0% 73,992 73,991
60% 59.1% 63,422 62,420
50% 49.7% 52,852 52,484
40% 40.2% 42,281 42,492
30% 30.1% 31,711 31,792
20% 20.0% 21,141 21,160
10% 10.1% 10,570 10,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
