Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,385,125
ssj_ops@100% per JVM = 104,814
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 12, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,786,854
Calibration 2     8,409,710
Calibration 3     8,415,873
ssj_ops@calibrated=8,412,791
100% 99.7% 8,412,791 8,385,125
90% 90.1% 7,571,512 7,580,331
80% 80.0% 6,730,233 6,733,849
70% 70.0% 5,888,954 5,891,235
60% 60.0% 5,047,675 5,045,859
50% 50.0% 4,206,396 4,203,713
40% 40.0% 3,365,116 3,361,981
30% 30.0% 2,523,837 2,526,758
20% 20.0% 1,682,558 1,682,469
10% 10.0% 841,279 839,280
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-02.001 103,513
sy480-02.002 104,932
sy480-02.003 105,242
sy480-02.004 106,177
sy480-02.005 106,122
sy480-02.006 104,063
sy480-02.007 105,595
sy480-02.008 106,532
sy480-02.009 107,318
sy480-02.010 105,837
sy480-02.011 104,427
sy480-02.012 106,307
sy480-02.013 104,814
sy480-02.014 106,094
sy480-02.015 106,711
sy480-02.016 103,964
sy480-02.017 104,491
sy480-02.018 104,020
sy480-02.019 105,795
sy480-02.020 100,558
sy480-02.021 107,105
sy480-02.022 105,494
sy480-02.023 99,878
sy480-02.024 101,862
sy480-02.025 104,244
sy480-02.026 103,214
sy480-02.027 105,433
sy480-02.028 104,698
sy480-02.029 107,057
sy480-02.030 106,456
sy480-02.031 104,534
sy480-02.032 106,821
sy480-02.033 106,734
sy480-02.034 101,245
sy480-02.035 104,424
sy480-02.036 104,351
sy480-02.037 106,102
sy480-02.038 101,319
sy480-02.039 105,834
sy480-02.040 103,777
sy480-02.041 108,035
sy480-02.042 106,272
sy480-02.043 107,324
sy480-02.044 103,598
sy480-02.045 102,364
sy480-02.046 108,588
sy480-02.047 101,600
sy480-02.048 100,556
sy480-02.049 105,621
sy480-02.050 106,137
sy480-02.051 106,119
sy480-02.052 106,268
sy480-02.053 103,519
sy480-02.054 106,069
sy480-02.055 99,249
sy480-02.056 104,819
sy480-02.057 101,578
sy480-02.058 105,737
sy480-02.059 103,695
sy480-02.060 101,146
sy480-02.061 104,681
sy480-02.062 105,896
sy480-02.063 105,126
sy480-02.064 101,621
sy480-02.065 105,815
sy480-02.066 104,512
sy480-02.067 106,006
sy480-02.068 103,225
sy480-02.069 106,050
sy480-02.070 105,958
sy480-02.071 106,111
sy480-02.072 105,485
sy480-02.073 107,486
sy480-02.074 105,674
sy480-02.075 106,870
sy480-02.076 106,686
sy480-02.077 102,109
sy480-02.078 104,806
sy480-02.079 104,929
sy480-02.080 104,698
ssj_ops@100% 8,385,125
ssj_ops@100% per JVM 104,814

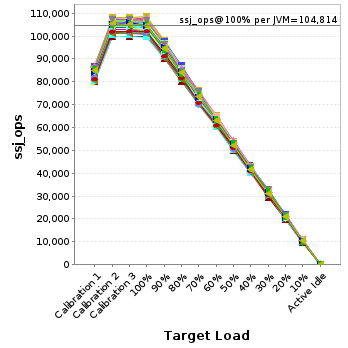

Graph of per-instance results
JVM 'sy480-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,373
Calibration 2     103,706
Calibration 3     103,823
ssj_ops@calibrated=103,765
100% 99.8% 103,765 103,513
90% 90.2% 93,388 93,635
80% 80.0% 83,012 83,046
70% 70.1% 72,635 72,747
60% 60.8% 62,259 63,059
50% 50.2% 51,882 52,126
40% 40.2% 41,506 41,680
30% 30.4% 31,129 31,536
20% 20.2% 20,753 20,933
10% 10.3% 10,376 10,675
Active Idle   0 0
Graph of results

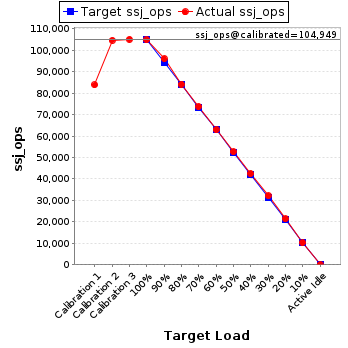

JVM 'sy480-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,888
Calibration 2     104,734
Calibration 3     105,163
ssj_ops@calibrated=104,949
100% 100.0% 104,949 104,932
90% 91.6% 94,454 96,128
80% 80.3% 83,959 84,232
70% 70.4% 73,464 73,836
60% 60.0% 62,969 63,019
50% 50.2% 52,474 52,726
40% 40.6% 41,979 42,566
30% 30.7% 31,485 32,193
20% 20.4% 20,990 21,427
10% 9.9% 10,495 10,362
Active Idle   0 0
Graph of results
JVM 'sy480-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,488
Calibration 2     105,196
Calibration 3     105,113
ssj_ops@calibrated=105,154
100% 100.1% 105,154 105,242
90% 90.3% 94,639 94,941
80% 80.2% 84,124 84,356
70% 70.2% 73,608 73,828
60% 60.0% 63,093 63,045
50% 48.9% 52,577 51,432
40% 40.5% 42,062 42,617
30% 30.4% 31,546 31,985
20% 20.1% 21,031 21,133
10% 9.9% 10,515 10,458
Active Idle   0 0
Graph of results
JVM 'sy480-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,442
Calibration 2     105,990
Calibration 3     106,438
ssj_ops@calibrated=106,214
100% 100.0% 106,214 106,177
90% 90.3% 95,592 95,885
80% 79.7% 84,971 84,630
70% 70.2% 74,350 74,608
60% 61.1% 63,728 64,876
50% 49.5% 53,107 52,527
40% 39.6% 42,486 42,085
30% 30.1% 31,864 32,016
20% 20.2% 21,243 21,438
10% 9.8% 10,621 10,421
Active Idle   0 0
Graph of results
JVM 'sy480-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,294
Calibration 2     106,299
Calibration 3     106,275
ssj_ops@calibrated=106,287
100% 99.8% 106,287 106,122
90% 90.5% 95,658 96,138
80% 79.9% 85,030 84,951
70% 70.3% 74,401 74,736
60% 59.5% 63,772 63,271
50% 49.7% 53,144 52,831
40% 40.1% 42,515 42,665
30% 30.3% 31,886 32,212
20% 19.8% 21,257 21,096
10% 10.1% 10,629 10,787
Active Idle   0 0
Graph of results
JVM 'sy480-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,619
Calibration 2     104,013
Calibration 3     103,847
ssj_ops@calibrated=103,930
100% 100.1% 103,930 104,063
90% 89.5% 93,537 93,051
80% 79.7% 83,144 82,838
70% 70.1% 72,751 72,873
60% 59.3% 62,358 61,618
50% 49.5% 51,965 51,409
40% 40.5% 41,572 42,089
30% 30.5% 31,179 31,689
20% 20.4% 20,786 21,179
10% 10.2% 10,393 10,558
Active Idle   0 0
Graph of results
JVM 'sy480-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,731
Calibration 2     105,862
Calibration 3     105,919
ssj_ops@calibrated=105,891
100% 99.7% 105,891 105,595
90% 89.8% 95,302 95,072
80% 80.0% 84,713 84,732
70% 69.8% 74,124 73,913
60% 60.3% 63,534 63,814
50% 49.1% 52,945 51,992
40% 39.6% 42,356 41,954
30% 29.8% 31,767 31,536
20% 20.2% 21,178 21,392
10% 10.2% 10,589 10,771
Active Idle   0 0
Graph of results
JVM 'sy480-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,896
Calibration 2     106,132
Calibration 3     106,585
ssj_ops@calibrated=106,358
100% 100.2% 106,358 106,532
90% 89.3% 95,722 94,977
80% 79.9% 85,087 84,986
70% 70.4% 74,451 74,894
60% 60.0% 63,815 63,860
50% 50.2% 53,179 53,340
40% 40.3% 42,543 42,856
30% 29.7% 31,907 31,634
20% 19.9% 21,272 21,122
10% 10.1% 10,636 10,758
Active Idle   0 0
Graph of results
JVM 'sy480-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,510
Calibration 2     107,893
Calibration 3     107,993
ssj_ops@calibrated=107,943
100% 99.4% 107,943 107,318
90% 90.4% 97,149 97,549
80% 79.7% 86,354 86,075
70% 69.6% 75,560 75,162
60% 60.5% 64,766 65,329
50% 49.8% 53,971 53,732
40% 40.1% 43,177 43,312
30% 29.7% 32,383 32,089
20% 20.2% 21,589 21,762
10% 10.1% 10,794 10,852
Active Idle   0 0
Graph of results
JVM 'sy480-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,522
Calibration 2     106,575
Calibration 3     106,478
ssj_ops@calibrated=106,526
100% 99.4% 106,526 105,837
90% 90.9% 95,874 96,788
80% 80.1% 85,221 85,284
70% 70.0% 74,568 74,563
60% 59.5% 63,916 63,391
50% 49.9% 53,263 53,196
40% 40.0% 42,611 42,662
30% 29.7% 31,958 31,646
20% 19.8% 21,305 21,108
10% 9.9% 10,653 10,550
Active Idle   0 0
Graph of results
JVM 'sy480-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,739
Calibration 2     105,774
Calibration 3     105,415
ssj_ops@calibrated=105,595
100% 98.9% 105,595 104,427
90% 89.0% 95,035 93,957
80% 79.8% 84,476 84,247
70% 69.4% 73,916 73,274
60% 60.5% 63,357 63,872
50% 50.4% 52,797 53,236
40% 40.1% 42,238 42,375
30% 30.0% 31,678 31,638
20% 20.1% 21,119 21,217
10% 9.9% 10,559 10,475
Active Idle   0 0
Graph of results
JVM 'sy480-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,846
Calibration 2     107,260
Calibration 3     107,085
ssj_ops@calibrated=107,173
100% 99.2% 107,173 106,307
90% 89.7% 96,456 96,101
80% 80.6% 85,738 86,433
70% 69.2% 75,021 74,202
60% 59.6% 64,304 63,847
50% 50.0% 53,586 53,599
40% 39.8% 42,869 42,699
30% 30.2% 32,152 32,332
20% 20.3% 21,435 21,769
10% 10.1% 10,717 10,775
Active Idle   0 0
Graph of results
JVM 'sy480-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,137
Calibration 2     106,034
Calibration 3     105,974
ssj_ops@calibrated=106,004
100% 98.9% 106,004 104,814
90% 90.3% 95,404 95,715
80% 80.2% 84,803 85,029
70% 70.4% 74,203 74,628
60% 59.3% 63,602 62,895
50% 49.6% 53,002 52,561
40% 40.2% 42,402 42,608
30% 30.2% 31,801 31,986
20% 20.0% 21,201 21,182
10% 9.6% 10,600 10,200
Active Idle   0 0
Graph of results
JVM 'sy480-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,909
Calibration 2     106,652
Calibration 3     106,730
ssj_ops@calibrated=106,691
100% 99.4% 106,691 106,094
90% 89.4% 96,022 95,355
80% 79.4% 85,353 84,765
70% 69.5% 74,684 74,146
60% 59.6% 64,015 63,571
50% 49.7% 53,346 53,033
40% 39.9% 42,676 42,534
30% 30.1% 32,007 32,162
20% 20.0% 21,338 21,341
10% 10.0% 10,669 10,700
Active Idle   0 0
Graph of results
JVM 'sy480-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,765
Calibration 2     106,730
Calibration 3     106,999
ssj_ops@calibrated=106,864
100% 99.9% 106,864 106,711
90% 90.0% 96,178 96,190
80% 80.7% 85,492 86,268
70% 70.5% 74,805 75,355
60% 59.2% 64,119 63,271
50% 50.7% 53,432 54,150
40% 40.0% 42,746 42,752
30% 30.4% 32,059 32,504
20% 19.8% 21,373 21,196
10% 10.0% 10,686 10,738
Active Idle   0 0
Graph of results
JVM 'sy480-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,783
Calibration 2     104,640
Calibration 3     104,727
ssj_ops@calibrated=104,683
100% 99.3% 104,683 103,964
90% 91.0% 94,215 95,242
80% 80.0% 83,747 83,776
70% 69.7% 73,278 72,914
60% 59.9% 62,810 62,659
50% 50.6% 52,342 52,925
40% 39.9% 41,873 41,781
30% 30.6% 31,405 32,004
20% 20.0% 20,937 20,954
10% 10.1% 10,468 10,536
Active Idle   0 0
Graph of results
JVM 'sy480-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,235
Calibration 2     104,913
Calibration 3     104,836
ssj_ops@calibrated=104,875
100% 99.6% 104,875 104,491
90% 91.0% 94,387 95,412
80% 80.5% 83,900 84,427
70% 69.0% 73,412 72,409
60% 58.9% 62,925 61,753
50% 49.7% 52,437 52,149
40% 39.6% 41,950 41,493
30% 30.2% 31,462 31,724
20% 19.7% 20,975 20,704
10% 10.3% 10,487 10,792
Active Idle   0 0
Graph of results
JVM 'sy480-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,174
Calibration 2     103,863
Calibration 3     103,848
ssj_ops@calibrated=103,855
100% 100.2% 103,855 104,020
90% 89.6% 93,470 93,007
80% 79.6% 83,084 82,646
70% 70.9% 72,699 73,682
60% 59.8% 62,313 62,093
50% 49.2% 51,928 51,077
40% 40.1% 41,542 41,667
30% 30.8% 31,157 32,016
20% 20.2% 20,771 20,985
10% 10.2% 10,386 10,551
Active Idle   0 0
Graph of results
JVM 'sy480-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,837
Calibration 2     105,507
Calibration 3     105,561
ssj_ops@calibrated=105,534
100% 100.2% 105,534 105,795
90% 90.2% 94,981 95,159
80% 80.8% 84,427 85,294
70% 69.8% 73,874 73,612
60% 58.5% 63,320 61,773
50% 50.4% 52,767 53,156
40% 40.1% 42,214 42,354
30% 30.3% 31,660 32,004
20% 19.8% 21,107 20,892
10% 10.5% 10,553 11,037
Active Idle   0 0
Graph of results
JVM 'sy480-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,493
Calibration 2     101,154
Calibration 3     101,195
ssj_ops@calibrated=101,174
100% 99.4% 101,174 100,558
90% 89.9% 91,057 90,905
80% 80.3% 80,939 81,213
70% 69.8% 70,822 70,667
60% 60.0% 60,704 60,656
50% 50.5% 50,587 51,132
40% 39.6% 40,470 40,057
30% 30.7% 30,352 31,087
20% 19.9% 20,235 20,120
10% 9.8% 10,117 9,950
Active Idle   0 0
Graph of results
JVM 'sy480-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,049
Calibration 2     107,310
Calibration 3     107,345
ssj_ops@calibrated=107,327
100% 99.8% 107,327 107,105
90% 90.6% 96,595 97,277
80% 79.1% 85,862 84,886
70% 70.4% 75,129 75,576
60% 59.8% 64,396 64,183
50% 49.2% 53,664 52,821
40% 40.2% 42,931 43,115
30% 29.6% 32,198 31,804
20% 20.0% 21,465 21,448
10% 9.7% 10,733 10,375
Active Idle   0 0
Graph of results
JVM 'sy480-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,689
Calibration 2     105,689
Calibration 3     106,084
ssj_ops@calibrated=105,887
100% 99.6% 105,887 105,494
90% 91.0% 95,298 96,397
80% 80.0% 84,709 84,700
70% 70.4% 74,121 74,555
60% 59.9% 63,532 63,431
50% 50.4% 52,943 53,376
40% 39.7% 42,355 42,068
30% 29.9% 31,766 31,609
20% 19.9% 21,177 21,069
10% 9.9% 10,589 10,459
Active Idle   0 0
Graph of results
JVM 'sy480-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,248
Calibration 2     99,795
Calibration 3     99,786
ssj_ops@calibrated=99,791
100% 100.1% 99,791 99,878
90% 90.2% 89,812 90,011
80% 80.5% 79,833 80,288
70% 70.7% 69,854 70,505
60% 60.9% 59,874 60,782
50% 50.0% 49,895 49,860
40% 40.5% 39,916 40,389
30% 29.5% 29,937 29,431
20% 19.8% 19,958 19,754
10% 9.7% 9,979 9,670
Active Idle   0 0
Graph of results
JVM 'sy480-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,102
Calibration 2     101,887
Calibration 3     101,661
ssj_ops@calibrated=101,774
100% 100.1% 101,774 101,862
90% 89.6% 91,597 91,225
80% 80.7% 81,419 82,085
70% 70.1% 71,242 71,342
60% 59.5% 61,065 60,535
50% 50.8% 50,887 51,665
40% 40.1% 40,710 40,838
30% 30.0% 30,532 30,565
20% 19.9% 20,355 20,252
10% 9.9% 10,177 10,062
Active Idle   0 0
Graph of results
JVM 'sy480-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,695
Calibration 2     105,997
Calibration 3     106,170
ssj_ops@calibrated=106,083
100% 98.3% 106,083 104,244
90% 90.0% 95,475 95,527
80% 80.1% 84,867 84,940
70% 69.9% 74,258 74,188
60% 59.6% 63,650 63,195
50% 49.9% 53,042 52,939
40% 39.6% 42,433 41,979
30% 30.3% 31,825 32,112
20% 19.5% 21,217 20,665
10% 10.0% 10,608 10,579
Active Idle   0 0
Graph of results
JVM 'sy480-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,201
Calibration 2     104,322
Calibration 3     104,443
ssj_ops@calibrated=104,382
100% 98.9% 104,382 103,214
90% 90.4% 93,944 94,322
80% 79.9% 83,506 83,408
70% 70.3% 73,067 73,343
60% 59.6% 62,629 62,234
50% 49.6% 52,191 51,810
40% 40.1% 41,753 41,858
30% 30.3% 31,315 31,662
20% 20.1% 20,876 21,004
10% 10.0% 10,438 10,392
Active Idle   0 0

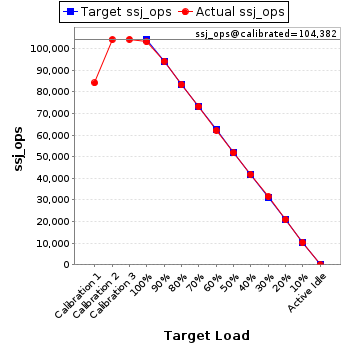

Graph of results
JVM 'sy480-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,459
Calibration 2     105,944
Calibration 3     105,878
ssj_ops@calibrated=105,911
100% 99.5% 105,911 105,433
90% 90.2% 95,320 95,558
80% 80.4% 84,729 85,138
70% 69.3% 74,138 73,391
60% 60.2% 63,546 63,719
50% 49.8% 52,955 52,765
40% 39.9% 42,364 42,223
30% 30.0% 31,773 31,751
20% 19.8% 21,182 21,008
10% 9.9% 10,591 10,496
Active Idle   0 0
Graph of results
JVM 'sy480-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,526
Calibration 2     105,051
Calibration 3     105,036
ssj_ops@calibrated=105,044
100% 99.7% 105,044 104,698
90% 90.3% 94,539 94,907
80% 79.9% 84,035 83,926
70% 70.4% 73,531 73,917
60% 60.5% 63,026 63,504
50% 50.6% 52,522 53,122
40% 39.7% 42,017 41,705
30% 30.2% 31,513 31,674
20% 19.2% 21,009 20,203
10% 9.6% 10,504 10,121
Active Idle   0 0
Graph of results
JVM 'sy480-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,639
Calibration 2     107,082
Calibration 3     107,195
ssj_ops@calibrated=107,138
100% 99.9% 107,138 107,057
90% 90.6% 96,425 97,105
80% 80.2% 85,711 85,897
70% 69.8% 74,997 74,826
60% 59.3% 64,283 63,558
50% 50.1% 53,569 53,709
40% 39.7% 42,855 42,530
30% 29.9% 32,142 32,061
20% 20.2% 21,428 21,596
10% 10.0% 10,714 10,750
Active Idle   0 0
Graph of results
JVM 'sy480-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,818
Calibration 2     106,345
Calibration 3     106,556
ssj_ops@calibrated=106,450
100% 100.0% 106,450 106,456
90% 89.9% 95,805 95,714
80% 80.1% 85,160 85,293
70% 70.8% 74,515 75,409
60% 59.6% 63,870 63,489
50% 50.0% 53,225 53,199
40% 39.9% 42,580 42,496
30% 29.9% 31,935 31,781
20% 20.0% 21,290 21,316
10% 10.0% 10,645 10,633
Active Idle   0 0
Graph of results
JVM 'sy480-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,207
Calibration 2     105,819
Calibration 3     105,804
ssj_ops@calibrated=105,812
100% 98.8% 105,812 104,534
90% 89.0% 95,231 94,120
80% 79.8% 84,650 84,443
70% 70.6% 74,068 74,685
60% 60.1% 63,487 63,627
50% 49.4% 52,906 52,268
40% 40.0% 42,325 42,345
30% 30.1% 31,744 31,833
20% 20.2% 21,162 21,374
10% 9.9% 10,581 10,460
Active Idle   0 0
Graph of results
JVM 'sy480-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,115
Calibration 2     107,723
Calibration 3     107,605
ssj_ops@calibrated=107,664
100% 99.2% 107,664 106,821
90% 89.3% 96,897 96,133
80% 80.5% 86,131 86,721
70% 69.7% 75,365 75,083
60% 59.6% 64,598 64,164
50% 49.8% 53,832 53,649
40% 39.8% 43,066 42,882
30% 29.8% 32,299 32,099
20% 19.9% 21,533 21,430
10% 9.9% 10,766 10,706
Active Idle   0 0
Graph of results
JVM 'sy480-02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,042
Calibration 2     106,671
Calibration 3     106,662
ssj_ops@calibrated=106,666
100% 100.1% 106,666 106,734
90% 90.3% 96,000 96,322
80% 79.7% 85,333 85,006
70% 69.4% 74,666 74,068
60% 60.3% 64,000 64,328
50% 50.5% 53,333 53,853
40% 40.5% 42,667 43,235
30% 30.1% 32,000 32,092
20% 19.6% 21,333 20,887
10% 10.3% 10,667 10,934
Active Idle   0 0
Graph of results
JVM 'sy480-02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,758
Calibration 2     101,689
Calibration 3     101,731
ssj_ops@calibrated=101,710
100% 99.5% 101,710 101,245
90% 89.9% 91,539 91,421
80% 80.6% 81,368 81,998
70% 69.6% 71,197 70,823
60% 60.5% 61,026 61,490
50% 50.2% 50,855 51,078
40% 39.7% 40,684 40,397
30% 30.2% 30,513 30,754
20% 19.9% 20,342 20,282
10% 10.1% 10,171 10,233
Active Idle   0 0
Graph of results
JVM 'sy480-02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,642
Calibration 2     104,749
Calibration 3     104,805
ssj_ops@calibrated=104,777
100% 99.7% 104,777 104,424
90% 91.2% 94,299 95,568
80% 79.9% 83,821 83,703
70% 70.4% 73,344 73,747
60% 59.6% 62,866 62,452
50% 50.1% 52,388 52,452
40% 40.1% 41,911 41,979
30% 29.8% 31,433 31,230
20% 20.1% 20,955 21,090
10% 9.8% 10,478 10,238
Active Idle   0 0
Graph of results
JVM 'sy480-02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,097
Calibration 2     104,626
Calibration 3     104,677
ssj_ops@calibrated=104,652
100% 99.7% 104,652 104,351
90% 89.6% 94,187 93,784
80% 79.7% 83,721 83,436
70% 69.7% 73,256 72,934
60% 60.6% 62,791 63,394
50% 50.3% 52,326 52,601
40% 40.7% 41,861 42,603
30% 30.3% 31,396 31,730
20% 19.8% 20,930 20,681
10% 10.0% 10,465 10,508
Active Idle   0 0
Graph of results
JVM 'sy480-02.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,718
Calibration 2     106,244
Calibration 3     106,293
ssj_ops@calibrated=106,269
100% 99.8% 106,269 106,102
90% 90.9% 95,642 96,614
80% 80.1% 85,015 85,121
70% 71.2% 74,388 75,647
60% 60.4% 63,761 64,198
50% 49.9% 53,134 53,021
40% 38.8% 42,508 41,213
30% 29.4% 31,881 31,278
20% 19.6% 21,254 20,803
10% 10.1% 10,627 10,721
Active Idle   0 0
Graph of results
JVM 'sy480-02.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,877
Calibration 2     101,689
Calibration 3     101,611
ssj_ops@calibrated=101,650
100% 99.7% 101,650 101,319
90% 89.7% 91,485 91,214
80% 80.8% 81,320 82,145
70% 69.8% 71,155 70,996
60% 60.6% 60,990 61,603
50% 50.1% 50,825 50,907
40% 40.8% 40,660 41,473
30% 29.8% 30,495 30,241
20% 20.3% 20,330 20,616
10% 10.2% 10,165 10,325
Active Idle   0 0
Graph of results
JVM 'sy480-02.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,805
Calibration 2     105,412
Calibration 3     105,878
ssj_ops@calibrated=105,645
100% 100.2% 105,645 105,834
90% 89.4% 95,080 94,463
80% 79.6% 84,516 84,107
70% 69.4% 73,951 73,362
60% 60.2% 63,387 63,565
50% 50.3% 52,822 53,153
40% 40.0% 42,258 42,267
30% 29.7% 31,693 31,332
20% 19.6% 21,129 20,724
10% 9.9% 10,564 10,450
Active Idle   0 0
Graph of results
JVM 'sy480-02.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,314
Calibration 2     104,599
Calibration 3     104,798
ssj_ops@calibrated=104,698
100% 99.1% 104,698 103,777
90% 91.2% 94,228 95,444
80% 80.1% 83,759 83,842
70% 70.3% 73,289 73,617
60% 60.2% 62,819 63,032
50% 50.2% 52,349 52,529
40% 39.3% 41,879 41,102
30% 30.4% 31,409 31,879
20% 20.1% 20,940 21,077
10% 10.0% 10,470 10,451
Active Idle   0 0
Graph of results
JVM 'sy480-02.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,678
Calibration 2     107,692
Calibration 3     108,266
ssj_ops@calibrated=107,979
100% 100.1% 107,979 108,035
90% 89.5% 97,181 96,634
80% 80.5% 86,383 86,933
70% 69.5% 75,585 75,049
60% 60.3% 64,787 65,065
50% 49.3% 53,989 53,224
40% 39.4% 43,192 42,574
30% 29.8% 32,394 32,221
20% 19.7% 21,596 21,303
10% 10.0% 10,798 10,783
Active Idle   0 0
Graph of results
JVM 'sy480-02.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,434
Calibration 2     106,465
Calibration 3     106,538
ssj_ops@calibrated=106,501
100% 99.8% 106,501 106,272
90% 90.0% 95,851 95,861
80% 80.2% 85,201 85,393
70% 69.7% 74,551 74,284
60% 59.1% 63,901 62,916
50% 50.2% 53,251 53,431
40% 39.9% 42,601 42,472
30% 29.8% 31,950 31,710
20% 20.0% 21,300 21,301
10% 9.6% 10,650 10,211
Active Idle   0 0
Graph of results
JVM 'sy480-02.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,446
Calibration 2     106,311
Calibration 3     107,331
ssj_ops@calibrated=106,821
100% 100.5% 106,821 107,324
90% 90.5% 96,139 96,673
80% 81.0% 85,457 86,556
70% 69.4% 74,775 74,150
60% 59.4% 64,093 63,462
50% 49.2% 53,410 52,555
40% 40.7% 42,728 43,447
30% 30.1% 32,046 32,113
20% 20.3% 21,364 21,704
10% 9.5% 10,682 10,185
Active Idle   0 0

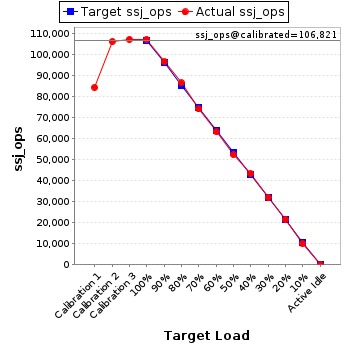

Graph of results
JVM 'sy480-02.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,276
Calibration 2     103,618
Calibration 3     103,729
ssj_ops@calibrated=103,673
100% 99.9% 103,673 103,598
90% 90.1% 93,306 93,447
80% 79.2% 82,939 82,068
70% 69.9% 72,571 72,482
60% 61.2% 62,204 63,463
50% 49.4% 51,837 51,202
40% 39.8% 41,469 41,300
30% 29.4% 31,102 30,509
20% 20.0% 20,735 20,717
10% 10.1% 10,367 10,497
Active Idle   0 0
Graph of results
JVM 'sy480-02.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,774
Calibration 2     102,667
Calibration 3     102,929
ssj_ops@calibrated=102,798
100% 99.6% 102,798 102,364
90% 89.7% 92,518 92,163
80% 80.1% 82,239 82,357
70% 70.5% 71,959 72,427
60% 59.9% 61,679 61,563
50% 50.1% 51,399 51,507
40% 40.0% 41,119 41,109
30% 29.6% 30,839 30,446
20% 20.0% 20,560 20,592
10% 10.1% 10,280 10,418
Active Idle   0 0
Graph of results
JVM 'sy480-02.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,718
Calibration 2     108,240
Calibration 3     108,189
ssj_ops@calibrated=108,214
100% 100.3% 108,214 108,588
90% 90.4% 97,393 97,877
80% 80.1% 86,571 86,665
70% 70.3% 75,750 76,123
60% 60.5% 64,929 65,423
50% 49.9% 54,107 54,048
40% 39.7% 43,286 42,982
30% 29.9% 32,464 32,339
20% 20.1% 21,643 21,748
10% 9.9% 10,821 10,729
Active Idle   0 0
Graph of results
JVM 'sy480-02.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,427
Calibration 2     102,887
Calibration 3     102,684
ssj_ops@calibrated=102,786
100% 98.8% 102,786 101,600
90% 90.0% 92,507 92,540
80% 78.9% 82,228 81,134
70% 70.9% 71,950 72,861
60% 60.0% 61,671 61,702
50% 50.4% 51,393 51,795
40% 39.6% 41,114 40,748
30% 29.3% 30,836 30,138
20% 20.1% 20,557 20,691
10% 10.2% 10,279 10,490
Active Idle   0 0
Graph of results
JVM 'sy480-02.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,051
Calibration 2     101,236
Calibration 3     101,478
ssj_ops@calibrated=101,357
100% 99.2% 101,357 100,556
90% 90.4% 91,222 91,600
80% 80.2% 81,086 81,301
70% 71.2% 70,950 72,214
60% 60.7% 60,814 61,527
50% 50.0% 50,679 50,696
40% 40.6% 40,543 41,157
30% 29.9% 30,407 30,312
20% 20.1% 20,271 20,344
10% 9.9% 10,136 10,053
Active Idle   0 0

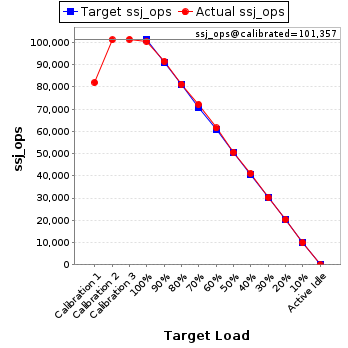

Graph of results
JVM 'sy480-02.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,453
Calibration 2     105,319
Calibration 3     105,581
ssj_ops@calibrated=105,450
100% 100.2% 105,450 105,621
90% 89.8% 94,905 94,731
80% 79.6% 84,360 83,940
70% 69.3% 73,815 73,077
60% 60.5% 63,270 63,805
50% 49.4% 52,725 52,145
40% 39.5% 42,180 41,676
30% 30.0% 31,635 31,685
20% 20.2% 21,090 21,288
10% 10.1% 10,545 10,616
Active Idle   0 0
Graph of results
JVM 'sy480-02.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,439
Calibration 2     106,918
Calibration 3     106,733
ssj_ops@calibrated=106,825
100% 99.4% 106,825 106,137
90% 90.5% 96,143 96,727
80% 81.0% 85,460 86,577
70% 70.1% 74,778 74,843
60% 59.6% 64,095 63,655
50% 49.9% 53,413 53,296
40% 39.9% 42,730 42,585
30% 30.3% 32,048 32,330
20% 19.4% 21,365 20,691
10% 10.1% 10,683 10,816
Active Idle   0 0
Graph of results
JVM 'sy480-02.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,500
Calibration 2     106,669
Calibration 3     106,848
ssj_ops@calibrated=106,759
100% 99.4% 106,759 106,119
90% 91.6% 96,083 97,830
80% 81.6% 85,407 87,096
70% 70.5% 74,731 75,277
60% 59.6% 64,055 63,618
50% 49.9% 53,379 53,275
40% 39.7% 42,704 42,421
30% 29.8% 32,028 31,835
20% 20.4% 21,352 21,794
10% 9.7% 10,676 10,367
Active Idle   0 0
Graph of results
JVM 'sy480-02.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,152
Calibration 2     106,085
Calibration 3     106,316
ssj_ops@calibrated=106,200
100% 100.1% 106,200 106,268
90% 88.3% 95,580 93,783
80% 79.5% 84,960 84,446
70% 70.2% 74,340 74,597
60% 59.8% 63,720 63,526
50% 50.8% 53,100 53,944
40% 40.1% 42,480 42,536
30% 29.6% 31,860 31,417
20% 19.8% 21,240 21,012
10% 10.0% 10,620 10,587
Active Idle   0 0
Graph of results
JVM 'sy480-02.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,939
Calibration 2     103,733
Calibration 3     103,726
ssj_ops@calibrated=103,729
100% 99.8% 103,729 103,519
90% 89.2% 93,356 92,485
80% 80.6% 82,983 83,632
70% 69.6% 72,610 72,247
60% 60.0% 62,238 62,268
50% 50.4% 51,865 52,282
40% 40.1% 41,492 41,547
30% 30.1% 31,119 31,226
20% 20.2% 20,746 20,952
10% 10.3% 10,373 10,682
Active Idle   0 0
Graph of results
JVM 'sy480-02.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,309
Calibration 2     106,409
Calibration 3     106,438
ssj_ops@calibrated=106,423
100% 99.7% 106,423 106,069
90% 90.5% 95,781 96,309
80% 79.8% 85,138 84,914
70% 69.5% 74,496 73,997
60% 60.0% 63,854 63,876
50% 49.6% 53,212 52,742
40% 40.4% 42,569 42,991
30% 30.2% 31,927 32,192
20% 20.0% 21,285 21,272
10% 10.5% 10,642 11,137
Active Idle   0 0
Graph of results
JVM 'sy480-02.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,882
Calibration 2     99,838
Calibration 3     99,919
ssj_ops@calibrated=99,879
100% 99.4% 99,879 99,249
90% 90.3% 89,891 90,237
80% 80.7% 79,903 80,602
70% 70.1% 69,915 69,988
60% 60.0% 59,927 59,908
50% 49.7% 49,939 49,668
40% 39.8% 39,951 39,781
30% 30.9% 29,964 30,861
20% 19.8% 19,976 19,792
10% 10.0% 9,988 9,948
Active Idle   0 0
Graph of results
JVM 'sy480-02.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,545
Calibration 2     105,403
Calibration 3     105,344
ssj_ops@calibrated=105,374
100% 99.5% 105,374 104,819
90% 91.0% 94,836 95,858
80% 79.9% 84,299 84,189
70% 70.3% 73,762 74,110
60% 60.4% 63,224 63,634
50% 49.1% 52,687 51,788
40% 39.5% 42,150 41,670
30% 30.6% 31,612 32,288
20% 20.4% 21,075 21,476
10% 10.0% 10,537 10,562
Active Idle   0 0
Graph of results
JVM 'sy480-02.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,718
Calibration 2     101,658
Calibration 3     101,893
ssj_ops@calibrated=101,776
100% 99.8% 101,776 101,578
90% 90.6% 91,598 92,214
80% 80.3% 81,420 81,687
70% 69.8% 71,243 71,000
60% 59.7% 61,065 60,735
50% 51.2% 50,888 52,088
40% 40.2% 40,710 40,877
30% 29.9% 30,533 30,427
20% 20.4% 20,355 20,784
10% 9.9% 10,178 10,112
Active Idle   0 0
Graph of results
JVM 'sy480-02.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,683
Calibration 2     105,518
Calibration 3     105,643
ssj_ops@calibrated=105,581
100% 100.1% 105,581 105,737
90% 90.2% 95,023 95,219
80% 79.8% 84,465 84,232
70% 70.7% 73,907 74,607
60% 60.0% 63,348 63,376
50% 50.5% 52,790 53,276
40% 40.1% 42,232 42,297
30% 30.0% 31,674 31,628
20% 19.6% 21,116 20,712
10% 9.9% 10,558 10,408
Active Idle   0 0
Graph of results
JVM 'sy480-02.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,376
Calibration 2     103,735
Calibration 3     103,674
ssj_ops@calibrated=103,705
100% 100.0% 103,705 103,695
90% 90.2% 93,334 93,519
80% 80.4% 82,964 83,424
70% 70.1% 72,593 72,717
60% 59.5% 62,223 61,660
50% 50.7% 51,852 52,620
40% 40.3% 41,482 41,773
30% 30.2% 31,111 31,280
20% 20.1% 20,741 20,858
10% 10.1% 10,370 10,456
Active Idle   0 0
Graph of results
JVM 'sy480-02.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,618
Calibration 2     101,096
Calibration 3     101,146
ssj_ops@calibrated=101,121
100% 100.0% 101,121 101,146
90% 89.1% 91,009 90,122
80% 79.9% 80,897 80,792
70% 69.4% 70,785 70,205
60% 59.9% 60,672 60,607
50% 49.8% 50,560 50,389
40% 39.7% 40,448 40,108
30% 29.9% 30,336 30,242
20% 20.3% 20,224 20,512
10% 10.1% 10,112 10,167
Active Idle   0 0
Graph of results
JVM 'sy480-02.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,576
Calibration 2     105,112
Calibration 3     105,377
ssj_ops@calibrated=105,244
100% 99.5% 105,244 104,681
90% 89.7% 94,720 94,383
80% 80.1% 84,195 84,272
70% 69.6% 73,671 73,242
60% 59.7% 63,147 62,787
50% 49.9% 52,622 52,492
40% 40.0% 42,098 42,083
30% 30.4% 31,573 31,959
20% 20.1% 21,049 21,114
10% 9.9% 10,524 10,425
Active Idle   0 0
Graph of results
JVM 'sy480-02.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,439
Calibration 2     106,894
Calibration 3     106,611
ssj_ops@calibrated=106,753
100% 99.2% 106,753 105,896
90% 91.2% 96,077 97,317
80% 79.4% 85,402 84,747
70% 70.3% 74,727 75,071
60% 59.3% 64,052 63,340
50% 50.1% 53,376 53,449
40% 39.4% 42,701 42,070
30% 29.7% 32,026 31,714
20% 20.0% 21,351 21,362
10% 10.0% 10,675 10,696
Active Idle   0 0
Graph of results
JVM 'sy480-02.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,670
Calibration 2     105,110
Calibration 3     105,232
ssj_ops@calibrated=105,171
100% 100.0% 105,171 105,126
90% 90.3% 94,654 94,963
80% 79.4% 84,137 83,524
70% 71.1% 73,620 74,741
60% 60.1% 63,103 63,166
50% 50.2% 52,586 52,835
40% 40.0% 42,068 42,088
30% 30.3% 31,551 31,871
20% 19.9% 21,034 20,978
10% 10.0% 10,517 10,544
Active Idle   0 0
Graph of results
JVM 'sy480-02.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,088
Calibration 2     101,908
Calibration 3     102,166
ssj_ops@calibrated=102,037
100% 99.6% 102,037 101,621
90% 89.3% 91,833 91,097
80% 80.6% 81,629 82,209
70% 68.6% 71,426 69,966
60% 60.5% 61,222 61,766
50% 49.5% 51,018 50,466
40% 40.0% 40,815 40,817
30% 29.9% 30,611 30,504
20% 20.4% 20,407 20,791
10% 9.7% 10,204 9,930
Active Idle   0 0
Graph of results
JVM 'sy480-02.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,598
Calibration 2     107,076
Calibration 3     106,978
ssj_ops@calibrated=107,027
100% 98.9% 107,027 105,815
90% 91.0% 96,324 97,378
80% 80.9% 85,622 86,561
70% 69.8% 74,919 74,670
60% 59.8% 64,216 63,950
50% 50.0% 53,513 53,563
40% 40.1% 42,811 42,940
30% 29.6% 32,108 31,628
20% 19.9% 21,405 21,351
10% 10.1% 10,703 10,852
Active Idle   0 0
Graph of results
JVM 'sy480-02.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,748
Calibration 2     105,488
Calibration 3     105,541
ssj_ops@calibrated=105,514
100% 99.1% 105,514 104,512
90% 90.2% 94,963 95,209
80% 80.5% 84,411 84,887
70% 69.9% 73,860 73,746
60% 60.1% 63,308 63,380
50% 50.4% 52,757 53,222
40% 39.7% 42,206 41,936
30% 30.4% 31,654 32,090
20% 20.1% 21,103 21,226
10% 9.6% 10,551 10,100
Active Idle   0 0
Graph of results
JVM 'sy480-02.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,354
Calibration 2     105,963
Calibration 3     105,925
ssj_ops@calibrated=105,944
100% 100.1% 105,944 106,006
90% 90.6% 95,350 95,985
80% 80.3% 84,755 85,094
70% 68.5% 74,161 72,576
60% 60.1% 63,566 63,643
50% 49.5% 52,972 52,424
40% 40.4% 42,378 42,778
30% 29.4% 31,783 31,102
20% 20.3% 21,189 21,485
10% 10.0% 10,594 10,617
Active Idle   0 0
Graph of results
JVM 'sy480-02.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,801
Calibration 2     104,287
Calibration 3     104,248
ssj_ops@calibrated=104,268
100% 99.0% 104,268 103,225
90% 89.6% 93,841 93,415
80% 80.6% 83,414 84,053
70% 68.9% 72,987 71,862
60% 60.1% 62,561 62,670
50% 51.0% 52,134 53,126
40% 39.5% 41,707 41,182
30% 30.3% 31,280 31,640
20% 20.2% 20,854 21,101
10% 10.0% 10,427 10,431
Active Idle   0 0
Graph of results
JVM 'sy480-02.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,036
Calibration 2     106,530
Calibration 3     106,394
ssj_ops@calibrated=106,462
100% 99.6% 106,462 106,050
90% 90.1% 95,816 95,916
80% 79.2% 85,170 84,345
70% 70.8% 74,524 75,347
60% 60.3% 63,877 64,225
50% 49.8% 53,231 53,061
40% 39.3% 42,585 41,798
30% 30.1% 31,939 32,008
20% 20.0% 21,292 21,264
10% 9.6% 10,646 10,264
Active Idle   0 0
Graph of results
JVM 'sy480-02.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,059
Calibration 2     105,773
Calibration 3     105,654
ssj_ops@calibrated=105,713
100% 100.2% 105,713 105,958
90% 89.2% 95,142 94,321
80% 80.5% 84,571 85,114
70% 70.2% 73,999 74,206
60% 59.3% 63,428 62,656
50% 49.3% 52,857 52,114
40% 40.3% 42,285 42,576
30% 29.5% 31,714 31,197
20% 20.2% 21,143 21,334
10% 9.9% 10,571 10,437
Active Idle   0 0
Graph of results
JVM 'sy480-02.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,971
Calibration 2     106,189
Calibration 3     106,397
ssj_ops@calibrated=106,293
100% 99.8% 106,293 106,111
90% 89.5% 95,663 95,169
80% 78.8% 85,034 83,715
70% 70.5% 74,405 74,890
60% 60.3% 63,776 64,042
50% 49.9% 53,146 53,017
40% 40.3% 42,517 42,808
30% 29.8% 31,888 31,698
20% 19.8% 21,259 21,036
10% 10.0% 10,629 10,600
Active Idle   0 0
Graph of results
JVM 'sy480-02.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,671
Calibration 2     105,580
Calibration 3     105,705
ssj_ops@calibrated=105,642
100% 99.9% 105,642 105,485
90% 90.7% 95,078 95,778
80% 79.7% 84,514 84,223
70% 69.6% 73,950 73,550
60% 61.0% 63,385 64,422
50% 49.8% 52,821 52,616
40% 39.7% 42,257 41,926
30% 29.9% 31,693 31,611
20% 19.7% 21,128 20,767
10% 10.1% 10,564 10,721
Active Idle   0 0
Graph of results
JVM 'sy480-02.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,616
Calibration 2     107,685
Calibration 3     107,422
ssj_ops@calibrated=107,553
100% 99.9% 107,553 107,486
90% 89.9% 96,798 96,737
80% 79.9% 86,043 85,940
70% 70.7% 75,287 75,995
60% 60.3% 64,532 64,809
50% 50.7% 53,777 54,479
40% 40.2% 43,021 43,280
30% 30.0% 32,266 32,232
20% 20.1% 21,511 21,588
10% 10.3% 10,755 11,071
Active Idle   0 0
Graph of results
JVM 'sy480-02.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,600
Calibration 2     105,524
Calibration 3     105,348
ssj_ops@calibrated=105,436
100% 100.2% 105,436 105,674
90% 89.7% 94,892 94,557
80% 79.9% 84,349 84,264
70% 71.0% 73,805 74,807
60% 60.3% 63,262 63,539
50% 49.8% 52,718 52,486
40% 39.6% 42,174 41,702
30% 29.6% 31,631 31,239
20% 19.8% 21,087 20,870
10% 9.8% 10,544 10,354
Active Idle   0 0
Graph of results
JVM 'sy480-02.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,798
Calibration 2     107,013
Calibration 3     107,108
ssj_ops@calibrated=107,061
100% 99.8% 107,061 106,870
90% 90.7% 96,355 97,057
80% 79.2% 85,649 84,781
70% 69.7% 74,943 74,643
60% 61.1% 64,236 65,361
50% 49.6% 53,530 53,120
40% 40.1% 42,824 42,942
30% 30.5% 32,118 32,702
20% 19.8% 21,412 21,234
10% 10.1% 10,706 10,817
Active Idle   0 0
Graph of results
JVM 'sy480-02.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,789
Calibration 2     107,129
Calibration 3     107,144
ssj_ops@calibrated=107,136
100% 99.6% 107,136 106,686
90% 89.8% 96,423 96,229
80% 79.0% 85,709 84,648
70% 70.7% 74,995 75,698
60% 59.1% 64,282 63,271
50% 49.6% 53,568 53,127
40% 39.8% 42,855 42,680
30% 30.5% 32,141 32,708
20% 20.0% 21,427 21,409
10% 9.6% 10,714 10,330
Active Idle   0 0
Graph of results
JVM 'sy480-02.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,209
Calibration 2     101,982
Calibration 3     102,041
ssj_ops@calibrated=102,012
100% 100.1% 102,012 102,109
90% 89.4% 91,810 91,241
80% 80.1% 81,609 81,708
70% 69.5% 71,408 70,911
60% 59.8% 61,207 60,973
50% 50.0% 51,006 51,051
40% 40.0% 40,805 40,854
30% 29.8% 30,603 30,441
20% 20.2% 20,402 20,644
10% 10.0% 10,201 10,190
Active Idle   0 0
Graph of results
JVM 'sy480-02.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,317
Calibration 2     104,874
Calibration 3     105,839
ssj_ops@calibrated=105,357
100% 99.5% 105,357 104,806
90% 90.1% 94,821 94,971
80% 79.7% 84,285 83,941
70% 69.6% 73,750 73,282
60% 60.2% 63,214 63,475
50% 50.0% 52,678 52,643
40% 39.9% 42,143 42,031
30% 29.9% 31,607 31,476
20% 20.0% 21,071 21,059
10% 10.0% 10,536 10,571
Active Idle   0 0
Graph of results
JVM 'sy480-02.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,308
Calibration 2     105,173
Calibration 3     105,127
ssj_ops@calibrated=105,150
100% 99.8% 105,150 104,929
90% 89.3% 94,635 93,951
80% 79.3% 84,120 83,431
70% 70.3% 73,605 73,969
60% 60.2% 63,090 63,319
50% 50.5% 52,575 53,122
40% 40.2% 42,060 42,230
30% 30.3% 31,545 31,857
20% 20.0% 21,030 20,983
10% 9.7% 10,515 10,167
Active Idle   0 0
Graph of results
JVM 'sy480-02.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,106
Calibration 2     105,352
Calibration 3     105,190
ssj_ops@calibrated=105,271
100% 99.5% 105,271 104,698
90% 89.8% 94,744 94,490
80% 79.9% 84,217 84,144
70% 70.0% 73,690 73,742
60% 60.0% 63,163 63,122
50% 49.6% 52,635 52,229
40% 39.6% 42,108 41,705
30% 29.4% 31,581 30,966
20% 20.0% 21,054 21,101
10% 9.9% 10,527 10,430
Active Idle   0 0
Graph of results
