Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module | SPECpower_ssj2008 = 11,590 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jan 13, 2022 |
Hardware Availability: | Apr-2021 | Software Availability: | Apr-2021 | Publication: | Feb 16, 2022 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

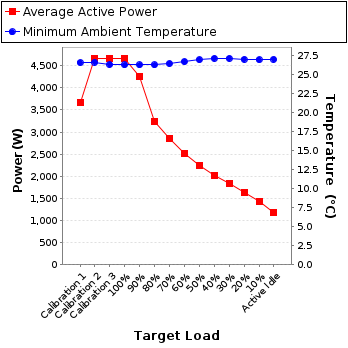

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 3,670 | 26.6 |
Calibration 2 | 4,665 | 26.7 |
Calibration 3 | 4,670 | 26.4 |
100% | 4,667 | 26.3 |
90% | 4,258 | 26.3 |
80% | 3,243 | 26.3 |
70% | 2,853 | 26.5 |
60% | 2,505 | 26.8 |
50% | 2,242 | 27.0 |
40% | 2,026 | 27.2 |
30% | 1,840 | 27.2 |
20% | 1,641 | 27.1 |
10% | 1,435 | 27.0 |
Active Idle | 1,183 | 27.1 |

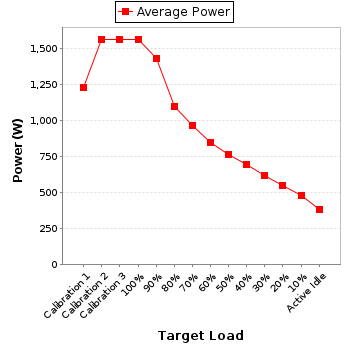

Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-80-1 |
Date of Calibration: | 14-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supplies 1 and 2 |

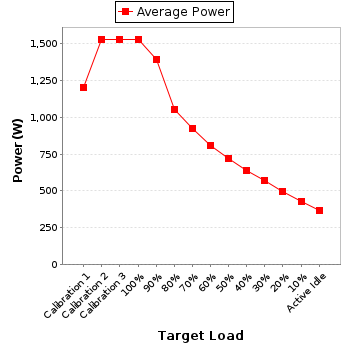

Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47169 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F91A5-220-1 |
Date of Calibration: | 26-Jun-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supply 4 |

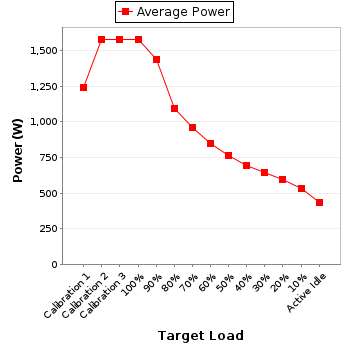

Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91K112854 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-F673T-40-1 |
Date of Calibration: | 15-May-2021 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.2-3976349f-20201208 |
Setup Description: | SUT Power Supply 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 5.91 | 10.0 | 0.991 | 1,230 | 0.4% |
Calibration 2 | 216 | 300.0 | 7.26 | 10.0 | 0.995 | 1,560 | 0.4% |
Calibration 3 | 216 | 300.0 | 7.26 | 10.0 | 0.995 | 1,562 | 0.4% |
100% | 216 | 300.0 | 7.25 | 10.0 | 0.995 | 1,561 | 0.4% |
90% | 216 | 300.0 | 6.63 | 10.0 | 0.995 | 1,427 | 0.4% |
80% | 217 | 300.0 | 5.11 | 10.0 | 0.991 | 1,098 | 0.5% |
70% | 217 | 300.0 | 4.50 | 10.0 | 0.988 | 966 | 0.5% |
60% | 217 | 300.0 | 3.95 | 5.0 | 0.985 | 846 | 0.4% |
50% | 217 | 300.0 | 3.57 | 5.0 | 0.982 | 762 | 0.4% |
40% | 218 | 300.0 | 3.25 | 5.0 | 0.979 | 692 | 0.4% |
30% | 217 | 300.0 | 2.94 | 5.0 | 0.975 | 621 | 0.4% |
20% | 215 | 300.0 | 2.61 | 5.0 | 0.968 | 545 | 0.5% |
10% | 215 | 300.0 | 2.31 | 5.0 | 0.958 | 477 | 0.5% |
Active Idle | 215 | 300.0 | 1.90 | 2.0 | 0.925 | 379 | 0.4% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 5.93 | 10.0 | 0.977 | 1,199 | 0.5% |
Calibration 2 | 212 | 300.0 | 7.28 | 10.0 | 0.988 | 1,529 | 0.4% |
Calibration 3 | 213 | 300.0 | 7.27 | 10.0 | 0.988 | 1,529 | 0.4% |
100% | 213 | 300.0 | 7.27 | 10.0 | 0.988 | 1,527 | 0.4% |
90% | 213 | 300.0 | 6.64 | 10.0 | 0.986 | 1,394 | 0.4% |
80% | 213 | 300.0 | 5.05 | 5.0 | 0.976 | 1,052 | 0.3% |
70% | 214 | 300.0 | 4.46 | 5.0 | 0.970 | 923 | 0.4% |
60% | 214 | 300.0 | 3.92 | 5.0 | 0.962 | 807 | 0.4% |
50% | 214 | 300.0 | 3.51 | 5.0 | 0.955 | 717 | 0.4% |
40% | 214 | 300.0 | 3.13 | 5.0 | 0.947 | 636 | 0.5% |
30% | 214 | 300.0 | 2.84 | 5.0 | 0.939 | 570 | 0.5% |
20% | 212 | 300.0 | 2.54 | 2.0 | 0.925 | 496 | 0.4% |
10% | 212 | 300.0 | 2.22 | 2.0 | 0.906 | 426 | 0.4% |
Active Idle | 212 | 300.0 | 1.96 | 2.0 | 0.889 | 370 | 0.4% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 5.98 | 10.0 | 0.988 | 1,242 | 0.4% |
Calibration 2 | 216 | 300.0 | 7.34 | 10.0 | 0.994 | 1,576 | 0.4% |
Calibration 3 | 216 | 300.0 | 7.35 | 10.0 | 0.994 | 1,579 | 0.4% |
100% | 216 | 300.0 | 7.35 | 10.0 | 0.994 | 1,579 | 0.4% |
90% | 216 | 300.0 | 6.69 | 10.0 | 0.993 | 1,438 | 0.4% |
80% | 217 | 300.0 | 5.10 | 10.0 | 0.988 | 1,093 | 0.5% |
70% | 217 | 300.0 | 4.51 | 5.0 | 0.985 | 964 | 0.3% |
60% | 217 | 300.0 | 4.00 | 5.0 | 0.980 | 852 | 0.4% |
50% | 218 | 300.0 | 3.60 | 5.0 | 0.976 | 764 | 0.4% |
40% | 218 | 300.0 | 3.30 | 5.0 | 0.971 | 698 | 0.4% |
30% | 217 | 300.0 | 3.09 | 5.0 | 0.968 | 649 | 0.4% |
20% | 215 | 300.0 | 2.89 | 5.0 | 0.963 | 600 | 0.5% |
10% | 215 | 300.0 | 2.59 | 5.0 | 0.952 | 532 | 0.5% |
Active Idle | 215 | 300.0 | 2.18 | 2.0 | 0.922 | 434 | 0.4% |
