SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL20 Gen10 Plus			SPECpower_ssj2008 = 9,366 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Feb 2, 2022
Hardware Availability:	Mar-2022	Software Availability:	Aug-2021	Publication:	Mar 24, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL20 Gen10 Plus
Form Factor:	1U
CPU Name:	Intel(R) Xeon(R) E-2388G CPU 3.20GHz
CPU Characteristics:	8-Core, 3.20 GHz, 16MB L3 Cache
CPU Frequency (MHz):	3200
CPU(s) Enabled:	8 cores, 1 chip, 8 cores/chip
Hardware Threads:	16 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	16 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	2 x 8192 MB
Memory Details:	8GB 1Rx8 PC4-3200AA-ED2-11; slots 1, 3 populated
Power Supply Quantity and Rating (W):	1 x 290
Power Supply Details:	HPE 290W 94% Non-Redundant FIO Platinum Power Supply (P21649-B21)
Disk Drive:	1 x HPE 240GB M.2 SATA M.2 2280 5300B SSD (P19888-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter (onboard)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.2114)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=16 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	None
JVM Instances:	1
JVM Initial Heap (MB):	12000
JVM Maximum Heap (MB):	12000
JVM Address Bits:	64
Boot Firmware Version:	U60 v1.54 (01/13/2022)
Management Firmware Version:	2.55 Oct 01 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5005030

BIOS Platform Configuration (RBSU):

See SUT Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 16 to detect the full number of available processors on the SUT
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
OS Tunes:

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

None

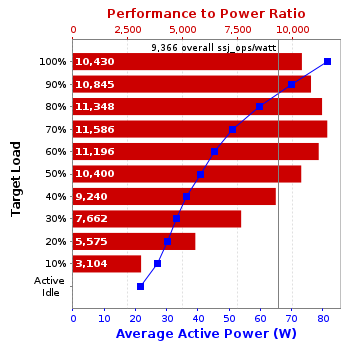

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	81.5	22.2
90%	70.1	22.4
80%	59.8	22.4
70%	51.1	22.3
60%	45.4	22.2
50%	40.7	22.1
40%	36.5	21.9
30%	33.1	21.8
20%	30.3	21.8
10%	27.2	21.6
Active Idle	21.5	21.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	21.6	132

See the Power/Temperature Details Report for additional details.

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
