Hewlett Packard Enterprise ProLiant ML30 Gen10 Plus ssj_ops@100% = 839,939
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 2, 2022
Hardware Availability: Mar-2022 Software Availability: Aug-2021 Publication: Mar 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     843,202
Calibration 2     840,786
Calibration 3     841,535
ssj_ops@calibrated=841,160
100% 99.9% 841,160 839,939
90% 90.1% 757,044 758,192
80% 80.1% 672,928 674,167
70% 70.4% 588,812 592,057
60% 60.1% 504,696 505,879
50% 49.7% 420,580 418,105
40% 40.0% 336,464 336,352
30% 30.1% 252,348 253,165
20% 20.0% 168,232 168,494
10% 10.0% 84,116 83,729
Active Idle   0 0

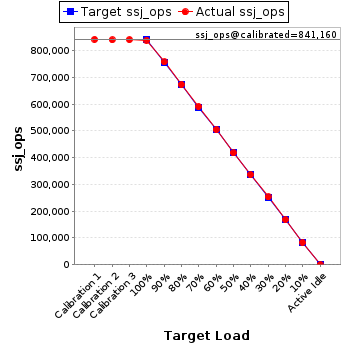

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML30 Gen10 Plus
Form Factor: Tower
CPU Name: Intel(R) Xeon(R) E-2388G CPU 3.20GHz
CPU Characteristics: 8-Core, 3.20 GHz, 16MB L3 Cache
CPU Frequency (MHz): 3200
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx8 PC4-3200AA-ED2-11; slots 1, 3 populated
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: HPE 350W ATX Power Supply Kit (P21652-B21)
Disk Drive: 1 x HPE 240GB M.2 SATA M.2 2280 5300B SSD (P19888-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.2114)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=16 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: U61 v1.54 (01/13/2022)
Management Firmware Version: 2.55 Oct 01 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5005030
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 61,330,697 8,500
Payment 61,330,699
Order Status 6,133,071
Delivery 6,133,066
Stock Level 6,133,070
Customer Report 61,330,691
Calibration 2 New Order 61,165,520 8,500
Payment 61,165,510
Order Status 6,116,553
Delivery 6,116,553
Stock Level 6,116,550
Customer Report 61,165,512
Calibration 3 New Order 61,216,351 8,500
Payment 61,216,340
Order Status 6,121,634
Delivery 6,121,635
Stock Level 6,121,640
Customer Report 61,216,356
100% 99.9% New Order 61,090,424 8,500
Payment 61,090,411
Order Status 6,109,044
Delivery 6,109,046
Stock Level 6,109,041
Customer Report 61,090,427
90% 90.1% New Order 55,143,564 8,500
Payment 55,143,562
Order Status 5,514,355
Delivery 5,514,358
Stock Level 5,514,359
Customer Report 55,143,589
80% 80.1% New Order 49,033,597 8,500
Payment 49,033,608
Order Status 4,903,359
Delivery 4,903,360
Stock Level 4,903,360
Customer Report 49,033,617
70% 70.4% New Order 43,061,080 8,500
Payment 43,061,097
Order Status 4,306,113
Delivery 4,306,109
Stock Level 4,306,107
Customer Report 43,061,108
60% 60.1% New Order 36,792,297 8,500
Payment 36,792,297
Order Status 3,679,231
Delivery 3,679,230
Stock Level 3,679,233
Customer Report 36,792,301
50% 49.7% New Order 30,408,281 8,500
Payment 30,408,288
Order Status 3,040,829
Delivery 3,040,829
Stock Level 3,040,827
Customer Report 30,408,278
40% 40.0% New Order 24,463,349 8,500
Payment 24,463,353
Order Status 2,446,333
Delivery 2,446,337
Stock Level 2,446,338
Customer Report 24,463,364
30% 30.1% New Order 18,412,600 8,500
Payment 18,412,615
Order Status 1,841,265
Delivery 1,841,258
Stock Level 1,841,260
Customer Report 18,412,596
20% 20.0% New Order 12,254,297 8,500
Payment 12,254,299
Order Status 1,225,430
Delivery 1,225,433
Stock Level 1,225,429
Customer Report 12,254,294
10% 10.0% New Order 6,089,476 8,500
Payment 6,089,477
Order Status 608,948
Delivery 608,954
Stock Level 608,951
Customer Report 6,089,471
Active Idle New Order 0 8,500
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
