GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 SPECpower_ssj2008 = 18,692 overall ssj_ops/watt
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Feb 15, 2022
Hardware Availability: Mar-2022 Software Availability: Oct-2021 Publication: Mar 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 12,617,831 501 25,161
90% 89.9% 11,401,635 470 24,282
80% 80.0% 10,148,526 437 23,205
70% 70.0% 8,871,263 404 21,983
60% 59.5% 7,538,009 368 20,466
50% 50.0% 6,335,173 343 18,459
40% 39.9% 5,064,767 312 16,216
30% 30.0% 3,798,503 279 13,609
20% 20.1% 2,543,240 245 10,381
10% 10.0% 1,269,773 207 6,141
Active Idle 0 156 0
∑ssj_ops / ∑power = 18,692
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R282-Z90
Form Factor: 2U
CPU Name: AMD EPYC 7773X
CPU Characteristics: 64-Core, 2.20GHz, 768MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 768 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200AA-R ECC RDIMM (P/N 25SD7-3216G1-S1R); slots A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1,M1,N1,O1,P1 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: DELTA DPS-1300AB-4 (P/N 25EP0-213000-D0S)
Disk Drive: 1 x 1.92TB SATA 6Gb/s SSD; (P/N 25SHA-1192TI-S1R)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x integrated 2-port NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1518)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: M07
Management Firmware Version: 12.58.03
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4578966
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R180-F34
CPU Description: Intel E5-2699v3
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2008 R2 SP1
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Client VM, version 1.8.0_121
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232
Input Connection: Default
Metrology Institute: TAF
Accredited by: Chroma ATE Inc. Calibration Lab
Calibration Label: RE1100704984
Date of Calibration: 27-Jul-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connect to SUT PSU directly
Temperature Sensor temp1
Hardware Vendor: TEMPERATURE@LERT
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 501 22.2
90% 470 22.2
80% 437 22.2
70% 404 22.1
60% 368 22.0
50% 343 21.9
40% 312 21.8
30% 279 21.8
20% 245 21.7
10% 207 21.6
Active Idle 156 21.6
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.6 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,714,465
Calibration 2     12,677,975
Calibration 3     12,679,600
ssj_ops@calibrated=12,678,787
100% 99.5% 12,678,787 12,617,831
90% 89.9% 11,410,909 11,401,635
80% 80.0% 10,143,030 10,148,526
70% 70.0% 8,875,151 8,871,263
60% 59.5% 7,607,272 7,538,009
50% 50.0% 6,339,394 6,335,173
40% 39.9% 5,071,515 5,064,767
30% 30.0% 3,803,636 3,798,503
20% 20.1% 2,535,757 2,543,240
10% 10.0% 1,267,879 1,269,773
Active Idle   0 0

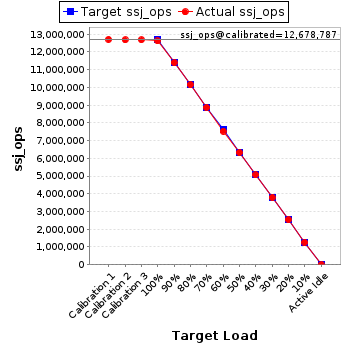

Graph of results
