GIGA-BYTE TECHNOLOGY CO., LTD. R272-Z30 ssj_ops@100% = 6,305,374
ssj_ops@100% per JVM = 197,043
Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. SPEC License #: 9082 Test Method: Single Node
Tested By: GIGA-BYTE TECHNOLOGY CO., LTD. Test Location: XinTien ,Taipei Test Date: Feb 15, 2022
Hardware Availability: Mar-2022 Software Availability: Oct-2021 Publication: Mar 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,352,295
Calibration 2     6,335,660
Calibration 3     6,332,947
ssj_ops@calibrated=6,334,304
100% 99.5% 6,334,304 6,305,374
90% 89.9% 5,700,873 5,692,064
80% 80.0% 5,067,443 5,065,408
70% 70.1% 4,434,012 4,438,159
60% 59.5% 3,800,582 3,766,525
50% 50.1% 3,167,152 3,173,149
40% 40.1% 2,533,721 2,537,098
30% 30.0% 1,900,291 1,901,869
20% 20.0% 1,266,861 1,268,505
10% 10.0% 633,430 633,925
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: GIGA-BYTE TECHNOLOGY CO., LTD.
Model: R272-Z30
Form Factor: 2U
CPU Name: AMD EPYC 7773X
CPU Characteristics: 64-Core, 2.20GHz, 768MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 768 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16 GB 2Rx8 PC4-3200AA-R ECC RDIMM (P/N 25SD7-3216G1-S1R); slots A1,B1,C1,D1,E1,F1,G1,H1 populated
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: DELTA DPS-850AB-3
Disk Drive: 1 x 1.92TB SATA 6Gb/s SSD; (P/N 25SHA-1192TI-S1R)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x integrated 2-port NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1518)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 32
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: M07
Management Firmware Version: 12.58.03
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4578966
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2GUPT350RQK.001 191,272
WIN-2GUPT350RQK.002 197,186
WIN-2GUPT350RQK.003 196,865
WIN-2GUPT350RQK.004 195,680
WIN-2GUPT350RQK.005 197,542
WIN-2GUPT350RQK.006 197,425
WIN-2GUPT350RQK.007 199,964
WIN-2GUPT350RQK.008 196,572
WIN-2GUPT350RQK.009 200,666
WIN-2GUPT350RQK.010 201,113
WIN-2GUPT350RQK.011 195,832
WIN-2GUPT350RQK.012 192,219
WIN-2GUPT350RQK.013 200,054
WIN-2GUPT350RQK.014 197,393
WIN-2GUPT350RQK.015 190,353
WIN-2GUPT350RQK.016 200,072
WIN-2GUPT350RQK.017 196,089
WIN-2GUPT350RQK.018 197,754
WIN-2GUPT350RQK.019 195,554
WIN-2GUPT350RQK.020 197,507
WIN-2GUPT350RQK.021 194,632
WIN-2GUPT350RQK.022 200,884
WIN-2GUPT350RQK.023 195,224
WIN-2GUPT350RQK.024 200,348
WIN-2GUPT350RQK.025 199,367
WIN-2GUPT350RQK.026 202,568
WIN-2GUPT350RQK.027 197,552
WIN-2GUPT350RQK.028 195,543
WIN-2GUPT350RQK.029 197,203
WIN-2GUPT350RQK.030 198,337
WIN-2GUPT350RQK.031 195,434
WIN-2GUPT350RQK.032 191,173
ssj_ops@100% 6,305,374
ssj_ops@100% per JVM 197,043

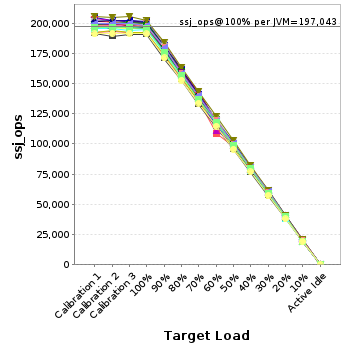

Graph of per-instance results

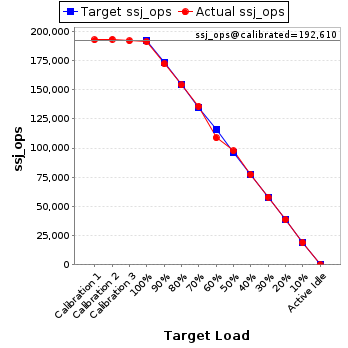

JVM 'WIN-2GUPT350RQK.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,728
Calibration 2     193,285
Calibration 3     191,934
ssj_ops@calibrated=192,610
100% 99.3% 192,610 191,272
90% 89.4% 173,349 172,255
80% 80.0% 154,088 154,054
70% 70.6% 134,827 135,949
60% 56.5% 115,566 108,805
50% 50.7% 96,305 97,617
40% 40.2% 77,044 77,344
30% 30.1% 57,783 58,007
20% 20.1% 38,522 38,717
10% 9.9% 19,261 19,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,835
Calibration 2     198,129
Calibration 3     198,438
ssj_ops@calibrated=198,283
100% 99.4% 198,283 197,186
90% 89.5% 178,455 177,514
80% 79.7% 158,627 157,941
70% 69.4% 138,798 137,520
60% 59.7% 118,970 118,305
50% 50.4% 99,142 99,950
40% 39.7% 79,313 78,718
30% 30.3% 59,485 59,998
20% 20.1% 39,657 39,857
10% 10.0% 19,828 19,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,713
Calibration 2     197,339
Calibration 3     196,899
ssj_ops@calibrated=197,119
100% 99.9% 197,119 196,865
90% 90.4% 177,407 178,273
80% 79.7% 157,695 157,025
70% 70.2% 137,983 138,340
60% 60.3% 118,271 118,886
50% 50.0% 98,559 98,512
40% 40.2% 78,848 79,295
30% 30.1% 59,136 59,396
20% 20.3% 39,424 40,056
10% 9.9% 19,712 19,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,970
Calibration 2     196,810
Calibration 3     195,690
ssj_ops@calibrated=196,250
100% 99.7% 196,250 195,680
90% 89.5% 176,625 175,567
80% 80.1% 157,000 157,164
70% 70.0% 137,375 137,435
60% 59.8% 117,750 117,431
50% 50.0% 98,125 98,064
40% 40.3% 78,500 79,089
30% 30.1% 58,875 59,101
20% 20.3% 39,250 39,811
10% 10.0% 19,625 19,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

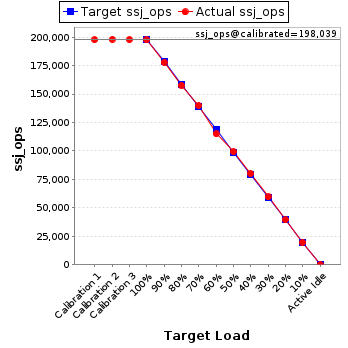

JVM 'WIN-2GUPT350RQK.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,704
Calibration 2     198,142
Calibration 3     197,936
ssj_ops@calibrated=198,039
100% 99.7% 198,039 197,542
90% 89.9% 178,235 177,987
80% 79.7% 158,431 157,739
70% 70.7% 138,627 140,034
60% 58.1% 118,823 115,028
50% 50.3% 99,019 99,537
40% 40.5% 79,216 80,198
30% 30.1% 59,412 59,560
20% 19.9% 39,608 39,443
10% 10.0% 19,804 19,832
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,201
Calibration 2     197,664
Calibration 3     198,714
ssj_ops@calibrated=198,189
100% 99.6% 198,189 197,425
90% 89.8% 178,370 177,969
80% 80.0% 158,551 158,555
70% 70.0% 138,732 138,775
60% 59.9% 118,913 118,727
50% 49.9% 99,095 98,816
40% 39.5% 79,276 78,358
30% 29.8% 59,457 58,995
20% 20.4% 39,638 40,353
10% 10.3% 19,819 20,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,028
Calibration 2     200,285
Calibration 3     200,816
ssj_ops@calibrated=200,550
100% 99.7% 200,550 199,964
90% 89.5% 180,495 179,436
80% 80.3% 160,440 161,039
70% 70.4% 140,385 141,273
60% 59.4% 120,330 119,191
50% 49.7% 100,275 99,642
40% 39.9% 80,220 80,076
30% 29.8% 60,165 59,835
20% 20.0% 40,110 40,059
10% 10.0% 20,055 20,073
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,753
Calibration 2     197,184
Calibration 3     196,094
ssj_ops@calibrated=196,639
100% 100.0% 196,639 196,572
90% 89.5% 176,975 176,073
80% 80.2% 157,311 157,659
70% 70.0% 137,647 137,714
60% 59.8% 117,984 117,596
50% 50.2% 98,320 98,682
40% 39.9% 78,656 78,463
30% 30.5% 58,992 59,931
20% 19.9% 39,328 39,130
10% 10.0% 19,664 19,710
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,392
Calibration 2     201,813
Calibration 3     201,928
ssj_ops@calibrated=201,871
100% 99.4% 201,871 200,666
90% 90.3% 181,684 182,330
80% 79.5% 161,497 160,547
70% 71.0% 141,310 143,263
60% 58.9% 121,123 118,920
50% 49.7% 100,935 100,286
40% 40.1% 80,748 80,927
30% 30.1% 60,561 60,708
20% 19.7% 40,374 39,735
10% 10.2% 20,187 20,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,974
Calibration 2     202,314
Calibration 3     202,106
ssj_ops@calibrated=202,210
100% 99.5% 202,210 201,113
90% 89.6% 181,989 181,156
80% 80.1% 161,768 161,987
70% 69.8% 141,547 141,228
60% 59.6% 121,326 120,447
50% 49.7% 101,105 100,517
40% 39.8% 80,884 80,454
30% 30.4% 60,663 61,569
20% 20.1% 40,442 40,661
10% 10.1% 20,221 20,453
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,689
Calibration 2     198,568
Calibration 3     198,901
ssj_ops@calibrated=198,734
100% 98.5% 198,734 195,832
90% 89.8% 178,861 178,508
80% 80.3% 158,988 159,664
70% 70.2% 139,114 139,486
60% 60.4% 119,241 119,993
50% 49.9% 99,367 99,173
40% 39.5% 79,494 78,461
30% 29.9% 59,620 59,455
20% 20.2% 39,747 40,081
10% 10.1% 19,873 20,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,535
Calibration 2     194,033
Calibration 3     192,565
ssj_ops@calibrated=193,299
100% 99.4% 193,299 192,219
90% 89.8% 173,969 173,572
80% 80.0% 154,639 154,677
70% 69.8% 135,310 134,969
60% 59.6% 115,980 115,128
50% 49.8% 96,650 96,339
40% 40.2% 77,320 77,616
30% 29.6% 57,990 57,172
20% 20.3% 38,660 39,165
10% 10.1% 19,330 19,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

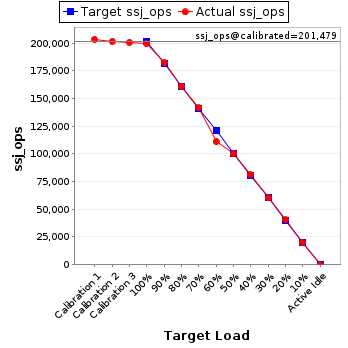

JVM 'WIN-2GUPT350RQK.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,579
Calibration 2     201,901
Calibration 3     201,056
ssj_ops@calibrated=201,479
100% 99.3% 201,479 200,054
90% 90.5% 181,331 182,306
80% 80.1% 161,183 161,321
70% 70.3% 141,035 141,655
60% 55.2% 120,887 111,283
50% 49.8% 100,739 100,283
40% 40.3% 80,591 81,232
30% 30.0% 60,444 60,392
20% 20.1% 40,296 40,565
10% 10.2% 20,148 20,456
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

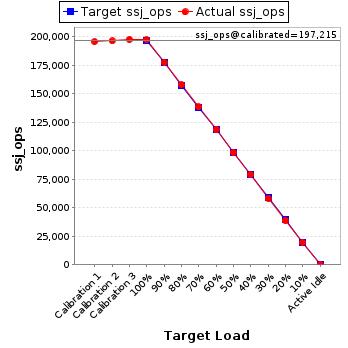

JVM 'WIN-2GUPT350RQK.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,887
Calibration 2     196,465
Calibration 3     197,964
ssj_ops@calibrated=197,215
100% 100.1% 197,215 197,393
90% 90.1% 177,493 177,672
80% 80.2% 157,772 158,167
70% 70.2% 138,050 138,543
60% 60.4% 118,329 119,124
50% 50.0% 98,607 98,515
40% 40.3% 78,886 79,381
30% 29.6% 59,164 58,468
20% 19.7% 39,443 38,912
10% 10.0% 19,721 19,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,449
Calibration 2     188,760
Calibration 3     190,996
ssj_ops@calibrated=189,878
100% 100.3% 189,878 190,353
90% 89.6% 170,890 170,165
80% 80.5% 151,902 152,767
70% 69.8% 132,914 132,466
60% 59.9% 113,927 113,807
50% 50.1% 94,939 95,135
40% 40.1% 75,951 76,132
30% 29.8% 56,963 56,501
20% 20.0% 37,976 38,047
10% 10.1% 18,988 19,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

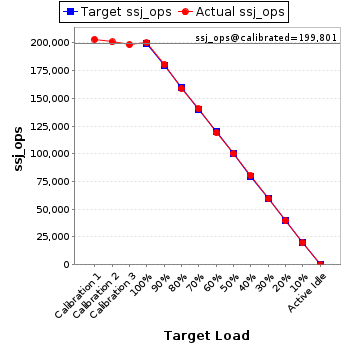

JVM 'WIN-2GUPT350RQK.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,385
Calibration 2     200,952
Calibration 3     198,649
ssj_ops@calibrated=199,801
100% 100.1% 199,801 200,072
90% 90.5% 179,821 180,803
80% 79.8% 159,841 159,347
70% 70.3% 139,861 140,510
60% 59.7% 119,881 119,368
50% 50.2% 99,900 100,322
40% 40.3% 79,920 80,587
30% 29.9% 59,940 59,796
20% 19.9% 39,960 39,798
10% 9.8% 19,980 19,635
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,118
Calibration 2     196,557
Calibration 3     196,693
ssj_ops@calibrated=196,625
100% 99.7% 196,625 196,089
90% 90.8% 176,962 178,555
80% 80.4% 157,300 158,149
70% 70.1% 137,637 137,906
60% 58.8% 117,975 115,640
50% 50.5% 98,312 99,367
40% 39.7% 78,650 78,055
30% 30.4% 58,987 59,871
20% 20.1% 39,325 39,515
10% 9.8% 19,662 19,272
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,916
Calibration 2     198,713
Calibration 3     198,907
ssj_ops@calibrated=198,810
100% 99.5% 198,810 197,754
90% 90.0% 178,929 178,908
80% 79.5% 159,048 158,008
70% 69.7% 139,167 138,533
60% 60.1% 119,286 119,468
50% 50.0% 99,405 99,443
40% 39.2% 79,524 77,929
30% 29.8% 59,643 59,307
20% 20.3% 39,762 40,340
10% 10.1% 19,881 20,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,388
Calibration 2     196,148
Calibration 3     195,922
ssj_ops@calibrated=196,035
100% 99.8% 196,035 195,554
90% 89.2% 176,432 174,901
80% 79.6% 156,828 156,038
70% 69.9% 137,225 137,106
60% 59.9% 117,621 117,504
50% 49.7% 98,018 97,511
40% 40.2% 78,414 78,746
30% 30.5% 58,811 59,814
20% 20.0% 39,207 39,275
10% 10.2% 19,604 19,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,049
Calibration 2     198,928
Calibration 3     197,358
ssj_ops@calibrated=198,143
100% 99.7% 198,143 197,507
90% 89.6% 178,328 177,499
80% 80.3% 158,514 159,116
70% 70.1% 138,700 138,843
60% 60.2% 118,886 119,232
50% 50.3% 99,071 99,661
40% 40.5% 79,257 80,185
30% 30.1% 59,443 59,632
20% 19.8% 39,629 39,148
10% 9.9% 19,814 19,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,876
Calibration 2     195,798
Calibration 3     194,368
ssj_ops@calibrated=195,083
100% 99.8% 195,083 194,632
90% 89.5% 175,575 174,567
80% 79.7% 156,066 155,480
70% 70.9% 136,558 138,357
60% 60.1% 117,050 117,189
50% 50.6% 97,541 98,789
40% 39.9% 78,033 77,919
30% 30.0% 58,525 58,549
20% 19.8% 39,017 38,565
10% 9.9% 19,508 19,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,983
Calibration 2     202,536
Calibration 3     200,051
ssj_ops@calibrated=201,293
100% 99.8% 201,293 200,884
90% 90.6% 181,164 182,386
80% 79.4% 161,035 159,828
70% 69.3% 140,905 139,459
60% 60.1% 120,776 120,906
50% 50.1% 100,647 100,772
40% 39.9% 80,517 80,261
30% 30.0% 60,388 60,310
20% 19.9% 40,259 39,976
10% 10.2% 20,129 20,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,825
Calibration 2     195,385
Calibration 3     198,749
ssj_ops@calibrated=197,067
100% 99.1% 197,067 195,224
90% 90.0% 177,360 177,304
80% 80.1% 157,653 157,902
70% 70.0% 137,947 137,981
60% 60.1% 118,240 118,457
50% 50.2% 98,533 98,871
40% 39.9% 78,827 78,540
30% 30.3% 59,120 59,679
20% 20.1% 39,413 39,685
10% 9.9% 19,707 19,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,610
Calibration 2     202,388
Calibration 3     201,244
ssj_ops@calibrated=201,816
100% 99.3% 201,816 200,348
90% 89.6% 181,634 180,742
80% 80.2% 161,453 161,796
70% 69.8% 141,271 140,854
60% 58.9% 121,089 118,950
50% 50.2% 100,908 101,359
40% 40.1% 80,726 80,893
30% 29.7% 60,545 60,018
20% 20.2% 40,363 40,796
10% 10.1% 20,182 20,403
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,628
Calibration 2     199,419
Calibration 3     200,396
ssj_ops@calibrated=199,907
100% 99.7% 199,907 199,367
90% 90.0% 179,916 180,006
80% 80.6% 159,926 161,161
70% 69.8% 139,935 139,536
60% 58.9% 119,944 117,816
50% 50.3% 99,954 100,498
40% 40.3% 79,963 80,508
30% 30.0% 59,972 59,949
20% 20.0% 39,981 40,077
10% 9.8% 19,991 19,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,640
Calibration 2     204,902
Calibration 3     205,183
ssj_ops@calibrated=205,043
100% 98.8% 205,043 202,568
90% 89.8% 184,538 184,075
80% 79.6% 164,034 163,296
70% 69.9% 143,530 143,359
60% 59.9% 123,026 122,864
50% 50.1% 102,521 102,769
40% 40.1% 82,017 82,166
30% 30.1% 61,513 61,652
20% 20.0% 41,009 41,077
10% 10.1% 20,504 20,703
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,511
Calibration 2     198,531
Calibration 3     199,290
ssj_ops@calibrated=198,911
100% 99.3% 198,911 197,552
90% 89.4% 179,020 177,833
80% 80.7% 159,128 160,586
70% 70.1% 139,237 139,475
60% 59.5% 119,346 118,377
50% 50.1% 99,455 99,727
40% 39.9% 79,564 79,406
30% 29.8% 59,673 59,234
20% 20.1% 39,782 39,893
10% 10.2% 19,891 20,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

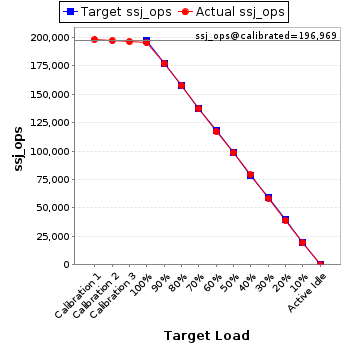

JVM 'WIN-2GUPT350RQK.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,465
Calibration 2     197,300
Calibration 3     196,638
ssj_ops@calibrated=196,969
100% 99.3% 196,969 195,543
90% 90.0% 177,272 177,281
80% 80.1% 157,575 157,782
70% 69.7% 137,878 137,366
60% 59.7% 118,181 117,501
50% 50.0% 98,485 98,421
40% 40.3% 78,788 79,329
30% 29.7% 59,091 58,544
20% 19.9% 39,394 39,241
10% 9.7% 19,697 19,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2GUPT350RQK.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,424
Calibration 2     197,726
Calibration 3     199,163
ssj_ops@calibrated=198,445
100% 99.4% 198,445 197,203
90% 90.5% 178,600 179,570
80% 79.9% 158,756 158,630
70% 70.0% 138,911 138,970
60% 60.0% 119,067 119,023
50% 50.3% 99,222 99,858
40% 40.1% 79,378 79,606
30% 30.0% 59,533 59,603
20% 19.8% 39,689 39,348
10% 10.0% 19,844 19,764
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

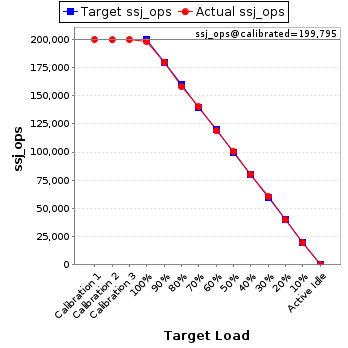

JVM 'WIN-2GUPT350RQK.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,090
Calibration 2     199,597
Calibration 3     199,994
ssj_ops@calibrated=199,795
100% 99.3% 199,795 198,337
90% 90.0% 179,816 179,728
80% 79.2% 159,836 158,312
70% 70.2% 139,857 140,288
60% 59.5% 119,877 118,949
50% 50.4% 99,898 100,750
40% 40.3% 79,918 80,451
30% 30.4% 59,939 60,672
20% 19.9% 39,959 39,661
10% 9.7% 19,980 19,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

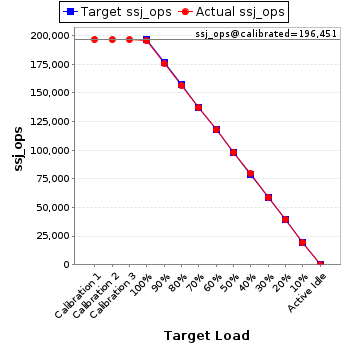

JVM 'WIN-2GUPT350RQK.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,764
Calibration 2     196,439
Calibration 3     196,462
ssj_ops@calibrated=196,451
100% 99.5% 196,451 195,434
90% 89.5% 176,806 175,904
80% 79.8% 157,161 156,748
70% 69.8% 137,516 137,144
60% 60.0% 117,870 117,837
50% 50.1% 98,225 98,331
40% 40.7% 78,580 79,951
30% 29.9% 58,935 58,701
20% 20.2% 39,290 39,606
10% 9.9% 19,645 19,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

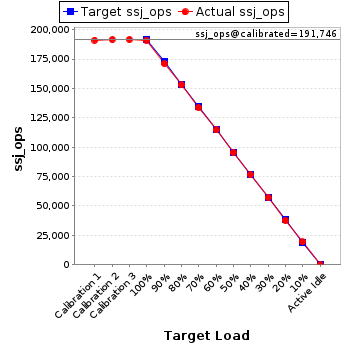

JVM 'WIN-2GUPT350RQK.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,187
Calibration 2     191,648
Calibration 3     191,844
ssj_ops@calibrated=191,746
100% 99.7% 191,746 191,173
90% 89.3% 172,572 171,220
80% 79.8% 153,397 152,920
70% 69.8% 134,222 133,820
60% 59.9% 115,048 114,776
50% 49.9% 95,873 95,631
40% 40.1% 76,698 76,822
30% 30.0% 57,524 57,449
20% 19.8% 38,349 37,915
10% 10.1% 19,175 19,323
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
