SPECpower_ssj2008

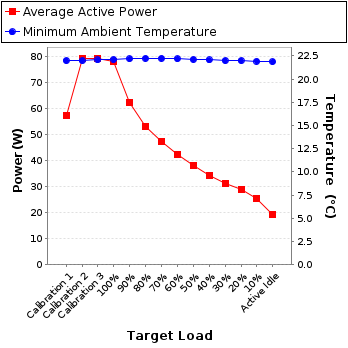

Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant ML30 Gen10 Plus | SPECpower_ssj2008 = 10,299 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 10, 2022 |
| Hardware Availability: | Mar-2022 | Software Availability: | Oct-2020 | Publication: | Mar 24, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 57.1 | 22.0 |
| Calibration 2 | 79.1 | 22.0 |
| Calibration 3 | 79.2 | 22.1 |
| 100% | 78.0 | 22.1 |
| 90% | 62.3 | 22.2 |
| 80% | 53.0 | 22.2 |
| 70% | 47.2 | 22.2 |
| 60% | 42.3 | 22.2 |
| 50% | 38.1 | 22.1 |
| 40% | 34.2 | 22.1 |
| 30% | 31.3 | 22.0 |
| 20% | 28.7 | 22.0 |
| 10% | 25.5 | 21.9 |
| Active Idle | 19.4 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22002V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-F91A5-140-1 |
| Date of Calibration: | 26-Jun-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 0.374 | 0.5 | 0.715 | 57.1 | 0.5% |
| Calibration 2 | 213 | 300.0 | 0.464 | 0.5 | 0.800 | 79.1 | 0.4% |
| Calibration 3 | 213 | 300.0 | 0.465 | 0.5 | 0.800 | 79.2 | 0.4% |
| 100% | 213 | 300.0 | 0.459 | 0.5 | 0.797 | 78.0 | 0.4% |
| 90% | 213 | 300.0 | 0.390 | 0.5 | 0.749 | 62.3 | 0.5% |
| 80% | 213 | 300.0 | 0.351 | 0.5 | 0.709 | 53.0 | 0.5% |
| 70% | 213 | 300.0 | 0.327 | 0.5 | 0.678 | 47.2 | 0.5% |
| 60% | 213 | 300.0 | 0.306 | 0.5 | 0.647 | 42.3 | 0.6% |
| 50% | 213 | 300.0 | 0.290 | 0.5 | 0.616 | 38.1 | 0.6% |
| 40% | 213 | 300.0 | 0.276 | 0.5 | 0.581 | 34.2 | 0.6% |
| 30% | 213 | 300.0 | 0.265 | 0.5 | 0.552 | 31.3 | 0.7% |
| 20% | 213 | 300.0 | 0.256 | 0.5 | 0.524 | 28.7 | 0.7% |
| 10% | 214 | 300.0 | 0.245 | 0.5 | 0.487 | 25.5 | 0.8% |
| Active Idle | 214 | 300.0 | 0.206 | 0.2 | 0.442 | 19.4 | 0.6% |
