SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus			SPECpower_ssj2008 = 19,510 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	May 8, 2021
Hardware Availability:	Mar-2022	Software Availability:	Jun-2021	Publication:	Mar 24, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL325 Gen10 Plus
Form Factor:	1U
CPU Name:	AMD EPYC 7773X 2.20 GHz
CPU Characteristics:	64-Core, 2.20 GHz, 768MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	768 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16384 MB
Memory Details:	16 GB 2Rx8 PC4-3200AA-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive:	1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP3
OS Version:	5.3.18-57-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances:	32
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	A43 v2.56 (02/10/2022)
Management Firmware Version:	2.55 Oct 01 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

BIOS Platform Configuration (RBSU):

See SUT Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version
OS tunes:

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

None

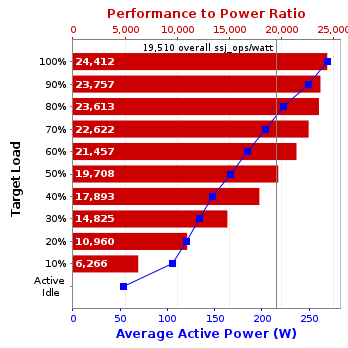

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	269	22.4
90%	249	22.3
80%	223	22.2
70%	204	22.3
60%	184	22.4
50%	167	22.5
40%	147	22.4
30%	134	22.4
20%	120	22.4
10%	105	22.4
Active Idle	53.2	22.5

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	22.2	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
