Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus SPECpower_ssj2008 = 19,629 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 25, 2022
Hardware Availability: Mar-2022 Software Availability: Jun-2021 Publication: Mar 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 516 22.3
Calibration 2 547 22.4
Calibration 3 548 22.4
100% 548 22.4
90% 507 22.4
80% 451 22.4
70% 417 22.5
60% 359 22.6
50% 328 22.6
40% 292 22.5
30% 265 22.5
20% 237 22.4
10% 207 22.4
Active Idle 101 22.5

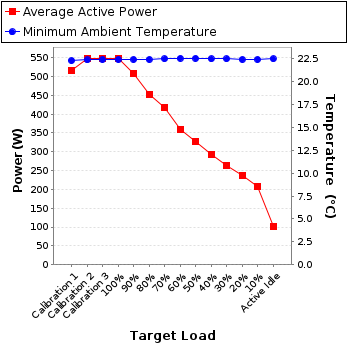

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2QM22004V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-60-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 217 300.0 2.41 5.0 0.993 516 0.4%
Calibration 2 216 300.0 2.54 5.0 0.994 547 0.4%
Calibration 3 216 300.0 2.55 5.0 0.994 548 0.4%
100% 216 300.0 2.55 5.0 0.994 548 0.4%
90% 216 300.0 2.36 5.0 0.993 507 0.4%
80% 216 300.0 2.10 5.0 0.993 451 0.5%
70% 216 300.0 1.94 5.0 0.991 417 0.5%
60% 216 300.0 1.68 5.0 0.990 359 0.5%
50% 217 300.0 1.53 5.0 0.988 328 0.6%
40% 216 300.0 1.37 2.0 0.986 292 0.3%
30% 217 300.0 1.24 2.0 0.985 265 0.4%
20% 217 300.0 1.11 2.0 0.983 237 0.4%
10% 216 300.0 0.972 2.0 0.981 207 0.4%
Active Idle 217 300.0 0.497 1.0 0.934 101 0.5%
Power details for pwr1
